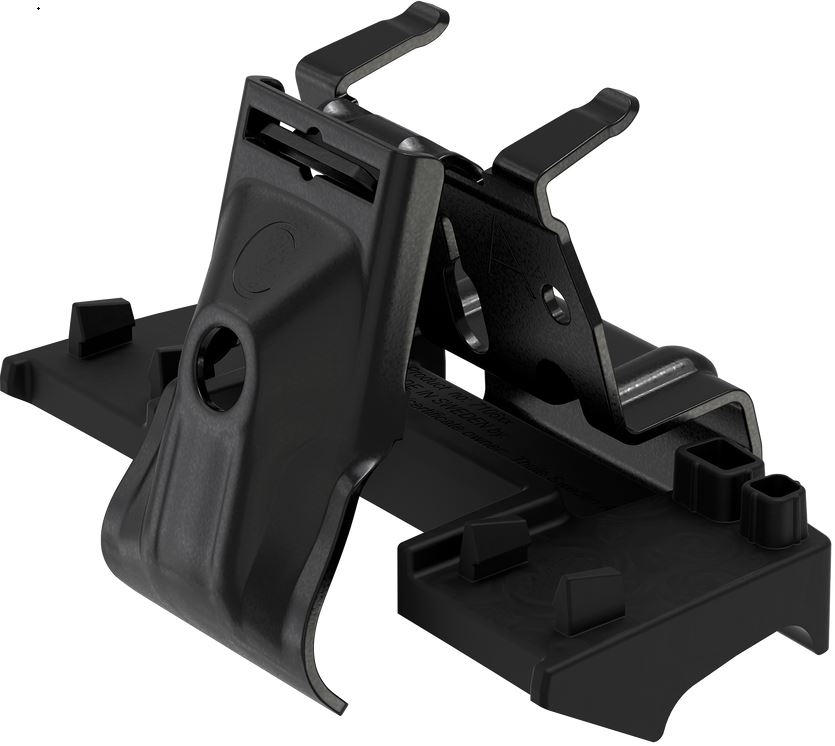

THULE Kit 186163 Montagekit Flush Rail

THULE-Kit-186163-Montagekit-Flush-Rail-PRODUCT-IMG

Product Information

  • Product Name: Kit 186163
  • Model: HAVAL Jolion, 5-dr SUV, 21-
  • Compatibility: This kit is only for vehicles with flush railings.

Product Usage Instructions

Step 1: Safety Instructions

  • Read and follow all safety instructions provided in the user manual.

Step 2: Kit Assembly

  1. Identify the components included in the kit:
    • 4 x Foot Pack
    • 1 x Spare Part 54201
  2. Follow the instructions provided in the user manual to assemble the Foot Pack using the provided screws (4 Nm torque).

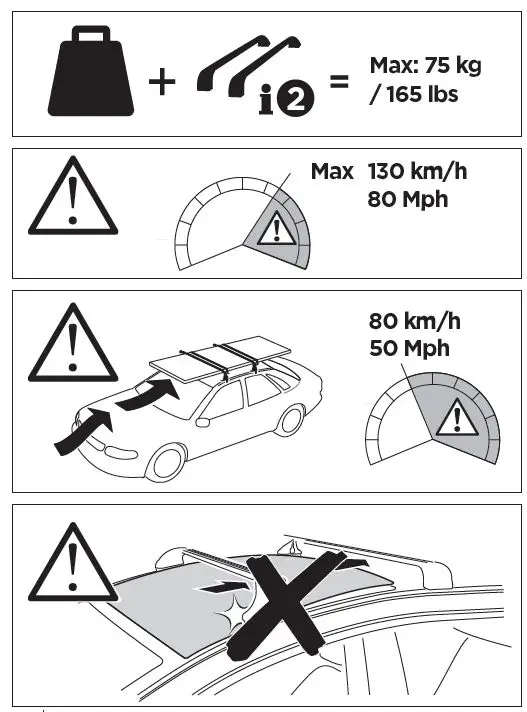

Step 3: Maximum Load Capacity

The maximum load capacity for this product is 75 kg / 165 lbs.

Step 4: Maximum Speed Limit

The maximum speed limit when using this product is 130 km/h (80 mph) for normal driving conditions and 80 km/h (50 mph) for off-road or non-paved roads.

Step 5: Installation

  1. Carefully position the assembled Foot Pack on the flush railing of your vehicle.
  2. Follow the instructions provided in the user manual to securely attach the Foot Pack to the flush railing using the provided components.

Contact Information

  • Manufacturer: Thule Sweden AB
  • Address: Borggatan 5, 335 73 Hillerstorp, SWEDEN
  • Website: www.thule.com
  • Phone: 5563056001

This kit is only for vehicles with flush railing

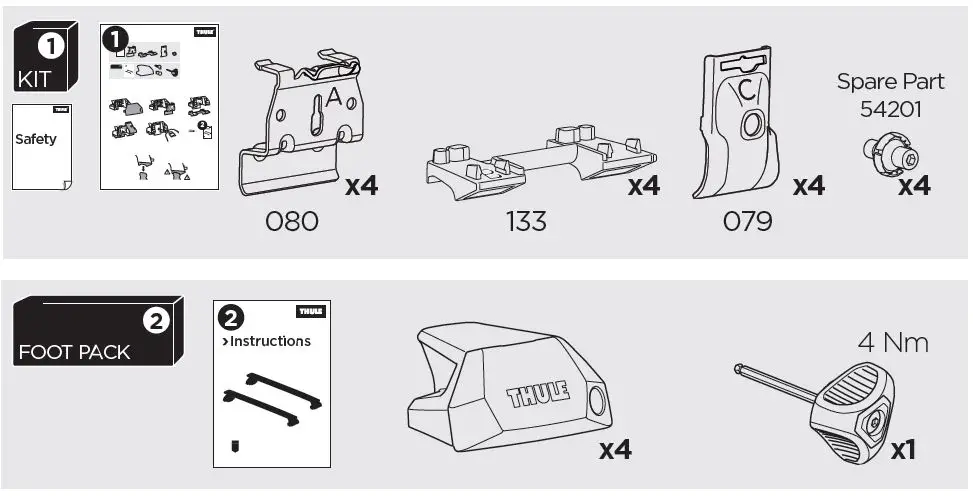

WHAT’S IN THE BOX

THULE-Kit-186163-Montagekit-Flush-Rail-FIG-1

KIT+FOOT PACK

THULE Kit 186163 Montagekit Flush Rail Instruction Manual Featured Image: No file chosen Update Post Add MediaVisualText Heading 4 H4 Close dialog Add media Actions Upload filesMedia Library Filter mediaFilter by type Uploaded to this post Filter by date All dates Search Media list Showing 8 of 8 media items UPLOADING 4 / 8 – THULE-Kit-186163-Montagekit-Flush-Rail-FIG-3.JPG ATTACHMENT DETAILS THULE-Kit-186163-Montagekit-Flush-Rail-FIG-2.jpg July 25, 2023 43 KB 1019 by 370 pixels Edit Image Delete permanently Alt Text Learn how to describe the purpose of the image(opens in a new tab). Leave empty if the image is purely decorative.Title THULE-Kit-186163-Montagekit-Flush-Rail-FIG-2 Caption Description File URL: https://manualsbot.com/wp-content/uploads/2024/05/THULE-Kit-186163-Montagekit-Flush-Rail-FIG-2.jpg Copy URL to clipboard ATTACHMENT DISPLAY SETTINGS Alignment Center Link To None Size Full Size – 1019 × 370 Selected media actions 1 item selected Clear Insert into post No file chosen

THULE-Kit-186163-Montagekit-Flush-Rail-FIG-3

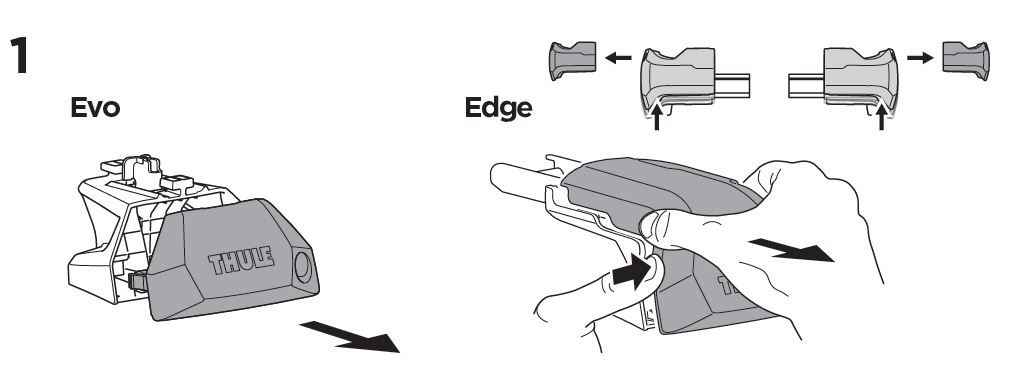

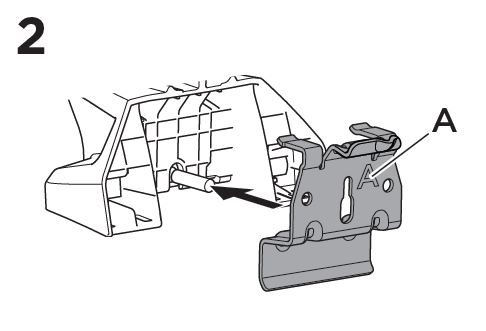

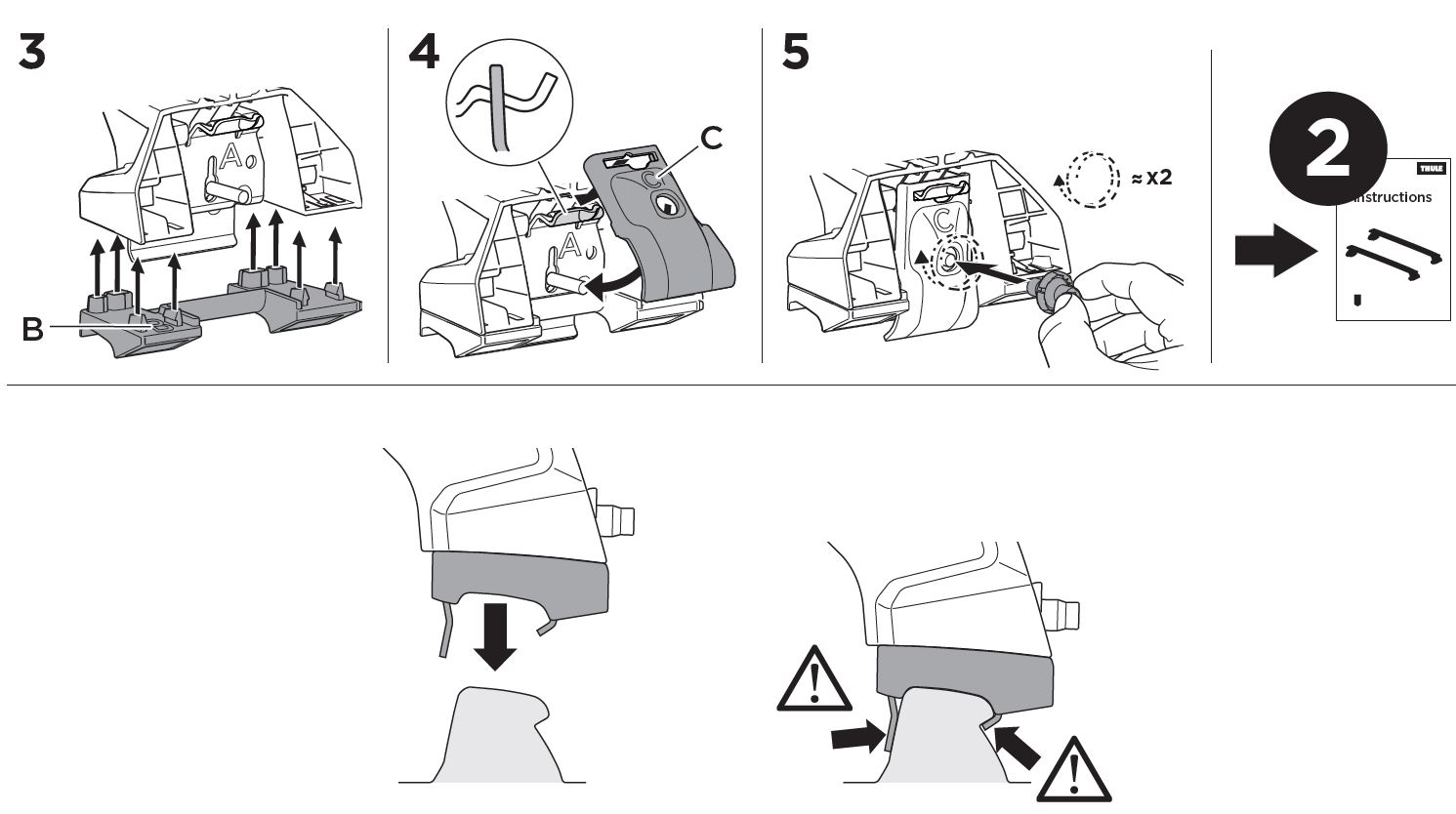

Installation Instructions

THULE-Kit-186163-Montagekit-Flush-Rail-FIG-4 THULE-Kit-186163-Montagekit-Flush-Rail-FIG-5

Thule Sweden AB, Borggatan 5
