THULE 301990 4200 Adapter PSA Mini Van Instructions

Contents

Brand	Model	Year	Adapter	Awning
Opel	SpaceTourer L2H1 LHD	2016 – …	301990	T4200 – 2.60m
Opel	SpaceTourer L2H1 RHD	2019 – …	301991	T4200 – 2.60m

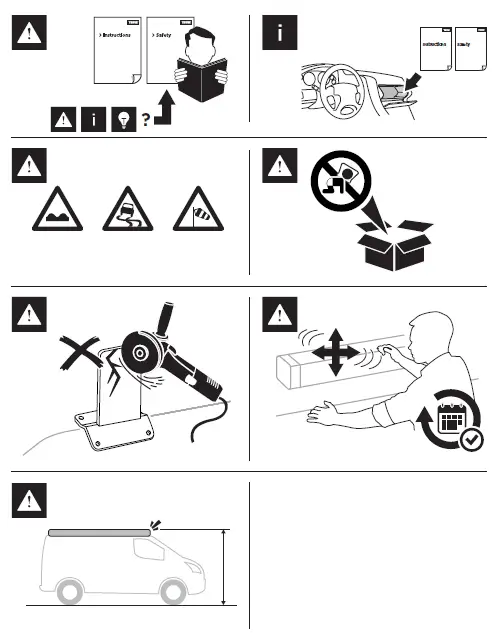

Ensure that you have all the necessary tools and components listed in the user manual.
Identify whether your vehicle is left hand drive (LHD) or right hand drive (RHD) according to the provided model information.

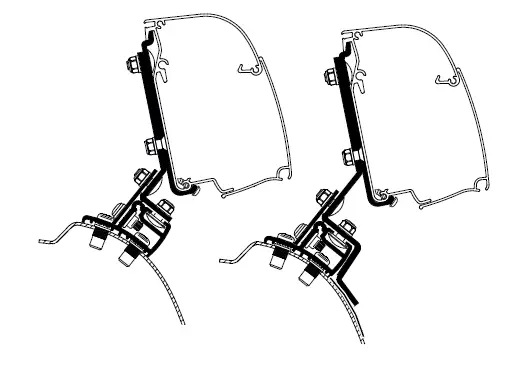

For LHD vehicles, install the adapter components as follows:

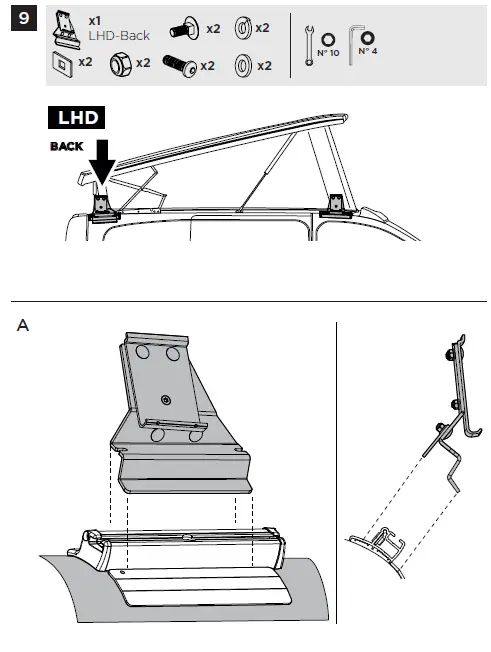

1. Attach the LHD-Back adapter to the back of the vehicle using the provided screws and bolts.

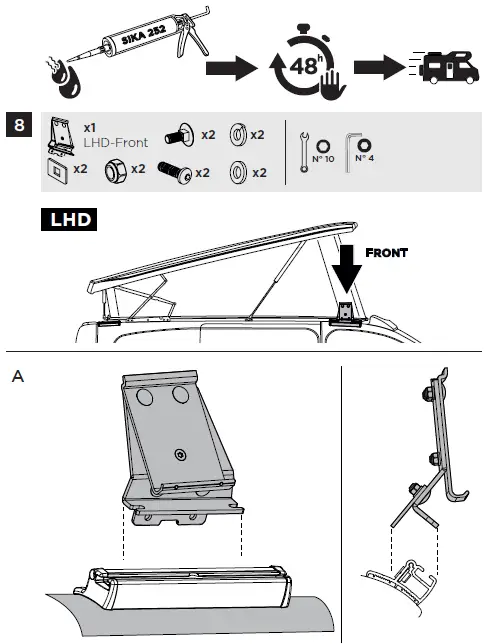

2. Attach the LHD-Front adapter to the front of the vehicle using the provided screws and bolts.

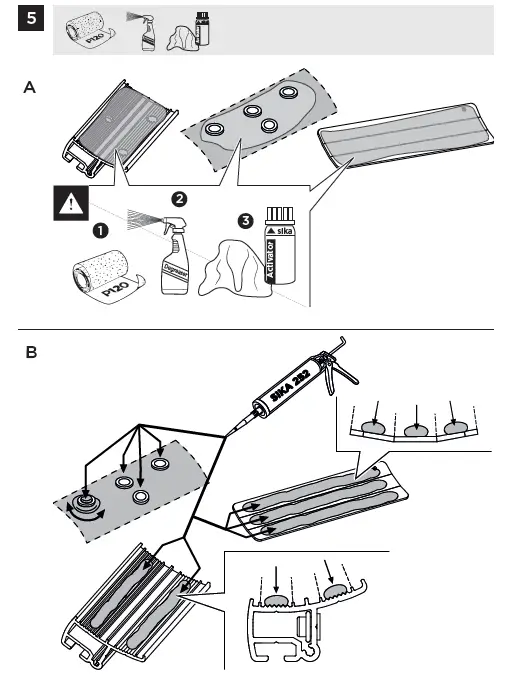

3. Apply the Activator and Anti-Corrosion treatment to the necessary areas as specified in the user manual.
For RHD vehicles, install the adapter components as follows:
1. Attach the RHD-Front adapter to the front of the vehicle using the provided screws and bolts.
2. Attach the RHD-Back adapter to the back of the vehicle using the provided screws and bolts.
3. Apply the Activator and Anti-Corrosion treatment to the necessary areas as specified in the user manual.

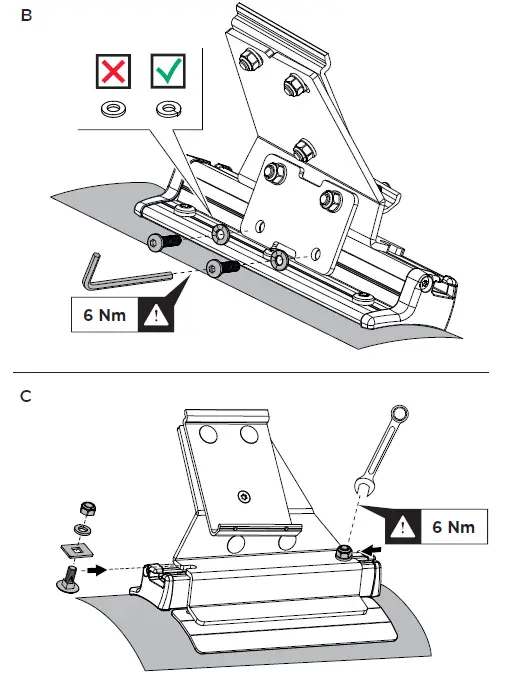

Ensure that all components are securely attached and tightened according to the specified torque values in the user manual.
