ISO 11154-E
THULE.COM
Kit 145272
HYUNDAI i10, 5-dr Hatchback, 20-

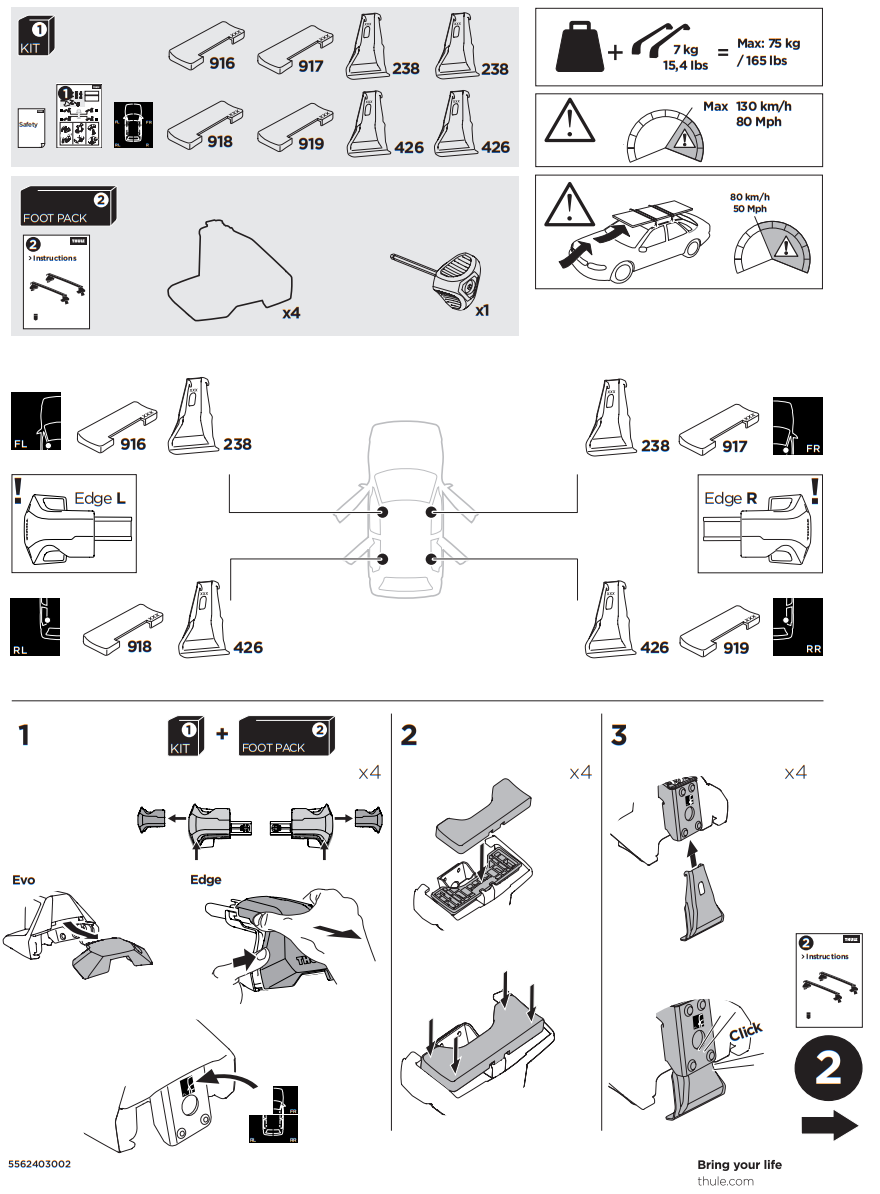

145272 Roof Rack Fit Kit
 |

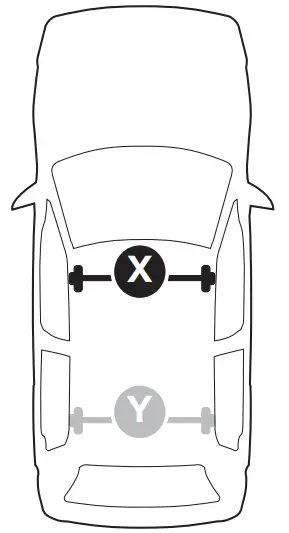

Evo X (scale) | Edge X (scale) |
| HYUNDAI i10, 5-dr Hatchback, 20- | 37 | E |
 |
X (mm/inch) |
| HYUNDAI i10, 5-dr Hatchback, 20- | 1021 mm / 401 /4“ |
 |

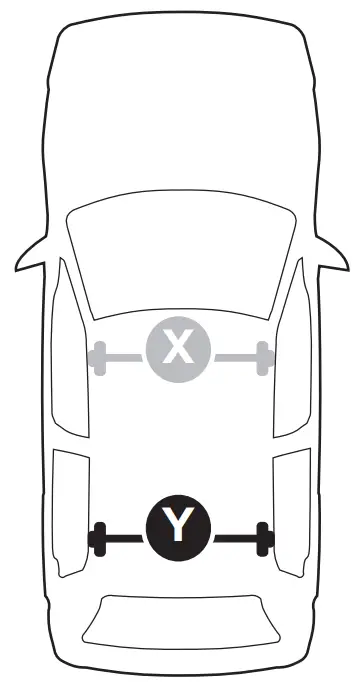

Evo Y (scale) | Edge Y (scale) |
| HYUNDAI i10, 5-dr Hatchback, 20- | 33,5 | L |
 |
X (mm/inch) |
| HYUNDAI i10, 5-dr Hatchback, 20- | 986 mm / 38 7 /8“ |

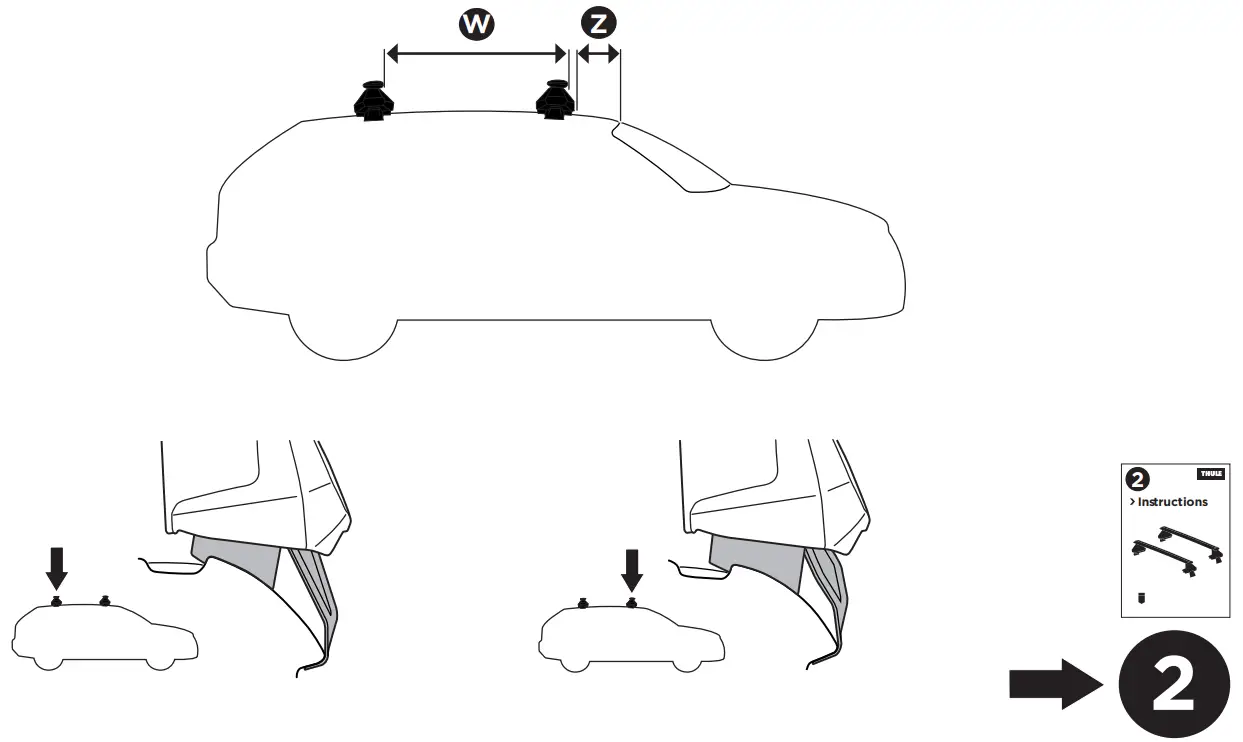

| W (mm/inch) | Z (mm/inch) | |
| HYUNDAI i10, 5-dr Hatchback, 20- | 00 mm / 27 1 /2“ | 240 mm / 9 1 /2“ |
Thule Sweden AB, Borggatan 5
335 73 Hillerstorp, SWEDEN
[email protected]
© Thule Group 2022. All rights reserved.
www.thule.com
5562403002
