thermaltake View 270 TG ARGB Mid Tower Chassis User Manual

View 270 TG ARGB
User’s Manual

Contents

Specification

Case Type	Mid Tower
Dimension (HWD)	456 x 230 x 454 mm (18 x 9.1 x 17.9 inch)
Panel	Tempered Glass x 2
Material	SPCC
Cooling System	Right (intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear (exhaust):120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1
Drive Bays	2 x 3.5”, 1 x 2.5” or 2 x 2.5”
Expansion Slots	7
Motherboards	6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX)
I/O Port	USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
PSU	Standard PS2 PSU (optional)
Fan Support	Top	3 x 120 mm, 2 x 120 mm, 1 x 120 mm	2 x 140 mm, 1 x 140 mm
	Right (M/B Side)	2 x 120 mm, 1 x 120 mm
	Rear	1 x 120 mm	1 x 140 mm
	Power Cover	3 x 120 mm, 2 x 120 mm, 1 x 120 mm
Radiator Support	Top	1 x 360 mm, 1 x 240 mm, 1 x 120 mm
	Rear	1 x 120 mm
Clearances	CPU cooler max height	180 mm
	VGA max length	420 mm

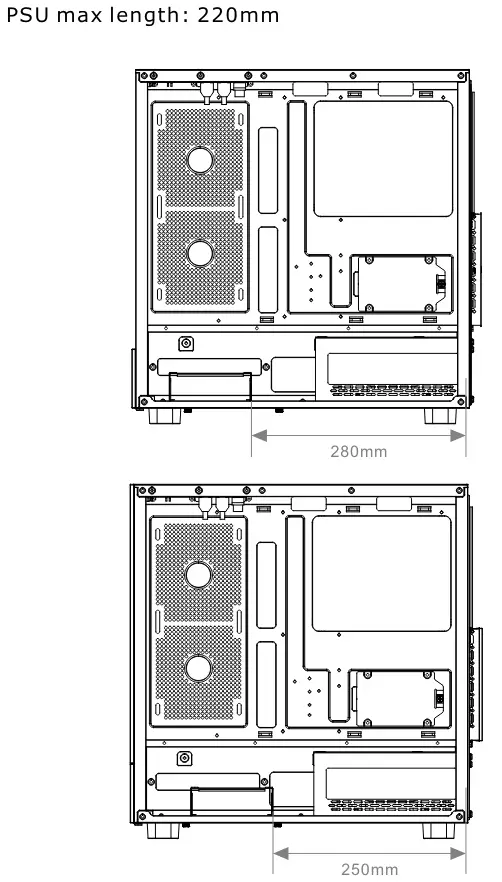

	PSU max length	220 mm

Accessory

Figure	Parts Name	Q’ty	Used for
	Stand-off #6-32 x 6.5mm	3	Motherboard
	Stand #6-32 x 6mm	10	Power Supply / VGA Card
	Screw M3 x 5mm	23	3.5” HDD
	Screw #6-32 x 5mm	8	Motherboard / 2.5” HDD / SSD
	Stand-off tool	1	Motherboard Stand-off Installation
	Screw #6-32 x 28mm	12	Case Fan
	Wipe cloth	1	Tempered glass
	Zip Ties	10	Cable Management
	Buzze	1	Motherboard Alarm
	Clip	2	Side Panel

Warning and Notice

Chassis dimension

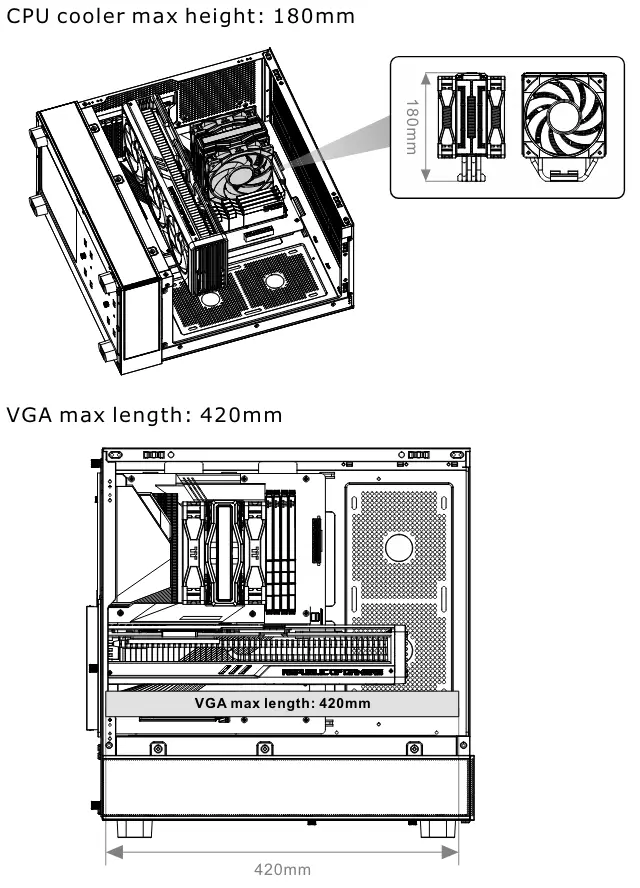

CPU cooler max height: 180mm

Remove Panels

PSU Installation

Motherboard Installation

3.5” & 2.5” HDD Installation

3.5” & 2.5” HDD Installation

VGA Card Installation

Air Cooling Installation

AIO Liquid Cooling Installation

I/O Connection

Remove Filters

ARGB Control Instruction

TT Premium

TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast. https://ttpremium.com

Tt LCS-Liquid Cooling Support Certification

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
