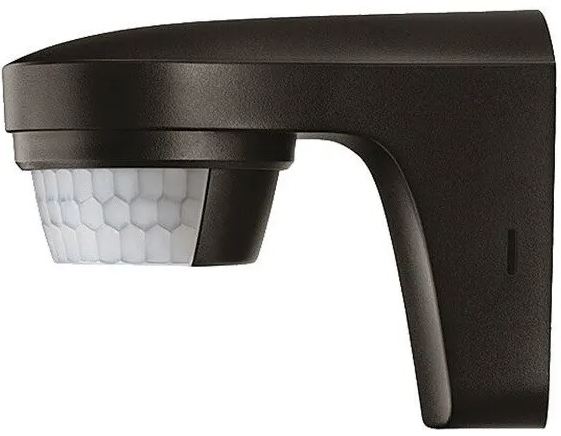

theben S360 Cheap Wall Motion Detector Instruction Manual

theben S360 Cheap Wall Motion Detector

General information

• Presence detector for interior ceiling installa-tion, e.g. offices, walkways, staircases, corridors, storage rooms, basements and toilets
• It conforms with the EMC directive 2014/30/EC

CAUTION

• Installation should only be carried out by a professional electrician!
• Note detailed operating manual on the internet!

Technical data

• Operating voltage: Bus voltage KNX, max. 30 V
• Power consumption: max. 9 mA/13 mA with LED
• Recommended installation height: 2–3 m/approx. 4 m
• Light measurement: approx. 10 – 3000 Lux
• Protection rating: IP 20 (IP 54 installed)
• Operating temperature: –15 °C … +50 °C

Further information: https://qr.theben.de/p/2089560en

Designated use

• Suitable for automatic lighting control

Installation

• Detector requires clear line of sight to people
• Minimum height > 1.7 m
• Installation in false ceilings
• Ceiling cut-out: Ø 62 – 70 mm
• Protection rating IP 54 is only met at the front (side of the lens) and requires a smooth ceiling surface.

Setting

Settings are made via ETS

• The programming mode can be set by using button (a) or theSenda B/App or theSenda P remote control
  The operating status is displayed via an LED:
  • Start-up phase: LED flashes for 30 s
  • Operation: LED off, detector is ready for operation
  • Error: LED flashes rapidly
  • Programming mode: LED is constantly lit

Dimension

The ETS database is available at www.theben.de.
Please refer to the KNX manual for detailed function descriptions.
