Inch Rectangular Black Wood Surface Mount Medicine Cabinet
Installation Guide
Contents
21 Inch Rectangular Black Wood Surface Mount Medicine Cabinet
*****IMPORTANT NOTICE*****
We will guarantee all customer benefit. The products we ship out are brand new. Please check carefully before installation, compare all parts with the parts listed in the package contents section. If any part appears missing or damaged, do not install. Contact customer service by E-mail: [email protected] Send us the pictures or video, we promise will response to you with 24 hours. We will decide send you spare parts or deliver a replacement by free.
WARNING AND SAFETY INSTRUCTIONS
Before assembling your LED Lighted Mirror fixture, please make sure that you carefully read through this instruction sheet, refer back to them during installation to ensure your product is fitted safely and correctly. Keep these instructions for future use.
WARNING Risk of Fire and Electric Shock
- All fittings must be installed in accordance with current IEE wiring regulations. If in doubt, consult a qualified electrician.
- Switch off the electrical supply at the main circuit board BEFORE installation and maintenance.
- Suitable for indoor use only. This product should be positioned well away from curtains and fabrics. Never cover the mirror.
- Regularly check the cord, the transformer and all other parts for damage. If any part is dam-aged the product should not be used.
INSTALLATION SAFETY
- Inspect the product immediately upon receipt for the transit damage or missing parts. Handle the product with care and protect against knocks to all sides and edges of the glass.
- Ensure there are no hidden pipes or cables in the wall before drilling.
- Wear suitable eye protection when drilling. Take care if drilling on tiled surfaces in case the drill slips.
CAUTION The light source of this product is non-changeable light diodes (LED). Do not disassemble the product, as the light diodes can cause damage to the eyes.
NOTE: The important safeguards and instructions that appear in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care, are factors that can’ t be built into any product. These factors must be supplied by the person(s) caring for and operating the fixture. Do not install this fixture in hazardous location.
TOOLS REQUIED
HARDWARE LIST
| ITEM | REFERENCE IMAGE | NAME | QTY |
| 1 |  |
Screw ST4*35 | 4 |
| 2 |  |
Wall Anchor | 4 |
| 3 |  |
Gasket | 4 |
| 4 |  |
Nut | 4 |
Step 1
Use the tape measure to survey the high, and draw the horizontal line and the verbal line of the wash-basin.
Step 2
Make the bottom parallels with the horizontal line, then mark 4 holes’ place with tape measure .
Step 3
Drill the hole and inject the green rubber pellets
Step4
Drive in the screw cross the Gasket.
Step6
Screw in the nut.
Step7

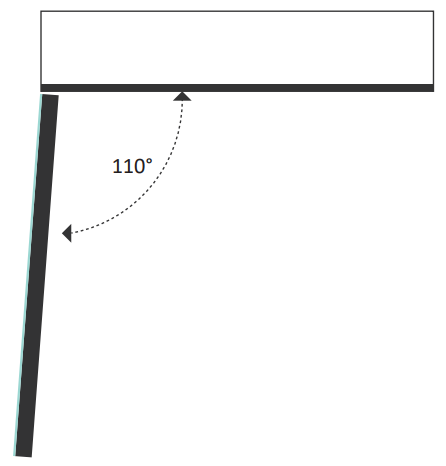

The opening of the mirror cabinet door is 110°
Step8
After power on, the button shows blue and it is in waiting state
lick to turn on the defogging function and the button turn to white Click again to turn off the defogging function and the button turn to blue
Step9
After power on, the button shows blue and it is in warning state.
This is the LED switch. Our light is white light
