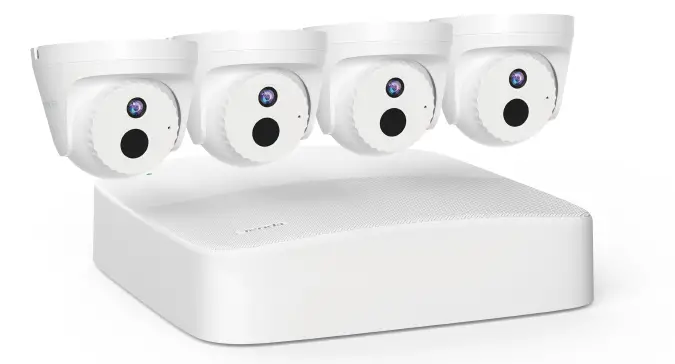

Tenda K4P-4CR Video PoE Security Kit
The K4P-4CR 4 Channel PoE HD Video Security Kit is a comprehensive video surveillance solution suitable for small video surveillance scenarios such as single-family houses, shops, restaurants, offices, schools, factories, and farms. It includes 1 PoE NVR (Network Video Recorder) and 4 PoE conch security cameras. The kit offers plug and play functionality, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD bad sector isolation, channel cloud storage, and App remote monitoring.
Product Features:
- Complete Accessories:
The kit comes with all the necessary accessories to build a small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience. - PoE Power Supply:
The kit supports IEEE802.3af standard PoE (Power over Ethernet) for safe and stable internet connection and power supply. It also features Sifos testing and power overload protection. The plug and play functionality ensures easy setup. - 4MP HD Image Quality:
The security cameras are equipped with a 4MP high-performance CMOS image sensor, providing a resolution of 2560*1440. The cameras also feature 30-meter infrared night vision, enabling high-definition recording even in dark environments or ultra-long distances. - 4K Output:
The NVR supports 4K HDMI output with an ultra-high-definition resolution of 3840*2160. This ensures clear images with more details, even when zoomed. - HDD Bad Sector Isolation:
The NVR’s file system is specially designed for video surveillance. It can automatically detect, identify, and skip bad sectors on the HDD (Hard Disk Drive), ensuring complete recording without losing frames. This feature provides safe, stable, and reliable storage. - AI Human Detection:
Using deep learning image identification technology, the NVR has a built-in AI human detection function that effectively filters non-human targets. This greatly improves alarm accuracy. - Channel Cloud Storage:
The video security kit supports 10TB large-capacity HDD access to meet long-term recording storage requirements. Additionally, with HDD and cloud storage options, the data is safe and not lost. - Remote Monitoring:
The video security kit supports TDSEE App remote monitoring and browser access without the need for plug-ins. Users can view and playback videos, receive alarm messages, and control abnormal conditions on their mobile phones anytime and anywhere.
Product Specifications:

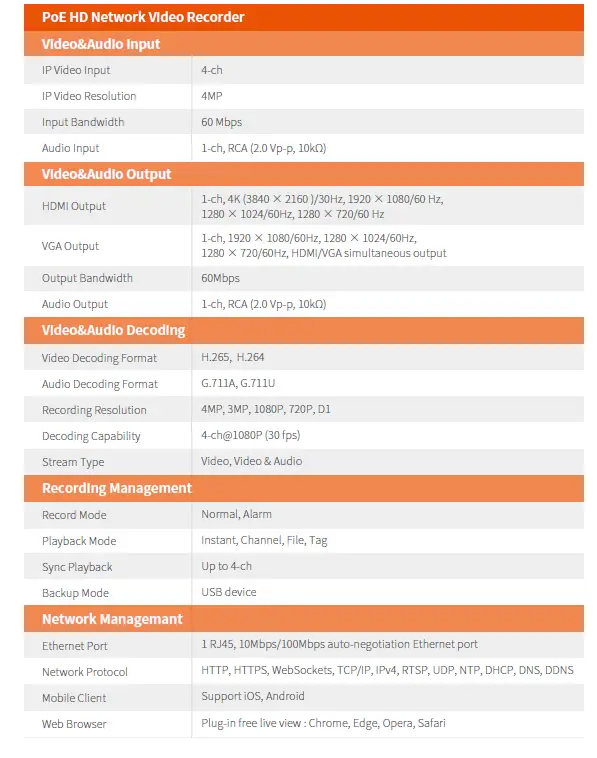

| PoE HD Network Video Recorder | ||
|---|---|---|
| Video&Audio Input | IP Video Input | 4-ch |
| IP Video Resolution | 4MP | |
| Input Bandwidth | 60 Mbps | |
| Audio Input | 1-ch, RCA (2.0 Vp-p, 10k) | |
| Video&Audio Output | HDMI Output | VGA Output |
| Output Bandwidth | 60 Mbps | |
| Audio Output | 1-ch, RCA (2.0 Vp-p, 10k) | |
| Video&Audio Decoding | Video Decoding Format | H.265, H.264 |
| Audio Decoding Format | G.711A, G.711U | |
| Recording Resolution | 4MP, 3MP, 1080P, 720P, D1 | |
| Decoding Capability | 4-ch@1080P (30 fps) | |
| Stream Type | Video, Video & Audio | |
| Recording Management | Record Mode | Normal, Alarm |
| Playback Mode | Instant, Channel, File, Tag | |
| Sync Playback | Up to 4-ch | |
| Backup Mode | USB device | |
| Network Management | Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
Product Description
4 Channel PoE HD Video Security Kit K4P-4CR includes 1 PoE NVR and 4 PoE conch security cameras. It integrates such functions as plug and play, 4MP HD image quality, infrared night vision, AI human detection, H.265 high-performance video decoding, HDD bad sector isolation, channel cloud storage and App remote monitoring. It offers one-stop solutions for small video surveillance in such scenarios as single-family houses, shops, restaurants, offices, chools, factories and farms.
Product Features
Complete Accessories
The common accessories are included in the kit for building small surveillance system. The official collocation is compatible and barrier-free, offering a convenient one-stop shopping experience
PoE Power Supply
IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply.
4MP HD Image Quality
Equipped with 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 30-meter infrared night vision enables you to record with high-definition even in a dark environment or an ultra-long distance.
4K Output
4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed.
HDD Bad Sector Isolation
The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuring that the recording is complete without losing frames. It is safe, stable and reliable
AI Human Detection
Based on deep learning image identification technology, and built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy.
Channel Cloud Storage
The video security kit supports 10TB large-capacity HDD access to meet long-term recording storage requirements. With HDD and cloud, the data is safe and not lost.
Remote Monitoring
The video security kit supports TDSEE App remote monitoring and browser access without a plug-in. You can view and paly back videos, receive alarm messages and control abnormal conditions on your mobile phone anytime and anywhere.
Product Specifications
PoE HD Network Video Recorder
| PoE | |
| PoE Port | 4 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports |
| PoE Standard | IEEE 802.3af |
| PoE Power | ≤40W |
| HDD Storage | |
| HDD Interface | 1 SATA 3.0 interface |
| Capacity | Up to 10 TB capacity for each HDD |
| External Interface | |
| USB Port | 2 x USB 2.0 |
| General | |
| Power | 51 VDC, 1.25 A |
| Dimension | 200 mm × 200 mm × 48 mm |
| Weight (Without HDD) | 510g (1.12lb) |
| Certification | CCC, CE, FCC, RoHS, UKCA |
| Installation Method | Desktop mounting, Wall mounting |
| Temperature | OStpoerraagteintgemtepmepraetruarteu:re-3: 00°°CC — 7400°°CC ((-3222°°FF–110548°°FF)) |
| Humidity | OStpoerraagteinhguhmuimdiitdyi:t5y:%10- %95-%90R%H (RnHon(n-coonn-cdoenndseinngs)ing) |

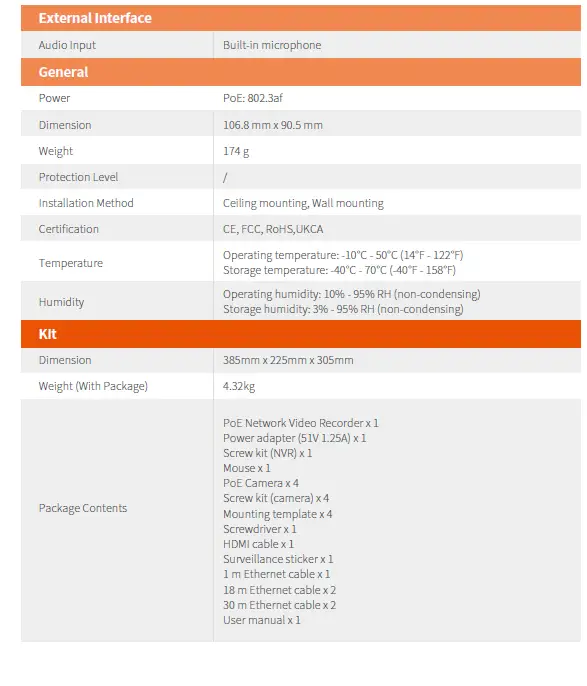

PoE Security Camera
| PoE Security Camera | |
| Camera | |
| Image Sensor | 1/3”CMOS sensor |
| Max. Resolution | 2560 x 1440 |
| Day and Night | Built-in IR-CUT Dual Filters |
| Digital Noise Reduction | 3D DNR |
| DWDR | Support |
| Backlight Compensation | Support |
| Fill Light | 1 IR Light |
| Infrared Fill Light Distance | Up to 30 meters (depending on environment) |
| Night Vision Mode | Infrared Mode |
| Lens Specifications | |
| Lens Type | 4 [email protected] |
| FOV | Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2° |
| Video Specifications | |
| Video Encoding Format | H.265, H.264 |
| Main Stream | 25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080) |
| Sub Stream | 25fps (640 × 360, 352 × 288, 320 × 240) |
| Audio Specifications | |
| Audio Encoding Format | G.711A, G.711U |
| Audio Sampling Rate | 8 kHz |
| Network Managemant | |
| Ethernet Port | 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
| Smart Alarm | |
| Motion Detection | Support |
| Human Detection | Support |
| Video Tampering | Support |
Tenda Technology Bldg.Int’ l E-City,
#1001 Zhong Shan Yuan Rd., Nanshan District, Shenzhen China.
E-mail:[email protected]
Tel:+86-755-2765 7098
Fax:+86-755-2765 7178
K4P-4CR 4 Channel PoE HD Video Security Kit
Specifications are subject to change without notice.Copyright ©2022 SHENZHEN TENDA TECHNOLOGY CO.,LTD. All rights reserved. Tenda is the trademark of SHENZHEN TENDA TECHNOLOGY CO.,LTD. All other brand names mentioned herein are the trademark or registered trademarks of their respective holders.
