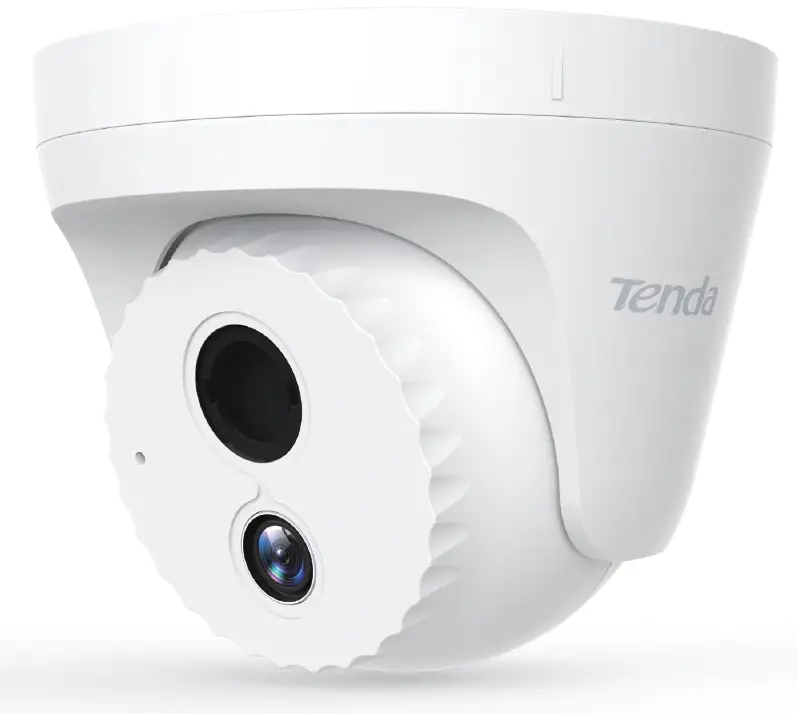

Tenda IC7-PRS-4 PoE Conch Security Camera
Product Description
4MP PoE Conch Security Camera IC7-PRS is a high-performance 4MP (2560×1440) engineering camera that integrates such functions as infrared night vision, motion detection, remote audio pickup and PoE. It is commonly used in factories, courtyards, shops, buildings, and some SMB projects where contractors can use their mobile phones for remote real-time monitoring.
Selling Points

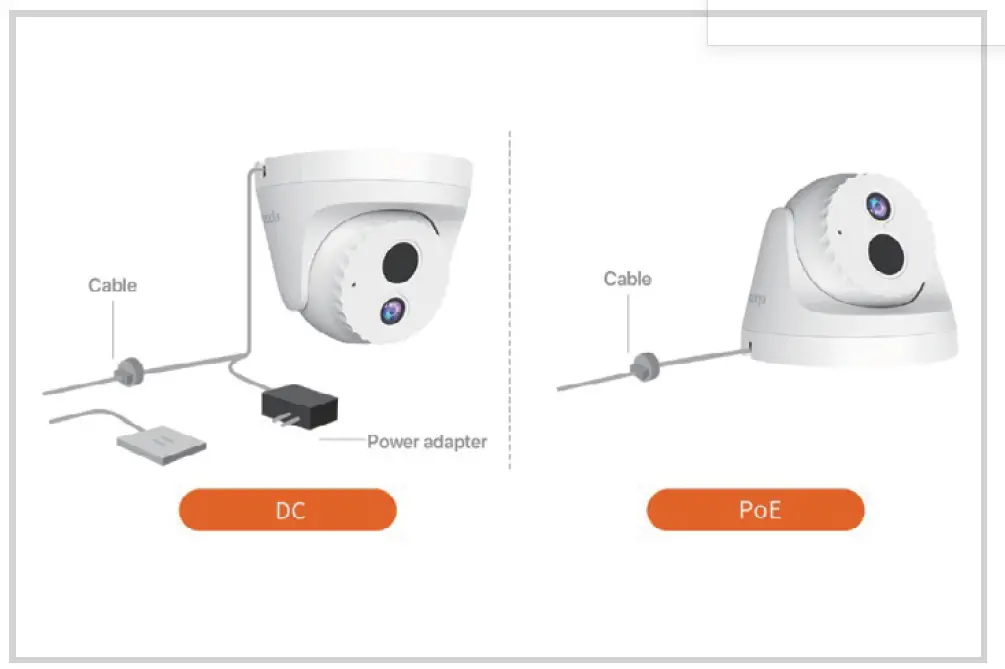

Many Advantages With Standard PoE Power Supply
Convenient: The wiring is simplified with the Ethernet cable and power cable integrated in one.
Safe: Weak power construction greatly improves safety.
Economic: Requires no power cable, power adapter or power outlet accessories. Steady: Simple accessories makes the line more stable and troubleshooting easier.

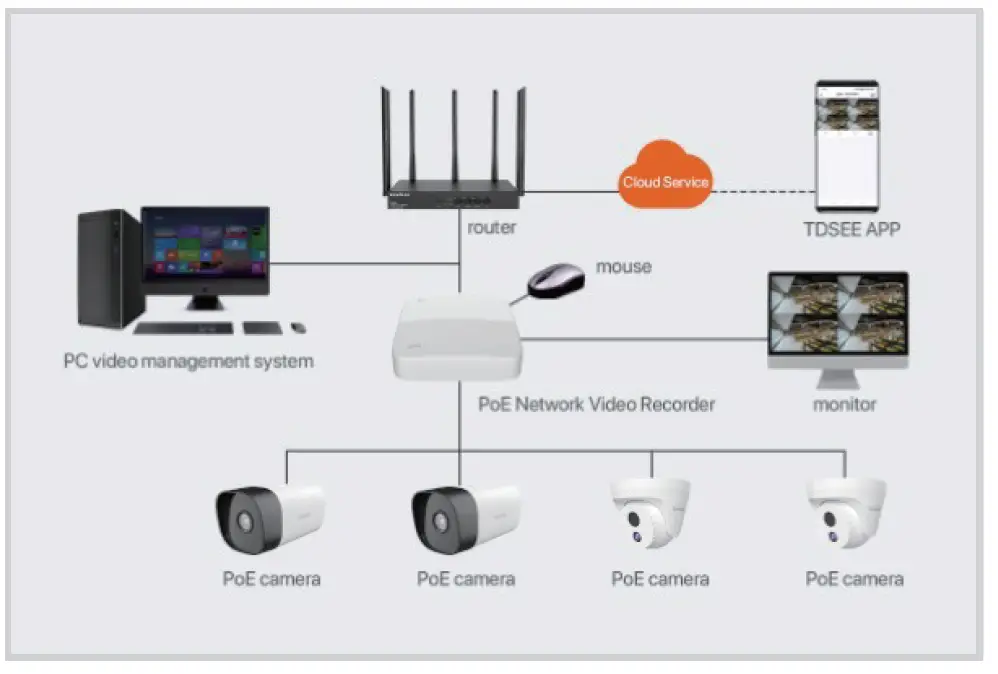

Connect To the PoE Network Video Recorder (NVR) for Small Networking
For such small monitoring scenarios as small shops and restaurants. Monitoring requirements can be met by simply connecting the camera to the PoE NVR.

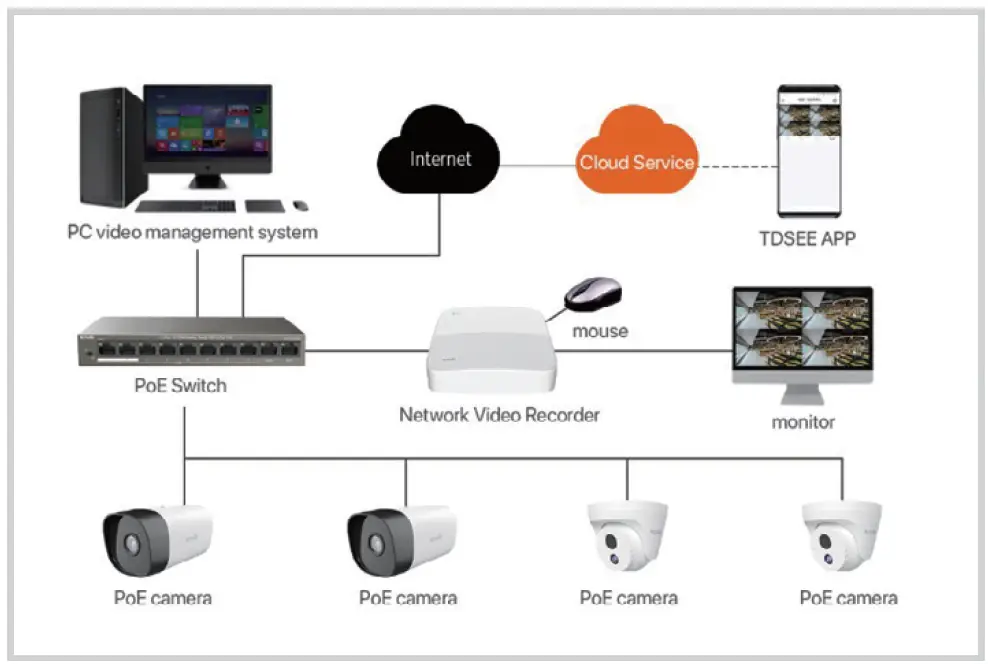

Connect To the PoE Switch for Medium and Large Networking
For such medium and large monitoring scenarios as markets, industrial zones and car parks, you can connect the camera to the PoE switch for networking.
Clear monitoring details from 4MP UHD images
Equipped with a high-performance CMOS image sensor, the camera can display 4MP UHD images (2560*1440) with more monitoring details.

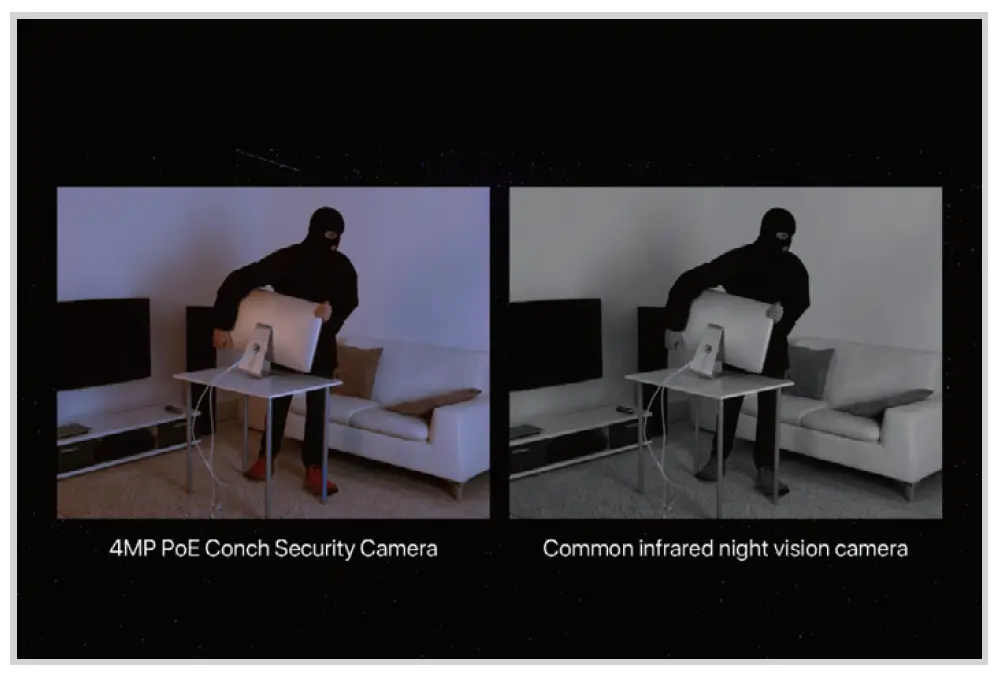

Starlight Night Vision with Good Low-light Performance at The Price of Infrared Night Vision
With starlight night vision offered by the wide-aperture lens and highly sensitive sensor, the camera is more light-sensitive than common cameras and can display finer images than common infrared cameras.

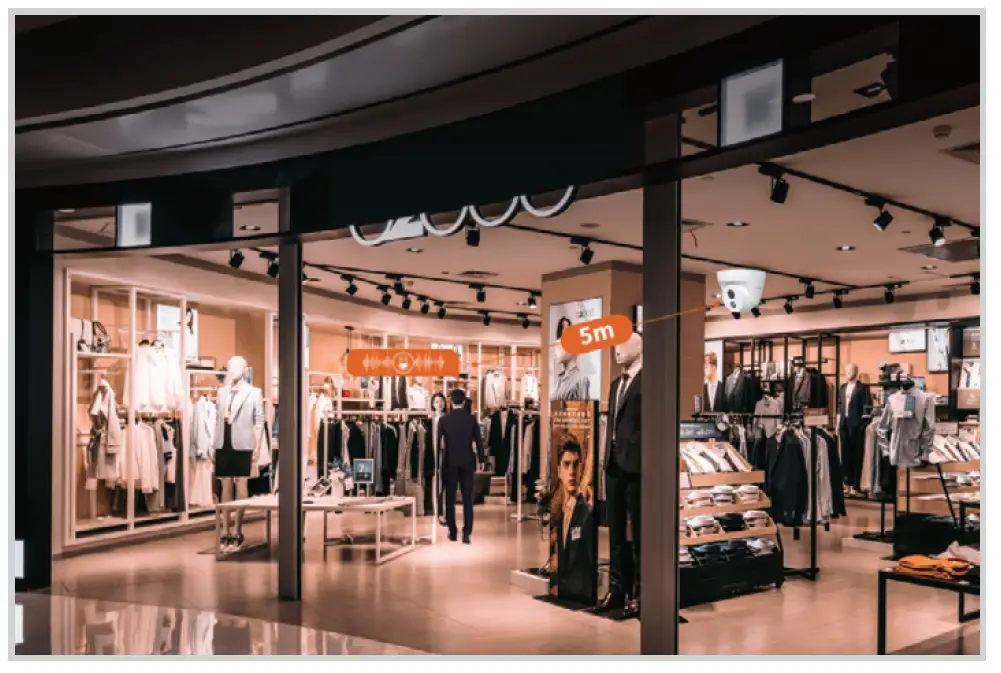

Audio Pickup Over 5 m, Sync Audio and Video
With an inbuilt highly sensitive microphone which supports remote audio pickup over 5 m, the camera can sync audio and video.

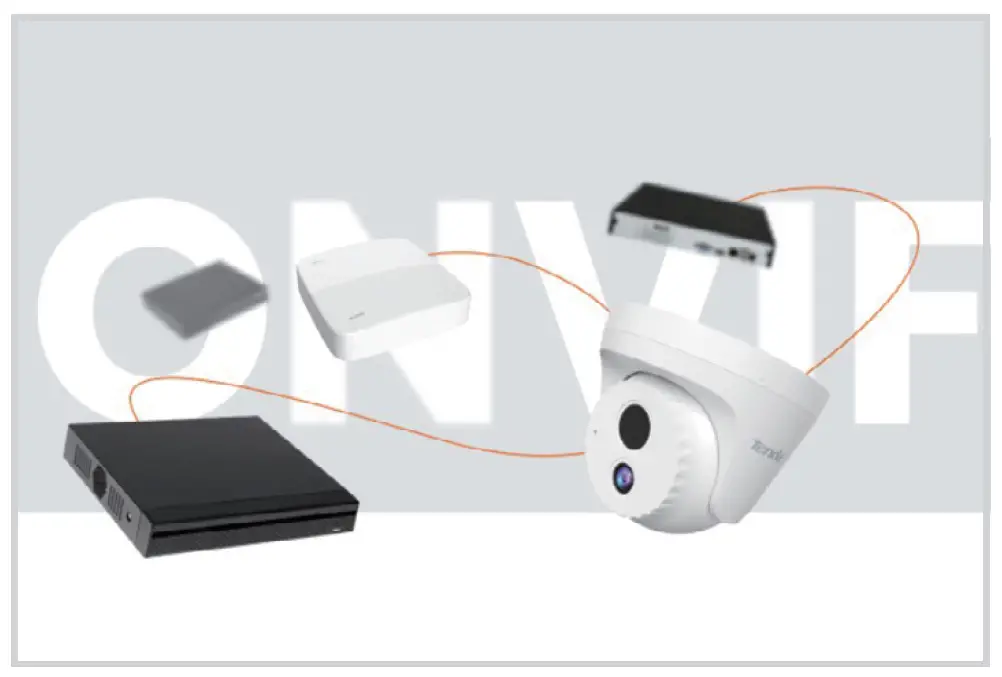

Compatible With NVRs of Other Brands With ONVIF Supported
It can be used with mainstream NVRs in the market, featuring high compatibility.

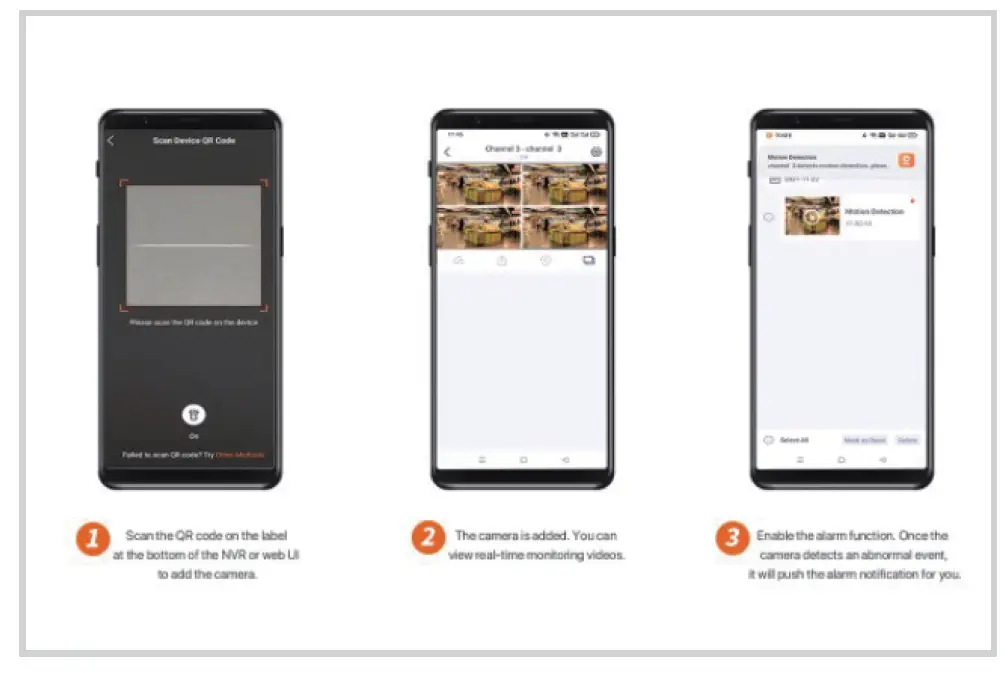

Remote Control for Light of Heart
The camera supports remote control on the app to view real-time monitoring. Once the camera detects an abnormal event, it will push the alarm notification remotely.
H.265 Coding Technology for Smooth Video and Efficient Data Storage
Compared with H.264, the new-generation H.265 saves 50% in video data size, which further smoothes the videos with bandwidth saved and saves the data storage space.
Suitable for a variety of indoor monitoring scenarios

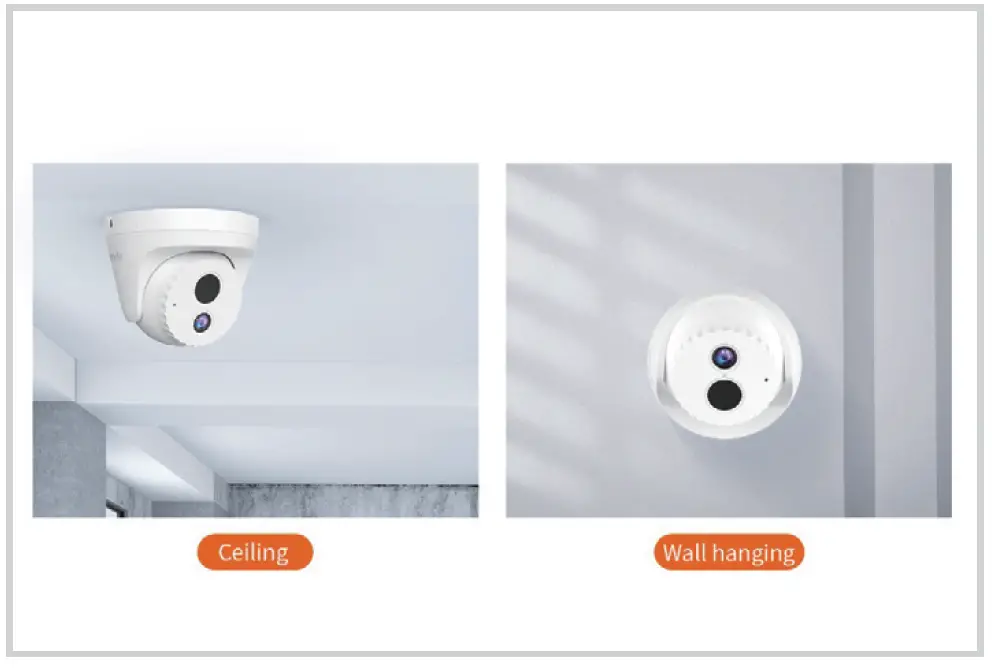

Wall-mounting/Ceiling-mounting
The camera can be either wall-mounted or ceiling-mounted, quite flexible and convenient.
Specification
| Hardware Specifications | |
| Ports | PEtohweernr:eDt:C11*2RVJ415A100M Ethernet port on tail line |
| Lens | [email protected]/[email protected] |
| Product Size | 106.8mm*90.5mm |
| Video Specifications | |
| Resolution | 2560*1440 |
| Coding standard | H.265/H.264 |
| Day and Night Shift Mode | Built-in IR-CUT double filter |
| Noise Reduction | 3D digital noise reduction |
| DWDR | Support |
| Backlight Compensation | Support |
| ROI | Support |
| Others | |
| Smart Alarm | Motion detection&Human detection&Customized area detection |
| Audio | Built-in microphone |
| Network protocol | RTSP/HTTP/DHCP/DDNS/NTP/ONVIF |
| Internet Network protocol | IPV4 |
| Add device method | Wired |
| Infrared Night Vision Distance | 30 Meters |
| Temperature | OStpoerraagteintgemtepmepraetruarteu:re-4: 0-1℃0℃tot+o7+0℃50℃ |
| Humidity | OStpoerraagteinhguhmuimdiitdyi:ty3:%10~%95-9%5R%HR(Hno(nno-cno-cnodnednesninsgin)g) |
| Certification | CE, FCC, RoHS |
| Package Contents | |
