Installation Instructions
Contents
Parts List
Prepare the door and check dimensions
 |
 |
| Measure to confirm that the hole in the door is 1 2-1/8″(54mm). | Measure to confirm that the backset is either 2-3/8” or 2-3/4”(60 or 70mm). |
 |
 |
| Measure to confirm that the hole in the door is 1”(25mm). | Measure to confirm that door thickness is between 1-3/8” and 2” (35mm to 50mm). |
Choose faceplate
Is the slotted hole centered in the door hole?
Backset is the distance from the door edge to the center of the hole in door.
The latch is provided with adjustable design which can fit either 2-3/8”(60mm) or 2-3/4”(70mm) backset.
A. If the backset of your door is 2-3/8”(60mm), no need to adjure the latch,
B. If the backset of your door is 2-3/4”(70mm), please adjust the latch.
Install latch and deadbolt
Install strike on the door frame
ANOTE: Make sure hole in door frame is drilled a minimum of 17 (25 mm) deep.
Parts identification
Install exterior lever and keypad assembly
 |
 |
| Lever handle faces away from latch. For safety, choose the lever that tip points down. |

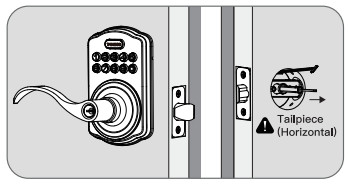

Insert the exterior assembly onto the door with the tailpiece going through the latch n the horizonal position Fouta he control cable through the door above the tach. |
 |
 |
| Position the inside mounting plate by first routing the cable and connector through the. hole. Secure both assemblies using the mounting screws. |
Secure the mounting plate with the supplied screws. |
Install interior assembly
Do not load batteries until lock is completely installed
 |
||
| Remove the battery cover. | Connect the cable and ensure tight cable connection. | Rotate the Thumb turn in vertical position and insert the horizontal orientation of torque blade into the interior assembly lock switch. |
 |
|
| Secure the interior assembly with the supplied screws. | Press levers onto lever posts a. Make sure lock cylinder is in line with lever. b. Push lever into the base until the catch pin is engaged. |
Test latch operation
 |
|

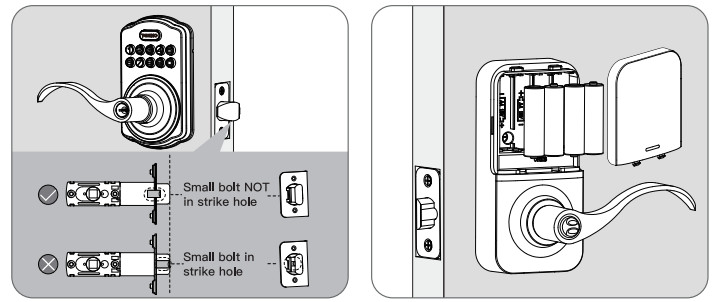

| Close door, test latch operation and make adjustments as needed. The small bolt of the latch should not enter the srike hole If it enters the strike hoe, reposition stake. |
install 4x AA batteries and battery cover. |
Reverse lock hand
It needs to disassemble the exterior keypad off the door.
 |
||||
| a. Keep pressing the lever down, use PIN 10 press trigger that in the hole; b. Don’t loose the pin, pull the lever handle off the keypad base. |
a. Take out keypad base; b. Reverse the base 180°, then combine it with keypad again. |
a. Exchange with interior lever, tips point down; b. Make sure lock cylinder is in line with lever; c. Push lever into the base until the catch pin is engaged. |
Keep pressing the hole by a pin, pull the lever handle off the interior assembly. | a. Exchange with exterior lever, tips point down; b. Push lever into the base until the catch pin is engaged. |
