TECNO POVA 5 Pro 5G Smartphone User Manual
Contents
Explosion diagram specification
| 1 | LCM+TP | 2 | RECEIVER DECORATING PART |
| 3 | FRONT HOUSING GRAPHITE_FILM | 4 | VC |
| 5 | FRONT HOUSING | 6 | SIDE KEY FPC |
| 7 | 16M CAMERA RUBBER | 8 | 16M CAMERA |
| 9 | PROXIMITY SENSOR RUBBER | 10 | MAIN BOARD |
| 11 | CONDUCTIVE FABRIC | 12 | 16M CAMERA FRAME |
| 13 | BATTERY CONNECTOR RUBBER | 14 | MAIN GRAPHITE_FILM |
| 15 | 8W CAMERA FRAME | 16 | 50M CAMERA COPPER FOIL |
| 17 | 8W CAMERA | 18 | FLASH LAMP FPC |
| 19 | 50M CAMERA | 20 | MAIN BOARD FRAME |
| 21 | MAIN BOARD FRAME MYLAR | 22 | RECEIVER |
| 23 | SCREW M1.4 L3.5 | 24 | LAMP FPC |
| 25 | NFC | 26 | MIDDLE HOUSINGGRAPHITE_FILM |
| 27 | 50M CAMERA FRAME | 28 | 50M CAMERA LENS |
| 29 | 8W CAMERA LENS | 30 | CAMERA DECORATING PART |
| 31 | SIM CONNECTOR | 32 | BATTERY COVER |
| 33 | SPEAKER GRAPHITE_FILM | 34 | FINGERPRINT MYLAR |
| 35 | SPEAKER FRAME | 36 | MIDDLE HOUSING |
| 37 | COAXIAL CABLE 2 | 38 | COAXIAL CABLE 1 |
| 39 | SUB BOARD RUBBER | 40 | FINGERPRINT |
| 41 | MAIN FPC | 42 | SUB BOARD |
| 43 | EARPHONE RUBBER | 44 | BATTERY |
| 45 | MOTOR | 46 | SPEAKER |
| 47 | USB RUBBER | 48 | ADHESIVE |

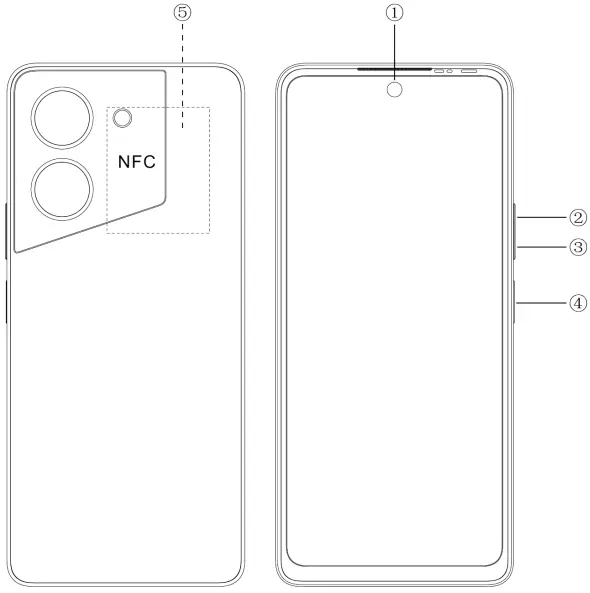

Know your phone
- Front camera
- Volume + key
- Volume – key
- Power key & side fingerprint sensor
- NFC
SIM/SD card installation
- Power off mobile.
- Refer to the following picture for SIM/ SD card installation.
Charging the phone
You can charge your device using a charger or by connecting it to the computer using a USB cable (comes with the phone).
Use only TECNO charger and cables. Other chargers or cables may damage the device. This will invalidate your phone warranty.
FCC Caution
La belling requirements.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference.
- This device must accept any interference received, including interference that may cause undesired operation.
Information to user.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authoritativeness the equipment.
Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur inaparticularinstallation. If this equipment does cause harmful noninterference or television reception, which can be determinedbyturningthe equipment off and on, the user is encouraged to try tocorrectthe interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This mobile phone meets the government’s requirements for exposure to radio waves. The guidelines are based on standardsthatwere developed by independent scientific organizations throughperiodic and thorough evaluation of scientific studies. Thestandardsinclude a substantial safety margin designed to assure Thessalonian persons regardless of age or health.
FCC RF Exposure Information and Statement The SAR limit of USA(FCC) is 1.6 W/kg averaged over one gramof tissue. Devicetypes:LH8n (FCC ID:2ADYY-LH8N) has also been tested against thisSARlimit. The highest SAR value reported under this standardduringproduct certification for use at the ear is 0.720W/kg andwhenproperly worn on the body is 0.578W/kg. This device was testedfortypical body-worn operations with the back of the handset kept10mm from the body. To maintain compliance with FCC RF exposurerequirements, use accessories that maintain a 10 mmseparationdistance between the user’s body and the back of the handset. Theuse of belt clips, holsters and similar accessories shouldnot containmetallic components in its assembly. The use of accessoriesthatdoes not satisfy these requirements may not comply withFCCRFexposure requirements, and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. Tocomplywith RF exposure requirements, a minimumseparationdistanceof1.0 cm must be maintained between the user’s body andthehandset, including the antenna. Third-party belt-clips, holsters, andsimilar accessories used by this device should not containanymetallic components. Body-worn accessories that do not meet theserequirements may not comply with RF exposure requirementsandshould be avoided. Use only the supplied or an approvedantenna
HiOS runs on Android TM OS. Android is a trademark of Google LLC.
