GFR-7005
GFRP 2023 Assault Sprint Car Kit

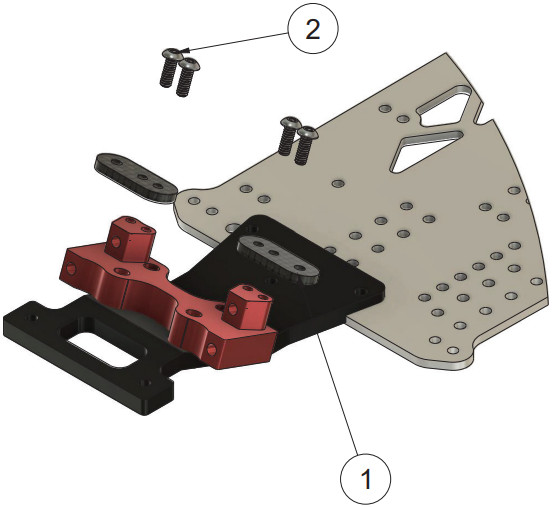

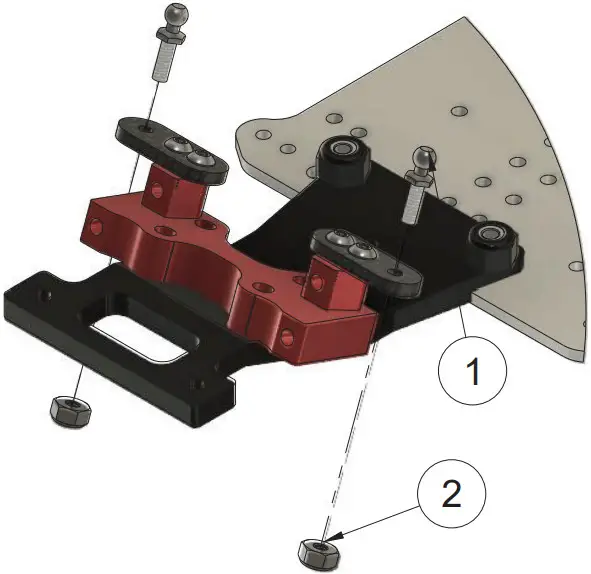

STEP 1 Bag A
| Item | Part Number |
| 1 | GFR 1410 2023 Assault Chassis Plate |
| 2 | GFR 6419 8-32×7/16 FHS |
| 3 | GFR 1163 2 hole 30 Degree nose Plate |
| 4 | GFR 6421 8-32 Locknut |
STEP 2
| Item | Part Number |
| 1 | GFR 1410 2023 Assault Chassis Plate |
| 2 | GFR 6419 8-32×7/16 FHS |

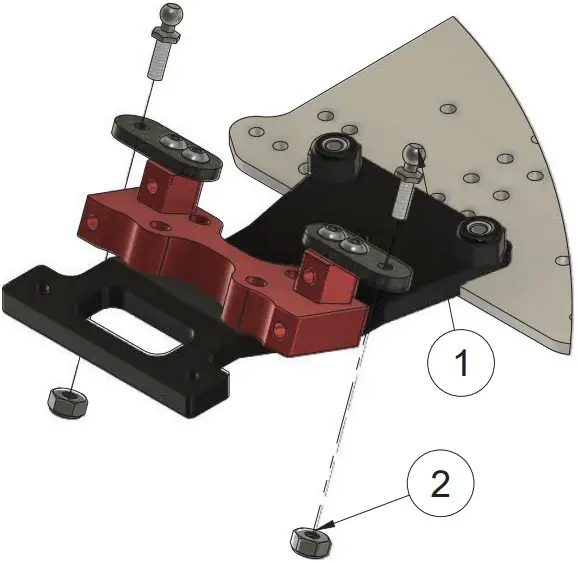

STEP 3
| Parts List | |
| Item | Part Number |
| 1 | GFR 1279 Medium Ball Stud |
| 2 | GFR 6009 4-40 locknut |
STEP 4
| Parts List | |
| Item | Part Number |
| 1 | GFR 2044 Cap FR Inner Hinge pin |
| 2 | GFR-6451 2.5mm x 3mm BHS. |
STEP 5
| Parts List | |
| Item | Part Number |
| 1 | GFR-1190 Single Bell Crank Post |
| 2 | GFR 2037 Flanged 1/4×3/8 bearing |
| 3 | GFR-1191Single Crank Arm |
| 4 | GFR 6422 Countersunk Washer |
| 5 | QS 6406 4-40 x 5/16 FHS |

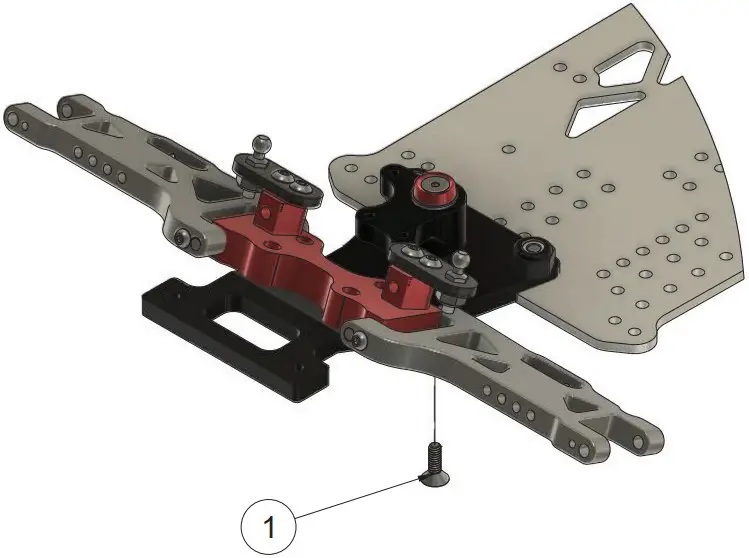

STEP 6
| Parts List | |
| Item | Part Number |
| 1 | GFR 6408 4-40×3/8 FHS |

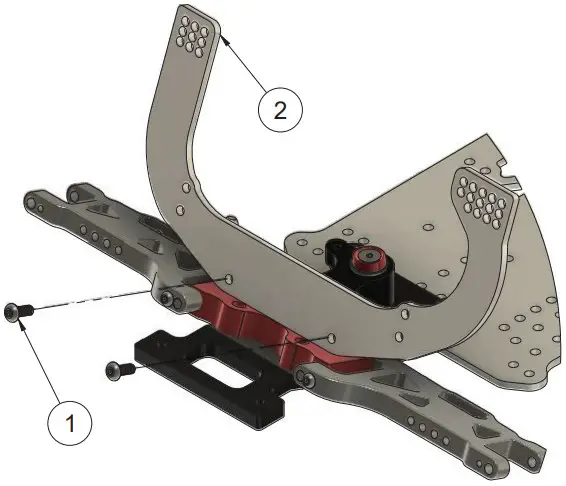

STEP 7
| Parts List | |
| Item | Part Number |
| 1 | GFR 6405 4-40 x 5/16 BHS |
| 2 | GFR 1411 2023 Assault Fr Shock Tower |
STEP 8
| Parts List | |
| Item | Part Number |
| 1 | GFR 1280 Short Ball Stud |
STEP 9 Bag B
| Parts List | |
| Item | Part Number |
| 1 | GFR-1367 Molded Adj Castor Block |
| 2 | 0 Deg Insert |
| 3 | GFR 1286M Metric Caster Block Bushing |

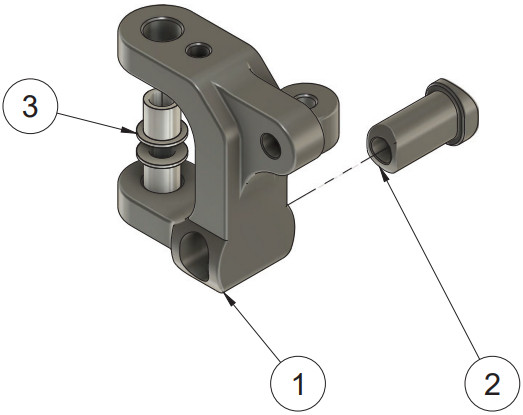

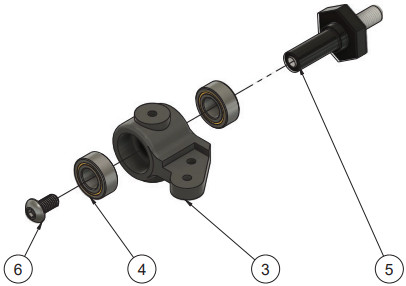

STEP 10
| Parts List | |
| Item | Part Number |
| 1 | GFR 1285 RF Caster Block |
| 2 | GFR 1286 Caster Block Bushing |
| 3 | GFR 1284 Steering Block RF |
| 4 | GFR 6000 5x10x4 Bearing |
| 5 | GFR 1283 Front Axle Hex |
| 6 | GFR 6424 3x6mm BHS |

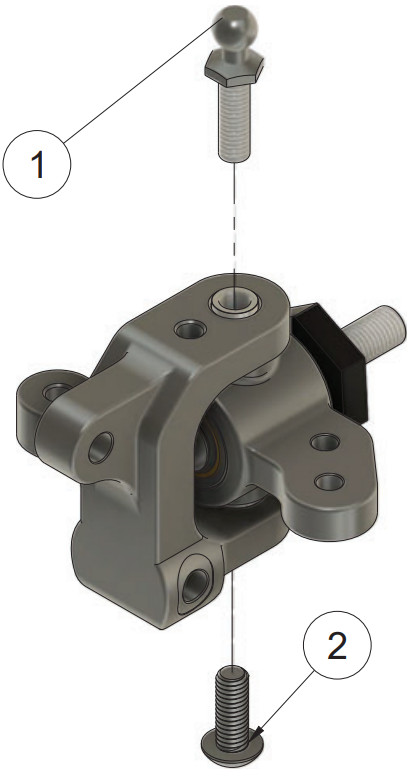

STEP 12
| Parts List | |
| Item | Part Number |
| 1 | QS 1281M Long Ball Stud |
| 2 | GFR 6425 3mm x 8mm BHS |
STEP 13
| Parts List | |
| Item | Part Number |
| 1 | GFR 2043 Cap Front Out Hing Pin |
| 2 | GFR-6451 2.5mm x 3mm BHS. |
STEP 14
| Parts List | |
| Item | Part Number |
| 1 | QS 1257 2.25Turnbuckle |
| 2 | GFR 1211 Ball Cup |

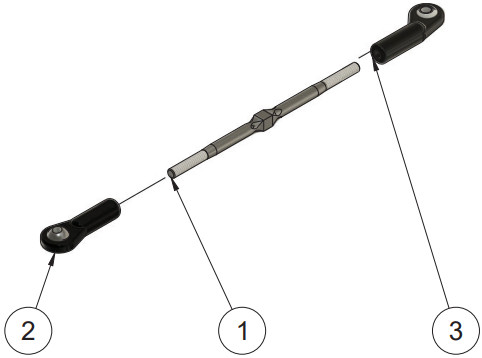

STEP 15
STEP 16
| Parts List | |
| Item | Part Number |
| 1 | QS 1270 2.75 Titanium Turnbuckle |
| 2 | GFR 6006 Rod End |
| 3 | QS-6021 Angled Rod End |

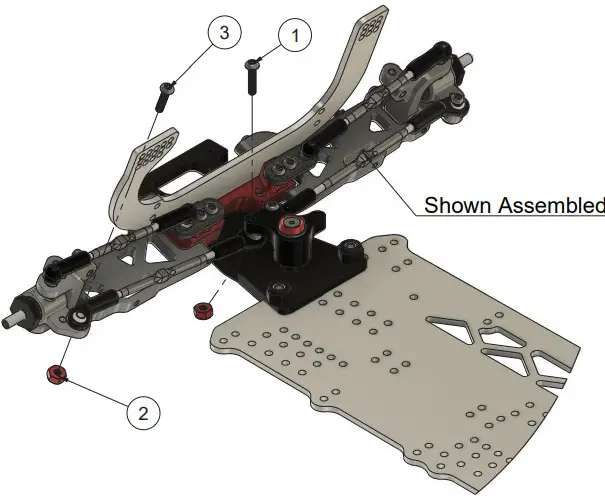

STEP 17
| Parts List | |
| Item | Part Number |
| 1 | GFR 6411 4-40×5/8 BHS |
| 2 | GFR 6009 4-40 locknut |
| 3 | GFR 6409 4-40×1/2 BHS |
STEP 18
| Parts List | |
| Item | Part Number |
| 1 | GFR 1 31 Servo Mounts |
| 2 | GFR 6 08 4-40×3/8 FHS |

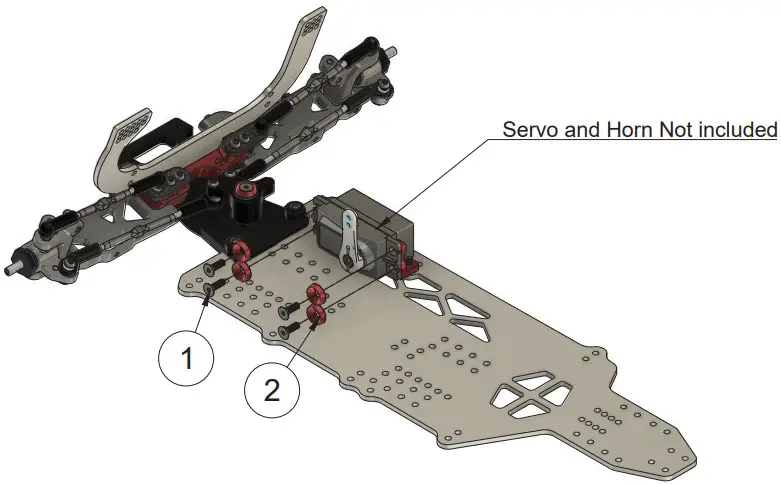

STEP 19
| Parts List | |
| It m | Part Number |
| 1 | GFR 6408 4-40×3/8 FHS |
| 2 | GFR 6422 Countersunk Washer |
STEP 20
| Parts List | |
| Item | Part Number |
| 1 | GFR 1236 Alum Battery Locator |
| 2 | GFR 6408 4-40×3/8 FHS |

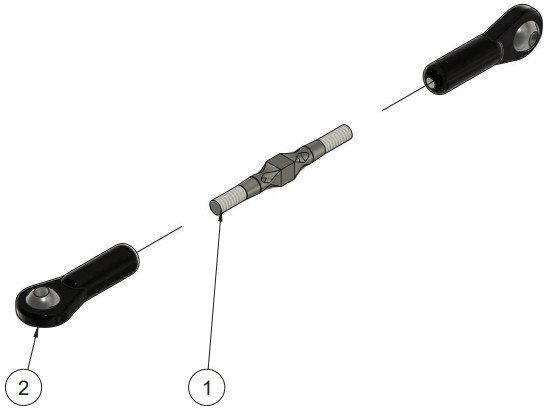

STEP 21
| Parts List | |
| Item | Part Number |
| 1 | QS 1225 1.0 Turnbuckle |
| 2 | GFR 6006 Rod End |

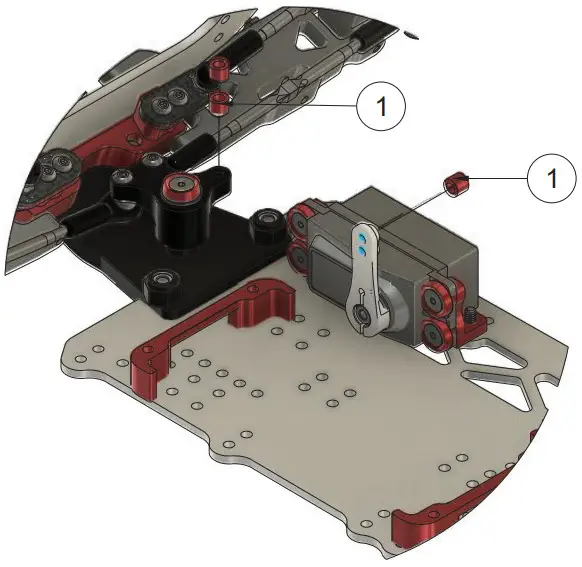

STEP 22
| Parts List | |
| Item | Part Number |
| 1 | GFR 6432 4MM Spacer |
STEP 23
| Parts List | |
| Item | Part Number |
| 1 | GFR 6411 4-40×5/8 BHS |

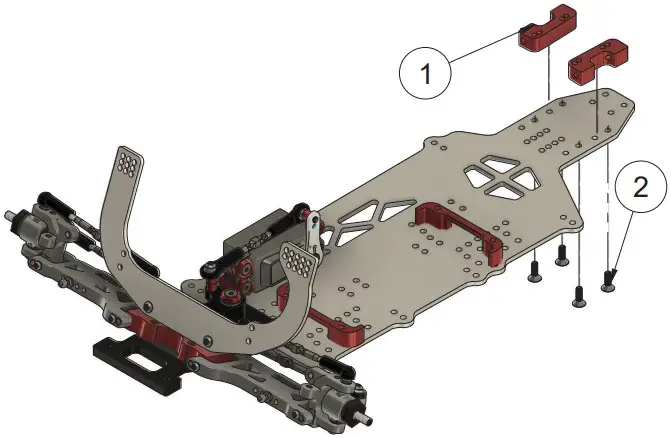

STEP 24 Bag C
| Parts List | |
| Item | Part Number |
| 1 | FR 1065 0/2 Rear Arm Mount |
| 2 | GFR 6408 4-40x 3/8 FHS |
STEP 25
| Parts List | |
| Item | Part Number |
| 1 | GFR 1412 Assault 2023 Rear Shock Tower |
| 2 | GFR 1288 Rear Camber Link Mount |
| 3 | GFR 1069 Tower Block |
| 4 | GFR 6405 4-40 x 5/16 BHS |
| 5 | GFR 1303 Assault 21/23 Trans Brace |

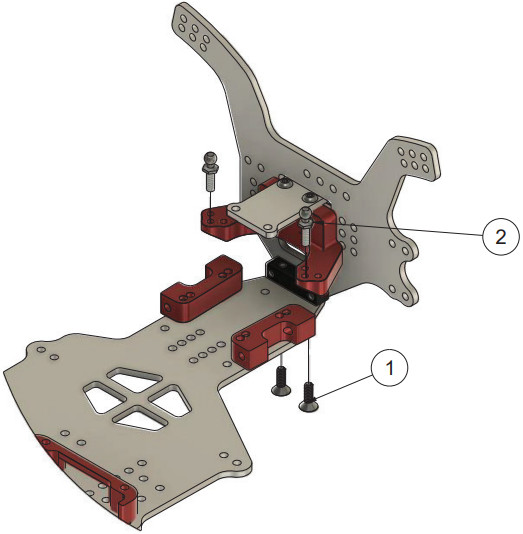

STEP 26
| Parts List | |
| Item | Part Number |
| 1 | GFR 6408 4-40x 3/8 FHS |
| 2 | GFR 1279 Medium Ball Stud |
STEP 27

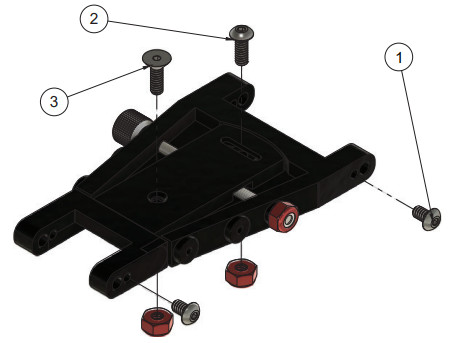

STEP 28
COMPLETE 27-28 AGAIN FOR BOTH SIDES THE THUMB SCREW IS TO THE REAR OF THE CAR ON BOTH SIDES
| Parts List | |
| Item | Part Number |
| 1 | GFR 6402 4-40×3/16 BHS |
| 2 | GFR 6405 4-40 x 5/16 BHS |
| 3 | GFR 6408 4-40×3/8 FHS |
STEP 29
| Parts List | |
| Item | Part Number |
| 1 | GFR 1289 Captured Hinge Pin 1.75 |
| 2 | GFR 6402 4-40×3/16 BHS |

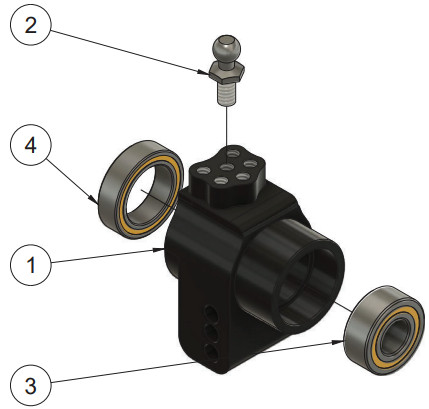

STEP 30
COMPLETE BOTH REAR HUBS
| Item | Part Number |
| 1 | GFR 1229 Aluminum Hubs |
| 2 | GFR 1280 Short Ball Stud |
| 3 | GFR 6002 6x13x5 Bearing |
| 4 | GFR 6001 10x15x4 |
STEP 31

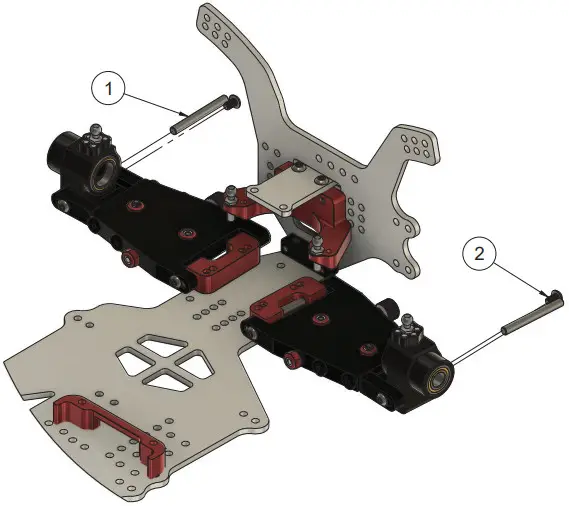

| Parts List | |
| Item | Part Number |
| 1 | GFR 1290 Captured Hinge Pin 1.15 |
| 2 | GFR 6402 4-40×3/16 BHS |

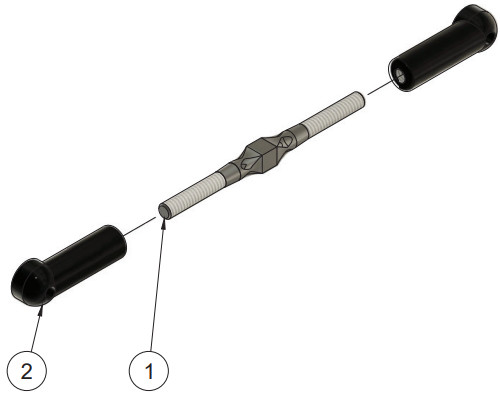

STEP 32
| Parts List | |
| Item | Part Number |
| 1 | QS 1245 1.75″ Titanium Turnbuckle |
| 2 | GFR 1211 Ball Cup |
STEP 33

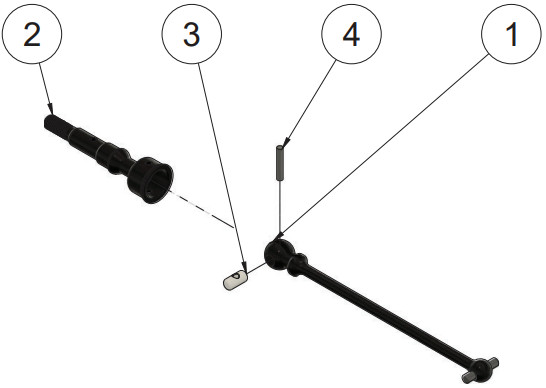

STEP 34
Bag D
| Item | Part Number |
| 1 | GFR 1140 68MM DOGBONE |
| 2 | GFR 1230 RUBBER TIRE REAR AXLE |
| 3 | GFR 1134 CVA SWIVEL INSERT |
| 4 | GFR 6429 SOLID PIN |
STEP 35
| Parts List | |
| Item | Part Number |
| 1 | QS 6428 Roll Pin |
| 2 | GFR 1235 7mm Wheel Hex |
| 3 | GFR 6400 1-72 x 3/36 SHS |

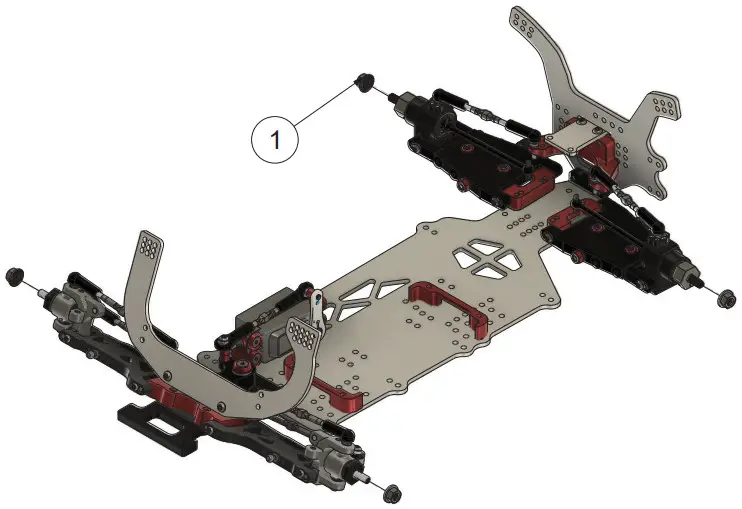

STEP 36
| Parts List | |
| Item | Part umber |
| 1 | GFR 1265 M4 Wheel Nut |

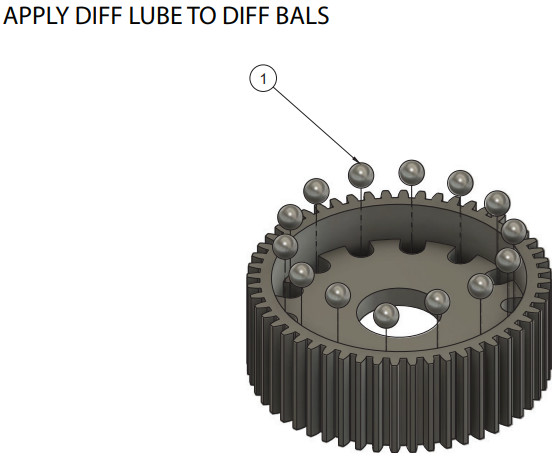

STEP 37
Bag E
| Item | Part Number |
| 1 | 3/32 Carbide Ball |
STEP 38
REPEAT THIS STEP FOR THE OTHER OUTDRIVE

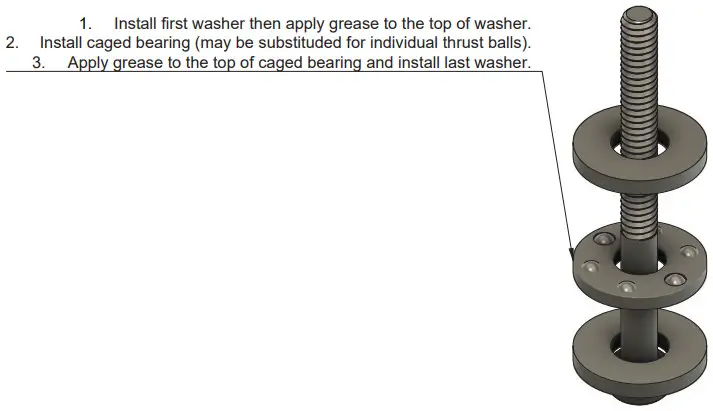

STEP 39

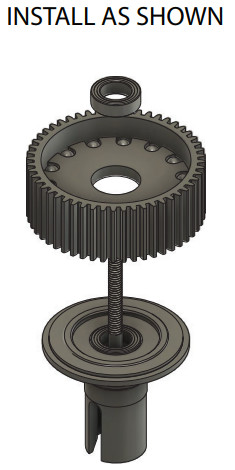

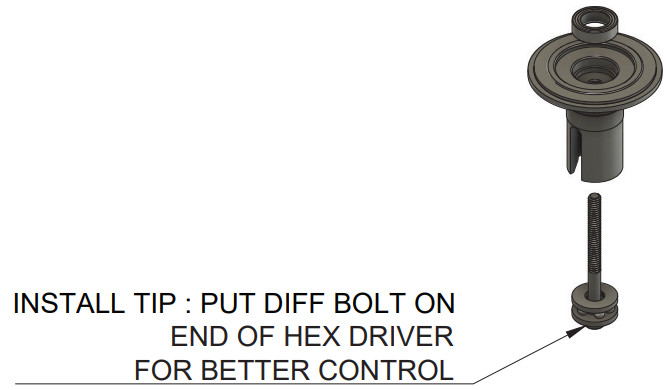

STEP 40
STEP 41

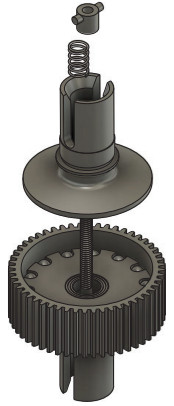

STEP 42
As you tighten the diff bolt, you will notice the T-nut ears moving closer to the bottom of the outdrive slot. This compresses the spring behind the T-nut. The spring should be completely compressed at the time the T-nut reaches the end of the slot.
Caution! Pay close attention to the feeling when the spring is completely compressed. Do not overtighten the bolt. When you feel the spring completely compressed, loosen the diff bolt 1/8” of a turn. Your diff should now operate smoothly but with resistance as the outdrives move in opposite directions.
After you have driven the car once, re-check the diff setting.
STEP 43
| Item | Part Number |
| 1 | GFR 1117 Trans Case |
| 2 | GFR 1180 Idler Shaft |
| 3 | GFR 6000 5x10x4 Bearing |
| 4 | GFR 6001 10x15x4 Bearing |

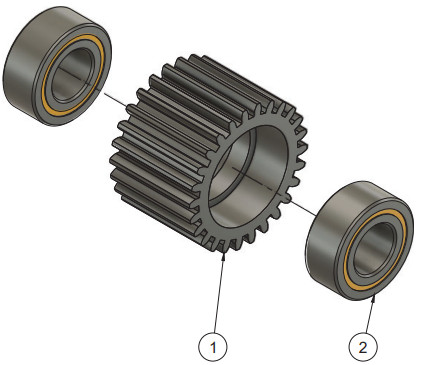

STEP 44
| Item | Part Number |
| 1 | GFR 1186 Steel Idler Gear |
| 2 | GFR 6000 5x10x4 Bearing |
STEP 45
| Item | Part Number |
| 1 | GFR 1182 Top Shaft |
STEP 46
STEP 47
| ITEM | PART NUMBER |
| 1 | GFR 6001 10X15X4 BEARING |
| 2 | GFR 6000 5X10X4 BEARING |

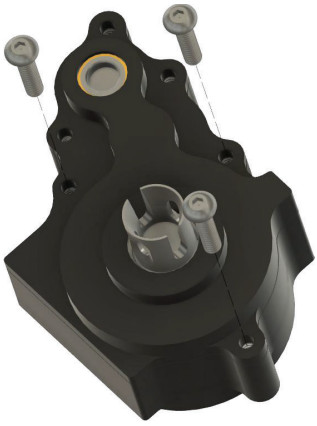

STEP 48
| Parts List | |
| Item | Part Number |
| 1 | GFR 6409 4-40×1/2 BHS |
STEP 49
| Item | Part Number |
| 1 | GFR 6408 4-40×3/8 FHS |
| 2 | GFR 1183 Slipper Eliminator Red |
| 3 | GFR 6402 4-40×3/16 BHS |
STEP 50
| Parts List | |
| Item | Part Number |
| 1 | GFR 6405 4-40 x 5/16 BHS |
| 2 | GFR 6408 4-40×3/8 FHS |

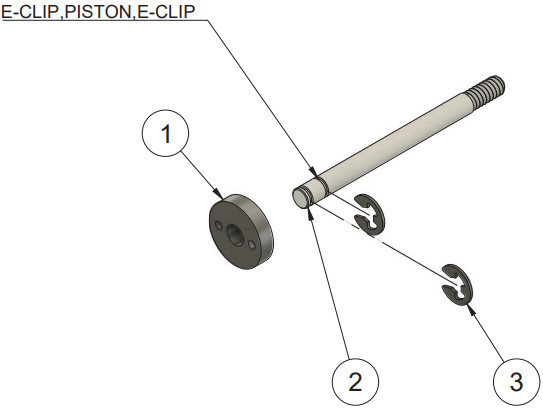

STEP 51
Bag F
| Parts List | |
| Item | Part Number |
| 1 |
GFR 4069 SB IRS Shock Piston
|
| 2 | GFR 4094 Medium Shock Shaft |
| 3 | GFR 6007 E-Clip |
STEP 52
STEP 53
| Item | Part Number |
| 1 | GFR 4102 Long Shock Body |
| 2 | Small bore shock shaft asmb |
| 3 | GFR 4085 SB Shock Guide |
| 4 | GFR 4071 Shock Shaft O Rings |
STEP 54
| Item | Part Number |
| 1 | GFR 4102 Long Shock Body |
| 2 | GFR 6441 0.75×4.5 Oring |
| 3 | GFR 4086 SB Shock Bottom Cap |

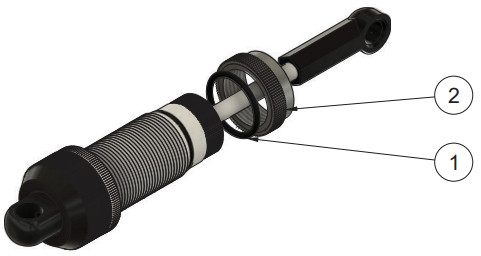

STEP 55
| Item | Part Number |
| 1 | GFR 6442 1X12 Oring |
| 2 | GFR 4064 SB Shock Adjuster Collar |
STEP 56
REPEAT FOR ALL SHOCKS
| Item | Part Number |
| 1 | GFR 1211 Ball Cup |
| 2 | GFR 4068 SB Shock Bladder |
| 3 | GFR 4063 2pc Shock Cap |
| 4 | GFR 4063 2pc Shock Cap Nut |

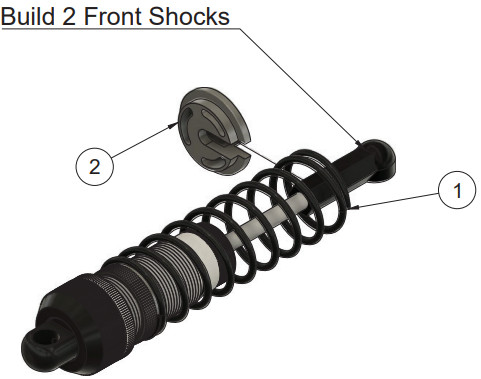

STEP 57
| Parts List | |
| Item | Part Number |
| 1 | QS 1805 Rated 1.8 5# Spring |
| 2 | GFR 4067 SB Shock Spring Retainer |
STEP 58
| Parts List | |
| Item | Part Number |
| 1 | QS 1806 Rated 1.8 6# Spring |
| 2 | GFR 4067 SB Shock Spring Retainer |
STEP 59
| Parts List | |
| Item | Part Number |
| 1 | GFR 6407 4-40 x 3/8 BHS |
| 2 |
GFR 1292 3/8″ Shock Standoff
|
| 3 | GFR 1291 1/4″ Shock Standoff |

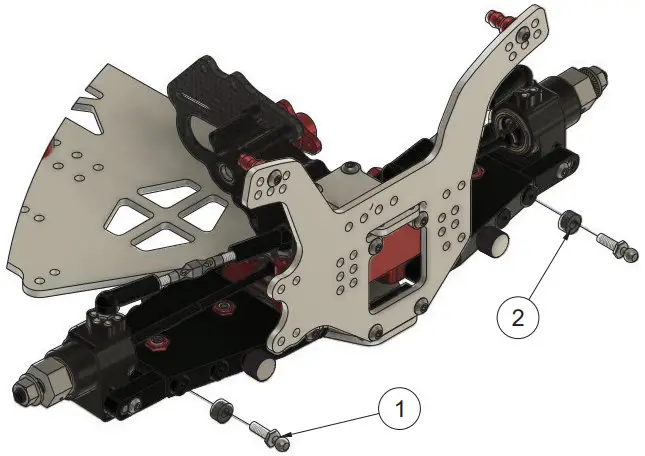

STEP 60
| Parts List | |
| Item | Part Number |
| 1 | GFR 1279 Medium Ball Stud |
| 2 | GFR 6431 1/8″ Nylon Spacer |

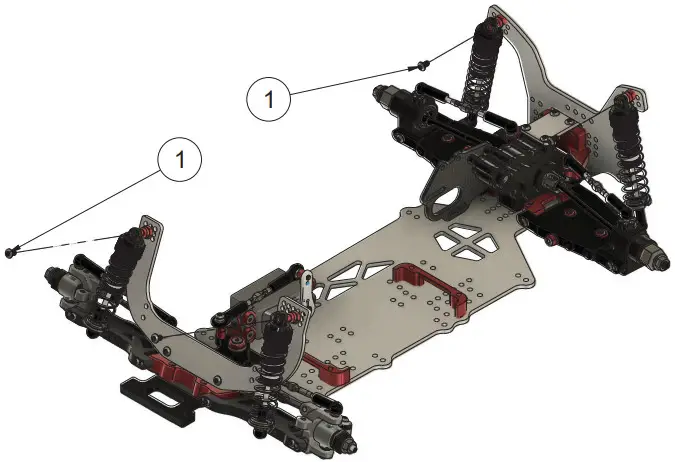

STEP 61
| Parts List | |
| Item | Part Number |
| 1 | GFR 6402 4-40×3/16 BHS |
STEP 62
Bag G
| Parts List | |
| Item | Part Number |
| 1 | GFR 1309 Tail Tank Mount |
| 2 | 25mm Thrd Standoff |
| 3 | GFR 6408 4-40×3/8 FHS |
STEP 63
| Parts List | |
| Item | Part Number |
| 1 | GFR 6408 4-40×3/8 FHS |
| 2 | GFR 6420 8-32x 5/8 FHS |
| 3 | GFR 1413 23 Asault CG Mnt |
| 4 | GFR 1267 Carbon Fiber Spacer |
