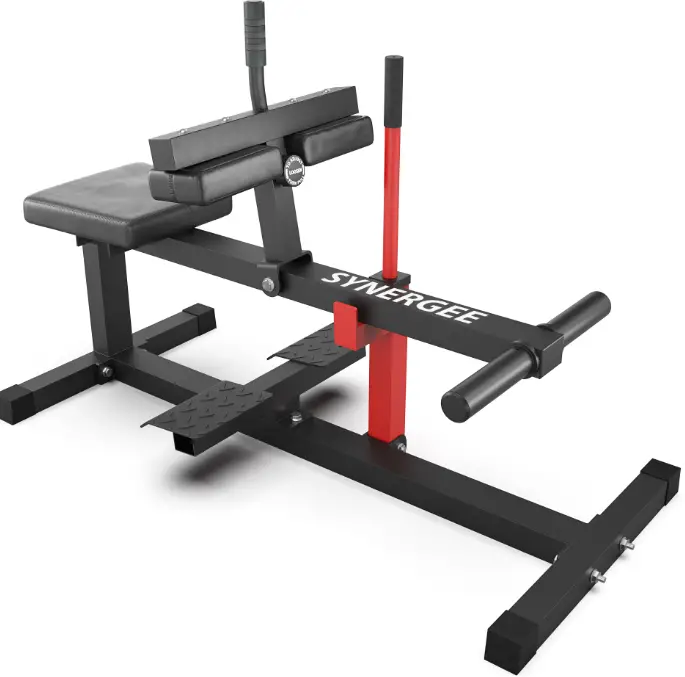

SYNERGEE 4564 Seated Calf Raise Machine
TOOLS REQUIRED
| Part# | Discription | Qty |
Remark |
| 1 | Main Frame | 1 | |
| 2 | Rear Frame | 1 | |
| 3 | Main Frame Support | 1 | |
| 4 | Front Foot Tube | 1 | |
| 5 | Carriage Frame | 1 | |
| 6 | Foot Board | 1 | |
| 7 | Knee Pad Support | 1 | |
| 8 | Knee Pad Adjust Bracket | 1 | |
| 9 | Knee Pad | 2 | |
| 10 | Seat Pad | 1 | |
| 11 | Long Axle | 1 | |
| 12 | Pop Pin | 1 | |
| 13 | F50x50mm Outer Cap | 4 | |
| 14 | F50x50mm Inner Cap | 4 | Pre-assembled |
| 15 | Small Rubber Bumper | 1 | Pre-assembled |
| 16 | Handle Sleeve | 2 | Pre-assembled |
| 17 | Big Rubber Bumper | 1 | Pre-assembled |
| 18 | F50-45mm Sleeve | 1 | |
| 19 | Spring Clip | 2 | |
| 20 | Olympic Sleeve | 2 | |
| 21 | Dia25mm Inner Cap | 2 | Pre-assembled |
| 22 | F50x70mm Inner Cap | 2 | Pre-assembled |
| 23 | Short Axle | 1 | |
| H8-3 | M8x25mm Hex Head Bolt | 4 | |
| H8-12 | M 8x70mm Hex Head Bolt | 4 | |
| H10-2 | M1Ox20mm Hex Head Bolt | 4 | |
| H10-12 | M1Ox70mm Hex Head Bolt | 5 | |
| H10-13 | M1Ox65mm Hex Head Bolt | 2 | |
| wa | M8 Washer | 8 | |
| W10 | M10 Washer | 14 | |
| W12 | M12 Washer | 2 | |
| N10 | M10 Nut | 6 | |
| N12 | . M12 Nut | 1 |
- IF ANY PIECES ARE MISSING, PLEASE CONTACT US IMMEDIATELY: [email protected] OR 1.855.217 .7136
- STEP 1
- STEP 2
- STEP 3
