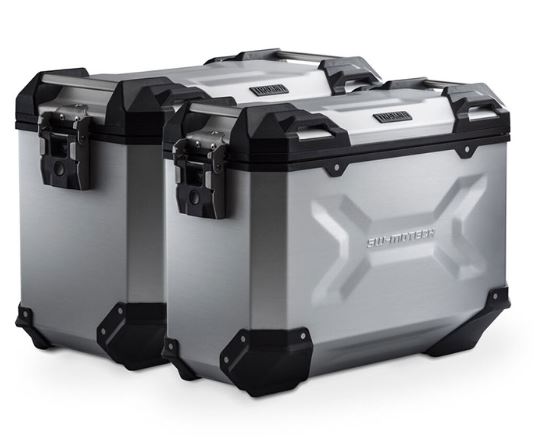

SW-MOTECH KFT.04.835.70000/S Aluminum Case System
Product Information
The product is manufactured by SW-MOTECH GmbH & Co. KG, a company based in Germany.
Product Code: KFT.04.835.70000/S
Additional Product Codes:
- KFT.04.835.30000/B
- KFT.00.152.35100
- ALK.00.733.10000L/S
- ALK.00.733.11000R/S
- ALK.00.165.16303
- QLS.00.095.10000/B
The product is labeled “Made in CN”.
Product Usage Instructions
- Ensure that you have all the necessary components of the product as mentioned in the user manual.
- Find a suitable location for installation and make sure it meets the specified requirements.
- Carefully follow the step-by-step instructions provided in the user manual to assemble and install the product.
- Double-check all connections and fastenings to ensure a secure and stable installation.
- Test the functionality of the product before actual usage.
- If any issues or problems arise during installation or usage, refer to the troubleshooting section of the user manual or contact customer support for assistance.
- Regularly inspect and maintain the product as recommended in the user manual to ensure optimal performance and longevity.
If you have any further questions or concerns regarding the product, please refer to the complete user manual or contact the manufacturer.
MOUNTING INSTRUCTIONS
Revision: DO
Date: 06 – 2021
PRO side carrier
Thank you for choosing this premium product from SW-MOTECH. Please visit our web shop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our web shop.
Installation and/or maintenance of this product require good technical understanding! For your own safety SW-MOTECH recommends having installation and/or servicing carried out by a specialist workshop! SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
Carefully follow all the directions given in the mounting instructions and pay attention to all relevant information in the vehicle manual during assembly. Nonconformance can lead to vehicle damage or even endanger the driver! These mounting instructions are written based on our current state of knowledge. Legal requirements for accuracy do not exist.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers” accessory parts is not guaranteed. Furthermore, BEFORE installing this product, make sure that all moving parts (e.g. the chain) are in the original state of maintenance. Installed accessories can change the driving behavior and/or stability of your vehicle.
GENERAL INFORMATION
Observe the country-specific regulations concerning vehicle registration/ operation as well as TUV regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.
PREPARATION: Read the mounting instructions carefully and make sure that all items of the parts list are included. Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key. Let the motor/exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools. Have another person to help you.
MOUNTING: All parts and connections removed from the vehicle must be reinstalled in accordance with the vehicle manufacturers· specifications or replaced by parts delivered by SW-MOTECH. Secure all threads, unless otherwise specified, with medium-strength liquid thread locker.
Torque specifications undefined by SW-MOTE CH must be obtained from the vehicle manufacturer or by a specialist workshop!
FUNCTION CHECK: After installation make sure that all parts and connections previously removed are properly replaced. Also make sure that no moving parts are obstructed and no function of the vehicle is hindered in any way. Cables and hoses must not rub and/or be pinched. Before starting to ride, perform a comprehensive check of all functions. After the first 50 km and then at regular intervals, check the tightening torque of all screw connections and the proper fit of the product.
PRODUCT SPECIFIC INFORMATION

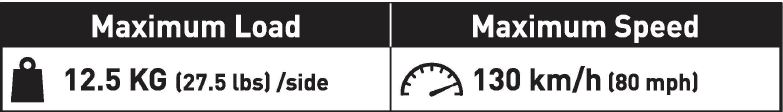

ATTENTION: The indicated maximum load is inclusive the weight of case/luggage and adapter kit! The maximum vehicle load specified by the manufacturer must not be exceeded!
The side carriers are designed exclusively for the use of SW-MOTECH adapter kits.
Dismount the side carriers when travelling without cases/luggage. Always use the side carriers in pairs.
ATTENTION: Make sure that after attaching the luggage to the vehicle it is not in the exhaust flow! Dangers of burns!
sw-moTECH
SW-MOTECH GmbH & Co. KG
Ernteweg 7-10
35282 Rauschenberg Germany
Tel. I phone+ 49 (0)6425 / 8168 – 050 Fax / fax+ 49 (0)6425 / 8168 – 10
[email protected] www.sw-motech.com

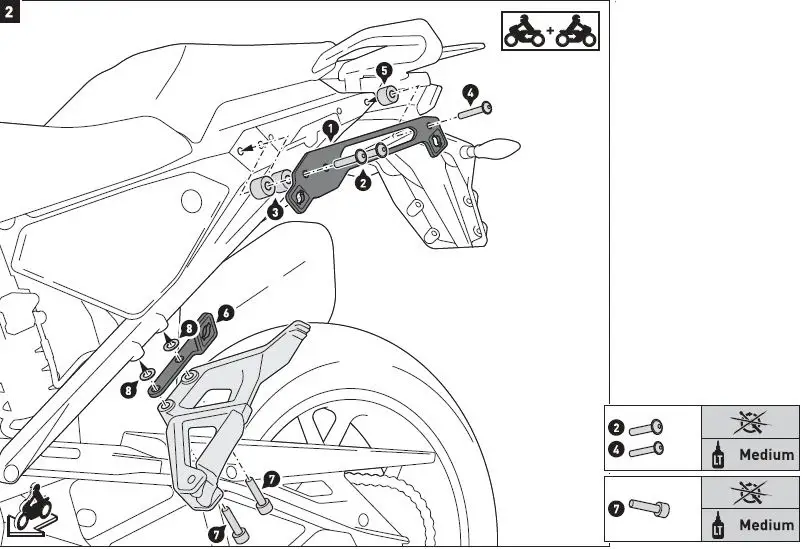

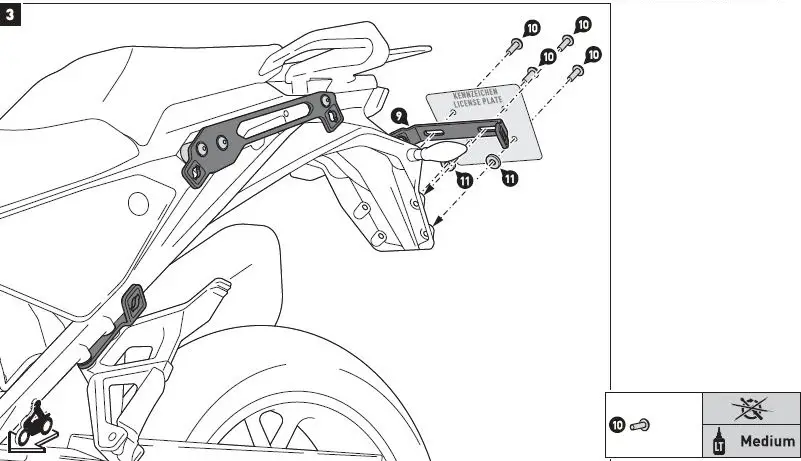

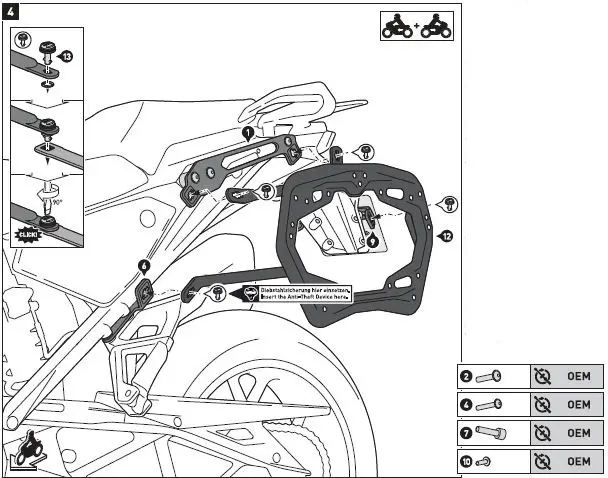

| Step | No. | Item No./ | Part | Quantity b | N-m’ | |||
| 111 | KFT.04.835.001L / R | Mounting Tab; left/ right | 2 /2 | |||||
| (2) | MS x 35; ISO 7380 | Lenshead Screw; black | 4 /4 | OEM | ||||
| (3) | 0 22 / 0 8,4 / h 20 | Spacer; black | 4 /4 | |||||
| (4) | M6 x 35; ISO 7380 | Lenshead Screw; black | 212 | OEM | ||||
| (5) | 0 18 / 0 6,4 / h 15 | Spacer; black | 212 | |||||
| (6) | KFT.04.835.002L / R | Mounting Tab; left/ right | 212 | |||||
| (7) | MS x 30; DIN 912 | Hexagon Socket Screw | 4 /4 | OEM | ||||
| [Bl | 0 8,4; DIN 125 | Washer; black | 4 /4 | |||||
| 9) | KFT.22.892.004 | Crossbar | 1 /1 | |||||
| (10) | M5 x 16; ISO 7380 | Lenshead Screw | 4 /4 | OEM | ||||
| I11I | 0 20 / 0 6,4 / h 5 | Spacer; black | 2 /2 | |||||
| 1121 | KFT.04.835.971.01 / 972.01 | Side Carrier; left/ right | 212 | |||||
| (13) | SV.ST.095.501.LK.02 | Quick Fastener with Lock Washer | 8 /8 | |||||
| Coarse Thread 01M4 I M5 I M6 I MS I M10I M12
Stahl FK 8.8 / Steel CL 8.8 N·m 2,8 5,5 9,6 23 46 79 |
Coarse Thread 01M4 I M5 I M61MS I M10I M12
StahlFK10.9/SteelCL10.9 N·m 4,1 8,1 14 34 67 115 |
|||||||

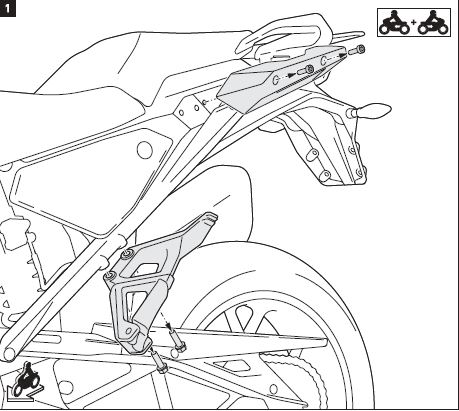

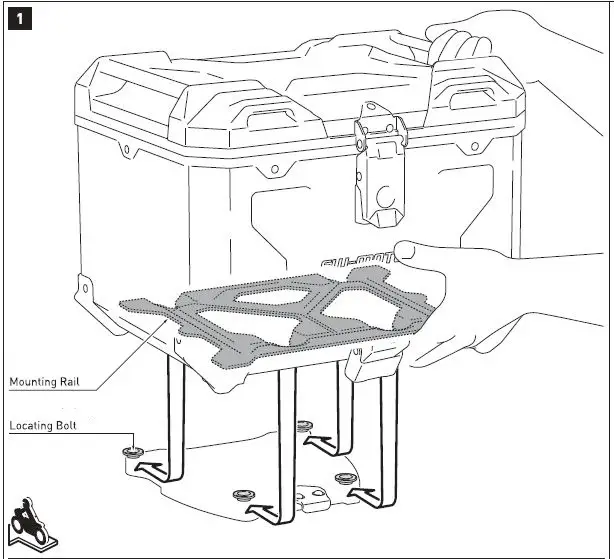

MOUNTING
MOUNTING
Adapter kit for PRO side carrier -TRAX ADV/ION/EVO
Thank you for choosing this premium product from SW-MOTECH. Please visit our web shop for additional information, such as application charts and PDF mounting instructions. Any other documents that may be required (e.g. ABE certifications), are also available for download at our web shop.
Installation and/or maintenance of this product require good technical understanding! For your own safety SW-MOTECH recommends having installation and/or servicing carried out by a specialist workshop! SW-MOTECH assumes no liability for damage caused by improper installation and/or maintenance work!
Carefully follow all the directions given in the mounting instructions and pay attention to all relevant information in the vehicle manual during assembly. Nonconformance can lead to vehicle damage or even endanger the driver! These mounting instructions are written based on our current state of knowledge. Legal requirements for accuracy do not exist.
This product was developed for vehicles in their factory setting. Compatibility with original accessory parts or other manufacturers” accessory parts is not guaranteed. Furthermore, BEFORE installing this product, make sure that all moving parts (e.g. the chain) are in the original state of maintenance. Installed accessories can change the driving behavior and/or stability of your vehicle.
| Schritt
Step |
Nr.
No. |
Art.-Nr. / Bezeichnung •
Item No./ Description * |
Artikel | Part | Anzahl ..
Quantity .. |
N·m”‘ |

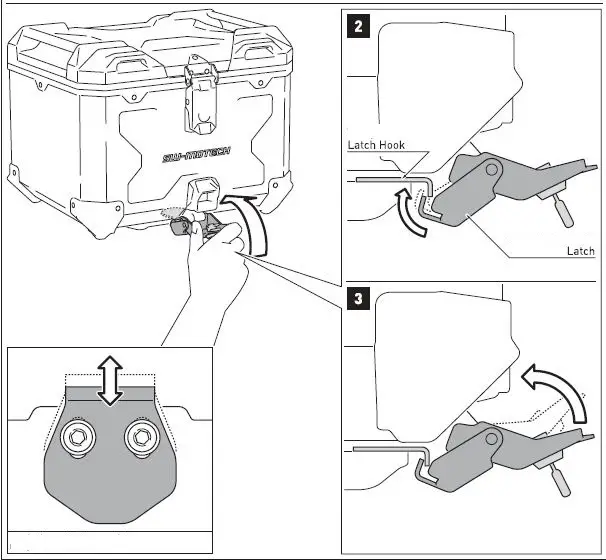

| (1) | KFT.00.152.070L / R | Vorspannwinkel; links/ rechts | Latch Hook; left/ right | 2 /2 | ||
| (2) | M6 x 16; ISO 7380 | Linsenkopfschra ube | Lenshead Screw | 4 /4 | 9 | |
| (3) | KFT.00.152.071 | Fuhrungsbolzen | Guide Bolt | 8 /8 | ||
| (4) | M6 x 20; DIN 7991 | Senkkopfschraube | Countersunk Screw | 8 /8 | 9 | |
| (5) | M6; DIN 6927 | Mutter mil Bund, selbstsichernd; schwarz | Lock Nut with Flange; black | 12112 |
GENERAL INFORMATION
Observe the country-specific regulations concerning vehicle registration/ operation as well as TÜV regulations if applicable. If required, register installed parts in the vehicle documents through an appropriate inspection authority.
PREPARATION: Read the mounting instructions carefully and make sure that all items of the parts list are included. Make sure that your vehicle is parked safely and cannot fall over. Turn off the engine and remove the ignition key. Let the motor/exhaust cool off if necessary. Disconnect the vehicle battery when working on the electrical system. Use appropriate tools. Have another person to help you.
MOUNTING: All parts and connections removed from the vehicle must be reinstalled in accordance with the vehicle manufacturers’ specifications or replaced by parts delivered by SW-MOTECH. Secure all threads, unless otherwise specified, with medium-strength liquid thread locker. Torque specifications undefined by SW-MOTECH must be obtained from the vehicle manufacturer or by a specialist workshop!
FUNCTION CHECK: After installation make sure that all parts and connections previously removed are properly replaced. Also make sure that no moving parts are obstructed and no function of the vehicle is hindered in any way. Cables and hoses must not rub and/or be pinched. Before starting to ride, perform a comprehensive check of all functions. After the first 50 km and then at regular intervals, check the tightening torque of all screw connections and the proper fit of the product.
MOUNTING
SECURITY
Please pay attention to the following information concerning the TRAX ADVENTURE ALU-BOX:

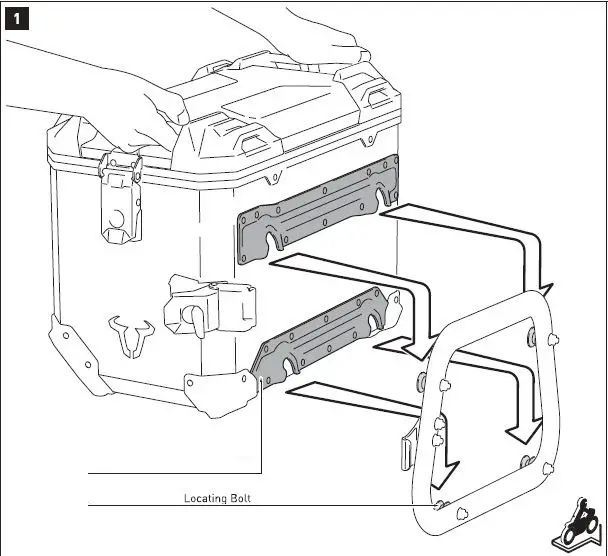

The TRAX ADVENTURE ALU-BOX is designed exclusively for mounting on SW-MOTECH QUICK-LOCK side carriers, QUICK-LOCK adapter plate an STEEL-RACK adapter kit.
Modifications made to the cases will void any warranty.
- ATTENTION: Riding with TRAX ADVENTURE ALU-BOX may affect the motorcycle’s driving and braking performance.
- ATTENTION: TRAX ADVENTURE ALU-BOXES M & L must be used in pairs. Make sure the weight is evenly distributed between left and right side case.
- ATTENTION: Maximum load: Please refer to the mounting instructions of the SW-MOTECH QUICK-LOCK side carrier, ALU-RACK or STEEL-RACK. Maximum speed with mounted cases: 130 km/h (80 mph).

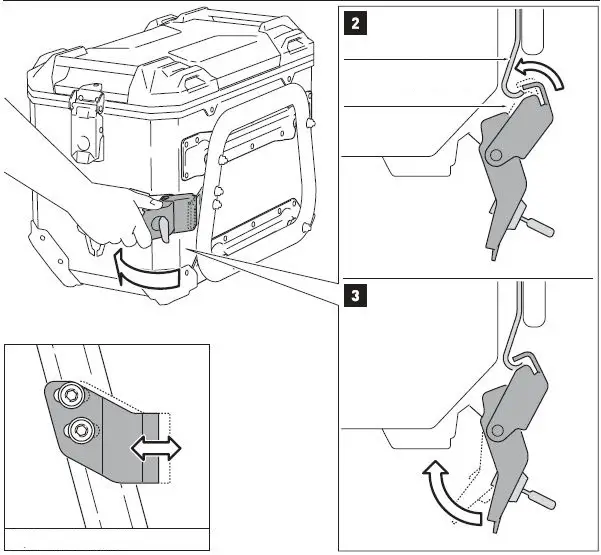

- ATTENTION: Make sure that the TRAX ADVENTURE ALU-BOX is properly attached to the particular adapter and fully engaged to all four mounting points! ALL latches of the TRAX ADVENTURE ALU-BOX must be locked BEFORE riding with the TraX ® EVO / TRAX ADV lock cylinder set (sold separately) and remain closed while riding. Improperly mounted cases run the risk of detaching during transport.
CARE
To clean the TRAX ADVENTURE ALU-BOX, use warm, soapy water and a soft, clean cloth. Rinse with clean water. Do NOT use strong cleaning agents, rough cleaning tools or high pressure washer!
STLICKLISTE / PARTS LIST

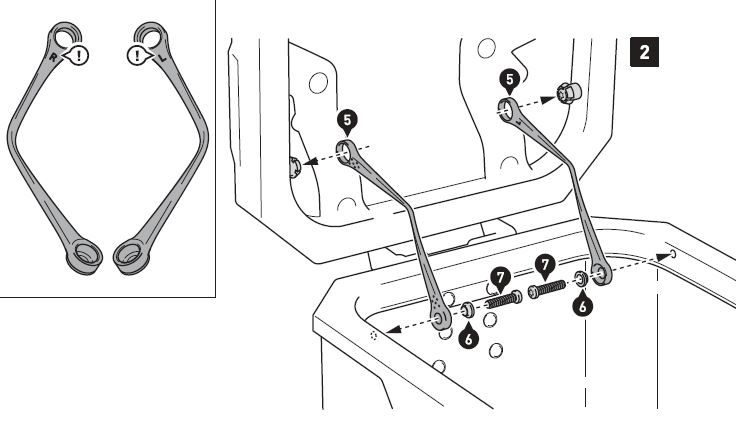

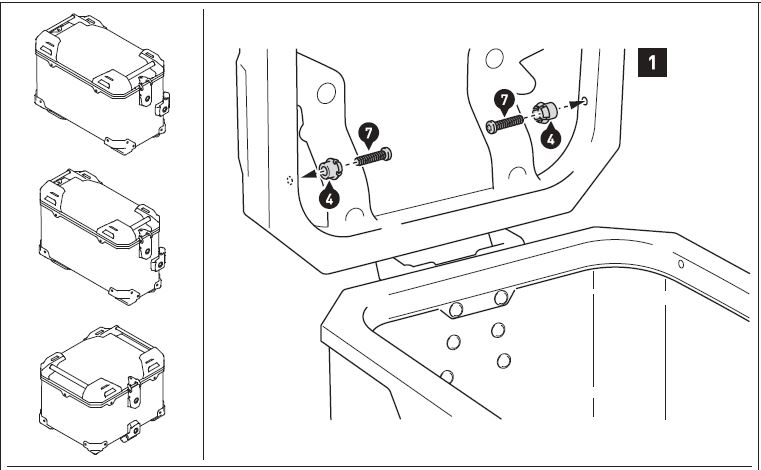

No Part QUANTITY N.M

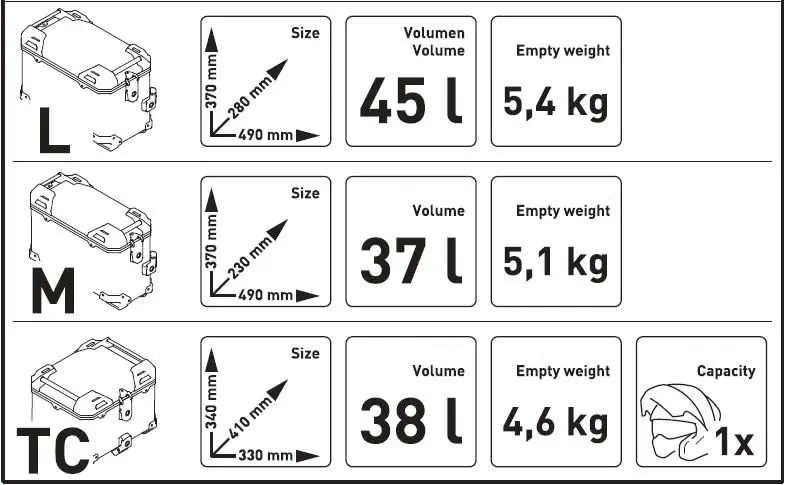

1-3 TRAX ADV ALU-BOX 1/1
(4) Snap-Fit 2/2
(5) Lid Limiter 2/2
(6) Swivel Part 2/2
(7 ) self-tapping 4/4 0,5
TECHNISCHE DETAILS I TECHNICAL DETAILS
Please visit our harts and web shop for compatible application accessories.

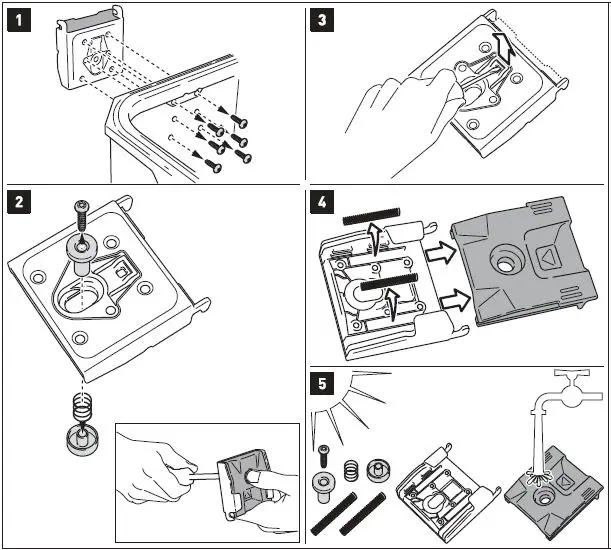

LID AND LOCK CYLINDER SET

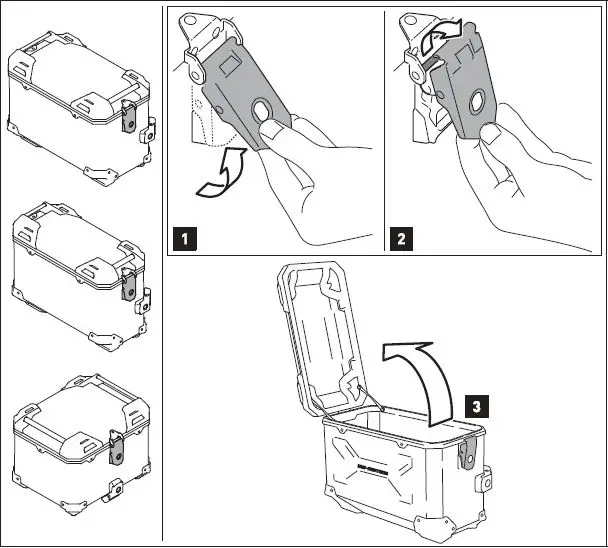

LID LIMITER

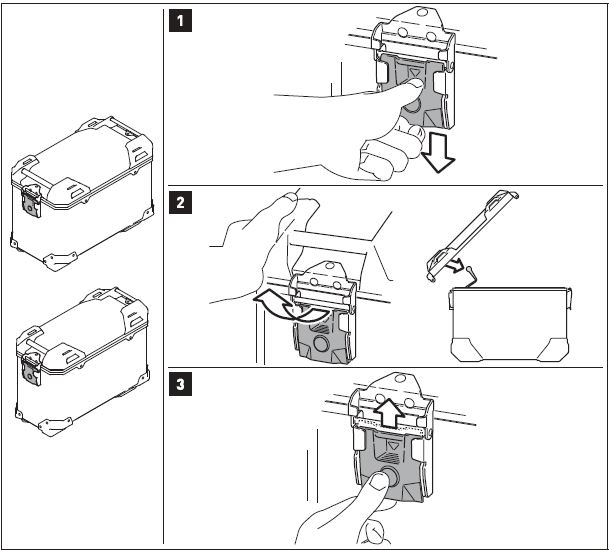

QUICK RELEASE FASTENER

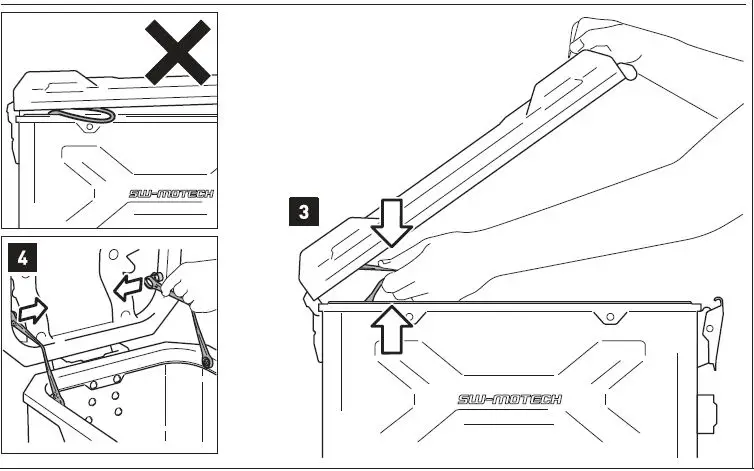

MOUNTING

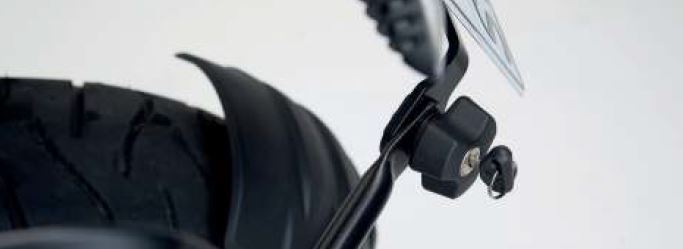

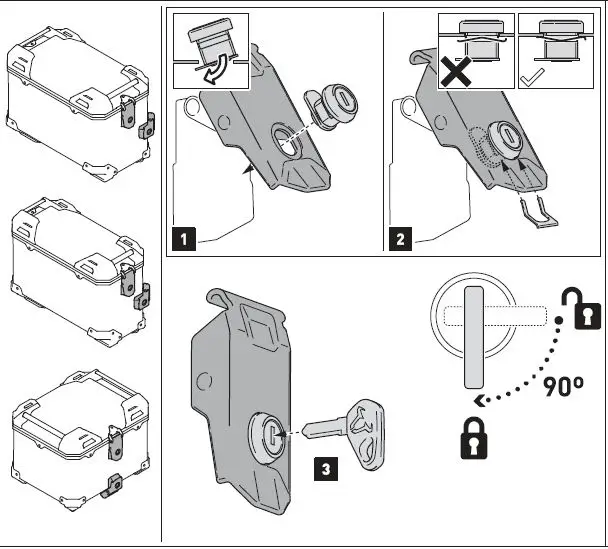

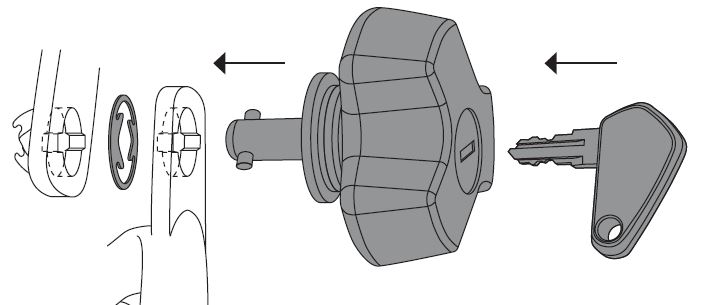

Anti-theft protection for PRO side carrier

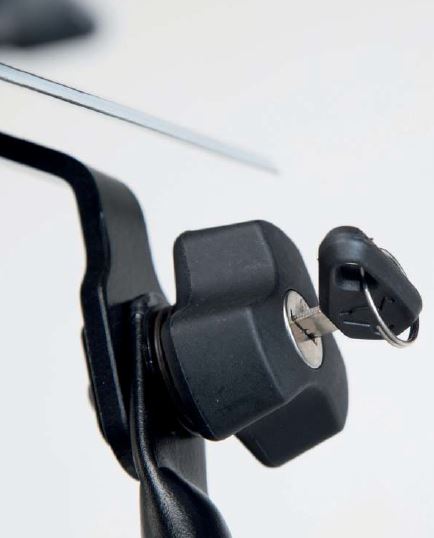

Each of this pair of lockable side carrier fasteners can be used to replace a standard fastener on a PRO side carrier in order to provide theft protection.
The set includes two matched keys.

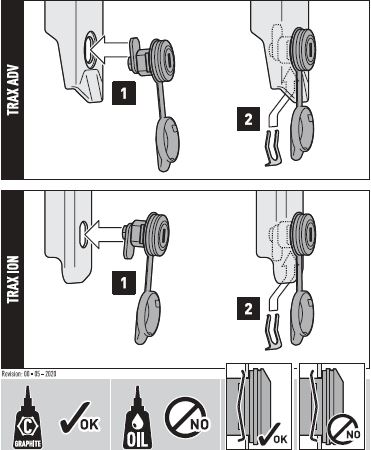

Attention: To maintain locks use graphite powder only.
Made in CN
QLS.00.095.10000/B
SW-MOTECH GmbH & Co. KG
Ernteweg 8/10 . 35282 Rauschenberg . Germany
