TANK SYSTEM SPECIFICATIONS
Contents
STS7GC Stenner Classic Series Peristaltic Pump with 7.5 Gallon Tank System
THIS TANK IS TESTED AND CERTIFIED BY WQA ACCORDING TO ANSI/NSF 61 FOR CONTACT WITH SODIUM HYPOCHLORITE AND WATER ONLY AND ANSI/NSF 372.
Tank System consists of the tank and pump and is built with Classic single head adjustable or fixed, M128 or Econ series.

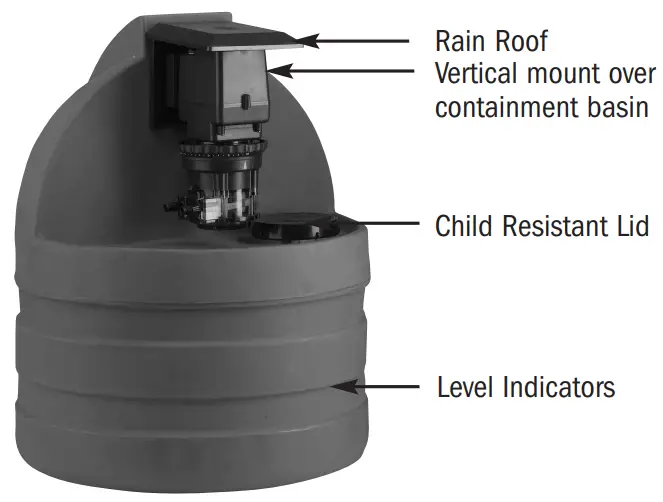

FEATURES
- Shipped pre-assembled for easy installation and convenience
- Includes rain roof to help protect motor (Classic series only)
- Vertically mounted for solution containment
- Child resistant lid
- Polyethylene construction is lightweight and rugged
UV resistant gray or translucent white
MATERIALS OF CONSTRUCTION
Tank Polyethylene, approved to NSF/ANSI 61
Lid with child resistant lock Polypropylene
Grommets Viton
Screws Stainless steel
SHIPPING WEIGHT AND BOX DIMENSIONS
| Tank Size |
Shipping Weight |
Box Dimensions | ||
| Classic Adjustable or M128 | Classic Fixed | Econ | ||
| 7.5-Gallon | 18 lbs (8.1 kg) | 15 lbs (6.8 kg) | 14 lbs (6.4 kg) | 23 x 23 x 21 in. (58.4 x 58.4 x 53.3 cm) |
| 15-Gallon | 27 lbs (12.3 kg) | 25 lbs (11.3 kg) | 23 lbs (10.4 kg) | 23 x 23 x 27 in. (58.4 x 58.4 x 68.6 cm) |
| 30-Gallon | 35 lbs (15.9 kg) | 32 lbs (14.5 kg) | 31 lbs (14 kg) | 23 x 23 x 38 in. (58.4 x 58.4 x 96.5 cm) |

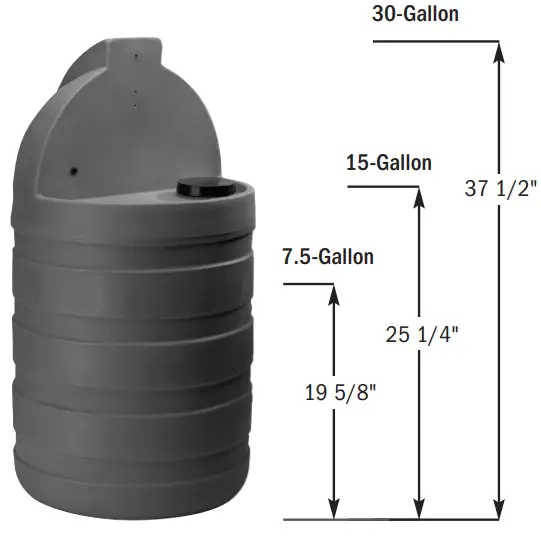

PRODUCT DIMENSIONS
- 7.5-Gallon: 20.5 OD x 19.6 in. (52.1 OD x 49.8 cm)
- 15-Gallon: 20.5 OD x 25.3 in. (52.1 OD x 64.1 cm)
- 30-Gallon: 20.5 OD x 37.5 in. (52.1 OD x 95.3 cm)
TANK SPECIFICATIONS
THIS TANK IS TESTED AND CERTIFIED BY WQA ACCORDING TO ANSI/NSF 61 FOR CONTACT WITH SODIUM HYPOCHLORITE AND WATER ONLY AND ANSI/NSF 372.

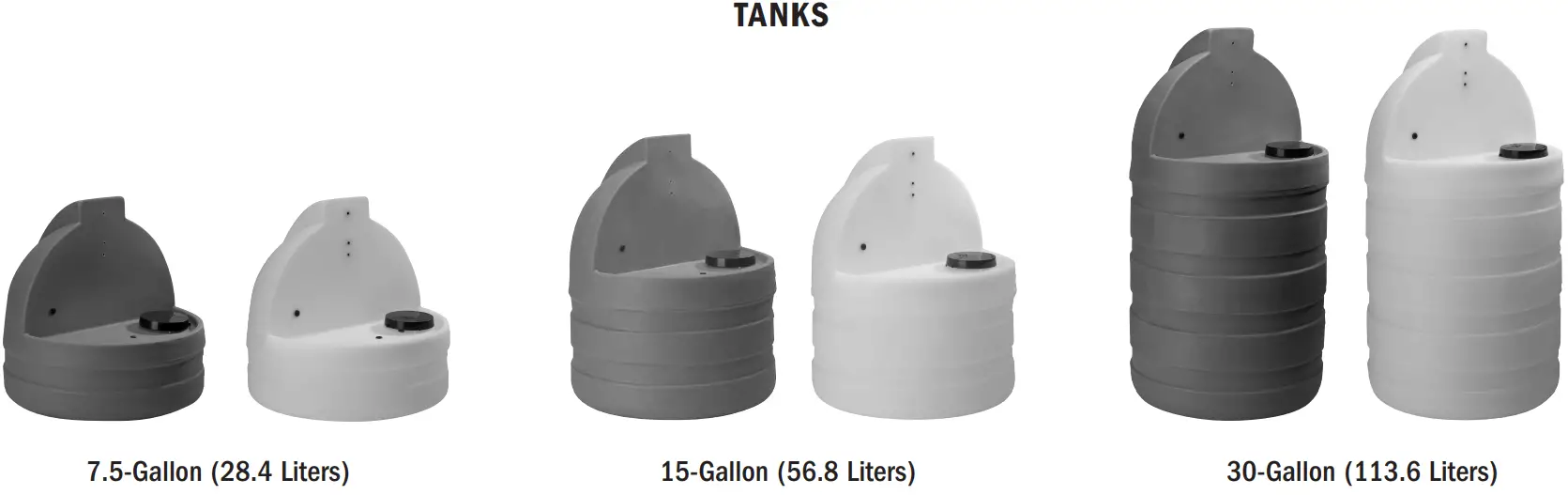

TANK MODEL NUMBERS
FOR 45, 85 OR ECON* SERIES PUMPS includes screws and grommets
| 7.5-gallon gray STS7GC | 7.5-gallon white STS7NC |
| 15-gallon gray STS15GC | 15-gallon white STS15NC |
| 30-gallon gray STS30GC | 30-gallon white STS30NC |
FOR SVP SERIES PUMPS includes screws and grommets
| 7.5-gallon gray STS7G-02 | 7.5-gallon white STS7N-02 |
| 15-gallon gray STS15G-02 | 15-gallon white STS15N-02 |
| 30-gallon gray STS30G-02 | 30-gallon white STS30N-02 |
MATERIALS OF CONSTRUCTION
Tank Polyethylene, approved to NSF/ANSI 61
Lid with child resistant lock Polypropylene
Grommets Viton
Screws Stainless steel
COLORS
UV resistant gray
Translucent white
DIMENSIONS AND SHIPPING WEIGHT
7.5-gallon 20 1/2 OD x 19 5/8 in. (52.1 OD x 49.9 cm); 9 lbs (4.1 kg)
15-gallon 20 1/2 OD x 25 1/4 in. (52.1 OD x 64.1 cm); 19 lbs (8.6 kg)
30-gallon 20 1/2 OD x 37 1/2 in. (52.1 OD x 95.3 cm); 26 lbs (11.8 kg)
* Econ Series tank mounting kit sold seperately.
This information is not intended for specific application purposes. Stenner Pump Company reserves the right to make changes to prices, products, and specifications at any time without prior notice.
FSPECSTS 110916
