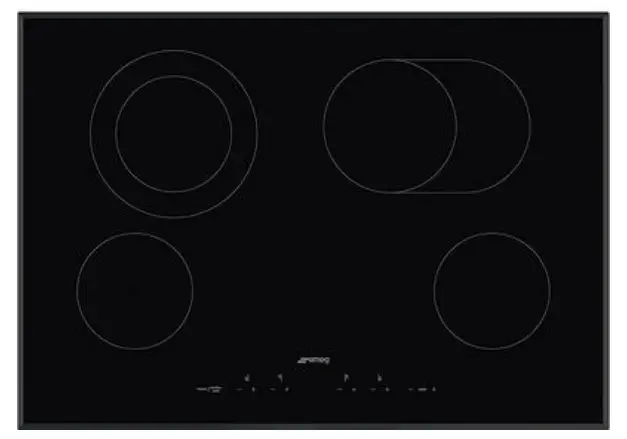

SEU304EMTB 30 Inch Electric Ceramic Glass Cooktop
Instruction Manual
Contents
SEU304EMTB 30 Inch Electric Ceramic Glass Cooktop
TYPE
Product family: Cooktop
- Dimensions: 30″
- Type: Ceramic
- Installation: Ultra-low profile
- Power supply: Electric
- EAN code: 8017709240981
AESTHETIC
Color: Black
- Finishing: Glass
- Material: Glass
- Glass: Ceramic
- Control setting type: Touch controls
- Controls position: Front
- Glass edge: Beveled
- Silkscreen color: Gray
PROGRAMS / FUNCTIONS
Cooking zones: 4
- No. of ceramic cook zones: 4
- Cooking zones with Booster: 4
- Power levels: 9
OPTIONS
Standard cut-out: 505×719 mm
- End cooking timer: 1
- End-of-cooking acoustic alarm: Yes
- Limited power consumption option: Yes
- Limited Power Consumption Mode in W: 4000 W
- Showroom mode: Yes
- Child safety lock: Yes
- Quick start: Yes
COOKING ZONES
Zone 1 – Position: Front-left
- Zone 2 – Position: Rear-left
- Zone 3 – Position: Rear-right
- Zone 4 – Position: Front-right
- Zone 1- Type: Ceramic – single
- Zone 2 – Type: Ceramic – double
- Zone 3 – Type: Ceramic – Flexible
- Zone 4 – Type: Ceramic – single
- Zone 1 – Dimensions: Ø 14.8 cm
- Zone 2 – Dimensions: Ø 14.8 – Ø 21.4 cm
- Zone 3 – Dimensions: Ø 17.0 – 26.5×17.0 cm
- Zone 4 – Dimensions: Ø 14.8 cm
- Zone 1 – Power: 1.20 kW
- Zone 2 – Power: 1.00 – 1.00 kW
- Zone 3 – Power: 1.60 – 2.40 kW
- Zone 4 – Power: 1.20 kW
TECHNICAL FEATURES
Automatic switch-off in case of over-heating: Yes • Automatic switch-off in case of overflow: Yes • Residual heat indicator: Yes
PERFORMANCE / ENERGY LABEL
ELECTRICAL CONNECTION
Nominal power: 6800 W
- Voltage: 240 V
- Voltage 2 (V): 208 V
- Frequency: 60 Hz
- Electric cable type: Single phase
- Power cord length: 47.25” / 120 “
ALSO AVAILABLE
LOGISTIC INFORMATION
Dimensions: 400x77x515
- Depth: 20 1/4 “
- Width: 3 1/16 “
- Height: 15 3/4 “
- Net weight: 30 lbs
- Gross weight: 35 lbs
