SLID UP SU5372 240 Barn Door Sliding System for 1 Partition Door Instruction Manual

SLID’UP 240

SU5372

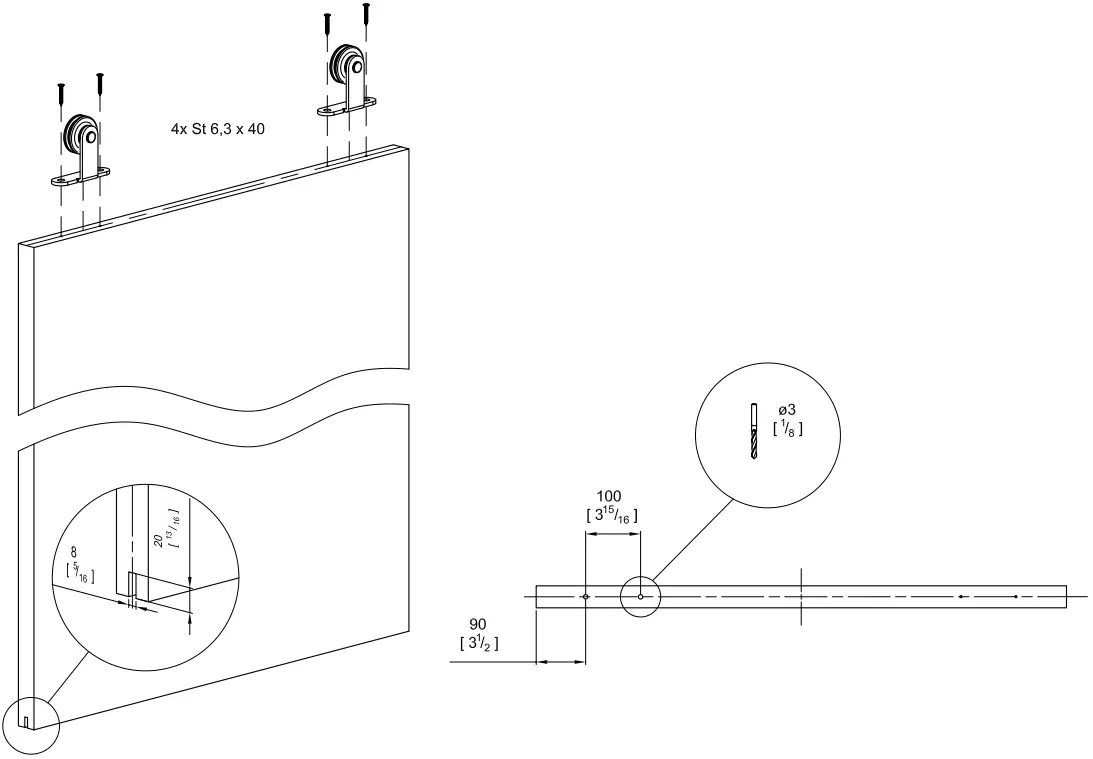

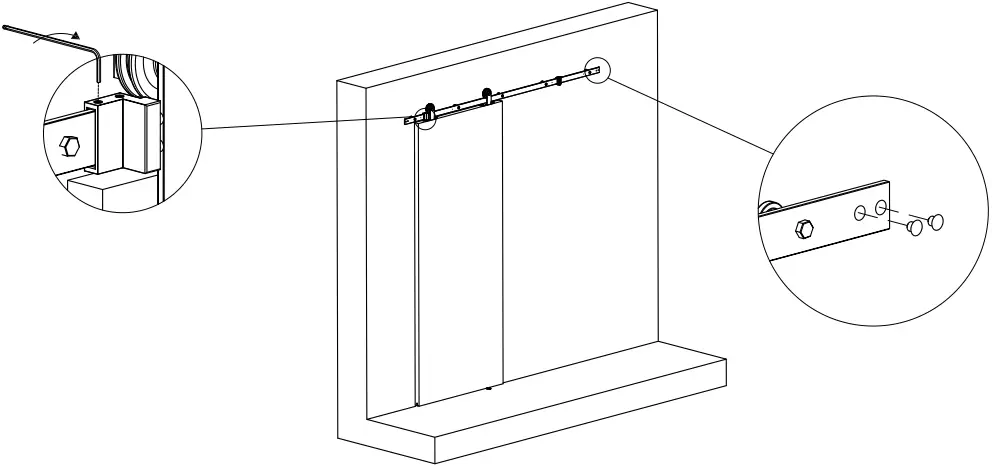

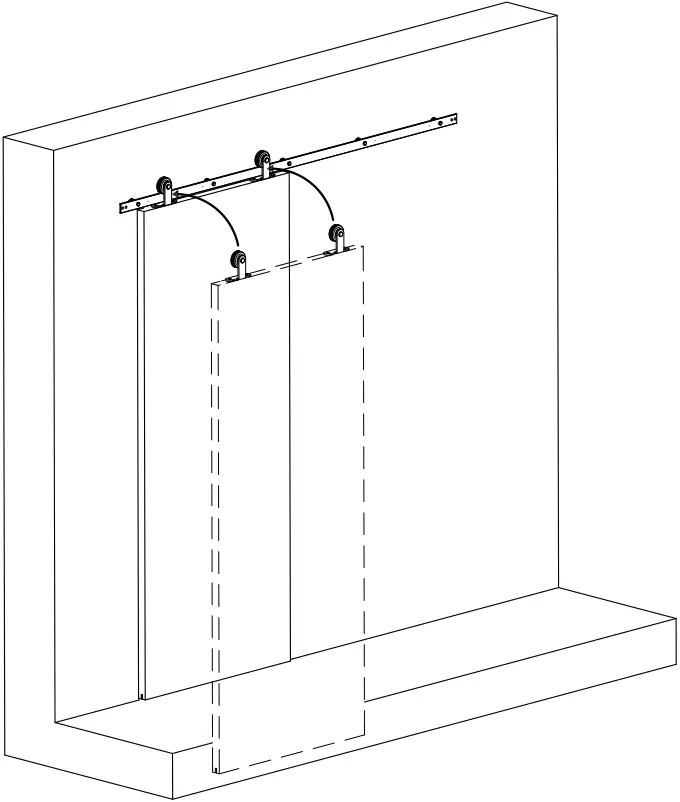

INSTRUCTIONS FOR ASSEMBLY

x1 x2 x5 x2 x2 x1 x4 x4 x5 x5 x2 x1



1

L0 [mm]	≥ 900	800≤L0>900
A [mm]	-25	+ 40
L0 [inch]	≤ 35 7/16	≥ 31 1/2
A [inch]	-1	+ 1 9/16



2

3

4

5

6

7
