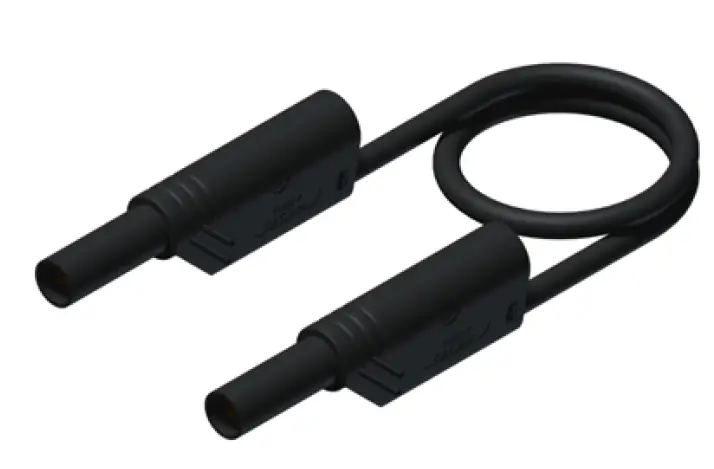

SKS MLS WS 25-2 Measuring Leads
Specifications
- Product Name: Measuring leads MLS WS 25/2,5
- Operating Instruction Article No.: BA452
- Rated Voltage: AC/DC 1000 V
- Measurement Category: IEC 61010 CAT II
- Rated Current: 32 A
- Plug Material: Brass, nickel plated
- Housing Material: PA
- Inflammability Class: V-2 (UL 94)
- Cable Length: Contact manufacturer for details
Safety Features
The measuring leads comply with IEC 61010 standards and feature a 4mm safety connector at each end. The nickel-plated copper beryllium contact spring ensures secure connections.
Flexibility & Durability
The leads are highly flexible, double insulated, and made of stranded lead material. They come with a shatter-proof grip sleeve and lead for enhanced durability.
Color Indicator
For easy identification of insulation damages, the leads have a built-in color indicator with different color options.
Connection Capability
The safety connectors have onward connection capability, making them versatile for various measurement setups.
FAQ
Q: What is the maximum rated voltage for the measuring leads?
A: The maximum rated voltage is AC/DC 1000 V, ensuring safe usage in a variety of electrical applications.
Q: Are the measuring leads suitable for high current measurements?
A: Yes, the leads are rated for a maximum current of 32 A. Please consider derating curve guidelines for prolonged high-current use.
Measuring leads
| Product | MLS WS 25/2,5 | ||||||||
| description | Safety measuring lead to IEC 61010 standard, at either end 4 mm diameter safety connector with onward connection capability (4mm socket). Nickel- plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, shatter-proof grip sleeve and lead. Built in color indicator for easy indentification of insulation damages. | ||||||||
| operating instruction | BA452 | ||||||||
| article-no. /
*colour |
|||||||||
| drawing | |||||||||
 |
|||||||||
| technical data | |||||||||
| rated voltage | AC/DC 1000 V | ||||||||
| measurement cat. acc. to IEC 61010 | CAT II | ||||||||
| rated current
(consider derating curve) |
32 A | ||||||||
| material plug | brass, nickel plated | ||||||||
| housing material | PA | ||||||||
| temperature range acc. To IEC61010(1) | -15 °C to +70 °C | ||||||||
| inflammability class acc. to UL 94
(only valid for basic material of housing) |
V-2 | ||||||||
| cable length | 25 cm |
| conductor size | 2,5 mm² |
| cable material | PVC |
- contact the manufacturer for applications at deviating temperature ranges
- Stand: 21.06.2022
- stand: 21.06.2022
SKS Kontakttechnik GmbH | Neue Schichtstraße 14 | D-09366 Niederdorf | Phone +49-37296-930-300 | Fax +49 37296-930-301 | www.sks-kontakt.de | [email protected] 1/2
