MLN 50-1 Measuring Leads
Owner’s Manual
MLN 50-1 Measuring Leads
| Product | MLN 50/1 |

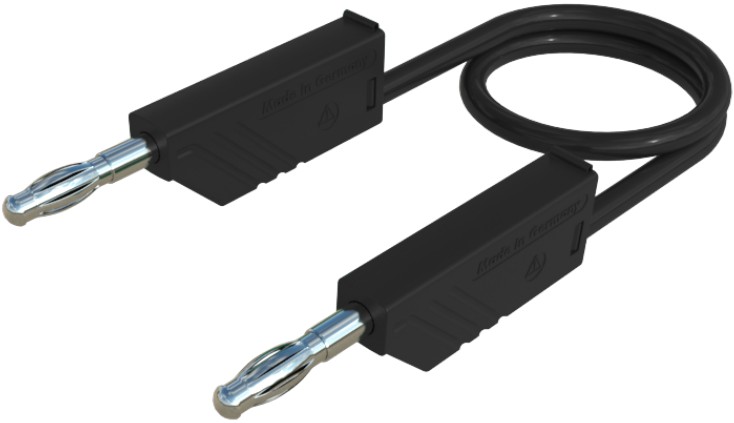

| description | Measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Nickel-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages. |
| operating instruction | BA401 |
| article-no. / *colour | 9340601xx |

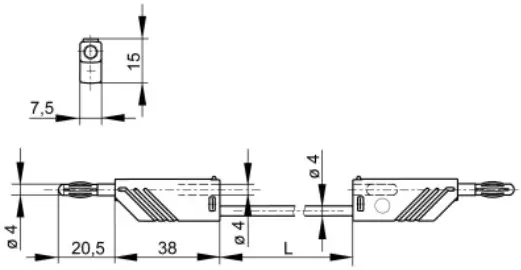

| drawing |  |
| technical data | |
| rated voltage | 30 VAC / 60 VDC |
| measurement cat. acc. to IEC 61010 | O ² |
| rated current (consider derating curve) | 16 A |
| material plug | brass, nickel plated |
| housing material | PA |
| temperature range acc. To IEC61010 | -15 °C to +70 °C |
| inflammability class acc. to UL 94 (only valid for basic material of housing) |
V-2 |
| cable length | 50 cm |
| conductor size | 1 mm² |
| cable material | PVC |
- contact the manufacturer for applications at deviating temperature ranges
- without rated measurement category, for other circuits that are not directly connected to mains stand: 21.06.2022
stand: 21.06.2022
