SJE RHOMBUS CL100 Installer Friendly Series IFS Single Phase Simplex Instruction Manual

SJE RHOMBUS CL100 Installer Friendly Series IFS Single Phase Simplex

Product Information

The Single Phase Simplex is a pump control system that can be used for demand dose or timed dose applications. It is equipped with a Float or C-LevelTM Sensor for pump control, system monitoring, event logging, and reporting. The panel features a touch pad with various indicators and controls for easy operation. The C-LevelTM sensor has different operating ranges depending on the model.

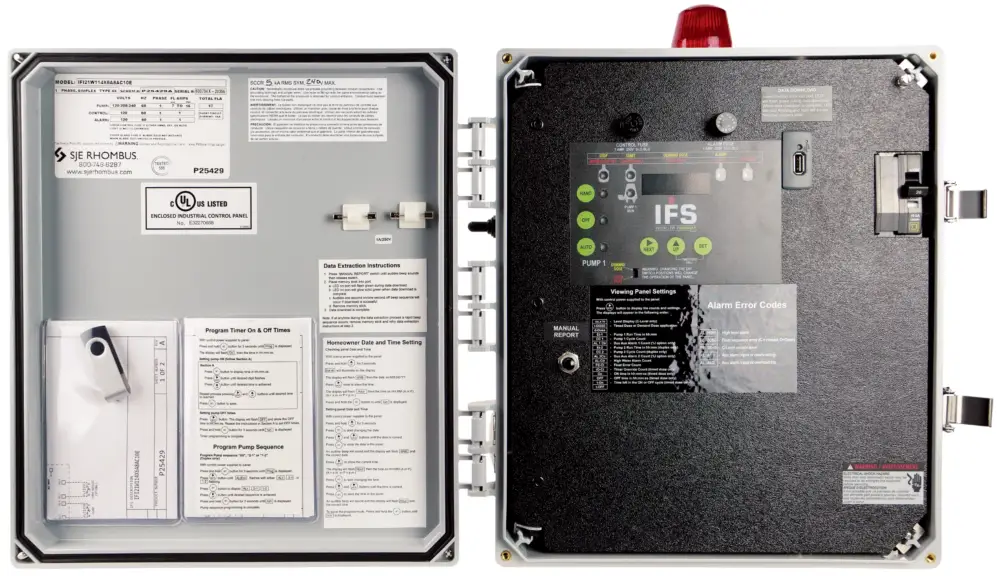

The IFS In-Site® simplex control panel utilizes an innovative circuit board design to control one 120/208/240V single phase pump in water and sewage applications. IFS panels feature an easy-to-use touch pad on inner door for programming and system monitoring. Quick retrieval of all system events can be done by downloading panel information onto a USB flash drive. The panel configuration can be easily converted in the field to either a timed dose or demand dose. Available with the EZconnex® float system.
Monitor system events including pump run times, pump cycles, alarm conditions, power outages, service calls and more! Quick, convenient reports make diagnosing system conditions easy! Plug the flash drive into the USB port located on the inner door of the IFS In-Site® panel to download system events which occurred. No computer is needed at the site! Use the flash drive (included with panel) with any computer to download system information and reports. The pre-loaded software on the flash drive formulates system data for you, creating reports quickly in an easy-to-read format so system conditions can be easily identified and corrected. In addition to monitoring system events, the IFS In-Site® panel logs any service calls and changes made to system settings, which helps protect service providers. The panel can utilize the C-Level™ sensor for continuous level monitoring. It senses the level in the tank and sends a signal to the panel. Pump activation levels can be adjusted by using the panel touch pad. C-Level™ CL40 sensor operating range is 3-39.9 inches (7.6 101.3 cm). C-Level™ CL100 operating range is 3-99.5 inches (7.6-252.7 cm).

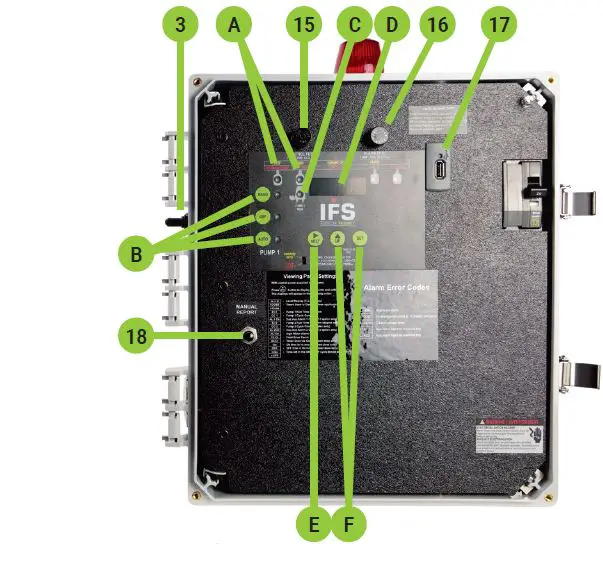

TOUCHPAD FEATURES

• A. Level Status indicators illuminate when floats or set points are activated; alarm will activate if a float operates out of sequence
• B. HOA (Hand-Off-Automatic) buttons with indication control pump mode; Hand mode defaults to Automatic when stop level or redundant off level is reached
• C. Pump Run indicator illuminates when pump is called to run
• D. LED display for system information including: level in inches or centimeters (C-Level™ sensor only), mode, pump elapsed time (hh:mm), events (cycles), alarm counter, float error count, timed dose override counter (timed dose only), pump ON/OFF times (timed dose only), and sequence ON/OFF times (timed dose only)
• E. NEXT push button toggles display
• F. UP and SET push buttons used to set pump ON/OFF times (timed dose only), date and hour, activation levels (C-Level™ only)

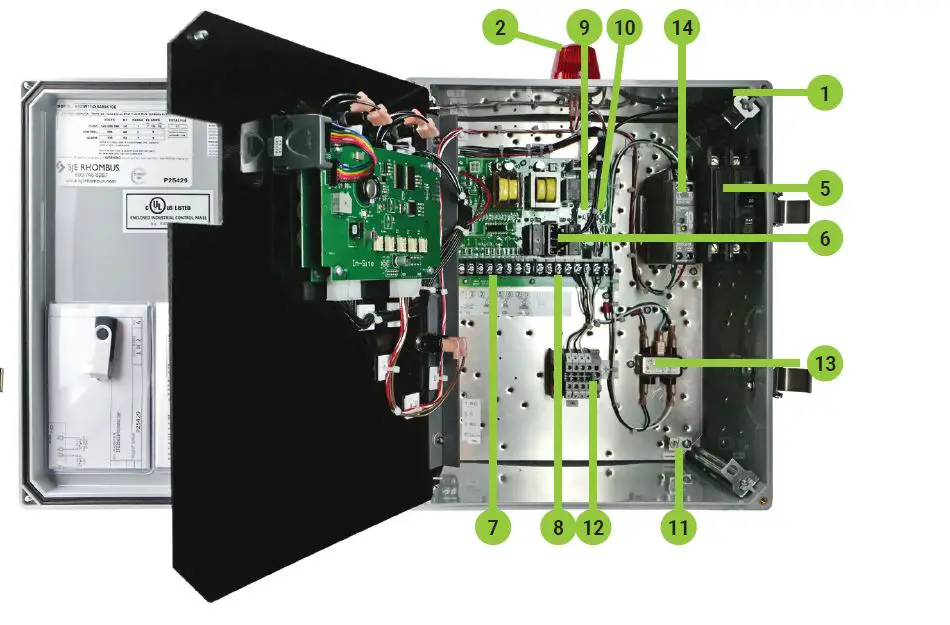

COMPONENTS

1. Enclosure base measures 14 x 12 x 6 inches (35.56 x 30.48 x 15.24 cm); NEMA 4X (ultraviolet stabilized thermoplastic with removable mounting feet for outdoor or indoor use)
2. Red LED beacon provides 360° visual check of alarm condition
3. Exterior Alarm Test/Normal/Silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
4. Alarm horn provides audio warning of alarm condition (83 to 85 decibel rating) (Not shown)
5. Circuit breaker (optional) provides pump disconnect and branch circuit protection
6. Power relay controls pump by switching electrical lines; definite purpose contactor used when pump full load amps are above 15
7. Float connection terminal block
8. Incoming control/alarm terminal block
9. Control Power indicator/fuse indicator light illuminates if control power is present in panel; alarm will activate if control fuse is blown
10. Alarm Power indicator/fuse indicator light illuminates if alarm power is present in panel
11. Ground lug
12. Incoming pump power connections
13. RF filter
14. Power supply
15. Control fuse
16. Alarm fuse
17. USB port for flash drive to download time-stamped system events
18. Manual report switch date and time stamps service calls

Note: Options, voltage, and amp range selected may change enclosure size and component layout.
Note: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel.

Control and System Monitoring

CONTROL PANEL		IFI
MODEL TYPE		1	Simplex Timed Dose (includes Option 8AC as standard)
		2	Simplex Demand Dose (includes Option 8AC as standard)
ALARM PACKAGE		1	Alarm Package (includes test/normal/silence switch, fuse, red light, & horn)
ENCLOSURE RATING		W	Weatherproof, NEMA 4X (engineered thermoplastic)
STARTING DEVICE		1	120/208/240V
		9	120V only
PUMP FULL LOAD AMPS		0	0 – 7 FLA
		1	7 – 15 FLA
		2	15 – 20 FLA
PUMP DISCONNECTS		0	No Pump Disconnect
		4	Circuit Breaker 120V (select STARTING DEVICE Option 9 above)
			Circuit Breaker 120/208/240V (select STARTING DEVICE Option 1 above)
FLOAT SWITCH APPLICATION		H	Floats – Pump Down (select Option 17 below) Timed dose = timer enable and alarm / Demand dose = stop, start, and alarm
		E	EZconnex® Float Switch System (select Option 33, 35 or 36 below)	Timed Dose
				Demand Dose
		X	No Floats	Timed Dose
				Demand Dose
		C	C-Level™ Sensor (select Option 24 or 29) Select Option 3E and/ or 4A & 4D for high water alarm and/or redundant off floats	Timed Dose
				Demand Dose

PRICING WORKSHEET

• IFI Simplex Base Price: ______________
• Alarm Package: ______________
• Enclosure Rating: ______________
• Starting Device: ______________
• Pump Full Load Amps: ______________
• Pump Disconnects: ______________
• Float Switch Application: ______________
• Total Options: ______________
• TOTAL LIST PRICE: ______________

NOTE: Pump down applications only. Industry practices suggest that a secondary device, such as a float switch, be used for redundant activation of the high-level alarm and pump shut off when using the C-Level™ sensor.

DESCRIPTION

	OPTIONS	DESCRIPTION			OPTIONS	DESCRIPTION
	1J	Duo Alarm Inputs			17C	Sensor Float® / Internally Weighted (per Float) – Mercury
	3A	Alarm Flasher			17D	Sensor Float® / Externally Weighted (per Float) – Mercury
	3B	Manual Alarm Reset			17G	SJE MilliAmpMaster™ / Pipe Clamp (per Float) – Mechanical
	3E	High Water Alarm Float (must also select Option 17) Only Available with Float Switch Application = C			17H	SJE MilliAmpMaster™ / Externally Weighted (per Float) – Mechanical
					17J	Sensor Float® / Pipe Clamp (per Float) – Mercury
	4A	Redundant Off (must also select Option 4D if floats are required)	Timed Dose		18A	Timer Override Float (Timed Dose Float Panel Only)
			Demand Dose		24E	C-Level™ CL40 Sensor with 4’ Vent Tube and 20’ Cord
	4D	Redundant Off Float (must also select Option 4A and Option 17)			24F	C-Level™ CL40 Sensor with 4’ Vent Tube and 40’ Cord
	6A	Auxiliary Alarm Contact, Form C			24G	C-Level™ CL40 Sensor with 8’ Vent Tube and 20’ Cord
	8AC	Display Board – Includes: ETM Counter, Events (Cycles) Counter, Alarm Counter, and Override Counter (Timed Dose Only) (in- cluded as standard)			24H	C-Level™ CL40 Sensor with 8’ Vent Tube and 40’ Cord
					24X	No C-Level™ CL40 Sensor
					29A	C-Level™ CL100 Sensor with 10’ Vent Tube and 20’ Cord
	10E	Lockable Latch – NEMA 4X			29B	C-Level™ CL100 Sensor with 10’ Vent Tube and 40’ Cord
	10F	Lightning Arrestor (select pump circuit breaker, control and alarm power combined)			29X	No C-Level™ CL100 Sensor
					33D 	EZconnex® 3-Port, 25’, with 10’ Floats (3) / Pipe Clamp
	10K	Anti-condensation Heater (must select if operating temperature is colder than 0 degrees F or -18 degrees C)			33E 	EZconnex® 3-Port, 50’, with 10’ Floats (3) / Pipe Clamp
					33G 	EZconnex® 3-Port, 25’, with 20’ Floats (3) / Pipe Clamp
	11C	Additional NEMA 1 Remote Alarm Panel (must also select Option 6A)			33H 	EZconnex® 3-Port, 50’, with 20’ Floats (3) / Pipe Clamp
	11D	Additional NEMA 4X Remote Alarm Panel (must also select Option 6A)			35D 	EZconnex® 4-Port, 25’, with 10’ Floats (4) / Pipe Clamp
	15A	Control/Alarm Circuit Breaker			35E 	EZconnex® 4-Port, 50’, with 10’ Floats (4) / Pipe Clamp
	16A	10’ Cord in Lieu of 20’ Cord (per Float)			35G 	EZconnex® 4-Port, 25’, with 20’ Floats (4) / Pipe Clamp
	16B	15’ Cord in Lieu of 20’ Cord (per Float)			35H 	EZconnex® 4-Port, 50’, with 20’ Floats (4) / Pipe Clamp
	16C	30’ Cord in Lieu of 20’ Cord (per Float)			36D 	EZconnex® 3-Port, 25’, with 10’ Floats (2) / Pipe Clamp, Sealing Plug
	16D	40’ Cord in Lieu of 20’ Cord (per Float)			36E 	EZconnex® 3-Port, 50’, with 10’ Floats (2) / Pipe Clamp, Sealing Plug
					36G 	EZconnex® 3-Port, 25’, with 20’ Floats (2) / Pipe Clamp, Sealing Plug
					36H 	EZconnex® 3-Port, 50’, with 20’ Floats (2) / Pipe Clamp, Sealing Plug

EZconnex® mechanically-activated, narrow-angle float switches with quick-release connections.
