SJE RHOMBUS 1008569 Float Accessories
CABLE CLAMP ASSEMBLY
Provides cable anchor point and strain relief. Secures cable in the vertical direction.
- For use with 18/16 gauge, 14 gauge, & 12 gauge cable
- MOUNTING CLAMP: ABS Nylon blend
- HOSE CLAMP: highly corrosion-resistant stainless steel
FLOAT BRACKET
Provides convenient installation of float switches.
- Six Float Bracket supports 1-6 floats
- Four Float Bracket supports 1-4 floats
- Can be directly mounted to wall or used with wall mounting device
- Provides a convenient location to stow excess float cord
- Supplied with UL Recognized cord strain relief connectors
METAL COMPONENTS
- all metal components are made of 300 series stainless steel.
STRAIN RELIEF CONNECTORS
- which accommodate 18/2, 18/3, 16/2, 16/3 SJOW and SJTW cords.
PIPE MOUNTING BRACKET
- Secures discharge pipe to basin wall.
- Clamps directly to 2″ PVC discharge pipe.
CABLE WEIGHT
Provides an accurate pivot point for suspended float switches.
- Gripper teeth on clip and weight channel securely lock float cable into place
- Cable weight can be adjusted without the use of tools
- HOUSING: 1 pound, 5 ounce (0.6 kgs.), 2.8 inch diameter x 3.3 inch long (7.1 cm diameter x 8.4 cm), impact resistant, non-corrosive, PVC housing for use in liquids up to 140°F (60°C)
- CLIP: injection molded acetal plastic
- WIRE/CABLE ACCOMMODATED: SJOW, SJTW, 18/2, 18/3, 16/2, 16/3, 14/2 and 14/3
- SHIP WEIGHT: 1.6 lbs. (.726 kgs)

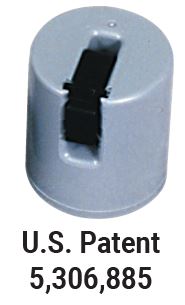

CABLE WEIGHT MINI
Provides an accurate pivot point for suspended float switches.
One piece cable weight- Turn and Lock for easy installation
HOUSING
- 9.6 ounces (0.27 kgs.), 2.5-inch diameter x 2.5 inches long (6.35 cm diameter x 6.35 cm), impact resistant, non-corrosive, PVC housing for use in liquids up to 140°F (60°C)
WIRE/CABLE ACCOMMODATED
- SJOW, SJTW, 18/2, 18/3
NOTE: The Cable Weight Mini can be used on the following control switches with 18/2 or 18/3 cable:
- SJE SignalMaster®
- SJE SignalMaster® SPDT
- SJE MilliAmpMaster™
- Sensor Float® Mini
ELAPSED TIME METER WITH PIGGY-BACK PLUG
- Plugs into a switched outlet or piggyback switch of the plugger control panel. Unit must be placed inside an enclosure.
- Screws and mounting adhesive included
VERTICAL REED SWITCH
- Control differential: .375 inch (1 cm)
- The maximum angle from vertical: 5°
- Electrical: 250 mumps, 12-125 VAC, 50/60 Hz
- 500 mumps, 6-12 VDC, 50/60 Hz
- Housing and Float: 1.60-inch diameter x 6.7-inch long (4.06 cm X 17.01 cm), high impact, corrosion-resistant PVC for use in sewage and non-potable water up to 120°F (50°C)
ANCHOR
- 10 lb. weight
- Yellow, vinyl-coated, mushroom style
CHAIN
- 1/8″ thickness
- 316-grade stainless steel
- Available in one-foot increments
6 HOOK BRACKET
- Universal hanger for up to 6 float switches, submersible transmitters, and small horsepower pump cords
- Hook diameter: 0.188” x 3.0” (1.8 mm x 76.2 mm)
- 304 stainless steel
FLOAT ACCESSORIES – Cable Clamp Assembly, Float Brackets, Pipe Mounting Bracket, Cable Weights, ETM w/ Piggy-Back Plug, Vertical Reed Switch, Anchor and Chain.
| Part # | Description | List Price |
| 1008569 | 18 & 16 Gauge Cable Clamp Assembly | $8.13 |
| 1008574 | 14 Gauge Cable Clamp Assembly | $8.13 |
| 1008575 | 12 Gauge Cable Clamp Assembly | $8.13 |
| 1027830 | 304 Stainless Steel Float Bracket with 3 Black Cord Snubbers | $63.21 |
| 1009432 | 4 Float Bracket with Mounting Device | $90.55 |
| 1009433 | 4 Float Bracket without Mounting Device | $79.21 |
| 1009434 | 6 Float Bracket with Mounting Device | $122.14 |
| 1009435 | 6 Float Bracket without Mounting Device | $102.61 |
| 1009436 | Float Bracket Mounting Device | $21.76 |
| 1027771 | Pipe Mounting Bracket | $73.26 |
| 1002230 | Cable Weight | $14.57 |
| 1030356 | Cable Weight Mini | $11.28 |
| 1022846 | Elapsed Time Meter w/120V Piggy-Back Plug | $137.11 |
| 1032834 | Elapsed Time Meter w/230V Piggy-Back Plug | $294.42 |
| 1011027 | 10-foot Vertical Reed Switch 120V Box | $115.54 |
| 1016561 | 15-foot Vertical Reed Switch 120V Box | $123.57 |
| 1018687 | 10 lb. Mushroom Anchor | $68.79 |
| 1018823 | 1/8 inch Chain | $13.27 per ft. |
| 1052814 | 6 Hook Bracket | $92.37 |
