Simply Retrofits Architectural Linear Fixture 50W 40W 30W 3CCT Instruction Manual

Linear Architectural Light
User Manual
www.simplyretrofits.com

All the pictures are just for references.

Contents

CAUTION! Risk Of Electrical Shock
Turn off all power prior to installation by switching off circuit breaker or removing fuse at fuse box.

This product should be installed by a certified electrician in accordance with relevant federal, state and local building and electrical codes

Common Failures	Solutions
Light is out	Ensure the lamp is well connected.
Light is out	Ensure the switch is turned on.
Flashing	Ensure the voltage is stable.
Flashing	Ensure the dimmer is compatible.

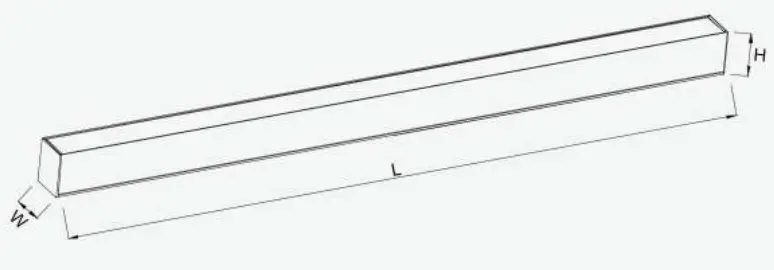

Size

before installation, Please tum offthe switch.
Punch 2 holes with Φ6mm in the caiing and plag the plasic owsl linto the hole.
Fix 2 suspension wire heads on the ceing (Beow he picture)
Fix the accessory wire rope on the suspension wire heads (Picture A)
Fasten the Install shrapnel on the wire lock (Picture B)
Snap the Install shrapnel on the suspension wire onto the profile of the light (Below the picture)
The hoisting height of lights is controlled by adjusting the steel cable
Connect the input line of the light nth the mains testricrty, and connect the dimming Ina into the lead of the drmmar before connecting to the mains electricity (The positive and negative poles should correspond)
Row Mounting: Install the lens after the fixture is completed.
After installation, turn on the switch.

before installation, Please tum off the switch.
Drill two groups of 6mm Φ hotes onthe ceiling, each group of 2pes, and the spacing of holes in the group is 32mm (Below the picture)
Lead out the mains electrioty (Below the picture)
Insent plasic dovst nto the hle on the ceiing (Hole spacing 32mm) (Below the picture)
String the wafer Head Self Tapping Screw into the Install shrapnel and lock itinto the plastic dowel
Connect the line of the light to the mains electricity and dimmer wiring, and then lift the light and clip it into the installed mounting bracket
After installation, turn on the switch.

before installation, Please tum off the switch.
Punch 4 holes watt 0 6mm on the wall. plug the 2 piestc dowel itto the hole, and punch two holes Illl with 0 10 In the figure (Below the picture)
Fix the wall mounted accessories on the wall with screws,The input power line and climmirig light are led out from the two hoies respectvely.
Release the screws on the inner side of the cover which is on the input wires side, then assemble the wire cover, notch toward the wall side, then connect the power line and dimming line.
Insert the T-type screw into the middle hole of the shrapnels, 5 then clip the shrapnels into the profile (Below the picture)
Align the light with the wall mounting fiting installed in step 3:and insert the T-type screw into the top through hole of the wall mounting fiting.The c-washer is placed on the T-type screw of the suppor,Tighten the butterfly scrow(Below the picture)
After installation, turn on the switch.

Use a screwdriver to lift the top cover; Remove the magnetic end cap a and the spring end cap b by hand, as shown the left Figure 1
Insert H mechanical joiner into one side of fixture, and then connect it to another fixture.You can fix H with two screws or not. Put the spring buckle on the connection plate, and then buckle it on the connection plate of another fixture. As shown in Figure 2A. The effect after installation is shown in Figure 2B
Pull the power cord of the fixture on the right to the fixture on the left inside of fixture body, and connect the wires one by one with quick connector. As shown in Figure 3.
Put end cap A, end cap B and cover plate on

Use a screwdriver to lft the top cover; Remove the magnetic end cap a and the spring end cap b by hand, as shown the left Figure.
Insert terminal pin to one side of fixture. And then insert H mechanical joiner into one side of fixture. Then please connect fixture to “L” corner kit. Check if the terminal pin is connected normally
The other side connection is same as the last step.
Power cord has two ways to be connected.
Way one: Every fixture are power by its own power cord as below figure 1 shown.Way two: Fixture connected in in series. Pull the AC line of second fixture to first fixture inside of fixture body, and connect the wires one by one with quick connector. As shown in Figure 2.
Put cover plate on.
