Contents
seville classics WEB721 Under the Desk Storage-Printer Cart
Product Information
Product Name: Under the Desk Storage – Printer Cart
Model Number: WEB721
Dimensions: 21in L x 16in W x 17.78in H
Weight Capacity: 50 lbs
Weight: 20.29 lbs
Assembly Instructions
- Secure both of the support bars (Part 4) to the cart top (Part 1) by using 4 x screws (Part A).
- Line up spacers (Part C) between the left frame (Part 2) and support bars (Part 4). Then secure the frame to a top piece by inserting a screw (Part B) using an Allen wrench (Part D).
- Line up spacers (Part C) between the left frame (Part 2) and the bottom tray (Part 6). Then secure the frame and tray by inserting the screw (Part B) using an Allen wrench (Part D).
- Repeat steps 2 and 3 to attach the right frame (Part 3) to the cart.
- Once all screws are secure and tight, place the cart upside down and use the wrench (Part F) to screw in the 4 x casters (Part E).
Usage Instructions
- Step 1: Follow the assembly instructions provided above to assemble the printer cart.
- Step 2: After assembly, ensure that heavier items are placed on the lower shelves and lighter ones on top. Do not stand or sit on the unit, and avoid dropping items onto it. Evenly distribute items within the unit to prevent tipping over.
Customer Service Information
Telephone: 800-323-5565
Fax: 310-533-3899
Hours: 8:30 AM – 4:30 PM (PST)
Email: [email protected]
Homepage: www.SevilleClassics.com
Model: WEB721
Thank you for choosing Seville Classics! We hope that you enjoy your new Utility Cart. Please read through this user guide for parts, assembly instructions, frequently asked questions and contact information.

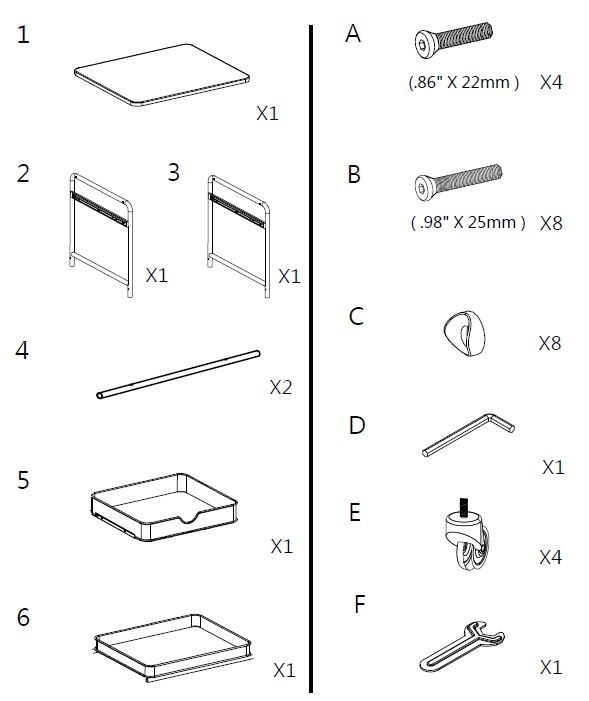

Parts List
- Please make sure you have all the parts on the list.
- If you’re missing parts, contact us for replacements at 800-323-5565 or send an email to [email protected].
Assembly Instructions

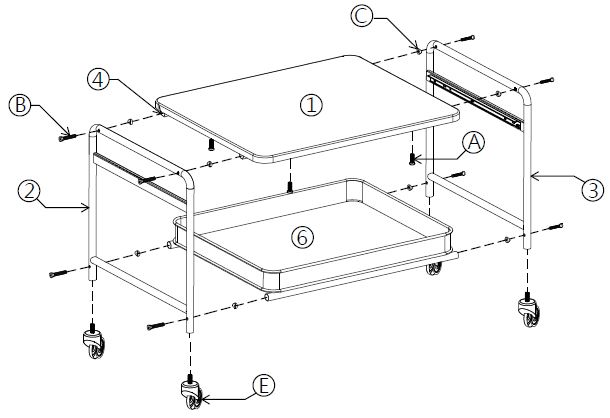

Step 1
- Secure both of the support bars (Part 4) to the cart top (Part 1) by using 4 x screws (Part A).
- Line up spacers (Part C) between the left frame (Part 2) and support bars (Part 4). Then secure the frame to a top piece by inserting a screw (Part B) using an Allen wrench (Part D).
- Line up spacers (Part C) between the left frame (Part 2) and the bottom tray (Part 6). Then secure the frame and tray by inserting the screw (Part B) using an Allen wrench (Part D).
- Repeat steps 2 and 3 to attach right frame (Part 3) to the cart.
- Once all screws are secure and tight, place the cart upside down and use the wrench (Part F) to screw in the 4 x casters (Part E).

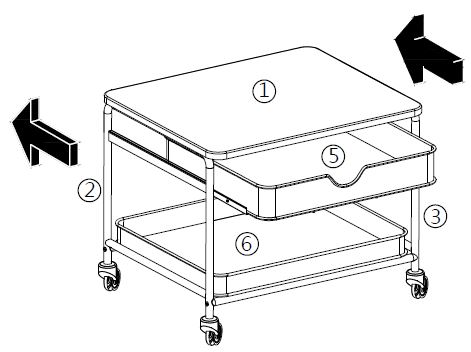

Step 2
Once the casters are secure, tilt the drawer (Part 5) slightly and align the drawer onto the glides and push the drawer in.
CAUTION: PLACE HEAVIER ITEMS ON THE LOWER SHELVES AND LIGHTER ONES ON TOP. DO NOT STAND OR SIT ON THE UNIT. DO NOT DROP ITEMS ONTO THE UNIT. EVENLY DISTRIBUTE ITEMS WITHIN THE UNIT TO PREVENT TIP OVER.
Specifications
- Dimensions: 21in L x 16in W x 17.78in H
- Weight capacity: 50 lbs.
- Weight: 20.29 lbs.
Customer Service Information
- Telephone: 800-323-5565
- Fax: 310-533-3899
- Hours: 8:30 AM – 4:30 PM (PST)
- Email: [email protected].
- Homepage: www.SevilleClassics.com.
