3-Tier Resin Slat Utility Shoe Rack
Model No.: SHE15881B, SHE15884B
Contents
SHE15881B 3-Tier Resin Slat Utility Shoe Rack
Thank you for choosing Seville Classics! We hope that you enjoy your new utility shoe rack. Please read through this user guide for parts list, assembly instructions, frequently asked questions and further contact information.
Parts List
| A. Frame (1 pc) |  |
| B. Shelf (3 pcs) |  |
| C. Feet (4 pcs) |  |
| D. Cap (4 pcs) |  |
| E. Stacking Pin (4 pcs) |  |
| F. Wall Mounting Bracket (1 pc) |  |
| G. Wall Mounting Screw (1 pc) |  |
| H. Wall Mounting Anchor (1 pc) |  |
| I. Wall Mounting Strap (1 pc) |  |
Please make sure you have all the parts on this list
If you’re missing parts, contact us for replacements at 800-323-5565 or send an email to [email protected]
Assembly Instructions
An assembly video is available, to view scan this QR code with your phone.
STEP 1.

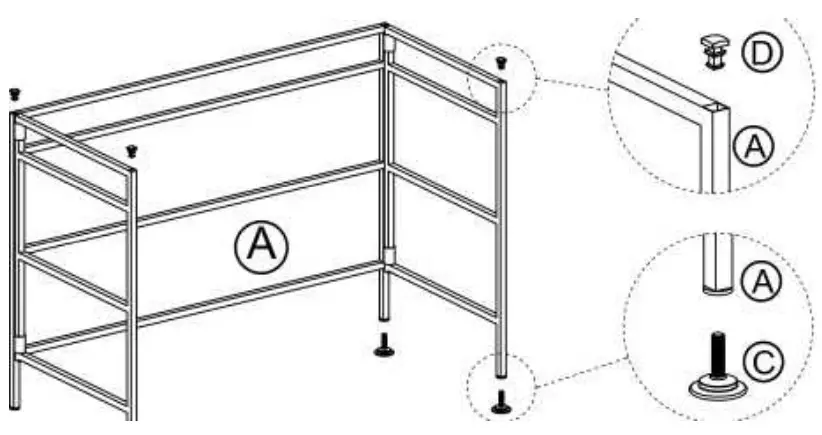

Screw the FEET (C) into the legs of the FRAME (A).
If only building one unit, insert the CAPS (D) into the top of the FRAME (A).
STEP 2.

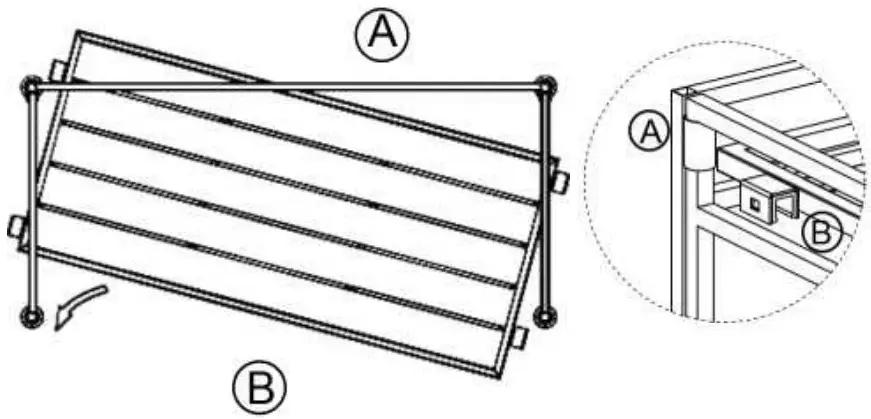

Insert the bottom SHELF (B) diagonally into the FRAME (A) and position the shelf above the support bars located on the sides of the frame.
Rotate the SHELF (B) until the clips on the shelf rest on the side bars of the FRAME (A). Press down firmly on either side of the shelf to ensure the shelf clips securely attach to the frame.
Repeat Step 2 for the remaining two shelves.
Stacking Multiple Shoe Racks (optional)

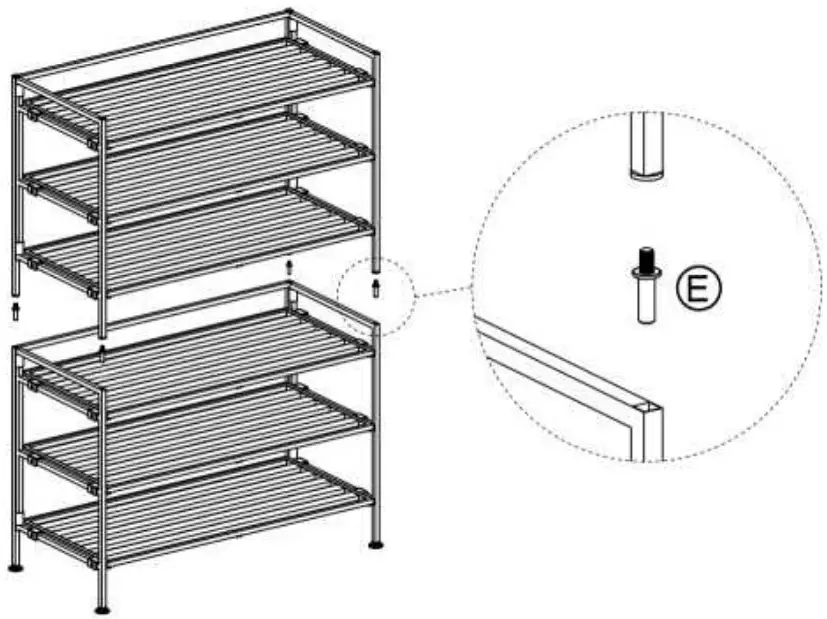

Build a second shoe rack and screw the STACKING PINS (E) into the legs of the FRAME (A) instead of the feet.
Lift the top unit up and onto the bottom unit. Line up the four STACKING PINS (E) with the top corners of the bottom unit. Press down firmly.
Make sure the bottom unit does not have the CAPS (D) inserted into the top corners.
Wall Mounting Instructions (required when stacking more than 2 units high)
After stacking more than 2 units high, wall mounting is required for safety.

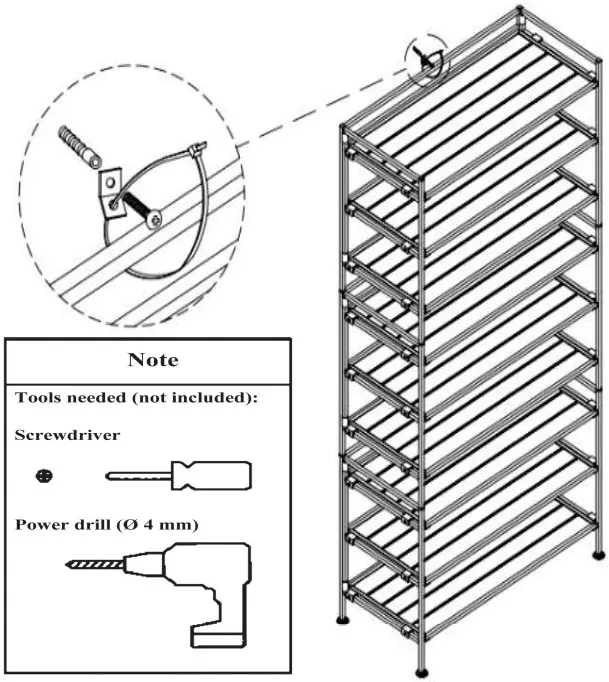

Position the stacked units against a wall and insert the WALL MOUNTING ANCHOR (H) into the wall (just above the top center of the stacked units using a screw driver or power drill.
Next, wrap the WALL MOUNTING STRAP (I) around the top horizontal back bar of the frame and loop it through the WALL MOUNTING BRACKET (F). Using the WALL MOUNTING SCREW (G), attached the WALL MOUNTING BRACKET (F) into the WALL MOUNTING ANCHOR (H).
It’s not recommended to stack more than 4 units high.
Interlock® Feature

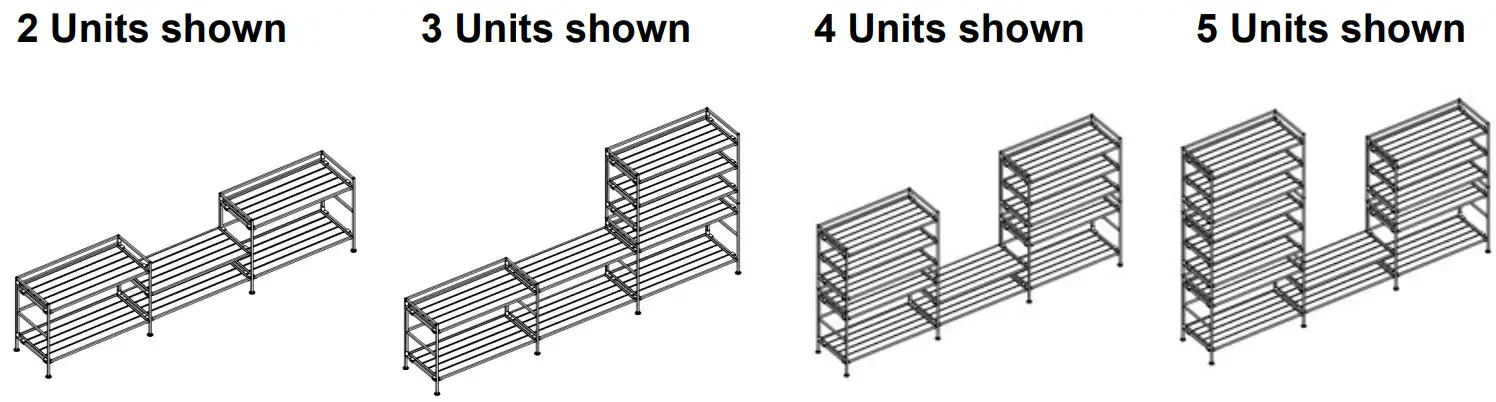

Shelves can be removed and used to horizontally bridge multiple units to create a modular shelving system.
Do not sit on the rack. Do not drop heavy items on the rack. Place heavier items on the lower shelves and light items on the top shelves. Do not move the rack while loaded. Do not move the rack by lifting the shelves, lift the rack using the two top sides of the frame. If stacking more than two units high, please use the wall strap for added safety. Do not stack more than 4 units high.
Specifications
Dimensions: 26.5″ W x 12.2″ D x 19.0″ H
Weight capacity: 30 lbs. (13.6 kgs) per shelf
Weight: 11.3 lbs. (5.12 kgs)
Customer Service Information
Seville Classics, Inc.
Telephone: 800-323-5565
Fax: 310-533-3899
Hours: 8:30 AM – 4:30 PM (PST), Monday to Friday
Email: [email protected]
Homepage: www.sevilleclassics.com
This product is covered by one or more U.S. and foreign patents as found on www.sevilleclassics.com/patents
