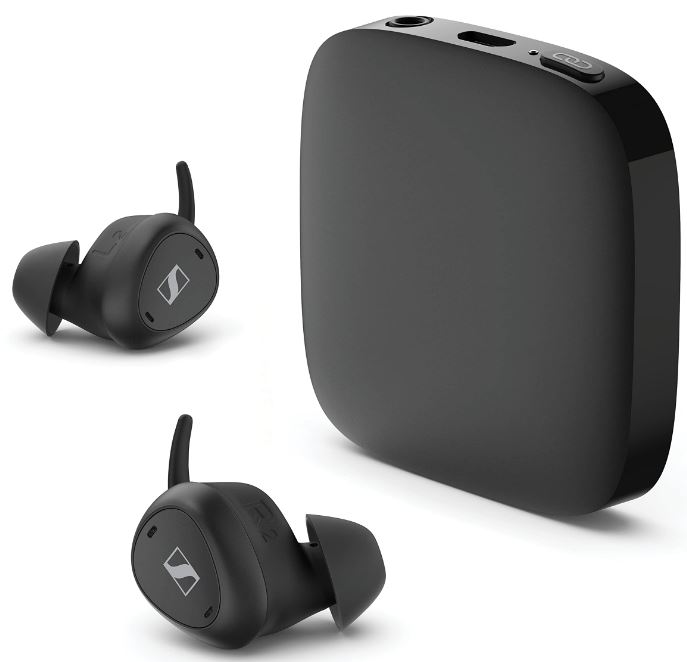

SENNHEISER TVCE1-EB TV Clear Set

Product Information

Specifications

Product Name: Sennheiser TV Clear
Compatibility: Works with TV and Bluetooth-enabled devices
Connection Type: Analog cable or Bluetooth
Audio Format: PCM/Stereo (for optical cable)

Product Usage Instructions

First Time Setup

Download the TV Clear App from the official Sennheiser website.
Refer to the official product documentation available on the Sennheiser product page under Downloads. This includes the quick start guide, user manual, and other important documents.
If you need additional assistance, visit the Sennheiser TV Clear FAQ page for How-To videos and troubleshooting information.

Troubleshooting

If you encounter any issues during setup, follow these steps:

Check the fit of the ear adapters. Ensure there is only a minimal gap visible between the rubber rim and the earphone rim.
The two claws at the top of the ear adapter rim must snap into the two grooves on the earbud. To achieve this, place the earbud with the button side down on a non-scratching surface, and then carefully slide the rubber part down towards the earbud with your fingers.
If the fit of the ear adapters is incorrect, adjust them as described in step 1.
Place both earbuds in the charging case and ensure that the corresponding LED lights up.
Close the lid of the charging case.
Open the charging case again and wait for 10 seconds.
After completing these steps, the system is ready for use.

Other Important Information and Help

For additional information and helpful tutorial videos, visit the Sennheiser TV Clear Frequently Asked Question page.

FAQs

Problem: If you do not hear sound from the TV when you first install the system

Solution:

Check the fit of the ear adapters as described in the setup instructions.
Place both earbuds in the charging case and ensure that the corresponding LED lights up.
Close the lid of the charging case.
Open the charging case again and wait for 15 seconds.
To test the connection, use the analog cable and a secure audio source such as your phone.
If the connection works with the analog cable, connect the transmitter to the TV and ensure that the audio format is set to PCM/Stereo (if using the optical cable).

Problem: Bluetooth connection with phone does not work

Solution:

Check the fit of the ear adapters as described in the setup instructions.
Place both earbuds in the charging case and ensure that the corresponding LED lights up.
Press the pairing button in the charging case (chain symbol) for 2 seconds until a blue LED is flashing.
Wait until all 3 LEDs on the charging case are flashing blue.
This can take up to 10 seconds.
TV Clear should appear in the list of Bluetooth devices on your phone and can be selected.

Problem: The product is not running stable or the above steps did not solve the problem

Solution:

Remove both earbuds from the charging case.
Press and hold the button located under the S icon in the middle of the surface on each earbud for 15 seconds.
Place the earbuds back in the charging case and close the lid.
Open the lid again and wait for 10 seconds.

Problem: The product is not loud enough / the volume is too low

Solution:

There are mobile phones where you have to control the volume separately via the earbuds. The TV Clear earbuds use a physical push button to adjust volume and voice clarity programs. It is not enough to just touch the surface. The button is located on the top side under the S logo. When you press it, you should hear a confirmation tone and feel a click.

Sennheiser TV Clear first use
The following steps will help you to easily install and use the TV Clear system for the first time.
1. Download TV Clear App
Sennheiser TV Clear
2. Follow official product documentation
On the Sennheiser product page under “Downloads” you can find all important documents (quick start guide, user manual, etc.) as well as How-To videos at Sennheiser TV Clear FAQ page.
3. Check Troubleshooting page if needed
Do you have any of the following situations? · First connection to TV transmitter does not work · Bluetooth pairing to the phone does not start · The product does not charge properly
The reason is almost always an ear adapter that is not placed correctly. There should only be a minimal gap visible between the rubber rim and the earphone rim. The two claws at the top of the ear adapter rim (1) must snap into the two grooves on the earbud (2). This is best achieved by placing the earbud with the button side down on a non-scratching surface, and then carefully sliding the rubber part down towards the earbud with your fingers.
So if you have one of the situations described above during setup, then: 1. check the correct fit of the two ear adapters as described above 2. place both earbuds in the charging case again. The corresponding LED must light up 3. close the lid of the charging case 4. open the charging case again and wait 10 seconds 5. after that the system is ready for use

Other important information and help
On the Sennheiser TV Clear “Frequently Asked Question” page you find a lot of helpful tutorial videos.

Problem

Solution

If you do not hear sound from the TV when you first install the system

Earbuds do not connect to the transmitter

1. check the fit of the ear adapters as described in the beginning 2. place both earbuds in the charging case again. The corresponding
LED must light up 3. close the lid of the charging case 4. open the charging case again and WAIT 15 seconds 5. to test the connection: Use the analog cable and a secure audio
source such as your phone. 6. if this works, connect the transmitter to the TV and be sure to set
the audio format to “PCM/Stereo” if using the optical cable (not Dolby).

Bluetooth connection with phone does not work

If you cannot find “Sennheiser TV Clear” in the list of Bluetooth devices on your phone.
1. check the fit of the ear adapters as described in the beginning. 2. place both earbuds in the charging case. The corresponding LED
should light up 3. press the pairing button in the charging case (chain symbol) for 2
seconds until a blue LED is flashing 4. only when all 3 LEDs on the charging case are flashing blue, the
pairing is running, this can take up to 10 seconds 5. then “TV Clear” appears in the list on the phone and can be
selected

Restart both earbuds:

The product is not

running stable or

1. remove both earbuds from the charging case.

the above steps did not solve the problem

2. press and hold the button (located under the “S” icon in the middle of the surface) for 15 seconds each.
3. place the earbuds in the charging case and close the lid 4. open the lid again and wait for 10 seconds

The product is not loud enough / the volume is too low

There are mobile phones where you have to control the volume separately via the earbuds. The TV Clear earbuds use a physical push button to adjust volume and voice clarity programs. It is not enough to just touch the surface. The button is located on the top side under the “S” logo. When you press it, you hear a confirmation tone and should also feel the “click”.
Pressing right button briefly means louder, at the maximum you will hear the announcement “Maximum”. Pressing left is quieter.

Press right button 2 seconds means a stronger voice clarity program, and you will hear the announcement “Program 2, 3, etc.”. Pressing left goes one program lower. If it sounds too shrill select a lower program.

TV Clear Earbuds
Models: TVCE1-EB TVCE1
Transmitter
Model: TV Connector
EN Quick Guide DE Kurzanleitung FR Guide rapide ES Instrucciones resumidas PT Guida rápidos NL Beknopte handleiding IT Guida rapida DA Snabbguide SV Bruksanvisning

TV Clear Earbuds *2 L *2 R
Model: TVCE1-EB

Silicone ear adapters 1L 1R

*2 L *2 R

Model: TVCE1

3L 3R

USB-A USB-C

* mounted on earbuds on delivery

Instruction manuals and product support Bedienungsanleitungen und Produktbetreuung
Manuels d’utilisation et assistance produit Instrucciones de uso y soporte del producto
Manuali d’istruzioni e supporto prodotto Bedieningsinstructies en productondersteuning Manuais de instruções e assistência ao produto
Instrukcje obslugi i wsparcie produktowe Brugsanvisninger og produkthjælp
www.sennheiser-hearing.com/TV-clear

Transmitter
Optical cable 3.5 mm Miniplug
Toslink

Model: TV Connector
Analog 3.5 mm cable
3.5 mm Jack

www.sennheiser-hearing.com/download
Sonova Communications AG Herrenschwandweg 4, 3280 Murten, Switzerland 029-3347-72/V1.01/2022-04

Quick Guide

Safety Guide

USB-A USB-Micro-B

www.sennheiser-hearing.com/download Detailed instruction manual

Downloading the app for configuration and updates | App für Konfiguration und Aktuali-

sierungen herunterladen | Télécharger l’appli

pour la configuration et les mises à jour | Descar-

gar app para configuración y actualizaciones |

Descarregar a aplicação para a configuração e

atualizações | App voor configuratie en actualise-

ringen downloaden | Scaricare l’app per la confi-

gurazione e gli aggiornamenti | Download af app

for konfiguration og opdateringer | Ladda ner

appen för konfiguration och uppdateringar

Inserting the earbuds into your ears and selecting suitable ear adapters | Ohrhörer in Ihre Ohren einsetzen und passenden Ohradapter auswählen | Insérer les écouteurs

dans vos oreilles et sélectionner des embouts d’oreille appropriés | Colocar los audífonos en

las orejas y seleccionar los adaptadores para los oídos adecuados | Colocar os auriculares

nos seus ouvidos e escolher o adaptador auricular adequado | Oortelefoons in de oren doen

en passende ooradapter selecteren | Inserire le microcuffie nelle orecchie e scegliere i

gommini adatti | Isætning af øretelefoner i dine ører og valg af passende øreadapter | Sätta i

hörlurarna i öronen och välja passande öronadapter

All 3 LEDs

other device other device Sennheiser TV Clear other device

“Sennheiser TV Clear”
R

1L 1R

*2 L *2 R

3L 3R

Left LED

USB-C

<20%

Wireless Charging (Qi compatible)

Left earbud Right earbud Charging case

Power USB-A

USB-Micro-B

3.5 mm Miniplug

Digital

Optical cable

Toslink

OPTICAL OUT

* AirStreamTM transmission technology

TV sound menu** Digital sound output PCM/Stereo Bitstream/Dolby ** Sound menu may vary

Analog
3.5 mm Jack
PHONES
TV VOLUME

1
2s

All 3 LEDs

Short press

LED

3 Switching on your TV and listening via the
earbuds | TV einschalten und mit Ohrhörern hören | Allumer la télé et écouter via les écouteurs | Encender el televisor y escuchar con los audífonos | Ligar a televisão e ouvir com os auriculares | Tv inschakelen en met oortelefoons luisteren | Accendere la TV e ascoltare con le microcuffie | Tilkobling af TV og lytning med øretelefoner | Starta TV:n och lyssna med hörlurarna
OFF
OFF LED
Auto ON

Volume

Left

Right

Music Left

Ambient Awareness
Right

Speech Clarity

Left

Right

Phone call Left or Right

Short Press 1x Short Press 1x

Tap 2x

Hold 2s

Hold 2s Short Press 1x Tap 2x

max
ON OFF
off
TV Clear App

max
off Hold 2s

TV Clear Set
True wireless TV earbuds Model: TVCE1-EB, TVCE1 Transmitter Model: TV Connector
Instruction manual Use the search function, the navigation (left) or the following links: Start “The Sennheiser TV Clear Set” “Product overview” “Getting started” “Daily use” “FAQ/If a problem occurs …” “Specifications”
Sonova Communications AG Herrenschwandweg 4 3280 Murten Switzerland www.sennheiser-hearing.com Version: 05/22 A01

Important safety instructions

Important safety instructions
Please read the following information before using your device.
General warnings for TV Clear Earbuds and transmitter ,,TV Connector”
These devices are not for children below 36 months. They contain small parts that can cause choking, if swallowed by children. Keep out of reach of children and mentally challenged people or pets. If swallowed, consult a physician or hospital immediately.
Changes or modifications to any of the devices that were not explicitly approved by Sonova Communications AG are not permitted. Such changes may damage your ear or the devices.
Only authorized personnel are allowed to disassemble the devices due to possible electrical hazard.
Do not use these devices in explosive areas (mines or industrial areas with danger of explosions, oxygen rich environments or areas where flammable anesthetics are handled) or where electronic equipment is prohibited.
High-powered electronic equipment, larger electronic installations and metallic structures may impair and significantly reduce the operating range.
Do not use excessive force when connecting the devices to the cables or when inserting the earbuds into the charging case.
The USB ports of the devices are to be used for the described purpose only.
These devices may generate magnetic fields. If any influence of the devices on the implantable device (e.g. pacemakers, defibrillators, etc.) is experienced, stop using the devices and contact your doctor and /or the manufacturer of the implantable device for advice.
X-ray radiation, CT or MRI scans may destroy or adversely affect the correct functioning of the device.
If these devices have been dropped or damaged, if they overheat, have a damaged cord or plug, or have been dropped into liquid, stop using the devices and contact an authorized Sonova Communications AG service partner.
Protect the devices connectors, plugs, power supply from dirt and debris.
Protect the devices from excessive moisture (bathing or swimming areas) and heat sources (radiator). Protect the devices from excessive shock and vibration. Never immerse them in water.
Clean the devices using a damp cloth. Never use household cleaning products (washing powder, soap, etc.) or alcohol to clean them. Never use a microwave or other heating devices to dry the devices.
Dispose of electrical components in accordance with your local regulations.
Hazard warnings for TV Clear Earbuds
External devices may only be connected if they have been tested in accordance with the relevant standards IEC 62368-1 or other applicable safety standards.

2 | Sennheiser TV Clear Set

Important safety instructions
For charging, use only IEC 62368-1 certified equipment with an output rating of 5 VDC, min. 600 mA.
Do not cover the charging case while charging, e.g. with a cloth etc.
Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the earbuds or charging case including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
The earbuds and charging case contain lithium-ion batteries that can be taken onto airplanes as carry-on luggage only.
The system operates between 2.4 GHz – 2.48 GHz frequency range. When flying please check if flight operator requires devices to be off.
Use caution and follow applicable laws regarding mobile phone and headphone use if using the earbud for phone calls while driving. Some jurisdictions impose specific limitations, such as single earbud configuration, on the use of such products while driving. Don’t use the earbuds for any other purpose while driving.
Focus on your safety and that of others if you use the earbuds while engaging in any activity requiring your attention, e.g., while riding a bicycle or walking in or near traffic, a construction site or railroad, etc. Remove the earbuds or adjust your volume to ensure you can hear surrounding sounds, including alarms and warning signals.
The ambient awareness mode can reduce background noises. Please be aware that warning signals or noises coming from behind, e. g. cars, are partially or entirely suppressed.
Do not use the earbuds at a high volume for any extended period. To avoid hearing damage, use your earbuds at a comfortable, moderate volume level.
Put on the earbuds at low volume then slowly adjust the volume control to a comfortable level.
The earbuds should not be used by clients with perforated eardrums, inflamed ear canals or otherwise exposed middle ear cavities. In the unlikely case that any part of this product should remain in the ear canal, it is strongly recommended to see a medical specialist for safe removal.
Do not insert the earbuds too deep into your ears and never insert them without the ear adapters.
Always remove the earbuds slowly and carefully from your ears. If the ear adapter – or parts of the ear adapter (dome, retention) –
is broken or damaged it needs to be replaced.
If you feel pain in or behind your ear, if it is inflamed or if skin irritation and accelerated accumulations of earwax occur, please check with your hearing care professional or physician.
Sennheiser TV Clear Set | 3

Important safety instructions

Avoid strong physical impacts to the earbuds or the ear when wearing them. A strong physical impact to the earbuds or ear (e.g. during sports) may lead to perforation of the ear canal or eardrum.
The devices contain lithium-ion batteries with a Watt hour rating <20 Wh which have been tested according to UN 38.3 of the “UN Manual of Tests and Criteria” and should be shipped in accordance with all the rules and regulations on the safe shipment of lithium-ion batteries.
The following is only applicable for persons with active implantable medical devices (i.e. pacemakers, defibrillators, etc.): Keep the earbuds and charging case at least 15 cm (6 inches) away from the active implant. If you experience any interference, switch off the earbuds and contact the manufacturer of the active implant. Please, note that interference can also be caused by power lines, electrostatic discharge, airport metal detectors etc.
Only authorized personnel are allowed to disassemble the charging case due to possible electrical hazard.
Product safety information for TV Clear Earbuds
Never wash the microphone inputs. Doing so could cause it to lose its special acoustic features.
Special medical or dental examination including radiation described below, may adversely affect the correct functioning of the devices. Remove and keep them outside the examination room/area before undergoing:
Medical or dental examination with X-ray (also CT scan).
Medical examinations with MRI/NMRI scans, generating magnetic fields.
Protect your earbuds and charging accessories from heat (never leave near a window or in the car). Never use a microwave or other heating devices to dry your earbuds or charging accessories (due to risk of fire or explosion).
Do not place the earbuds and charging case close to an induction cooking surface. Conductive structures inside the charging accessories could absorb inductive energy resulting in thermal destruction.
Ensure to use the earbuds and charging case within operating temperature range: +5° to +40° Celsius (41° to 104° Fahrenheit).
Always make sure that the earbuds and charging case are dry and clean, especially before charging. Otherwise the charging reliability cannot be guaranteed.
If you are not using the earbuds, store them in the charging case in a well ventilated location. This allows moisture to evaporate and prevents a potential impact on performance.
Use of accessories and cables other than those specified or provided by the manufacturer of this device could result in increased electromagnetic emissions or decreased electromagnetic immunity of this device and result in improper operation.
Hazard warnings for transmitter ,,TV Connector”
External devices may only be connected if they have been tested in accordance with corresponding safety standards. Only use accessories approved by Sonova Communications AG.

4 | Sennheiser TV Clear Set

Important safety instructions
For safety reasons, only use chargers supplied by Sonova Communications AG or stabilized chargers with a rating of 5 VDC, min. 500 mA.
Protect your eyes of the optical light from the optical Toslink cable when plugged into a TV/device.
Notes on data collection and processing and on firmware updates
The earbuds locally store individual settings such as the volume, the sound profiles and the Bluetooth addresses of paired devices to ensure proper operation. When used with the “Sennheiser TV Clear” app the settings and usage data such as power-on cycles and operating times (e.g. music playback, used speech modes) are encrypted and transferred in an anonymous form to Sonova Communications AG or companies commissioned by Sonova Communications AG, where they are stored and processed. The data is processed to determine statistical characteristics regarding the provision, maintenance and improvement of the earbuds and the app. At no time does the data processed permit direct association with any specific individual. If you do not want this data to be transferred and processed, revoke your consent to the use by adjusting your settings in the “Privacy” section of the app menu. Using the “Sennheiser TV Clear” app, you can update the firmware of the product for free via an Internet connection. If the device on which the app is installed is connected to the Internet, the following data is automatically transferred to and processed by Sonova Communications AG or companies commissioned by Sonova Communications AG in order to provide and transfer suitable firmware updates: hardware identifier, hardware revision number, firmware version of the product, type of the operating system (Android, iOS), version of the operating system and version of the app. The data will only be used as specified and will not be stored permanently. If you do not want this data to be transferred and processed, do not connect to the Internet.
Intended use/Liability
The intended use of the TV Clear Earbuds is to wirelessly connect to Bluetooth® enabled devices such as mobile and smart phones or tablets. You can stream the stereo audio signal to the earbuds and make hands-free phone calls. To watch TV, best results are achieved when using the low latency interface transmitter “TV Connector”. The intended use of the transmitter “TV Connector” is to establish a wireless connection between the TV Clear Earbuds and a TV (or any other audio source). It sends audio signals within a 15 meter (50 ft) radius wirelessly to the TV Clear Earbuds.
General Sonova Communications AG does not accept liability for damage arising from improper use or misuse of the product and its attachments/accessories.
Sennheiser TV Clear Set | 5

Important safety instructions

Sonova Communications AG is not liable for damages to USB devices that are not consistent with the USB specifications.
Sonova Communications AG is not liable for damages resulting from the loss of connection due to flat or overaged rechargeable batteries or exceeding the Bluetooth/ 2.4 GHz transmission range.
Before putting the products into operation, please observe the respective country-specific regulations.

6 | Sennheiser TV Clear Set

The Sennheiser TV Clear Set
The Sennheiser TV Clear Set
General use On the one hand, the ,,TV Clear Set” allows you to connect wirelessly to Bluetooth®-enabled devices such as cell phones, smartphones or tablets. You can stream the stereo audio signal to the earbuds and make hands-free phone calls. On the other hand, you can use it to transmit the TV sound. Best results are achieved when using the dedicated low latency interface transmitter ,,TV Connector”. The transmitter can be connected to a TV using a digital optical connection or an analog audio output.
Components of the TV Clear Set The ,,TV Clear Set” consist out of the ,,TV Clear Earbuds” and the transmitter ,,TV Connector”. You can purchase the set or the single products on its own. Please note that depending on whether you have the set or a single product, the descriptions in this manual may have to be skipped. Streaming stability Line-of-sight between your earbuds and the connected device is not required. The connection range is typically up to 10 meters (30 ft). The range may be reduced when the signal is obstructed by obstacles such as walls or the human body. Best results are achieved when using the earbuds in line of sight to the connected device. If the audio transmission is interrupted, reduce the distance and avoid obstacles in between.
Sennheiser TV Clear Set | 7

Package contents

Package contents
TV Clear Earbuds
Earbuds for right and left ear (model: TVCE1-EB)
Charging case with built-in rechargeable battery for the earbuds (model: TVCE1)
USB charging cable with USB-C and USB-A connector

Silicone ear adapters pairs (size 1, 2 (pre-mounted to the earbuds) and 3)
Transmitter ,,TV Connector” Transmitter (model: TV Connector)
USB power cable with USB-Micro-B and USB-A connector
Analog 3.5 mm audio cable

Optical (TOSLINK) audio cable General
Quick guide

8 | Sennheiser TV Clear Set

Safety guide

Package contents Online you can find: · Frequently Asked Questions (FAQ):
www.sennheiser-hearing.com/tv-clear-faq · The Sennheiser TV Clear app for configuring the headphones and
for additional functions: Google Play store: click Apple App store: click · Additional information (like this user manual, spec sheet): www.sennheiser-hearing.com/download · A list of accessories for the TV Clear Set products: www.sennheiser-hearing.com/TV-Clear
Sennheiser TV Clear Set | 9

Product overview

Product overview
TV Clear Earbuds
Earbuds Model: TVCE1-EB
12 2
3
4
5
Multi-function button (short and long press/ double tap) Microphones Left/right marking Sound outlet Charging contacts and ear sensor
Ear adapters
6
7 8
Retention for secure hold Size (1-3) and left (L) / right (R) marking Dome
The default voice prompt language is English. This and other configurations can be adjusted with the Sennheiser TV Clear app.

10 | Sennheiser TV Clear Set

Charging case Model: TVCE1

Product overview

0 9

A
B C

Charging contacts left earbud Charging contacts right earbud Battery indicator light right earbud Battery indicator light case Battery indicator light left earbud USB-C charging socket Pairing button

Sennheiser TV Clear Set | 11

Product overview

Transmitter
Model: TV Connector

1
2 3 4

Pairing button

Indicator light

Micro-B-USB power port

Audio port for: · Optical (TOSLINK) audio cable · Analog 3.5 mm audio cable

Overview of the indicator light

Indicator light

lights up green

–

off

Transmitter … is ON … is OFF

12 | Sennheiser TV Clear Set

Getting started

Getting started
The following steps describe the optimum way to use the TV Clear Set for the first time. If you purchased a single product ,,TV Clear Earbuds” or transmitter ,,TV Connector” on its own please read the respective chapter: · TV Clear Earbuds: > 17 · Transmitter TV Connector: > 15
1. Connecting the transmitter TV Connector to the TV
Connect the USB power cable and the audio connection (digital or analog) to your TV (> 15).
Power
digital or analog
2. Waking up the earbuds and the charging case and charging the rechargeable batteries
Upon delivery, the rechargeable batteries of the earbuds and the charging case are in sleep mode and have to be woken up by opening the lid of the charging case and wait at least 10 seconds. We recommend charging the earbuds and the charging case for a complete charging cycle without interruption before using for the first time (> 27).

10s

All 3 LEDs

3. Connecting the earbuds the transmitter TV Connector
If you purchased the products in the Set, the earbuds will now automatically connect to the transmitter when taken out of the charging case (> 19).

Sennheiser TV Clear Set | 13

Getting started

4. Connecting the earbuds to a Bluetooth device
Connect the earbuds to your phone (or tablet) via Bluetooth (> 18).
other device other device Sennheiser TV Clear other device
5. Selecting suitable ear adapters for optimum fit of the earbuds
The perceived sound quality including bass performance, the best voice quality for phone calls and a secure hold of the earbuds in the ear depends to a large extent on the correct fit of the earbuds. Therefore, you can choose between ear adapters with retentions in different sizes. Test which ear adapter size with retentions give you the best
sound quality and the best wearing comfort (> 20). Assign the right earbud to your right ear and the left earbud to
your left ear. Insert the earbuds at a slight angle into the ears and twist them
slightly into the ear canal so that they sit comfortably and snugly in the ear canal and auricle (> 21).

1L 1R

2L 2R

3L 3R

6. Installing the TV Clear app on your smartphone
The Sennheiser TV Clear app allows you to use all functions and settings of the earbuds (> 26). · Apple App store: click · Google Play store: click

TV Clear
TV

“Sennheiser TV Clear”

14 | Sennheiser TV Clear Set

Getting started
Getting started transmitter TV Connector
Connecting the transmitter to a USB power supply 1
USB-Micro-B

2
USB-A

TVTV

1. Connect the USB-micro-B plug of the supplied USB power cable to the USB-micro-B port of the transmitter.
2. Connect the USB-A plug to the USB-A port of your TV. For older TV models without built-in USB port, connect the USB plug to an external USB power adapter and connect to the power source (not included, optional accessory). The transmitter automatically switches on (> 22).
Connecting the transmitter to an audio source
The transmitter can be connected to any audio source such as a TV, PC or stereo system. It supports two different audio cable inputs: optical (TOSLINK) or analog. Either of these audio cables must be plugged into the dedicated audio port on the transmitter.
Select the audio cable that is compatible with your audio source. Best audio transmission is ensured with the digital optical audio connection.

OPTICAL
Digital signal fiber optic cable

ANALOG
3.5 mm audio cable

Ensure the chosen audio cable is firmly inserted into both the transmitter and the audio source.

Sennheiser TV Clear Set | 15

Getting started

Connecting the transmitter with the optical cable

Insert the slim end of the optical cable into the transmitter and connect the wider end of the optical cable into the OPTICAL DIGITAL AUDIO OUTPUT of your TV (or audio source).
Connecting the transmitter with the analog cable

Connect one end of the analog 3.5 mm audio cable into the transmitter and the other end into the AUDIO OUT port of your TV (or audio source). If your TV loudspeakers switch off when connected with the analog 3.5 mm audio cable, use the optical audio cable instead or check the menu of your TV to turn on the TV loudspeakers again.
Connecting the TV Clear earbuds with the transmitter Follow the steps in the chapter “Connecting your earbuds to the
transmitter ,,TV Connector”” (> 19).
16 | Sennheiser TV Clear Set

Getting started
Getting started TV Clear earbuds
Switching earbuds ON or OFF is easy

The earbuds automatically switch on when removed from the case. They switch off when back in the case.
The indicator lights will light up:

Indicator light green

Meaning Battery ok

red

Battery <20%, consider charging

In the event an earbud switched off, a short press on the button switches it on again.

short press

Put the earbuds into pairing mode
1. Make sure both earbuds are placed in the case correctly. 2. Press and hold the pairing button for 2 seconds, until the indicator
light starts to blink blue.

2 Hold
2s

All 3 LEDs

3. Wait until all 3 indicator lights blink blue (this may take up to 10 seconds). The pairing mode will stop after 8 minutes or when the pairing was successful.
4. Leave the earbuds in the case and continue to “Connecting your earbuds to your phone (or tablet)” (> 18) or “Connecting your earbuds to the transmitter ,,TV Connector”” (> 19).

Sennheiser TV Clear Set | 17

Getting started

Connecting your earbuds to your phone (or tablet)

other device other device
Sennheiser TV Clear
other device

If it is the first time connecting the earbuds to the device, you must put them into pairing mode as described in chapter “Put the earbuds into pairing mode” (> 17). After they have been paired, the earbuds should connect automatically when removed from the case.
1. Open the “Bluetooth” settings and activate Bluetooth on your phone.
2. Wait until you see the ,,Sennheiser TV Clear” in the list of available devices and select it.
3. Your phone will now connect to the earbuds and the indicator lights of the charging case will stop blinking.
4. Insert the earbuds into both ears. You will hear a confirmation when inserted. The sound from your phone will be played through the earbuds when connected.
If the Sennheiser TV Clear app is installed and connected, you may see “Sennheiser TV Clear LE” in the list of paired devices. Do not select it.
When you remove both earbuds from the ear, the sound will be paused. This behavior can be configured in the Sennheiser TV Clear app.

18 | Sennheiser TV Clear Set

Getting started

Connecting your earbuds to the transmitter ,,TV Connector”

LED
3

If it is the first time connecting the earbuds to the TV Connector, you must put them into pairing mode as described in chapter “Put the earbuds into pairing mode” (> 17). After they have been paired, the earbuds should connect automatically when removed from the case.
When the transmitter was purchased in the TV Clear Set, transmitter and earbuds are already paired during production. Just open the lid of the charging case and proceed to the chapter “Daily use of the transmitter TV Connector” (> 22).
1. Make sure the transmitter is properly connected to the TV or sound source (> 15) and switch it on (> 22).
2. Press the pairing button on the back of the transmitter. The transmitter will now connect to the earbuds and the indicator lights of the charging case will stop blinking.
3. Insert the earbuds into both ears. You will hear a confirmation when inserted. The sound from your transmitter will be played through the earbuds when connected.
Additional information about pairing · The earbuds can be paired to a maximum of 6 devices. A 7th pair-
ing will replace the least used device. · All 3 indicator lights will blink blue during pairing. This can take
up to 2 minutes, but typically is finished within a few seconds. · The earbuds must be paired only once to a phone, tablet or trans-
mitter ,,TV Connector”. Devices remain paired after powering off and will reconnect automatically when powered on if they are within reach. · To connect manually, go to your devices Bluetooth menu, select “Sennheiser TV Clear” from the list or short press either of the earbud buttons while wearing them.

Sennheiser TV Clear Set | 19

Getting started

Fit your earbuds perfectly to your ears
The silicone ear adapter is an important part of your earbuds and is available in three sizes 1, 2 and 3. The size is indicated on the adapter.

1. The rentention finger helps to hold the earbud in place. 2. The dome must sit firmly on your ear canal for a good seal.

If the default medium size adapter (size 2) is too large or small for you, choose size 1 or 3.

1. Pull the adapter carefully from the earbud. 2. Gently insert earbud into the adapter that fits you best. 3. Repeat for the other side.
The size of the adapter may be different for the left and right ear.
Make sure the left and right side of the adapter and earbud are aligned (L= left side, R = right side).

20 | Sennheiser TV Clear Set

Getting started

Place the earbuds into your ears
The left and right side indication (L, R) is printed on the adapter. Select the correct side for insertion into your ear.

R
1. With the dome pointing to your ear canal and downward, gently insert the earbud.
2. Rotate the retention until it sits firmly and comfortably in the bowl of the ear.

Sennheiser TV Clear Set | 21

Daily use

Daily use
Daily use of the transmitter TV Connector
Switching ON audio transmission
LED
Auto ON
Switch ON your TV or audio source. Make sure the transmitter has power and its indicator light is green. The transmitter will automatically transmit the audio signal to the connected TV Clear erbuds.
You will hear the audio directly in your TV Clear erbuds. For more details on how to use the TV Clear earbuds please read
“Daily use of the TV Clear earbuds” (> 22). Switching OFF audio transmission To end the transmission of the audio signal from the transmitter,
simply switch OFF the TV or audio source. The transmitter will go into standby mode automatically after 3 minutes and stop streaming.
The transmitter has no on/off button. To turn it off permanently, remove the power source.
Daily use of the TV Clear earbuds
Re-connection for every day use The pairing as described in (> 17) is only needed once the device are connected for the first time. They do not need to be re-paired again.
1. Ensure Bluetooth is switched ON on your phone – or the transmitter TV Connector is powered ON – before taking the earbuds out of the case.
2. When removing the earbuds from the case they will connect to the phone automatically within 12 seconds.
3. This is indicated in the phones status screen or the Bluetooth menu (exact details may depend on your phone model)

22 | Sennheiser TV Clear Set

Daily use

· If you switched Bluetooth on after the earbuds were already taken out of the charging case, or if you were out of range of your phone, you can short press the earbud button to reconnect.
· You can also stream from the phone if only one earbud was removed from the charging case. The first earbud removed from the charging case is your primary. This is important as during a phone call the primary picks up your voice.
· When putting the primary back to the charging case, they switch role and the other earbud will become the primary. This will shortly interrupt your stream for about 5 seconds as the remaining earbud must re-connect to the phone.
How to control the earbuds
The earbuds offer two ways to control various features.
· Button control Each earbud has a real button with click feeling in the middle of the button surface. The button on the right earbud is “up”, the button on the left earbud is “down”. The buttons are not configurable.

Left

Right

Left

Right

· Configurable Touch Control Each earbud has a touch control surface. To trigger the feature, double-tap gently but clearly on the frame of the earbud. The Touch Control can be configured by the TV Clear app. The default configuration on the right earbud is Ambient Awareness function Off/On and on the left earbud Pause/Resume playback.
Controls only are active when the earbud is inserted into the ear correctly.

Sennheiser TV Clear Set | 23

Daily use

Speech clarity settings
During streaming or a phone call, you can select one of five predefined Speech Clarity settings.
Setting 1: no additional amplification.
Settings 2-5: increase of the high frequency sound for more speech clarity.

Right

Left

Speech clarity settings

max

Hold 2s

2 1

off

Use long press right (>1.5 sec) to increase clarity. Use long press left (>1.5 sec) to reduce sharpness.

Setting the volume During streaming or a phone call, you can change the volume.

Right

Left

Short Press 1x

Volume

Short Press 1x

Volume

Use short press right (<0.5 sec) to increase volume. Use short press left (<0.5 sec) to decrease volume.

Alternatively you can also change the volume using the phone.

Volume and Speech Clarity settings are automatically stored when earbuds are powered off.
Making a phone call To make a hands-free phone call, ensure the earbuds are connected to the phone and correctly inserted into your ears (> 18 and 21).

Call
24 | Sennheiser TV Clear Set

Daily use
To start a call, initiate the call from the phone. When receiving an incoming call you will hear the ringtone through the earbuds. Use earbud on either side to accept or reject the call.
Left or Right

or
Short Press 1x

Tap 2x

Hold 2s

Accept call Double tap or short press. Reject call Long press (>1.5 sec).
Microphone pick up During a phone call your voice is picked up by the “primary” earbud microphones.

It is important to protect the two small microphone inlets from dirt and debris. The primary earbud is the one removed from the charging case first.
1.
When putting the primary back to the charging case, they switch role and the other earbud will become the primary.
The switch between primary earbuds can take up to 5 seconds and you may hear an interruption. This is normal.

Sennheiser TV Clear Set | 25

Daily use

Phone call features
Usually the call is controlled via the phone. Some key features however can be assigned to a double tap such as microphone mute or ending the call.

To enable those features, download the Sennheiser TV Clear app from the app store and follow the instructions (> 26).
Phone calls via Bluetooth will always take priority over sound streaming if for example you are streaming from TV, you will hear the ringtone through the earbuds and can accept the call.
Ambient awareness One important feature of the earbuds is the ability to hear ambient sound while streaming. By default, you will hear the ambient sound on level 3. Double tap onto the right earbud to switch ambient sound OFF or
ON.
Right

26 | Sennheiser TV Clear Set

Tap 2x
You can configure the level of the ambient sound through the TV Clear app.
During phone call the ambient sound cannot be changed but a double tap will mute or unmute the earbud microphone.
Pause and resume streaming You can control the sound streaming directly from the earbud. Double tap onto the left earbud to pause or resume streaming.
· Initially you must start the playback of music from your device.
· The configurations of the double tap function can be changed with the TV Clear app.
Using the Sennheiser TV Clear app We recommend to benefit from the Sennheiser TV Clear app. It offers many advantages such as: · Earbuds stay up-to-date with the latest firmware. · Ability to change and configure the default English spoken mes-
sages. · Ability to configure the double tap touch control for additional
features such as starting the voice assistant, pause and resume

Daily use streaming, previous and next track, information about the battery state, control of ambient sound, and more. Download the app from the Apple App Store or Google Play and install it on your smartphone: · Apple App store: click · Google Play store: click
“Sennheiser TV Clear” TV Clear TV
Charging the earbuds The charging case is equipped with its own rechargeable battery.
· To charge earbuds, place the earbuds into the case. · The green blinking light indicates earbuds have been inserted
correctly and charging started. · Bluetooth will disconnect when earbuds are placed into the case.
When not in use it is recommended to store the earbuds safely in the case. Ensure the charging contacts are free of dirt and debris.
Sennheiser TV Clear Set | 27

Daily use

Charging the case The charging case will charge the earbuds up to 1.5 times before it must be charged. With USB-C cable

USB-C

USB-A

Plug the USB-C cable into the charging case. Plug the other end of the cable into any certified USB-A compati-
ble power source (not included, optional accessory). The indicator light on the case will blink to indicate that the
charging started.
Wirelessly

Place the charging case onto a Qi-certified charging pad. The indicator light on the case will flash to indicate correct place-
ment. Wireless charging via Qi-pad may take longer than charging directly via USB-C cable.
Battery status indicators As soon as the earbuds are in the case their battery state will be displayed.
Charging case
Right earbud Left earbud
Indicator lights respond when: · Placing the earbuds into the charging case. · Opening or closing the lid of the charging case. · Plugging the power cable into a power source. · When placing on a wireless Qi-charging pad.
28 | Sennheiser TV Clear Set

Daily use

Indicator light

Meaning

Solid green

Battery fully charged

Green blinking

Battery charging

Red blinking

Battery <20% charging required

–

No light Batteries depleted, charging required

Blue blinking

Manual pairing in progress

Orange blinking

Firmware update in progress

The indicator lights will dim after 10 seconds if the lid is closed.

Spoken voice messages will inform about the remaining battery when earbuds are being worn.

State of charge is also displayed in the Sennheiser TV Clear app.
Cleaning the ear adapter Over time, earwax can accumulate in the earbud silicone adapter. Follow these steps to clean: 1. Gently remove earbud from the adapter. 2. Hand wash the adapter in warm water with a little soap. Never put
water on the earbud itself! 3. Make sure the adapter is completely dry! Then gently insert
earbud again.

Sennheiser TV Clear Set | 29

Daily use

Firmware update
The TV Clear Earbuds can be updated to the newest firmware via the Sennheiser TV Clear app.
Updating firmware helps to keep the earbuds up to date. If you encounter functional issues with your earbuds, first ensure you are using the latest firmware version.
To download the app please refer to the links provided in “Using the Sennheiser TV Clear app” (> 26).
The app will automatically detect whether there is an new version available.

30 | Sennheiser TV Clear Set

FAQ/If a problem occurs …
FAQ/If a problem occurs …
If a problem has occurred, proceed in the following order until the problem is solved and you can use the earbuds again: 1. Perform a soft reset of the TV Clear earbuds (> 31). 2. Connect the earbuds to the TV Clear app to install the latest firm-
ware (> 26). 3. Reset the earbuds to the factory default settings (> 31). 4. Check the list of frequently asked questions to see if there is a
solution to the problem (> 31).
For the transmitter TV Connector you will find a troubleshooting guide here (> 32).
List of frequently asked questions (FAQ) Visit the TV Clear Set list of frequently asked questions (FAQ) and suggested solutions including instruction videos at:
www.sennheiser-hearing.com/tv-clear-faq

Soft reset of the TV Clear earbuds Restarts the earbuds. Your settings are kept. 1. Press and hold each earbud button for 15 seconds to manually
switch them off. 2. Place both earbuds back to the charging case (if you listen care-
fully you can hear the “Power on” message inside the cradle). Now continue to use them normally.
Factory reset of the TV Clear earbuds If you would like to revert the earbuds to factory defaults, you can do a factory reset. This will: · Delete all paired devices information. · Reset all configurations to factory default.
1. Make sure both earbuds are placed in the case correctly. 2. Press and hold the pairing button for 2 seconds, until you see a
blue light. Wait until all 3 indicator lights blink blue. 3. Press the pairing button two times.
The earbuds are reset to factory default settings, indicated by orange blinking indicator lights.

2 Hold
2s

All 3 LEDs

Press 2x

After factory reset you must perform the pairing process again as described in “Put the earbuds into pairing mode” (> 17).
Sennheiser TV Clear Set | 31

FAQ/If a problem occurs …

Troubleshooting

guide for the transmitter TV Connector

Issue
Cannot hear sound from the audio source
After connecting the transmitter, there is no sound coming from the TV loudspeakers The sound from the audio source speakers is delayed compared to the streamed audio in the TV Clear earbuds

Cause

Possible remedy

Audio source is turned off Turn on the audio source

Cables are not inserted properly into the TV Connector and/or the audio source

Ensure that all cables are in the proper location and firmly inserted (> 15)

Audio cable is plugged into the AUDIO IN of the audio source

Ensure that the audio cable is plugged into the AUDIO OUT of the audio source

The wrong audio input format (Dolby Digital or DTS) is being used

Ensure that stereo (PCM) audio format is being used in the audio settings of your
audio source. If this is not possible, use the analog 3.5 mm audio cable instead (> 16).

The transmitter is not connected to the TV Clear earbuds

Connect your TV Clear earbuds to the transmitter (> 19).

Audio source is on mute

Unmute the audio source, or turn up the volume

The headset connection of the TV is selected

Check the audio settings of the TV to enable the loudspeakers and the headset connection to be used at the same time.
Alternatively, use the optical (TOSLINK) cable instead of the analog 3.5 mm audio cable to connect the transmitter to the audio source (> 16).

The delay setting of the audio source speakers is too high

Adjust the audio delay time (reduce the delay) in the audio settings menu of your audio source

32 | Sennheiser TV Clear Set

Specifications

TV Clear Earbuds

Model: TVCE1-EB, TVCE1

Wearing style

True Wireless stereo earbuds

Ear coupling

ear-canal

Frequency response

20 Hz to 20 kHz

Transducer principle

dynamic

Transducer size

6 mm

Sound pressure level (SPL) 100.5 dB (1 kHz/1 mW)

THD (1 kHz, 94 dB SPL)

0.5 % (1 kHz, 94 dB)

Noise cancellation

passive

Microphone principle

Digital MEMS

Microphone frequency response

100 Hz to 10 kHz

Microphone pick-up pattern 1 microphone per earbud for Ambient

(speech and Ambient

Awareness mode

Awareness)

2 microphones beamforming in

primary earbud during call

Rechargeable batteries

built-in lithium rechargeable batteries, earbuds: 69 mAh charging case: 490 mAh

Charging method via charging case

USB charging via USB-C socket at charging case: 5 V , 600 mA Qi Wireless charging

Operating time

up to 15 hrs streaming with transmitter ,,TV Connector”; up to 12 hrs streaming with A2DP; 1.5 additional charges through charging case

Charging time of rechargeable batteries

approx. 2 hours for full charge USB-C source approx. 3 hours for full charge with Qi Wireless charging

Temperature range

operation: 5 to +40°C storage: -20 to +40°C

Relative humidity, non condensing

operation: < 85% storage: < 90%

Weight

earbuds: approx. 7 g each charging case: approx. 50 g both earbuds and charging case: 64 g

Bluetooth

Version Transmission frequency

Bluetooth 4.2 compatible, class 1 2,402 MHz to 2,480 MHz

Sennheiser TV Clear Set | 33

Specifications

Modulation Profiles Output power Codec Device name

GFSK, /4 DQPSK, 8DPSK HFP, AVRCP, A2DP, DID
10 mW (max) SBC
Sennheiser TV Clear Sennheiser TV Clear LE (Bluetooth Low Energy only)

Transmitter

Model: TV Connector

Compatibility
Streaming technology Audio quality Transmission frequency RF power Transmission range Max. paired devices Power supply
Product dimension

Connect multiple Sennheiser TV Clear devices or other wireless Phonak / Unitron products Up to 15 meters (50 ft) transmission range AirStreamTM technology Stereo, 120 Hz to 7.3 kHz 2.4 GHz ISM band
100 mW (max) up to 15 m (50 ft) Unlimited USB power via USB-Micro-B socket: 5 V , min. 500 mA 63 x 63 x 12 mm (2.5″ x 2.5″ x 0.46″)

Weight Temperature range
Relative humidity, non condensing

approx. 30 g
operation: 0 to +40°C (+32°F to +104°F). storage: -20 to +60°C (-4°F to +140°F).
operation: < 90% storage: < 90%

34 | Sennheiser TV Clear Set

Manufacturer Declarations

Manufacturer Declarations
Local warranty Please ask the Sonova Communications AG partner, where you purchased your devices, about the terms of the local warranty.
International warranty Sonova Communications AG offers a two year limited international warranty, valid as of the date of purchase. This limited warranty covers manufacturing and material defects. The warranty is valid only if proof of purchase is shown. The international warranty does not affect any legal rights that you might have under applicable national legislation governing sale of consumer goods. For AUSTRALIA and NEW ZEALAND ONLY Sonova Hearing Australia Pty Ltd provides a warranty of 24 months on these products. For the current warranty conditions, visit the Sonova Consumer Hearing website: www.sennheiser-hearing.com/warranty Sonova Consumer Hearing goods come with guarantees that cannot be excluded under Australian and New Zealand Consumer law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is in addition to other rights or remedies under law. Nothing in this warranty excludes, limits or modifies any remedy available to the consumer which is granted by law. To make a claim under this contract, raise a case via Sonova Consumer Hearing website: www.sennheiser-hearing.com/service-support All expenses of claiming the warranty will be borne by the person making the claim. Sonova Consumer Hearing international warranty is provided by: Sonova Hearing Australia Pty Ltd (ABN 82651492929) The Zenith, Level 14, Tower A, 821 Pacific Highway, Chatswood New South Wales 2067, Australia.
EU declaration of conformity · RoHS Directive (2011/65/EU) Hereby Sonova Communications AG declares that this product TV Clear Earbuds (Models: TVCE1-EB, TVCE1) and transmitter (Model: TV Connector) is in compliance with the essential requirements of the Radio Equipment Directive 2014/53/EU. To obtain a copy of the declaration of conformity please visit: www.sennheiser-hearing.com/download
UK declaration of conformity · RoHS Regulations (2012) · Radio Equipment Regulations (2017)
Sennheiser TV Clear Set | 35

Manufacturer Declarations

Notes on disposal
· EU: WEEE Directive (2012/19/EU)
· EU: Battery Directive (2006/66/EC & 2013/56/EU)
· UK: WEEE Regulations (2013)
· UK: Battery Regulations (2015)
The symbol of the crossed-out wheeled bin on the product, the battery/rechargeable battery (if applicable) and/or the packaging indicates that these products must not be disposed of with normal household waste, but must be disposed of separately at the end of their operational lifetime. For packaging disposal, observe the legal regulations on waste segregation applicable in your country. Improper disposal of packaging materials can harm your health and the environment.
The separate collection of waste electrical and electronic equipment, batteries/rechargeable batteries (if applicable) and packagings is used to promote the reuse and recycling and to prevent negative effects on your health and the environment, e.g. caused by potentially hazardous substances contained in these products. Recycle electrical and electronic equipment and batteries/rechargeable batteries at the end of their operational lifetime in order to make contained recyclable materials usable and to avoid littering the environment.
If batteries/rechargeable batteries can be removed without damaging them, you are obliged to dispose of them separately (for the safe removal of batteries/rechargeable batteries, see the instruction manual of the product). Handle lithium-containing batteries/ rechargeable batteries with special care, as they pose particular risks, such as the risk of fire and/or the risk of ingestion in the case of coin batteries. Reduce the generation of battery waste as much as possible by using longer-life batteries or rechargeable batteries.
Further information on the recycling of theses products can be obtained from your municipal administration, from the municipal collection points, or from your Sonova Consumer Hearing partner. You can also return electrical or electronic equipment to distributors who have a take-back obligation. Herewith you make an important contribution to the protection of the environment and public health.
Trademarks
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Android and Google play are registered trademarks of Google Inc.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sonova AG is under license.
Other company and product names mentioned herein are trademarks of their respective owners.

36 | Sennheiser TV Clear Set

SENNHEISER TVCE1-EB TV Clear Set

Product Information

Product Usage Instructions

FAQs

Important safety instructions

Package contents

Product overview

Getting started

Daily use

Troubleshooting

Manufacturer Declarations

Related Manuals

Leave a Comment Cancel reply
