SENCO SRT40 Rebar Tying Tool User Guide

Home » SENCO » SENCO SRT40 Rebar Tying Tool User Guide

SENCO logoSRT40
Rebar Tying Tool

SENCO SRT40 Rebar Tying ToolParts Reference Guide

SRT40 Rebar Tying Tool

Tool Model
9VS2002N  SRT40 EU
9VS7002N SRT40 UK*

*SRT40 UK incl. UK plug adapter # EBA22071 not shown

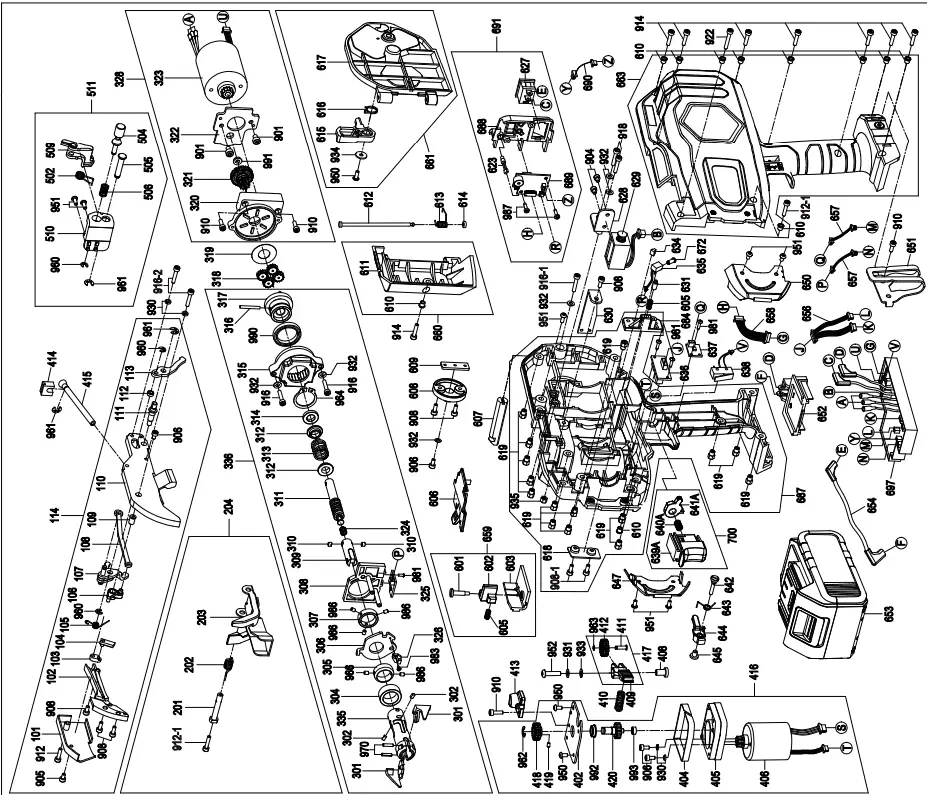

SENCO SRT40 Rebar Tying Tool - Tool

REPLACEMENT PARTS LIST

ITEM NO.

 PART NO.

DESCRIPTION

ITEM NO. PART NO.

DESCRIPTION

ITEM NO.

 PART NO.

DESCRIPTION
101 81013SRT Arm A 609 17210SRT Fixing Plate 1 981 13328SRT Pan-head Screw ST2.2×6
102 81020SRT Wire Guide A 610 18040SRT Hollow Pin 7 983 13298SRT Countersunk screw M2×4
103 11072SRT Connecting Plate 1 611 86117SASRT Motor Cover 986 89866SRT Hex Screw M3×3
104 81044SRT Fixed Cutter 612 86124SRT Step Pin 3 987 89873SRT Pan-head Screw ST3×
105 81051SRT Torsion Spring 1 613 15049SRT Torsion Spring 5 990 13205SRT Bearing 1
106 81068SRT Cutter 614 15056SRT Rubber Washer 991 89910SRT Bearing 2
107 80175SRT Cutter Lever A 615 86155SASRT Reel Stopper 992 89927SRT Bearing 3
108 81082SRT Connecting Rod 1 616 86162SRT Torsion Spring 6 993 89934SRT Bearing 4
109 81099SRT Cutter Sleeve 617 86179SRT Reel Stay 986 89866SRT Hex Screw M3×3
110 81105SRT Arm A unit 618 86186SRT Strength Plate 990 13205SRT Bearing 1
111 81112SRT Shaft Screw 619 17111SRT Nut M3 991 89910SRT Bearing 2
112 81129SRT Washer 4 623 16046SRT LED Unit 992 89927SRT Bearing 3
113 81136SRT Cutter Lever C 627 16015SRT Main Switch Unit 993 89934SRT Bearing 4
114 81143SRT Arm A Unit Assy 628 86285SRT Solenoid Holder
201 82010SRT Stopper Shaft 629 86292SRT Solenoid
202 82027SRT Torsion Spring 3 630 86308SRT Fixing Plate 2
203 82034SRT Curl Guide 631 86315SRT Jaw Pin
204 82041SRT Curl Guide Assy 634 86346SRT Socket Cap
301 83017SRT Hook 635 86353SRT Socket
302 83024SRT Key A 636 86360SRT Feeding PWB unit
304 83048SRT Sleeve Guide 637 17326SRT Sensor PWB D Unit
305 83055SRT Cutting Ring Guide 638 17265SRT Trigger Switch
306 83062SRT Cutting Plate 639 86391SASRT Trigger
307 83079SRT Cutting Ring Washer 640 86407SRT Comp. Spring 5
308 13069SRT Tip Axis Guide Assy 641 86414SASRT Trigger Lock
309 83093SRT Tip Axis B 642 17517SRT Bolt
310 13120SRT Key B 643 86438SRT Torsion Spring 4
311 83116SRT Tip Axis A 644 86445SRT Switch Lever
312 83123SRT Pin 1 645 17364SRT Pin 4
313 13168SRT Comp. Spring 2 647 86476SRT Cover L Unit
314 83147SRT Bumper 650 86506SRT Cover P Unit
315 83154SRT Internal Gear 651 86513SRT Belt Hook
316 13229SRT Pin 5 652 86520SRT Electrode Unit
317 83178SRT Planet Gear Unit 653 86537SASRT 18V Li-ion Battery
318 13236SRT Planet Gear 654 86544SRT Battery Connecting Wire
319 13243SRT Gear Press Wheel 656 86568SRT Feeding Motor Connecting Wire
320 83208SRT Twisting Motor Gearbox 657 86575SRT Sensor Connecting Wire
321 83215SRT Sun Gear Unit 658 86582SRT Adjusting Connecting Wire
322 83222SRT Motor Fixing plate 659 86599SASRT Reel Stopper Assy
323 83239SRT Twisting Motor Unit 660 86605SASRT Motor Cover Assy
324 13137SRT Comp. Spring 1 661 86612SASRT Reel Stay Assy
325 13311SRT Route PWB Unit 663 86636SASRT Frame R Assy
326 13304SRT Magnetic Plate 672 86704SRT Plastic cap
328 83284SRT Twisting Motor Assy 684 86841SRT Jaw
335 83352SRT Sleeve A 687 86872SASRT Frame L Assy (incl. Jaw)
336 83369SRT Twister Assy 688 86889SRT DD Adjusting Plate
402 84021SRT Partition Plate 689 86896SRT Adjusting PWB Unit
404 84045SRT Dust-Proof strip 690 86902SRT DD Screen Connecting Wire
405 84052SRT Feeding Motor Gearbox 691 86919SRT Main Switch Base Assy
406 84069SRT Feeding Motor Unit 697 86971SRT Main PWB Unit
408 84083SRT Hollow Pin 1 901 89019SRT Hex Bolt M4X6
409 14028SRT Release Lever 904 12536SRT Hex Bolt M3X4
410 14035SRT Comp. Spring 3 905 89057SRT Hex Bolt M3×5
411 14158SRT Step Pin 1 906 11034SRT Hex Bolt M3×6
412 14141SRT Feeding Gear B2 908-1 12024-1SRT Hex Bolt M3×8(With thread lock)
413 84137SRT Wire Guide C 910 11225SRT Hex Bolt M3×10
414 84144SRT Rubber Base 912-2 11027-2SRT Hex Bolt M3×12(with thread lock)
415 84151SRT Pipe 914 17449SRT Hex Bolt M3×14
416 84168SRT Feeding Motor Assy 916 17487SRT Hex Bolt M3×16
417 14165SRT Release Lever Assy 916-1 17487-1SRT Hex Bolt M3×16(SS)
418 84175SRT Feeding Gear B1 916-2 17487-2SRT Hex Bolt M3×16(with thread lock)
419 84182SRT Pin 7 922 89224SRT Hex Bolt M3×22
420 84199SRT Feeding Gear Shaft 930 12178SRT Spring Washer φ3
502 12499SRT Torsion Spring 7 931 14219SRT Spring Washer φ4
504 85042SRT Reel Press limit Axis 932 14058SRT Washer
505 12482SRT Reel Press Centre Axis 933 14226SRT Washer 2
506 12468SRT Comp. Spring 7 934 15070SRT Washer 3
509 Reel Press A 935 17050SRT Nut M3 (T4)
510 Reel Press D 950 89507SRT Button Head Screw M3X6
511 85110SRT Brake Housing Assy 951 17128SRT Button Head Screw M3X8
601 86018SRT Step Pin 2 952 89521SRT Button Head Screw M4X20
602 86025SASRT Release Stopper 960 12543SRT E-ring 3
603 86032SRT Reel Stopper 961 11133SRT E-ring 4
605 17166SRT Comp. Spring 4 962 89620SRT E-ring 5
606 86063SRT Window 963 12048SRT E-Ring 2
607 86070SRT Joint Reel Magazine 964 13182SRT C-ring 20
608 17029SRT Reel Guide 970 13342SRT Spring Pin φ2.5
