Rider to Passenger Communication System
Sena SF1 Quick Start Guide
Contents

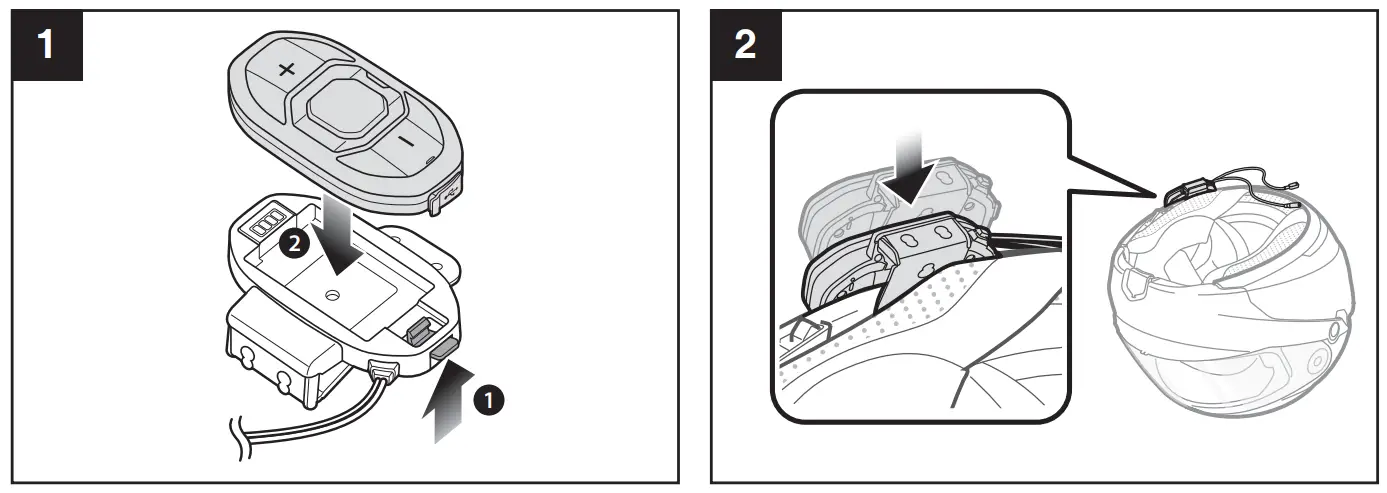

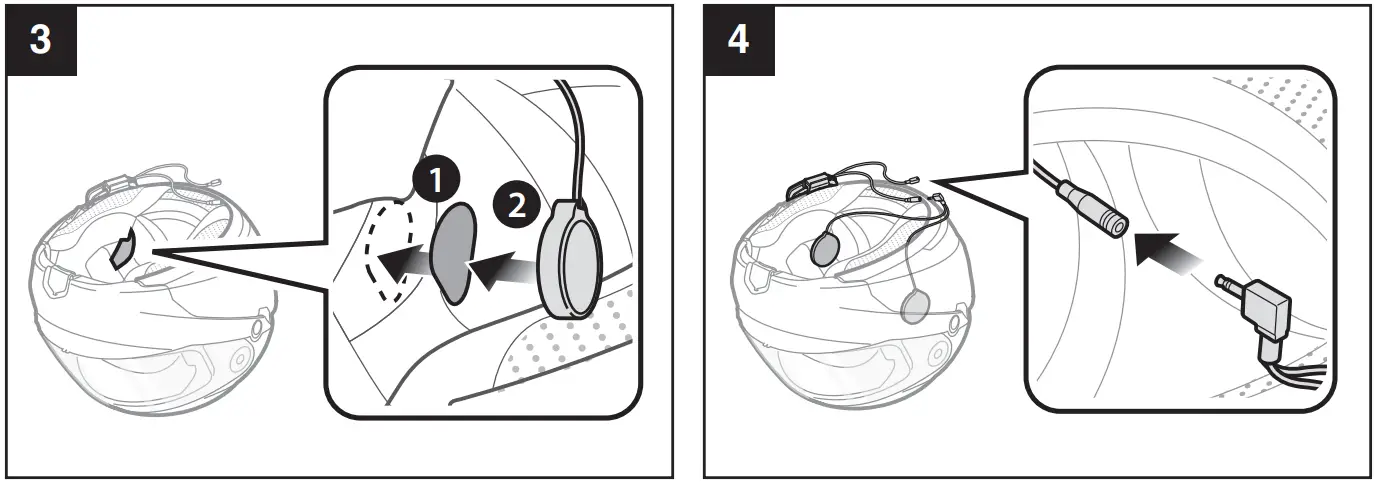

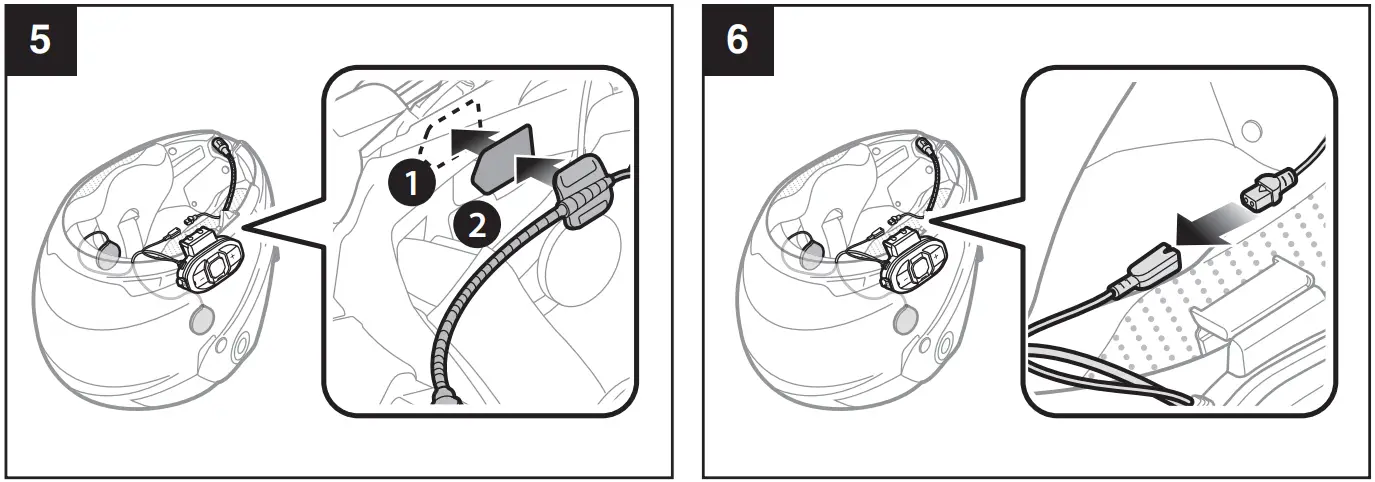

Installation
Sena Motorcycles App
- Download
– Android: Google Play Store > Sena Motorcycles
– iOS: App Store > Sena Motorcycles
Sena Device Manager
The Sena Device Manager allows you to upgrade the firmware and configure its settings directly from your PC or Apple computer. Download the Sena Device Manager from sena.com

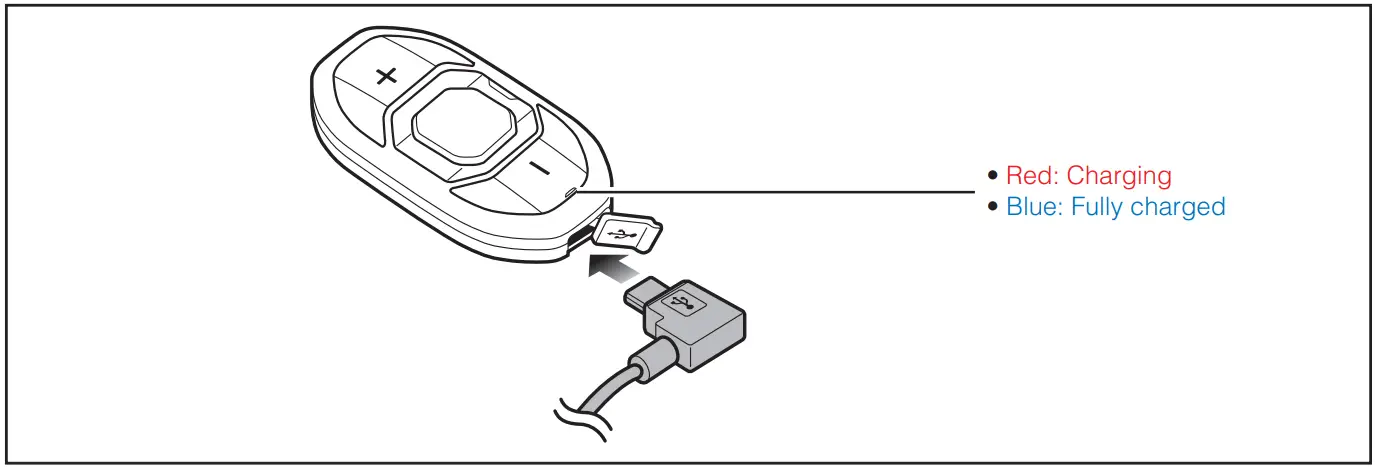

Charging
NOTICE
- This Quick Start Guide (Version 3.0.0 or higher) explains how to operate the SF1 with firmware version 3.0 or higher .
- For operating the SF1 with a firmware version lower than 3.0 , refer to the SF1 Quick Start Guide that is available when you connect the SF1 to the Motorcycles App.

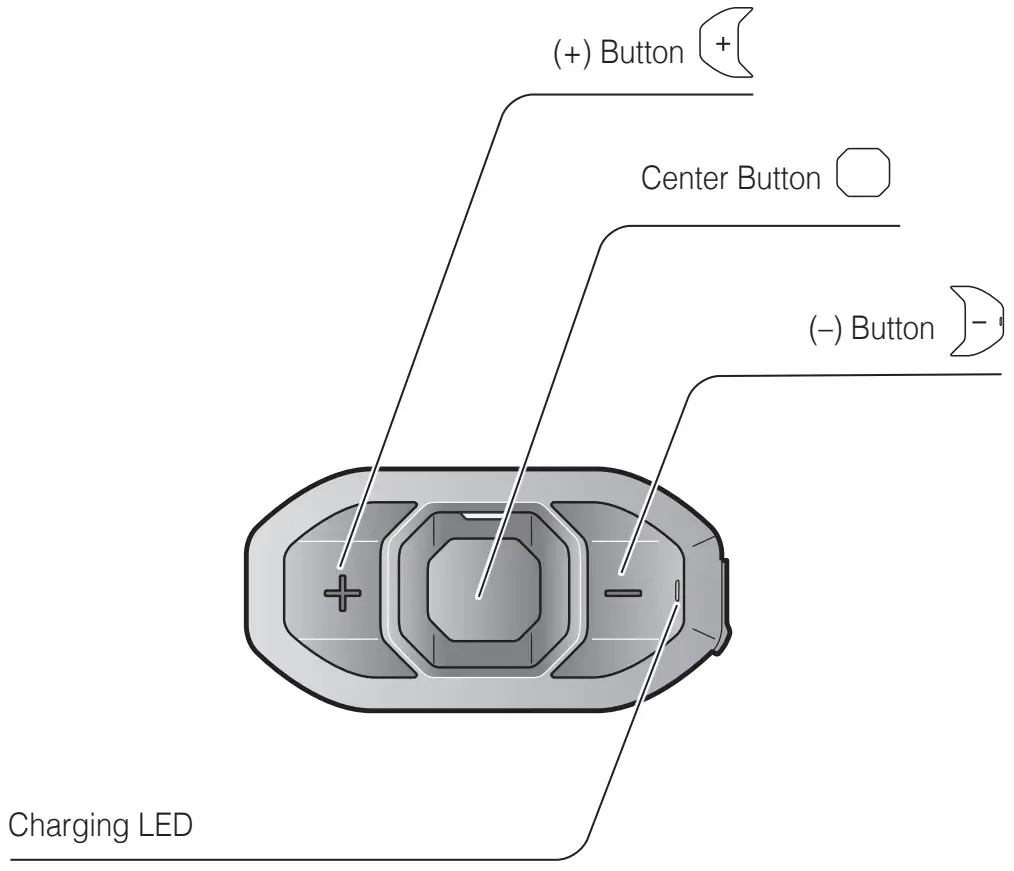

Button Operation

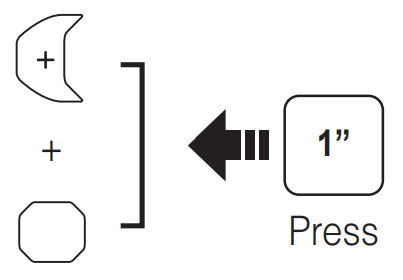

Power On/Off

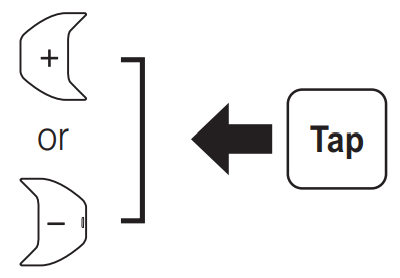

Volume Adjustment

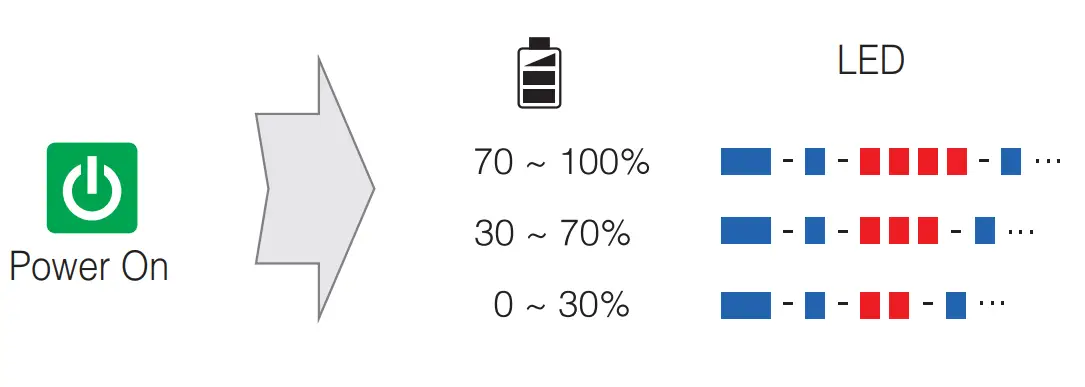

Battery Check
Phone, Music
Pairing
- The headset will enter the Phone Pairing mode automatically when you initially turn on the headset.
- For more information on phone pairing, refer to the User’s Guide.
Music Operation
Mobile Phone
Call Making and Answering
Intercom Pairing
Intercom Pairing
Troubleshooting
Factory Reset
If you want to restore the Sena SF1 to factory default settings, use the Factory Reset in the configuration menu. The headset automatically restores the default settings and turns off.

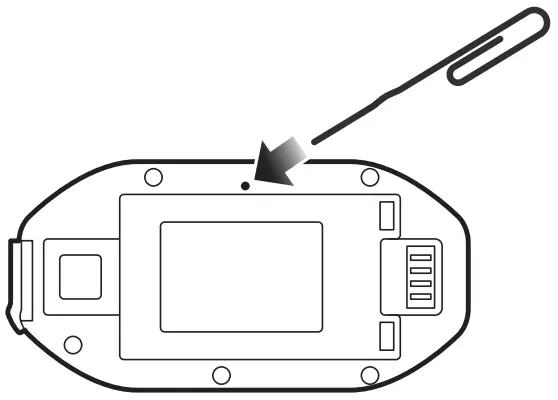

Fault Reset
Fault Reset
If the Sena SF1 is not working properly for any reason, reset by gently pushing the pin-hole reset button on the back of the main unit.
SENA Technologies, Inc.
Customer Support:
sena.com
SF Series Quick Reference
| Type | Operation | Button Command | LED |
| Basic Function | Power on | Press the Center Button and the (+) Button for 1 second | Solid blue |
| Power off | Tap the Center Button and the (+) Button | Solid red | |
| Volume adjustment | Tap the (+) Button or the (-) Button | – | |
| Microphone Mute | Press the Center Button and the (-) Button for 1 second | – | |
| Mobile Phone | Answer mobile phone call | Tap the Center Button | – |
| End mobile phone call | Press the Center Button for 2 seconds | – | |
| Voice dial | Press the Center Button for 3 seconds | ||
| Speed dial | Press the (+) Button for 3 seconds | ||
| Reject incoming call | Press the Center Button for 2 seconds | ||
| Intercom | Intercom pairing | Press the Center Button for 5 seconds | Red flashing |
| Tap the Center Button of any one of the two headsets | |||
| Start/End each intercom | Tap the Center Button | ||
| End all intercoms” | Press the Center Button for 3 seconds | ||
| Start Group Intercom” | Tap the (+) Button and the (-) Button at the same time | Green flashing | |
| End Group Intercom” | Press the Center Button for 3 seconds | – | |
| Music | Play/Pause Bluetooth music | Press the Center Button for 1 second | – |
| Track forward/back | Press the (+) Button or the (-) Button for I second | ||
| FM Radio “ | FM radio on/off | Press the (-) Button for 1 second | |
| Select preset | Press the Center Button for 1 second | ||
| Seek stations | Double tap the (+) Button or the (-) Button | – | |
| Scan up FM band | Press the (+) Button for 1 second | – | |
| Stop scanning | Press the (+) Button for 1 second | ||
| Save preset while scanning | Tap the center Button | ||
** Available only in SF4
Setting
Configuration Menu
www.sena.com
2.0.1_EN_March2023
