SECURITY LIGHTING SLING Micro Strike Road Lighter

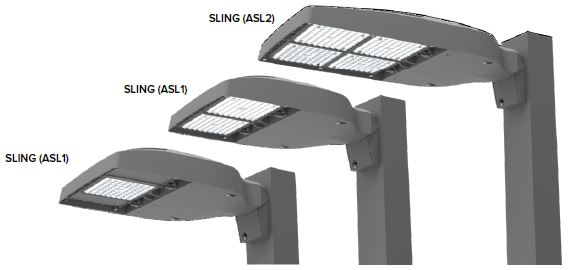

SLING Micro Strike
AREA/SITE/ROAD LIGHTER
The SLING Micro Strike is a high-performance lighting solution that is ideal for outdoor areas, sites, and roads. The product features fins that are optimal for heat dissipation while keeping a clean smooth outer surface. The larger luminous surface area results in a low glare appearance without sacrificing optical performance. The product is available in optional voltage, 50/60 Hz, and wireless configurations for complete on/off and dimming control with some Premium Qualified configurations.
Specifications:
- Lumen Range
- Wattage Range
- Efficacy Range (LPW)
- Weight lbs. (kg)
The SLING Micro Strike is designed to provide optimal lighting performance with a range of LED options and distribution types. The product is available with a range of control options including 7 Pin Receptacle, Photocontrol, and Sensors. The product is also available in a range of color options including Black Matte Textured, Black Gloss Smooth, Dark Bronze Matte Textured, Dark Bronze Gloss Smooth, Graphite Matte Textured, Light Grey Gloss Smooth, Light Grey Matte Textured, Platinum Silver Smooth, White Matte Textured, White Gloss Smooth, and Verde Green Textured.
Ordering Guide:
To order the SLING Micro Strike, customers can use the following ordering guide:
- Catalog #
- # LEDs
- CCT/CRI
- Distribution
- Voltage
- Mounting
- Control Options
- Other Options
Ordering Information:
Customers can order the SLING Micro Strike in a range of LED options, including 80L-25, 80L-39, 80L-50, 160L-70, 160L-100,160L-115, and 160L-135. The product is available in a range of CCT/CRI options including 3K7 3000K, 70 CRI, 4K7 4000K, 70 CRI, and 5K7 5000K, 70 CRI. Customers can also choose from a range of distribution types including Type II, Type III, Type 4W, and Type 5QW. The product is available in Universal voltage, which includes 120-277V, 120V, 208V, 240V, 277V, 347V, and 480V. The product is available with a range of mounting options including Arm for Square poles with S2 drill pattern, Mast Arm Fitter for 2-3/8 OD. The product is also available with a range of control options including 7 Pin Receptacle, Photocontrol, and Sensors.
Control Accessories:
The SLING Micro Strike can be ordered with control accessories that are ordered separately. Customers can order the wiSCAPE External Fixture Module (Catalog Number WIR-RME-L) and NXOFM-1R1D-UNV.
Product Usage Instructions:
The SLING Micro Strike is designed to be used in outdoor areas,sites, and roads. The product should be installed by a qualified electrician following the installation instructions provided with the product. Customers should ensure that the product is installed in a safe and secure location to prevent damage or injury. The product can be controlled using a range of control options including 7 Pin Receptacle, Photocontrol, and Sensors. Customers should refer to the product user manual for detailed instructions on how to control the product using these options. The product is available in a range of color options, and customers should ensure that they choose the appropriate color option for their specific application.
FEATURES
- Compact sleek design with multiple LED configurations and simple installation

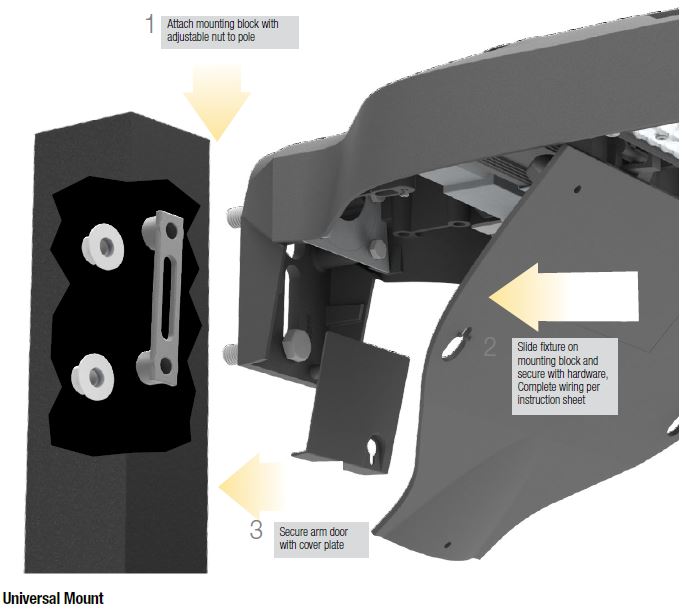

- The SLING includes a universal mounting block for easy pole installation or mast arm option for 2-3/8 ft OD roadway brackets
- Capable of replacing up to 1000w HID luminaires
- Micro Strike optical distributions of Type 2, 3, 4W or 5QW
- Tool-less entry option for easy installation and maintenance
- 1.5G rated for high vibration applications including bridges and overpasses
SPECIFICATIONS
CONSTRUCTION
- Die-cast housing with hidden vertical heat fins that are optimal for heat dissipation while keeping a clean smooth outer surface
- Corrosion resistant, die-cast aluminum housing with powder coat paint finish
- Separate optical and electrical compartment for improved thermal management and optimum component operation
- TGIC thermoset polyester powder paint finish applied at nominal 2.5 mil thickness
OPTICS
- Entire optical aperture illuminates to create a larger luminous surface area resulting in a low glare appearance without sacrificing optical performance
- Premium engineered individual acrylic lenses deliver IES Type 2, 3, 4W and 5QW distributions
- Lens distributions are field rotatable (in 90˚ increments) or exchangeable for job site fine-tuning
- 3000K, 4000K, or 5000K (70 CRI) CCT
- 80, 160, or 320 midpower LEDs
- 3000K, 4000K or 5000K (70 CRI) CCT
- Zero uplight at 0 degrees of tilt
- Field rotatable optics
INSTALLATION - Tool-less entry to wiring/driver compartment optional
- Arm mounting works with S2 drill pattern
- Fixture ships with slotted mounting block to accommodate wide range of drill patterns for easy retrofit opportunities
- Mast arm fitter accessory or option available for 2-3/8” OD brackets with vertical tilt of +3°, 0° or -3°
ELECTRICAL
- Universal 120-277 VAC or 347-480 VAC input voltage, 50/60 Hz
- Ambient operating temperature -40˚ C to 40˚ C
- Drivers have greater than 90% power factor and less than 20% THD
- LED drivers have output power over-voltage,over-current protection and short circuit protection with auto recovery
- Field replaceable surge protection device provides 20KA and 10KV protection meeting ANSI/IEEE C62.41.2 Category C High and Surge Location Category C3; Automatically takes fixture off-line for protection when device is consumed
CONTROLS
- Photo control, occupancy sensor and Zigbee wireless available for complete on/off and dimming control
- 7-pin ANSI C136.41-2013 photocontrol receptacle option available for twist lock photocontrols or wireless control modules (control accessories sold separately)
- Dimming Drivers are standard and dimming leads are extended out of the luminaire unless control options require connection to the dimming leads. Must specify if wiring leads are to be greater than the 6
- Please consult brand or sales representative when combining control and electrical options as some combinations may not operate as anticipated depending on your application
CERTIFICATIONS
- Listed to UL1598 and CSA C22.2#250.0-24 for wet locations and 40˚C ambient temperatures
- DLC (DesignLights Consortium Qualified), with some Premium Qualified configurations. Please refer to the DLC website for specific product qualifications at www.designlights.org
- 1.5G rated for ANSI C136.31 high vibration applications
- IP65 optical assembly
- Meets IDA recommendations using 3K CCT configuration at 0 degrees of tilt
- This product qualifies as a “designated country construction material” per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 04/23/2020.
WARRANTY
- 5 Year warranty
| KEY DATA | |
| Lumen Range | 3,200–36,000 |
| Wattage Range | 25–255 |
| Efficacy Range (LPW) | 118–148 |
| Weight lbs. (kg) | 14.5–17.5 (6.6–8.0) |

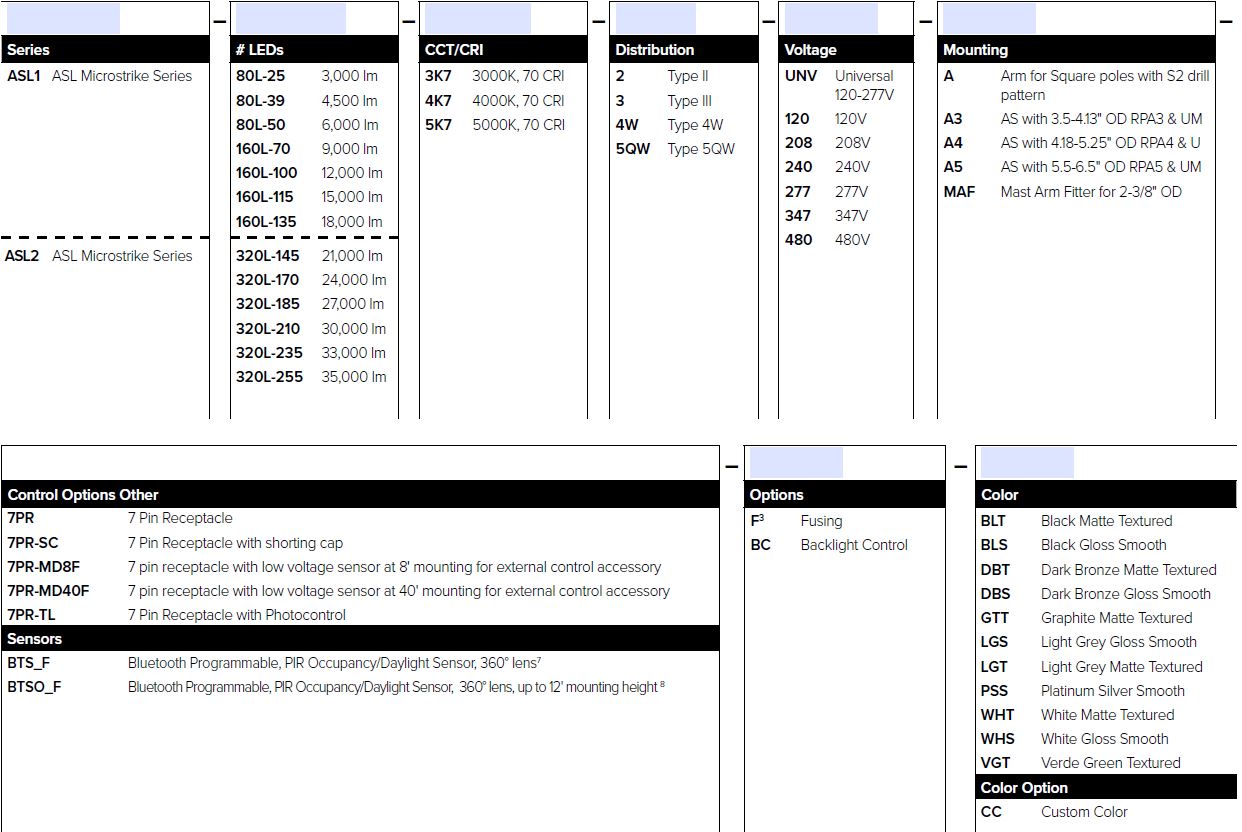

ORDERING GUIDE
ORDERING INFORMATION
Notes:
- Not compatible with 80L configurations
- Not compatible with 480V configurations
- Must specify voltage
- Not available with a combination or 347/480 and fusing
- Must specify voltage, 120V or 277V only
- Order at least one SPC–REMOTE per project location to program and control the occupancy sensor
- Replace “_” with “14” for up to 14′ mounting height, “40F” for 15-40′ mounting height
- Replace “_” with “12” for up to 12′ mounting height

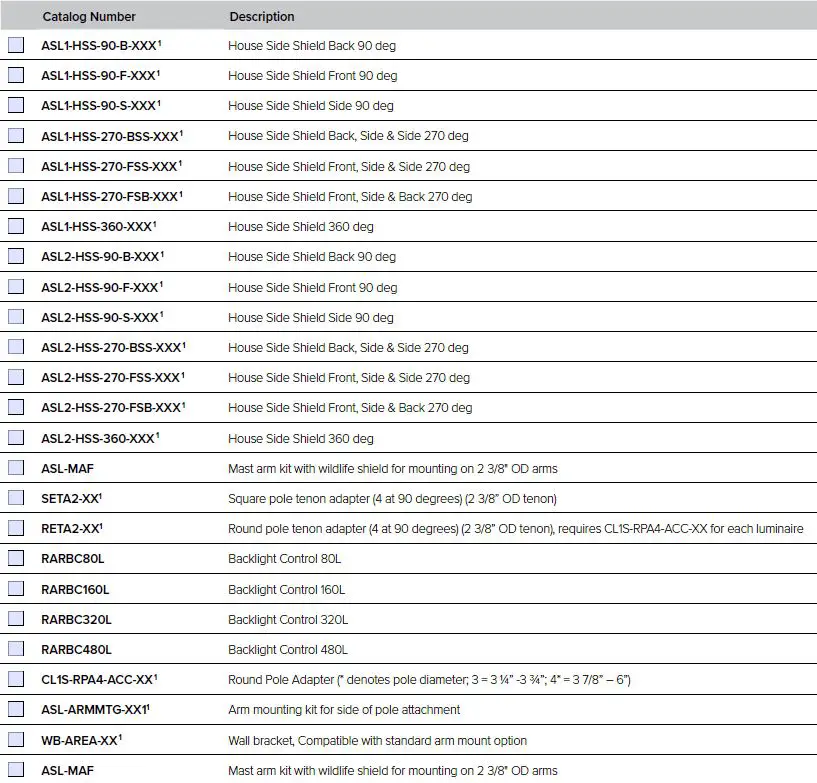

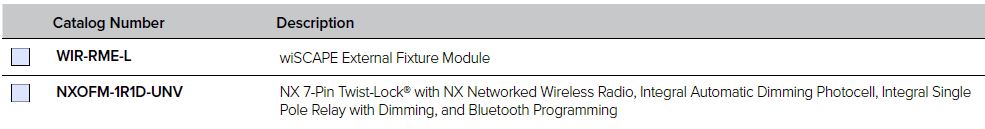

CONTROL ACCESSORIES (ORDERED SEPARATELY)

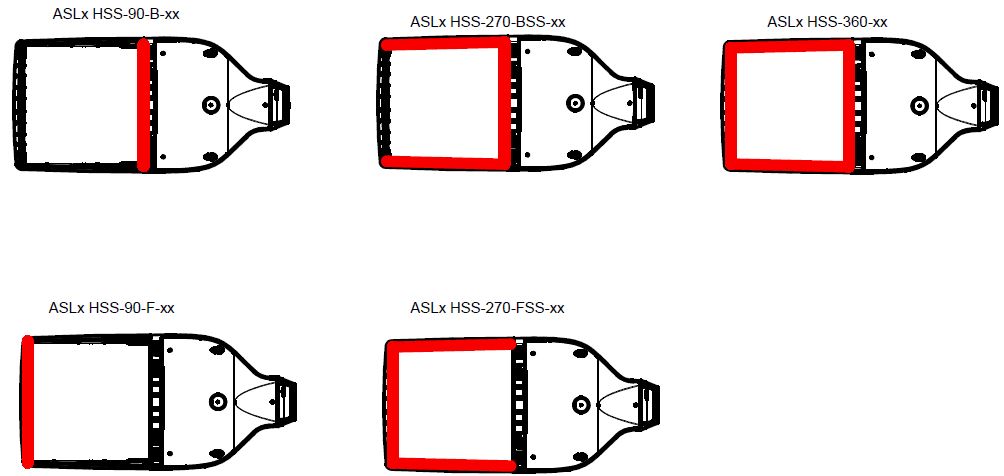

ACCESSORIES (ORDERED SEPARATELY)
PERFORMANCE DATA
| Description | Nominal Wattage | System Watts | Dist. Type | 5K (5000K NOMINAL 70 CRI) | 4K (4000K NOMINAL 70 CRI) | 3K (3000K NOMINAL 70 CRI) | ||||||||||||
| Lumens | LPW1 | B | U | G | Lumens | LPW1 | B | U | G | Lumens | LPW1 | B | U | G | ||||
|
ASL1 |
25 |
25.4 |
2 | 3430 | 135 | 2 | 0 | 2 | 3413 | 134 | 2 | 0 | 2 | 3225 | 127 | 2 | 0 | 2 |
| 3 | 3465 | 136 | 2 | 0 | 2 | 3448 | 136 | 2 | 0 | 2 | 3259 | 128 | 2 | 0 | 2 | |||
| 4W | 3401 | 134 | 2 | 0 | 3 | 3384 | 133 | 2 | 0 | 3 | 3198 | 126 | 2 | 0 | 3 | |||
| 5QW | 3483 | 137 | 4 | 0 | 2 | 3466 | 136 | 4 | 0 | 2 | 3274 | 129 | 4 | 0 | 2 | |||
|
39 |
38.0 |
2 | 5237 | 138 | 3 | 0 | 3 | 5211 | 137 | 3 | 0 | 3 | 4924 | 130 | 3 | 0 | 3 | |
| 3 | 5292 | 139 | 2 | 0 | 2 | 5265 | 139 | 2 | 0 | 2 | 4976 | 131 | 2 | 0 | 2 | |||
| 4W | 5193 | 137 | 2 | 0 | 3 | 5168 | 136 | 2 | 0 | 3 | 4883 | 129 | 2 | 0 | 3 | |||
| 5QW | 5318 | 140 | 4 | 0 | 2 | 5292 | 139 | 4 | 0 | 2 | 4999 | 132 | 4 | 0 | 2 | |||
|
50 |
49.7 |
2 | 6294 | 127 | 2 | 0 | 2 | 6263 | 126 | 2 | 0 | 2 | 5918 | 119 | 2 | 0 | 2 | |
| 3 | 6360 | 128 | 2 | 0 | 2 | 6328 | 127 | 2 | 0 | 2 | 5980 | 120 | 2 | 0 | 2 | |||
| 4W | 6242 | 126 | 2 | 0 | 3 | 6211 | 125 | 2 | 0 | 3 | 5869 | 118 | 2 | 0 | 3 | |||
| 5QW | 6392 | 129 | 4 | 0 | 2 | 6360 | 128 | 4 | 0 | 2 | 6008 | 121 | 4 | 0 | 2 | |||
|
70 |
68.4 |
2 | 9461 | 138 | 3 | 0 | 3 | 9414 | 138 | 3 | 0 | 3 | 8897 | 130 | 3 | 0 | 3 | |
| 3 | 9560 | 140 | 2 | 0 | 2 | 9513 | 139 | 2 | 0 | 2 | 8989 | 131 | 2 | 0 | 2 | |||
| 4W | 9383 | 137 | 2 | 0 | 3 | 9336 | 136 | 2 | 0 | 3 | 8822 | 129 | 2 | 0 | 3 | |||
| 5QW | 9608 | 140 | 4 | 0 | 2 | 9560 | 140 | 4 | 0 | 2 | 9032 | 132 | 4 | 0 | 2 | |||
|
100 |
88.0 |
2 | 11945 | 136 | 2 | 0 | 2 | 11886 | 135 | 2 | 0 | 2 | 11232 | 128 | 2 | 0 | 2 | |
| 3 | 12070 | 137 | 2 | 0 | 2 | 12010 | 136 | 2 | 0 | 2 | 11349 | 129 | 2 | 0 | 2 | |||
| 4W | 11846 | 135 | 2 | 0 | 3 | 11787 | 134 | 2 | 0 | 3 | 11139 | 127 | 2 | 0 | 3 | |||
| 5QW | 12131 | 138 | 4 | 0 | 2 | 12070 | 137 | 4 | 0 | 2 | 11403 | 130 | 4 | 0 | 2 | |||
|
115 |
109.7 |
2 | 15683 | 143 | 2 | 0 | 2 | 15605 | 142 | 2 | 0 | 2 | 14977 | 137 | 2 | 0 | 2 | |
| 3 | 15486 | 141 | 2 | 0 | 2 | 15411 | 140 | 2 | 0 | 2 | 14819 | 135 | 2 | 0 | 2 | |||
| 4W | 15305 | 140 | 2 | 0 | 3 | 15232 | 139 | 2 | 0 | 3 | 14646 | 134 | 2 | 0 | 3 | |||
| 5QW | 15732 | 143 | 4 | 0 | 2 | 15653 | 143 | 4 | 0 | 2 | 15024 | 137 | 4 | 0 | 2 | |||
|
135 |
133.3 |
2 | 18089 | 136 | 3 | 0 | 3 | 17999 | 135 | 3 | 0 | 3 | 17275 | 130 | 3 | 0 | 3 | |
| 3 | 17861 | 134 | 2 | 0 | 2 | 17776 | 133 | 2 | 0 | 2 | 17092 | 128 | 2 | 0 | 2 | |||
| 4W | 17653 | 132 | 2 | 0 | 3 | 17569 | 132 | 2 | 0 | 3 | 16893 | 127 | 2 | 0 | 3 | |||
| 5QW | 18155 | 136 | 4 | 0 | 2 | 18064 | 136 | 4 | 0 | 2 | 17338 | 130 | 4 | 0 | 2 | |||
| ASL2 Performance Data on next page | ||||||||||||||||||
| Description | Nominal Wattage | System Watts | Dist. Type | 5K (5000K NOMINAL 70 CRI) | 4K (4000K NOMINAL 70 CRI) | 3K (3000K NOMINAL 70 CRI) | ||||||||||||
| Lumens | LPW1 | B | U | G | Lumens | LPW1 | B | U | G | Lumens | LPW1 | B | U | G | ||||
|
ASL2 |
145 |
143.0 |
2 | 21007 | 147 | 3 | 0 | 4 | 20902 | 146 | 3 | 0 | 4 | 20061 | 140 | 3 | 0 | 4 |
| 3 | 20842 | 146 | 3 | 0 | 4 | 20738 | 145 | 3 | 0 | 4 | 19904 | 139 | 3 | 0 | 4 | |||
| 4W | 20595 | 144 | 3 | 0 | 5 | 20492 | 143 | 3 | 0 | 5 | 19668 | 138 | 3 | 0 | 5 | |||
| 5QW | 21130 | 148 | 5 | 0 | 4 | 21024 | 147 | 5 | 0 | 4 | 20179 | 141 | 5 | 0 | 4 | |||
|
170 |
168.0 |
2 | 24447 | 146 | 3 | 0 | 4 | 24325 | 145 | 3 | 0 | 4 | 23347 | 139 | 3 | 0 | 4 | |
| 3 | 24256 | 144 | 3 | 0 | 4 | 24134 | 144 | 3 | 0 | 4 | 23164 | 138 | 3 | 0 | 4 | |||
| 4W | 23968 | 143 | 3 | 0 | 5 | 23848 | 142 | 3 | 0 | 5 | 22889 | 136 | 3 | 0 | 5 | |||
| 5QW | 24591 | 146 | 5 | 0 | 4 | 24468 | 146 | 5 | 0 | 4 | 23484 | 140 | 5 | 0 | 4 | |||
|
185 |
185.0 |
2 | 26651 | 144 | 4 | 0 | 5 | 26518 | 143 | 4 | 0 | 5 | 25452 | 138 | 4 | 0 | 5 | |
| 3 | 26442 | 143 | 3 | 0 | 4 | 26310 | 142 | 3 | 0 | 4 | 25252 | 136 | 3 | 0 | 4 | |||
| 4W | 26129 | 141 | 4 | 0 | 5 | 25998 | 141 | 4 | 0 | 5 | 24953 | 135 | 4 | 0 | 5 | |||
| 5QW | 26808 | 145 | 5 | 0 | 5 | 26674 | 144 | 5 | 0 | 5 | 25602 | 138 | 5 | 0 | 5 | |||
|
210 |
210.0 |
2 | 29880 | 142 | 3 | 0 | 4 | 29731 | 142 | 3 | 0 | 4 | 28535 | 136 | 3 | 0 | 4 | |
| 3 | 29646 | 141 | 3 | 0 | 4 | 29497 | 140 | 3 | 0 | 4 | 28312 | 135 | 3 | 0 | 4 | |||
| 4W | 29294 | 139 | 3 | 0 | 5 | 29148 | 139 | 3 | 0 | 5 | 27976 | 133 | 3 | 0 | 5 | |||
| 5QW | 30056 | 143 | 5 | 0 | 4 | 29905 | 142 | 5 | 0 | 4 | 28703 | 137 | 5 | 0 | 4 | |||
|
235 |
235.0 |
2 | 32959 | 140 | 3 | 0 | 4 | 32794 | 140 | 3 | 0 | 4 | 31475 | 134 | 3 | 0 | 4 | |
| 3 | 32700 | 139 | 3 | 0 | 4 | 32537 | 138 | 3 | 0 | 4 | 31229 | 133 | 3 | 0 | 4 | |||
| 4W | 32312 | 137 | 3 | 0 | 5 | 32151 | 137 | 3 | 0 | 5 | 30858 | 131 | 3 | 0 | 5 | |||
| 5QW | 33152 | 141 | 5 | 0 | 4 | 32987 | 140 | 5 | 0 | 4 | 31661 | 135 | 5 | 0 | 4 | |||
|
255 |
261.2 |
2 | 36218 | 139 | 4 | 0 | 5 | 36037 | 138 | 4 | 0 | 5 | 34588 | 132 | 4 | 0 | 5 | |
| 3 | 35934 | 138 | 3 | 0 | 4 | 35754 | 137 | 3 | 0 | 4 | 34317 | 131 | 3 | 0 | 4 | |||
| 4W | 35508 | 136 | 4 | 0 | 5 | 35330 | 135 | 4 | 0 | 5 | 33910 | 130 | 4 | 0 | 5 | |||
| 5QW | 36431 | 139 | 5 | 0 | 5 | 36249 | 139 | 5 | 0 | 5 | 34792 | 133 | 5 | 0 | 5 | |||
VAC input Lumen values are from photometric test performed in accordance with IESNA LM-79-08. Data is considered to be representative of the configurations. Actual performance may differ as a result of end-user environment and application.
ELECTRICAL DATA
| Family | Nominal Wattage | Input Voltage (Volts) | Current (AMPS) | System Power (Watts) |
|
SLING (ASL1) |
25 |
120 | 0.21 |
25.4 |
| 208 | 0.12 | |||
| 240 | 0.11 | |||
| 277 | 0.09 | |||
| 347 | 0.07 | |||
| 480 | 0.05 | |||
|
39 |
120 | 0.32 |
38 |
|
| 208 | 0.18 | |||
| 240 | 0.16 | |||
| 277 | 0.14 | |||
| 347 | 0.11 | |||
| 480 | 0.08 | |||
|
50 |
120 | 0.41 |
49.7 |
|
| 208 | 0.24 | |||
| 240 | 0.21 | |||
| 277 | 0.18 | |||
| 347 | 0.14 | |||
| 480 | 0.10 | |||
|
70 |
120 | 0.57 |
68.4 |
|
| 208 | 0.33 | |||
| 240 | 0.29 | |||
| 277 | 0.25 | |||
| 347 | 0.20 | |||
| 480 | 0.14 | |||
|
100 |
120 | 0.73 |
88 |
|
| 208 | 0.42 | |||
| 240 | 0.37 | |||
| 277 | 0.32 | |||
| 347 | 0.25 | |||
| 480 | 0.18 | |||
|
115 |
120 | 0.91 |
109.7 |
|
| 208 | 0.53 | |||
| 240 | 0.46 | |||
| 277 | 0.40 | |||
| 347 | 0.32 | |||
| 480 | 0.23 | |||
|
135 |
120 | 1.11 |
133.3 |
|
| 208 | 0.64 | |||
| 240 | 0.56 | |||
| 277 | 0.48 | |||
| 347 | 0.38 | |||
| 480 | 0.28 | |||
| SLING (ASL2) Next Page | ||||
|
SLING (ASL2) |
145 |
120 | 1.19 |
143.0 |
| 208 | 0.69 | |||
| 240 | 0.60 | |||
| 277 | 0.52 | |||
| 347 | 0.41 | |||
| 480 | 0.30 | |||
|
170 |
120 | 1.40 |
168.0 |
|
| 208 | 0.81 | |||
| 240 | 0.70 | |||
| 277 | 0.61 | |||
| 347 | 0.48 | |||
| 480 | 0.35 | |||
|
185 |
120 | 1.54 |
185.0 |
|
| 208 | 0.89 | |||
| 240 | 0.77 | |||
| 277 | 0.67 | |||
| 347 | 0.53 | |||
| 480 | 0.39 | |||
|
210 |
120 | 1.75 |
210.0 |
|
| 208 | 1.01 | |||
| 240 | 0.88 | |||
| 277 | 0.76 | |||
| 347 | 0.61 | |||
| 480 | 0.44 | |||
|
235 |
120 | 1.96 |
235.0 |
|
| 208 | 1.13 | |||
| 240 | 0.98 | |||
| 277 | 0.85 | |||
| 347 | 0.68 | |||
| 480 | 0.49 | |||
|
255 |
120 | 2.18 |
261.2 |
|
| 208 | 1.26 | |||
| 240 | 1.09 | |||
| 277 | 0.94 | |||
| 347 | 0.75 | |||
| 480 | 0.54 |
PROJECTED LUMEN MAINTENANCE
|
Ambient Temperature |
OPERATING HOURS | |||||
| 0 | 25,000 | TM-21-111 L96 60,000 | 50,000 | 100,000 | L70
(Hours) |
|
| 25oC / 77oF | 1.00 | 0.97 | 0.96 | 0.95 | 0.91 | 408,000 |
| 40oC / 104oF | 0.99 | 0.96 | 0.95 | 0.94 | 0.89 | 356,000 |
- Projected per IESNA TM-21-11 (* Cree XP-L, 2100mA, 105°C Ts, 6,000hrs)

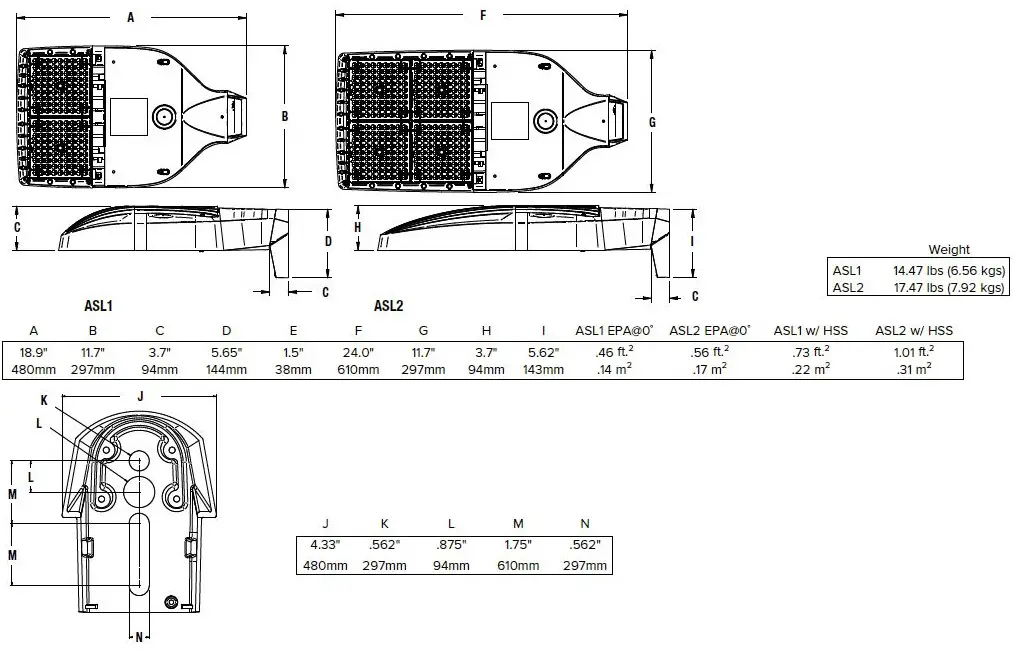

DIMENSIONS
LUMINAIRE AMBIENT TEMPERATURE FACTOR (LATF)
| Ambient Temperature | Lumen Multiplier | |
| 0˚ C | 32˚ F | 1.06 |
| 10˚ C | 50˚ F | 1.03 |
| 20˚ C | 68˚ F | 1.01 |
| 25˚ C | 77˚ F | 1.00 |
| 30˚ C | 86˚ F | 0.99 |
| 40˚ C | 104˚ F | 0.97 |
| 50˚ C | 122˚ F | 0.94 |
Use these factors to determine relative lumen output for average ambient temperatures from 0-40°C (32-104°F).
PHOTOMETRY

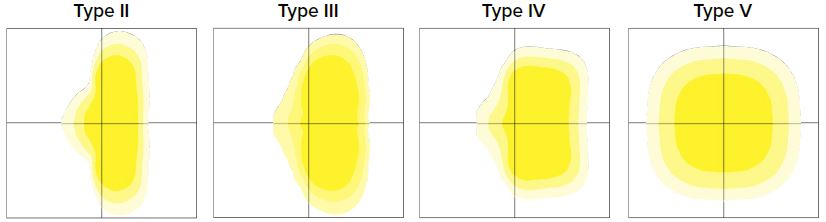

The following diagrams represent the general distribution options offered for this product. For detailed information on specific product configurations, see website photometric test reports.
ADDITIONAL INFORMATION
OCCUPANCY SENSOR’
- Individual fixture control
- Dims product when space is not occupied

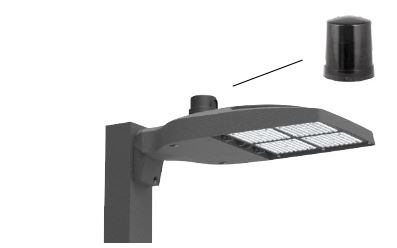

7-PIN RECEPTACLE
- Compatible with 3-pin, 5-pin or 7-pin photocontrols
- Turns fixture on when sun sets, off when sun rises
- Wireless networked solution
- For use with a variety of control platforms
Additional accessories required.
MOUNTING

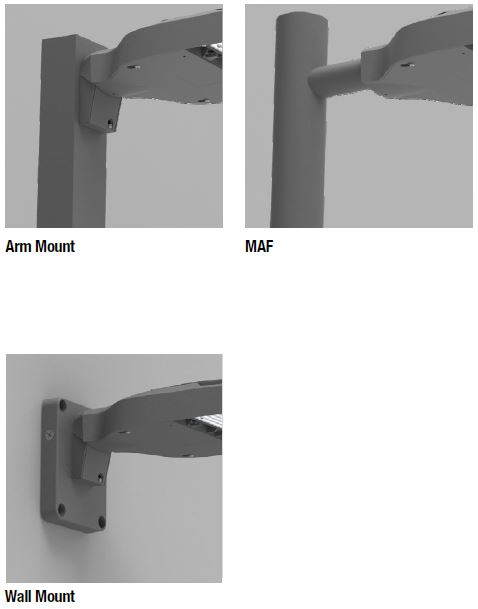

- Arm Mount – Fixture ships with integral arm for ease of installation.
Compatible with Outdoor S2 drill pattern. - MAF – Fits 2-3/8” OD arms Roadway applications.
- Wall Mount – Wall mount bracket designed for building mount applications.
- Universal Mount – Universal mounting block for ease of installation. Compatible with S2 drill patterns from 2.5” to 4.5”
ACCESSORY

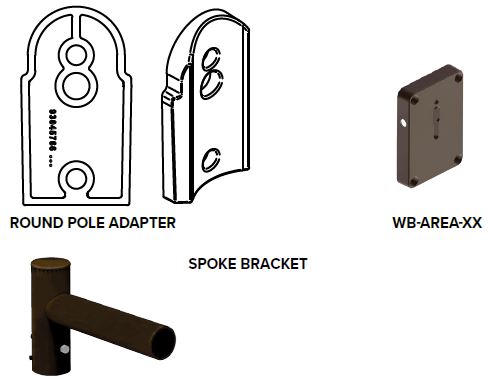

- ROUND POLE ADAPTER
- WB-AREA-XX
- SPOKE BRACKET (single arm shown) Horizontal round arm tenon adapters for use with MAF mounting type or accessory kit. Reference SH Spoke Pole Top Brackets for ordering information.
SPOKE BRACKET (single arm shown) Horizontal round arm tenon adapters for use with MAF mounting type or accessory kit. Reference SH Spoke Pole Top Brackets for ordering information

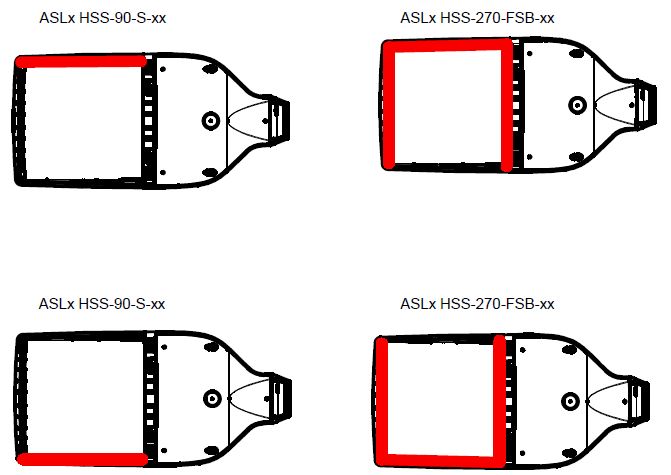

CONFIGURATIONS
USE OF TRADEMARKS AND TRADE NAMES
All product and company names, logos and product identifies are trademarks ™ or registered trademarks ® of Current or their respective owners. Use of them does not necessarily imply any affiliation with or endorsement by such respective owners.
currentlighting.com/securitylighting
© 2022 HLI Solutions, Inc. All rights reserved. Information and specifications subject to change without notice. All values are design or typical values when measured under laboratory conditions.
