Secukey S9-RX Metal Wiegand Reader
Contents
Introduction

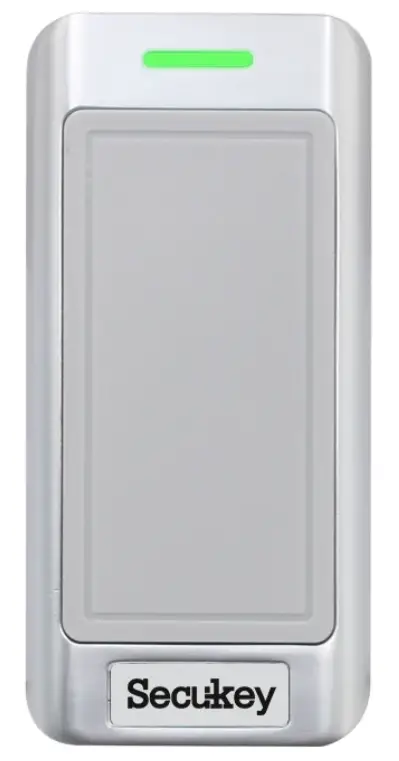

The reader is a metal case anti-vandal proximity reader. because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
| Model | Card Type |
| EM version | Read 125KHz EM card |
| Mifare version | Read 13.56MHz Mifare card(IS014443ACompatilbe) 4 bytes or 7 bytes auto recognize |
| HID+EMversion | Read 125KHz HID & EM cards |
| EM+HID+ MF version | Read 125 KHz HID, EM cards & 13.56MHz Mifare card (ISO14443A Compatible) For Mifare card: 4 bytes or 7 bytes auto recognize |
For Mifare reader, it supports to read 13.56MHz NXP Mifare , Mifare Plus, Des Fire, Mifare Pro, Mifare Ultralight, Mifare Class 4K cards
Specifications
| Version | EM | Mifare | EM+HID | EM+HID+Mifare |
| Operating Voltage | 9-18V DC | |||
| Frequency | 125KHz | 13.56MHz | 125KHz | 125KHz&13.56MHz |
| Reading Distance | 3 CM | |||
| Output Format | WG 26 bits | WG 34 bits /58 bits | WG 26-37 bits (Default: 26 bits) | EM: WG 26 bits |
| MF: WG 34/58 bits | ||||
| HID: Auto Recognize | ||||
| Operating Temperature | -40°C – 60°C (-40°F – 140°F) | |||
| Standby Current | < 25mA | |||
| Operating Humidity | 10%-98% RH | |||
| Index of Protection | I P66 | |||

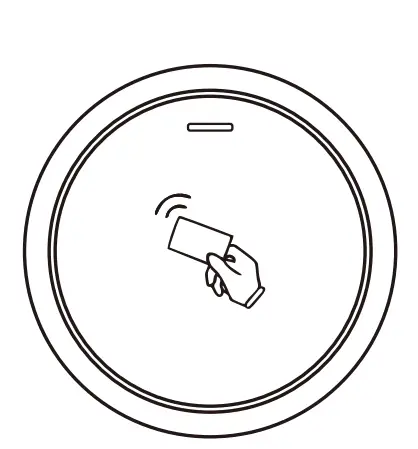

Dimensions
- L103xW48xH19{mm)
- L 103XW4SxH18(mm)
- L105xW50xH19(mm)
- L73xW73xH20{mm)
- L 105xWG5xH20(mm)

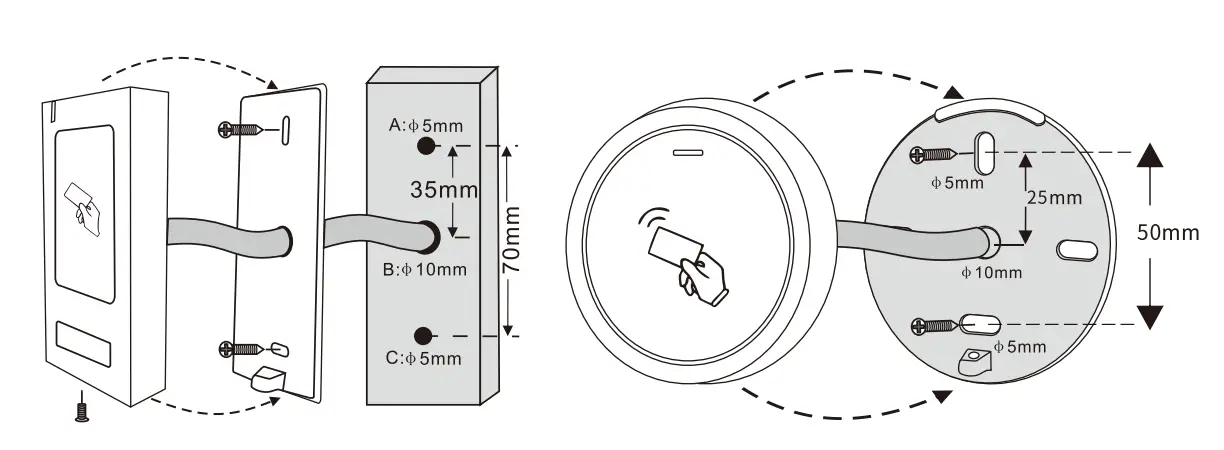

Installation
- Drill 2 holes (A, C) on the wall for the screws and one hole for the cable
- Knock the rubber bungs to the holes (A, C)
- Fix the back cover on the wall with 2 screws
- Thread the cable though the cable hole (B)
- Attach the unit to the back cover
Functions Table Sheet
| Read Card | The LED light will turn into Green, and the buzzer sounds a beep, at the meantime, the reader outputs the Wiegand signal |
| External LED Control | When the input voltage for LED is low, the LED will turn into Green |
| External Buzzer Control | When the input voltage for Buzzer is low, the Buzzer will sound |
| Wiegand Data Output | HID card can output Wiegand 26-37 bits automatically; Mifare card can output Wiegand 34/58 bits automatically; EM card can output Wiegand 26 bits |

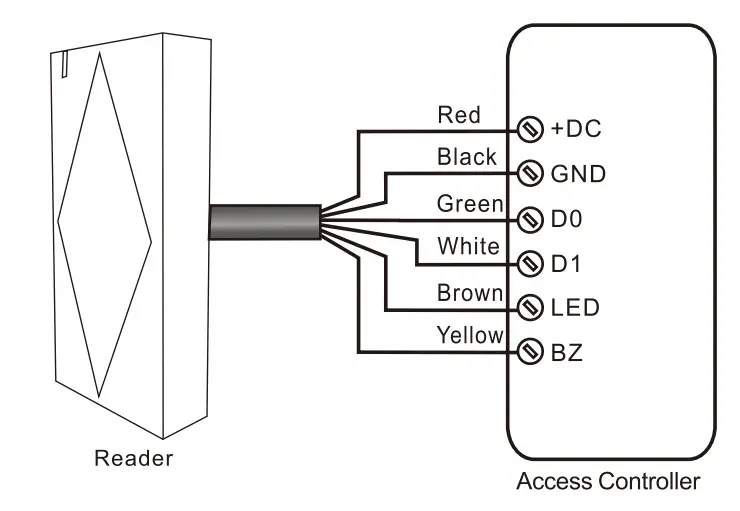

Connection Diagram
Wiring
| Color | Function | Notes |
| Red | Power | +DC(9-18V DC) |
| Black | GND | Ground |
| Green | DO | Data0 |
| White | D1 | Data 1 |
| Brown | LED | Green LED Light Control |
| Yellow | Buzzer | Buzzer Control |
(Remarks: Brown and Yellow wires are optional connections)
Data Signal
| Description | Reader Typical Time |
| Pulse Width Time | 42µS |
| Pulse Interval Time | 2mS |
The above table shows the waveform of pulse width time (the duration of a pulse) and pulse interval lime (the lime between pulses) of the Wiegand data output from the readers. (Example 1010)
Packing List
| Name | Quantity |
| Reader | 1 |
| Manual | 1 |
| Screwdriver | 1 |
| Wall Fixing Plugs | 2 |
| Self Tapping Screws | 2 |
