2023 Solace eRide Road Electric Bike
User Manual
Contents
LEGEND
 |
TORQUE REQUIRED |
 |
NO GREASE REQUIRED |
 |
GREASE REQUIRED |
 |
CARBON GREASE REQUIRED |
 |
THREADLOC REQUIRED |
 |
BEARING FIT REQUIRED |
 |
TORX TOOL SIZE |
 |
TORQUE AMOUNT |
 |
TASK DIFFICULTY |
 |
HEX TOOL SIZE |
GEOMETRY & TECHNICAL DATA
| SEATPOST | Synchro’s Duncan D-Shape SL |
| SEATPOST CLAMP | Addict RC Seatpost Clamp |
| HEADSET | mm IS52/31.8 IS52/40 |
| REAR AXLE | mm 142 |
| FRONT AXLE | mm 100 |
| MAX TYRE WIDTH | mm 50 Gravel/50 Road |
| FORK STEERER | in 1 1/4 – 1 1/2 |
| MAX/MIN FRONT ROTOR | mm 180/160 |
| MAX/MIN REAR ROTOR | mm 160/140 |
| MY23 SOLACE eRIDE | XS49 | S52 | M54 | L56 | XL58 | ||
| A | Head tube angle | ° | 69.5 | 70 | 71 | 71 | 71 |
| B | Head tube length | mm | 85 | 110 | 128 | 154 | 175 |
| C | Top tube horizontal | mm | 518 | 534.2 | 554.5 | 578.4 | 592.5 |
| D | standover height | mm | 759 | 785 | 803 | 824 | 841 |
| E | BB offset | mm | 76 | 76 | 76 | 76 | 76 |
| F | BB height Road | mm | 283 | 283 | 283 | 283 | 283 |
| BB height Gravel | mm | 294 | 294 | 294 | 294 | 294 | |
| G | Wheelbase | mm | 1021.5 | 1030.1 | 1036.8 | 1056.2 | 1071.1 |
| I | BB center to TST | mm | 477 | 507 | 527 | 547 | 567 |
| J | Seat angle | ° | 74.5 | 74 | 73.5 | 73 | 73 |
| K | Chainstay | mm | 435 | 435 | 435 | 435 | 435 |
| L | Reach | mm | 374 | 378 | 387 | 398 | 406 |
| M | Stack | mm | 519.3 | 544.7 | 565.6 | 590.2 | 610 |
| Fork Length | mm | 406 | 406 | 406 | 406 | 406 | |
| Fork Rake | mm | 50 | 50 | 50 | 50 | 50 |
SOLACE ERIDE
When removing and re-attaching the rear wheel to the frame make sure the non drive side dropout has both the indicated parts correctly positioned inside the dropout before inserting the rear axle.
TQ SYSTEM MANUALS
Charger Manual
Battery Manual
Range Extender Manual
Motor Manual

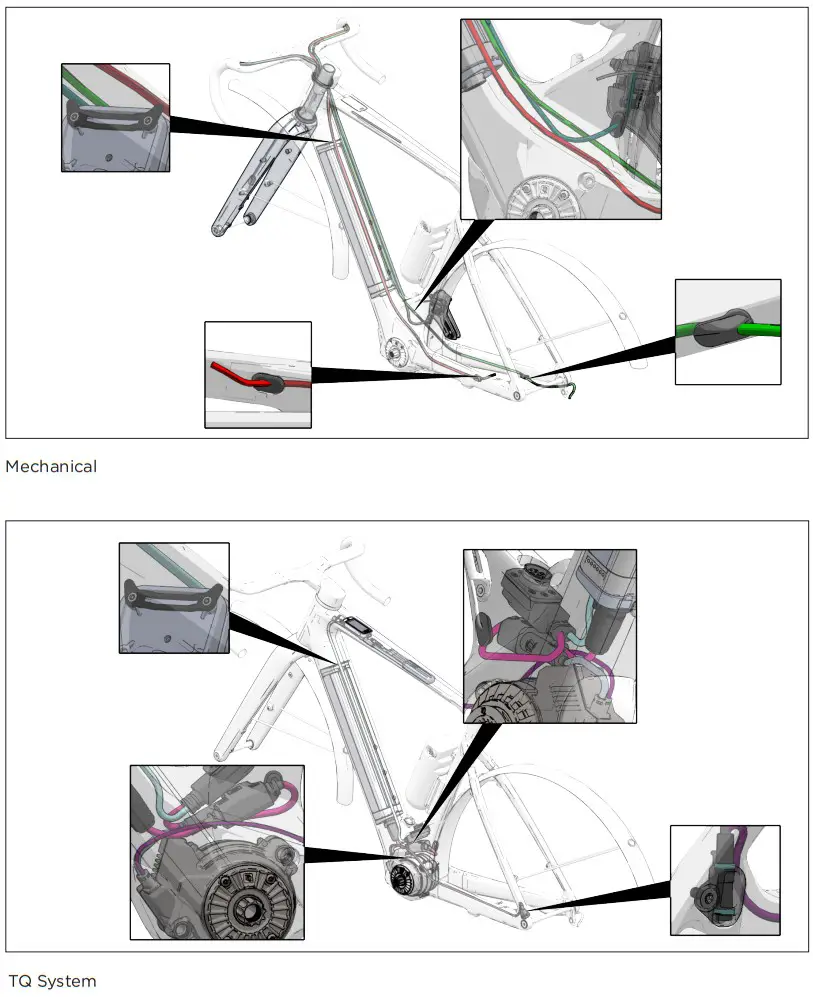

Display ManualCABLE ROUTING
SPARE PARTS
 |

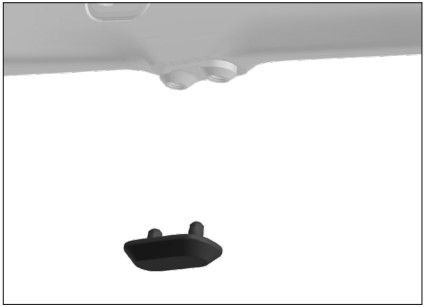

297262 SCO eRIDE FD MOUNT & BLANK SOLACE 23 |
 |

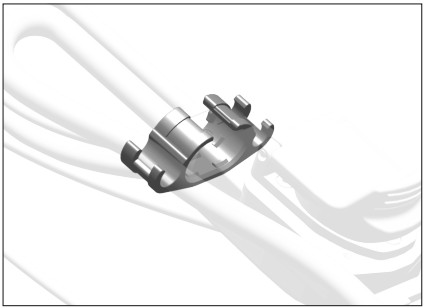

297135 SCO eRIDE TQ INTERNAL CABLE GUIDE 23 |
 |
297667 SCO ERIDE CABLE GUIDES C-STAY SOLACE 23 |
 |

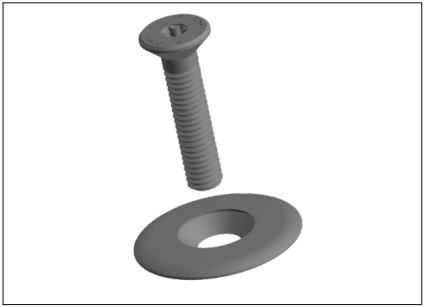

297521 SCO HEADSET TOP CAP CRESTON 23 288249 SYN HEADSET IS52/31.8 – IS52/42 |
 |
297516 SCO eRIDE INTERNAL CABLEGUIDE 23 |
 |
277543 SCO SEATCLAMP ADDICT RC 20 |
 |
277028 SCO AXLE FRONT ADDICT RC/PLASMA 6 TP 20 419858 SCO AXLE SOLACE R 23 |
 |
286000 SCO DROPOUT SRAM UDH 21 297671 SCO DROPOUT SHIMANO UDH DM 23 |
 |
297263 SCO eRIDE MOTOR COVER SOLACE 23 |
 |
296623 SYN FRAME PROTECTION KIT SOLACE eRIDE 420008 SCO SOLACE eRIDE CHAINSTAY PROTECTOR 420009 SCO SOLACE eRIDE CHAINSTAY PROTECT.PLATE |
 |
292915 SYN FENDER SET SOLACE GRAVEL eRIDE 292914 SYN FENDER SET SOLACE ROAD eRIDE |
 |

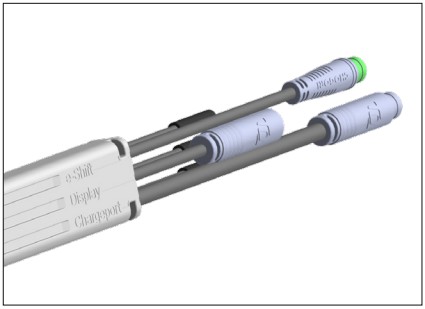

296220 SCO eRIDE TQ SMART BOX 23 |
 |
296217 SCO eRIDE TQ LOCKRING SET 23 |
 |
294533 SYN KICKSTAND ROAD eRIDE TQ 2 BOLT |
 |
294537 SCO eRIDE TQ RANGE EXTENDER 294539 SCO eRIDE TQ RANGE EXT. CABLE ROAD/GR 294540 SCO eRIDE TQ RANGER EXTENDER HOLDER |
