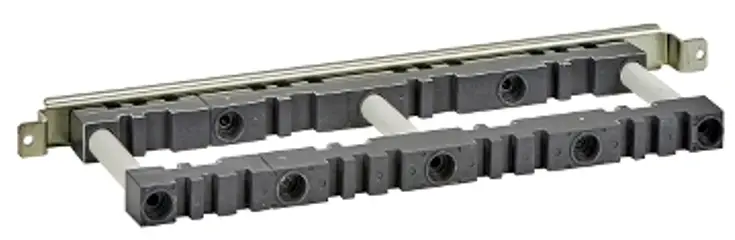

LVS04662 Linergy Fixed Bracket Vertical Side Bars
Instruction Manual
LVS04662 Linergy Fixed Bracket Vertical Side Bars
PLEASE NOTE
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel.
No responsibility is assumed by Schneider Electric for any consequences arising out of the use of this material.
PrismaSeT switchboards equipped with. the Linergy busbar connection system and Schneider Electric switchgear are subject to IEC 61439-1 & 2 certification. The instructions in this document describe how to fit Linergy in a PrismaSeT switchboard.
The installer is fully liable if it is fitted in any other switchboard.
DANGER

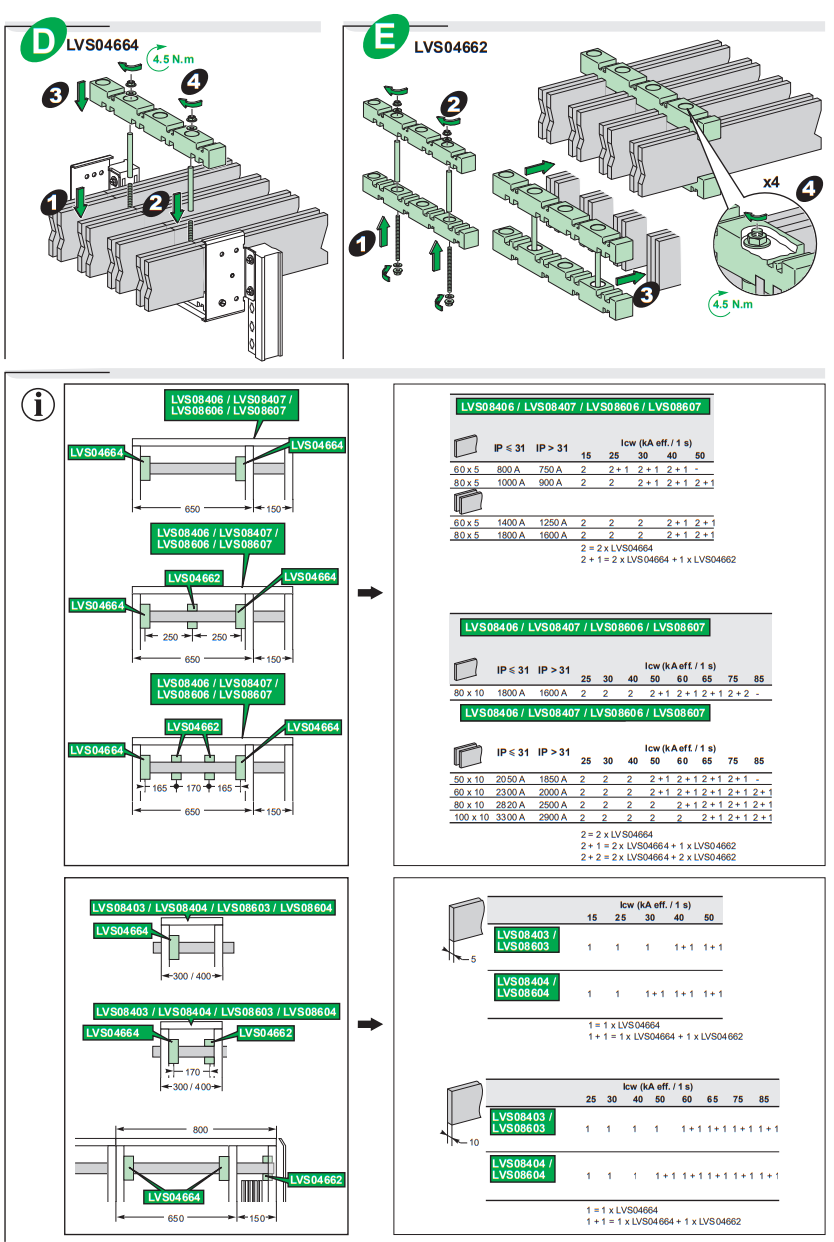

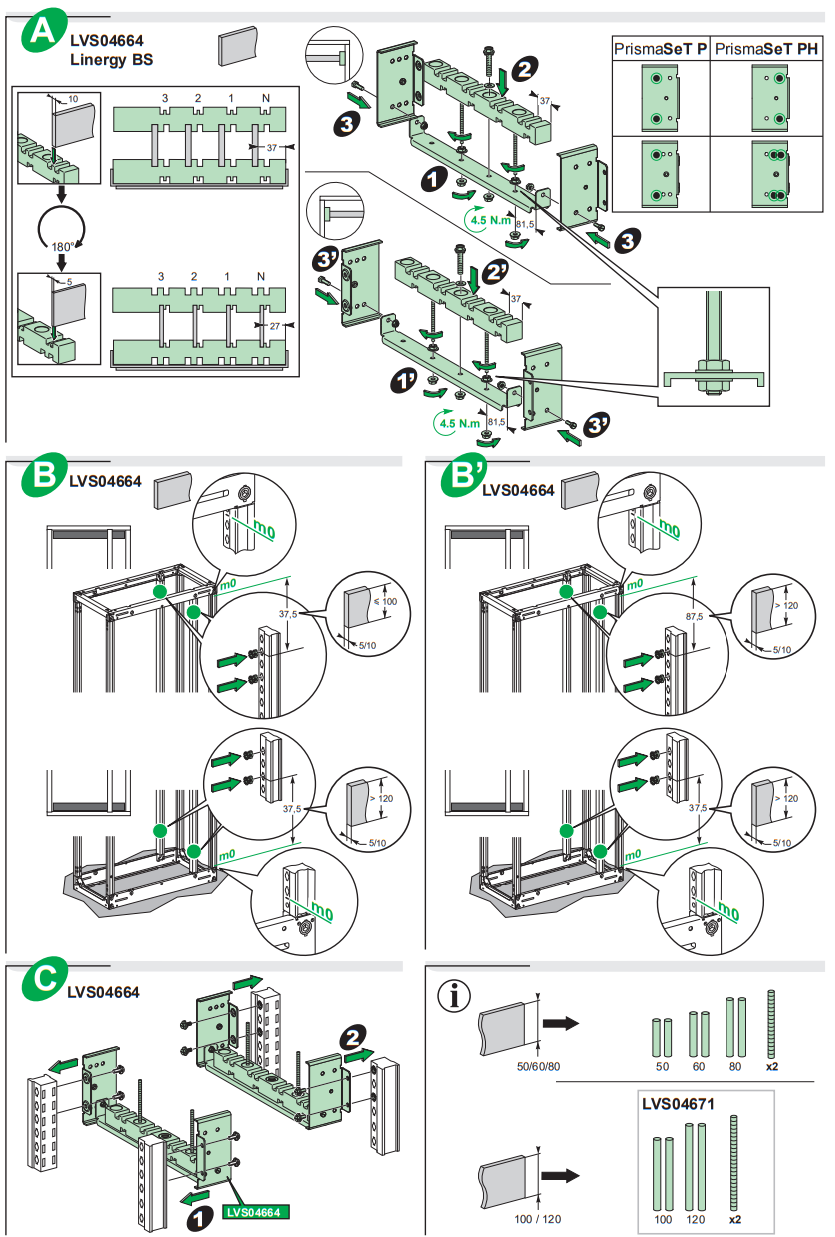

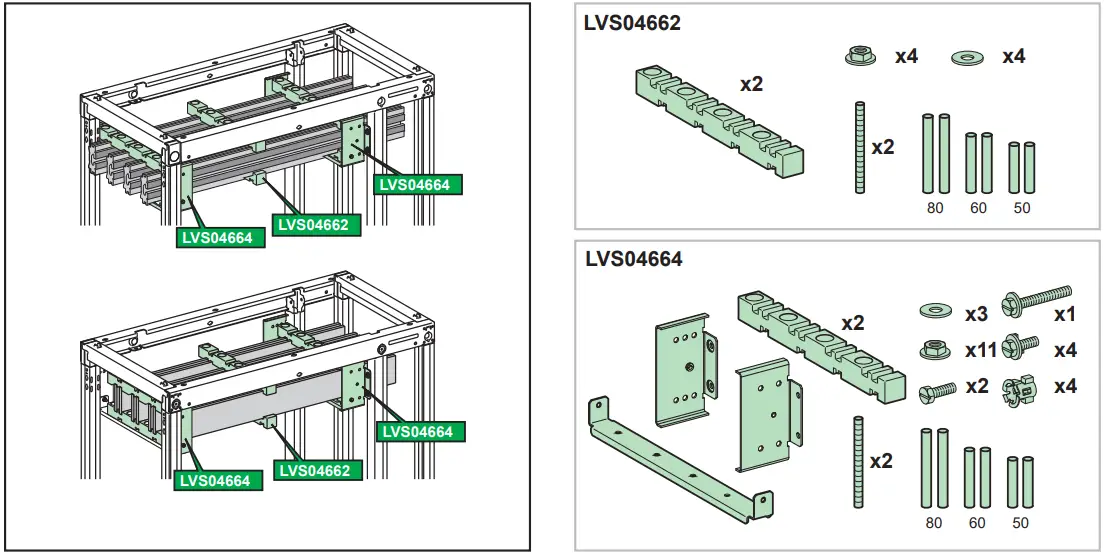

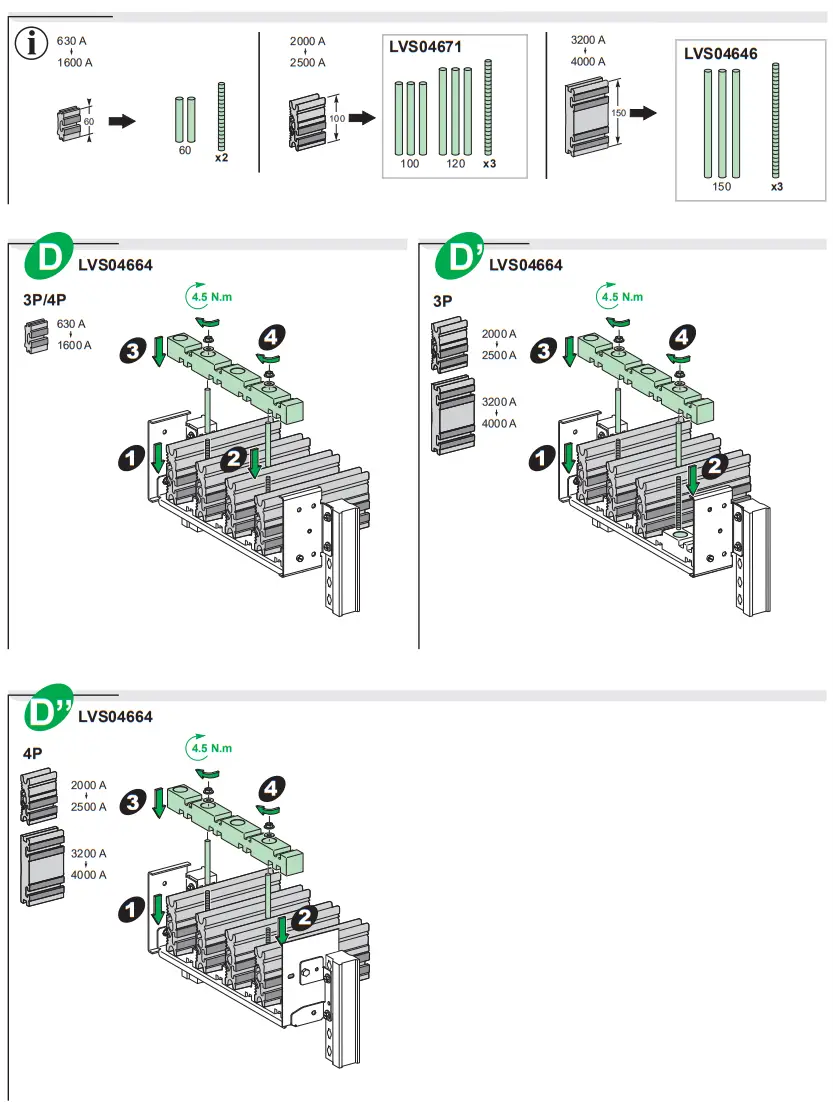

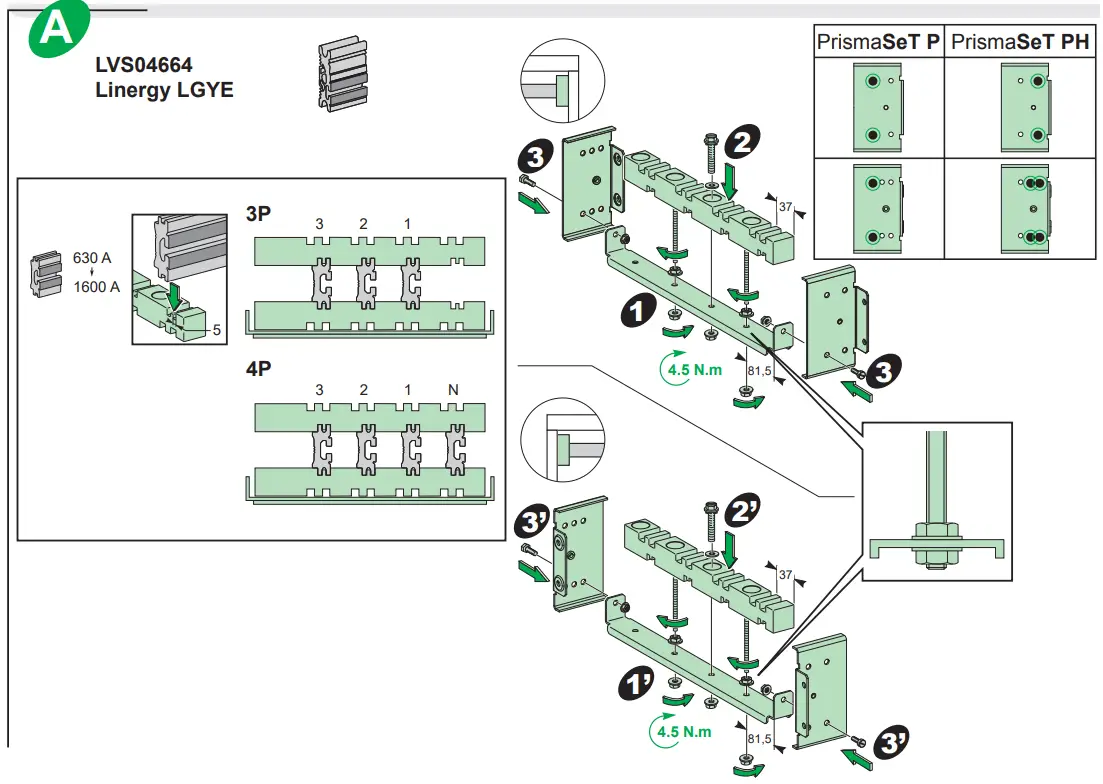

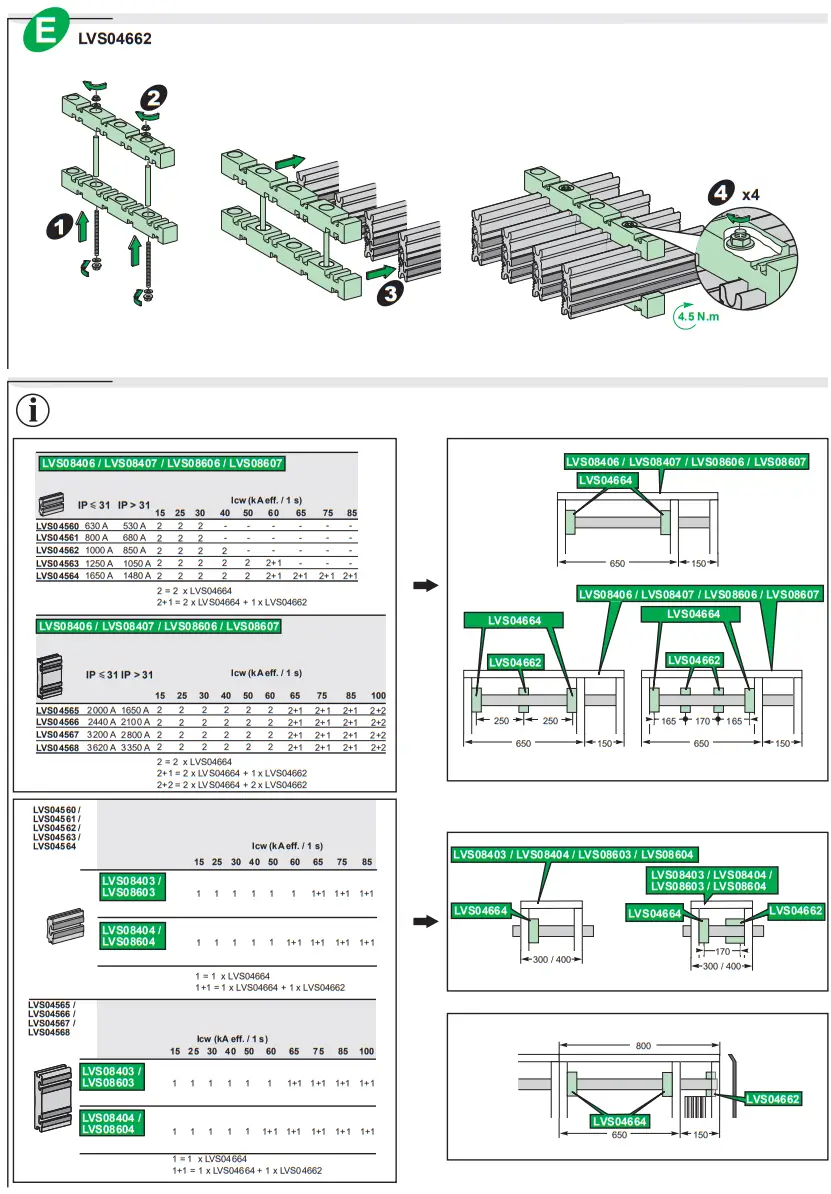

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH Linergy LGYE and Linergy BS busbars must be mounted using supports, references LVS04664 and
LVS04662, in accordance with the instructions given in this document. Failure to follow these instructions will result in death or serious injury.
PLEASE NOTE

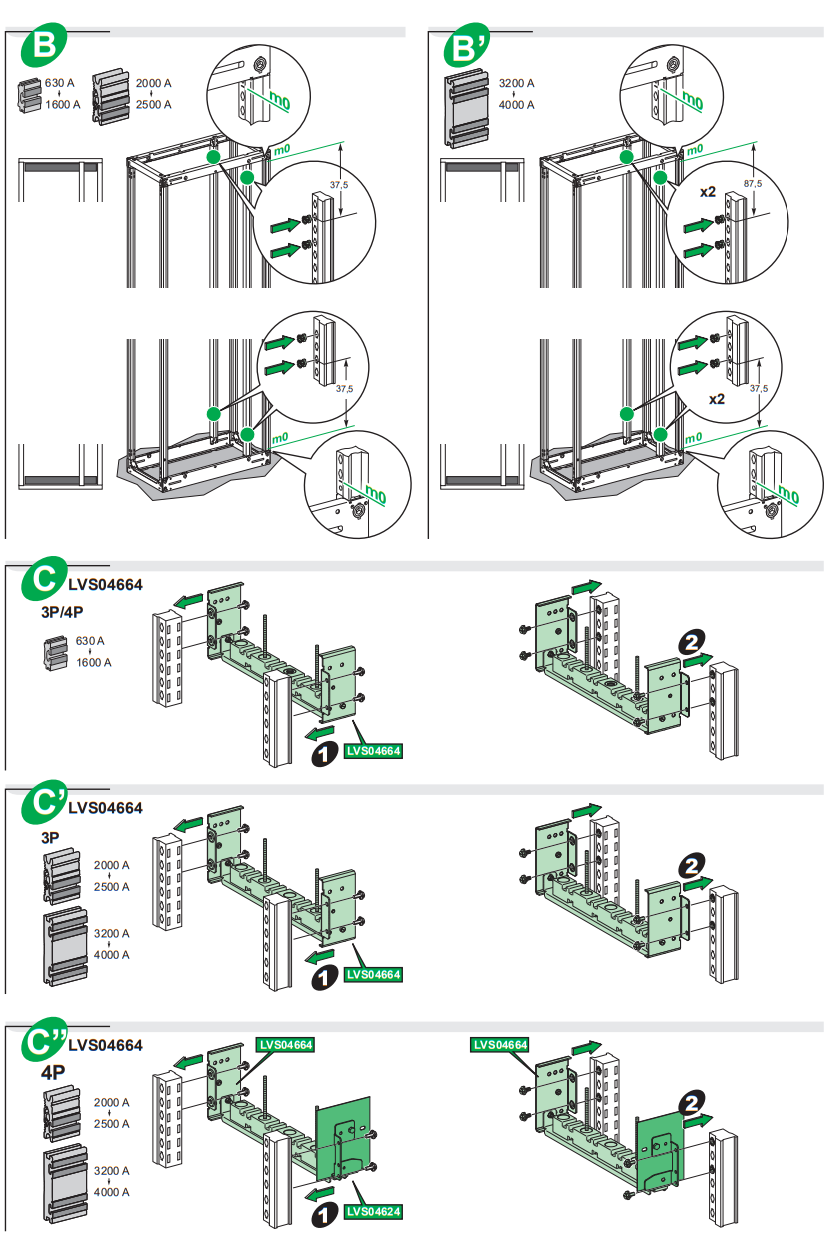

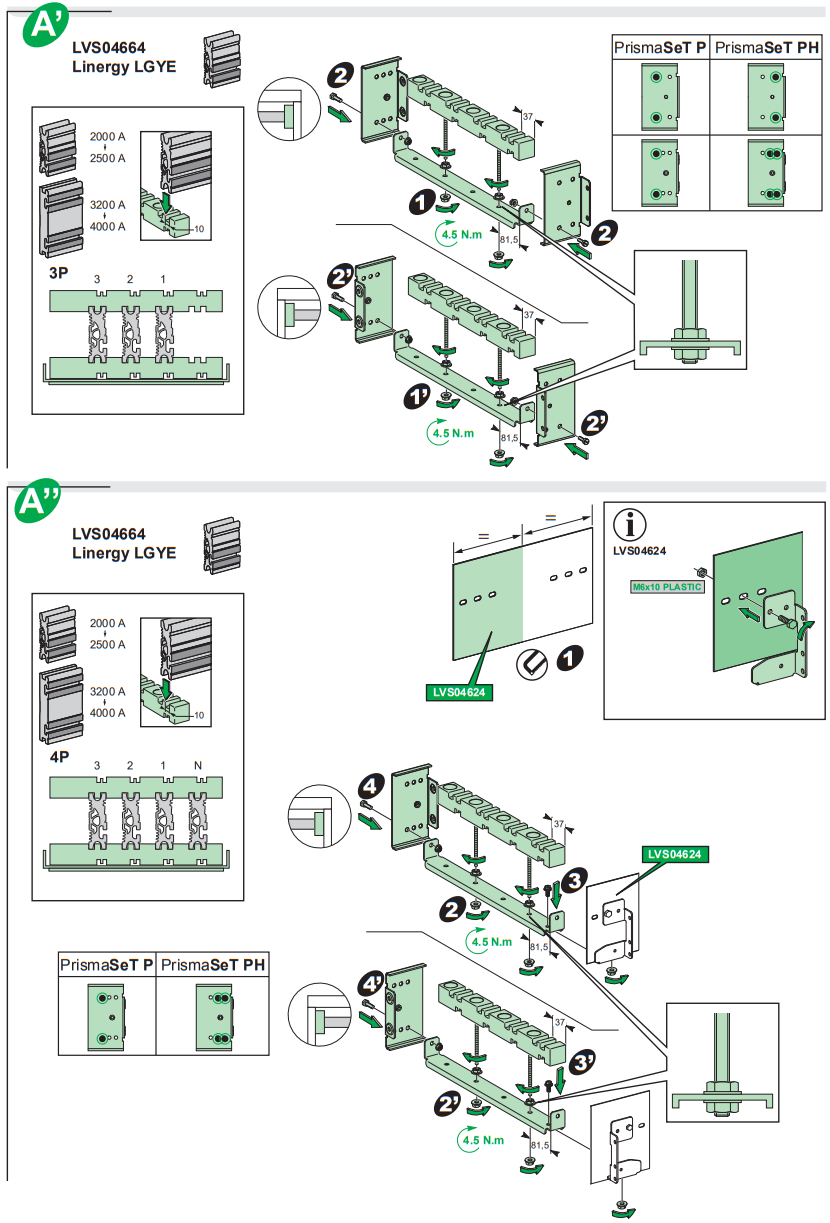

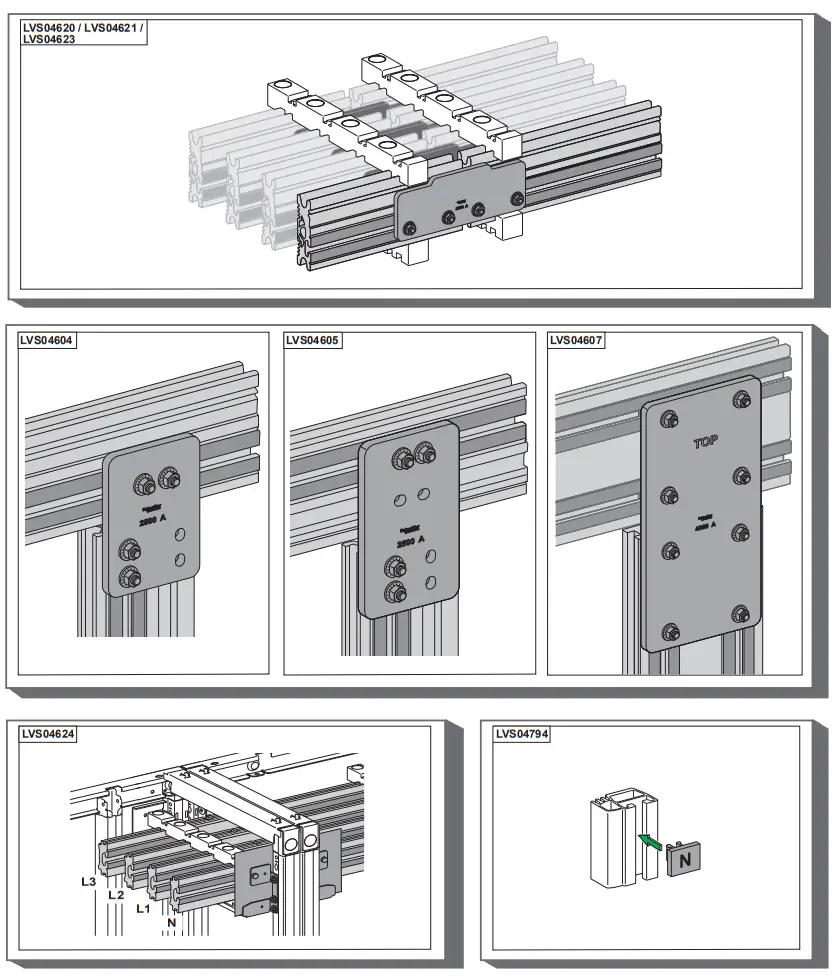

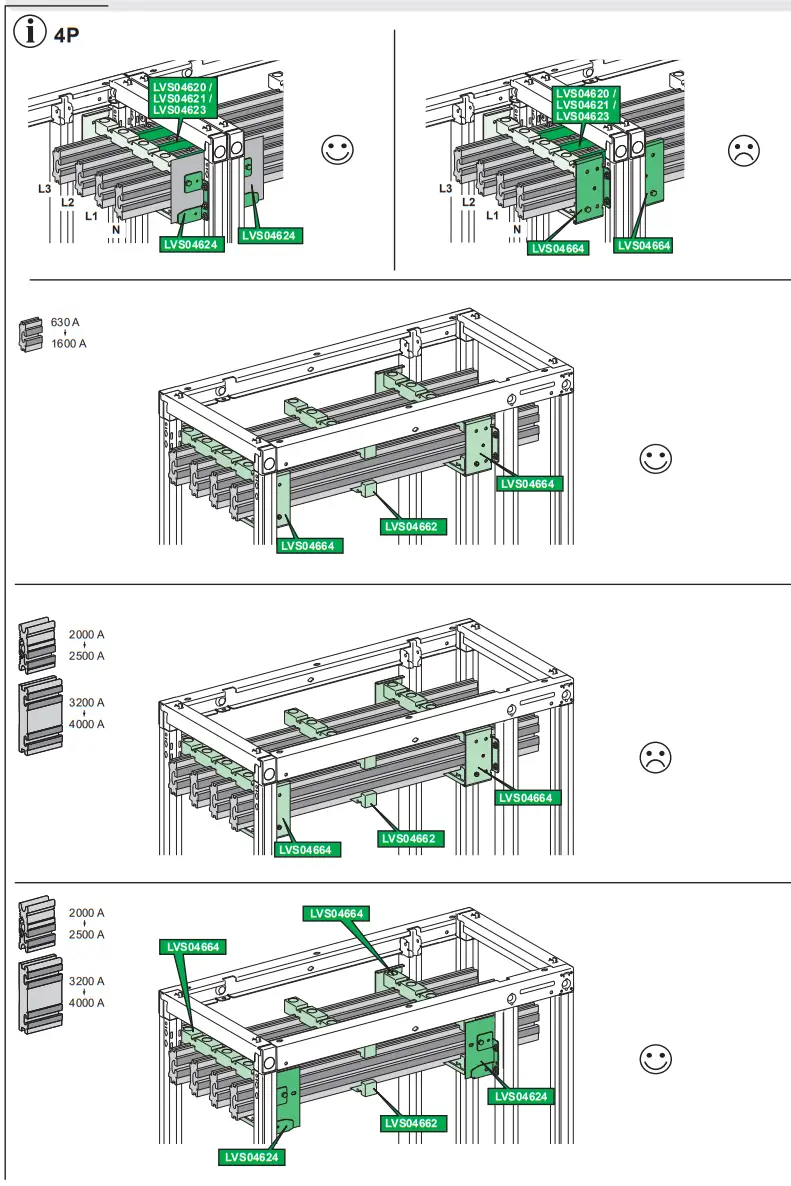

If mounting Linergy LGYE busbars in a 4P installation with joints on the front of an upright, brackets for the joint screen kit for the neutral conductor (reference LVS04624) must be used instead of brackets reference LVS04664.
