Schneider Electric D frame SERIES 300 Power Transfer Switches Instructions
Contents
End of Life Instructions

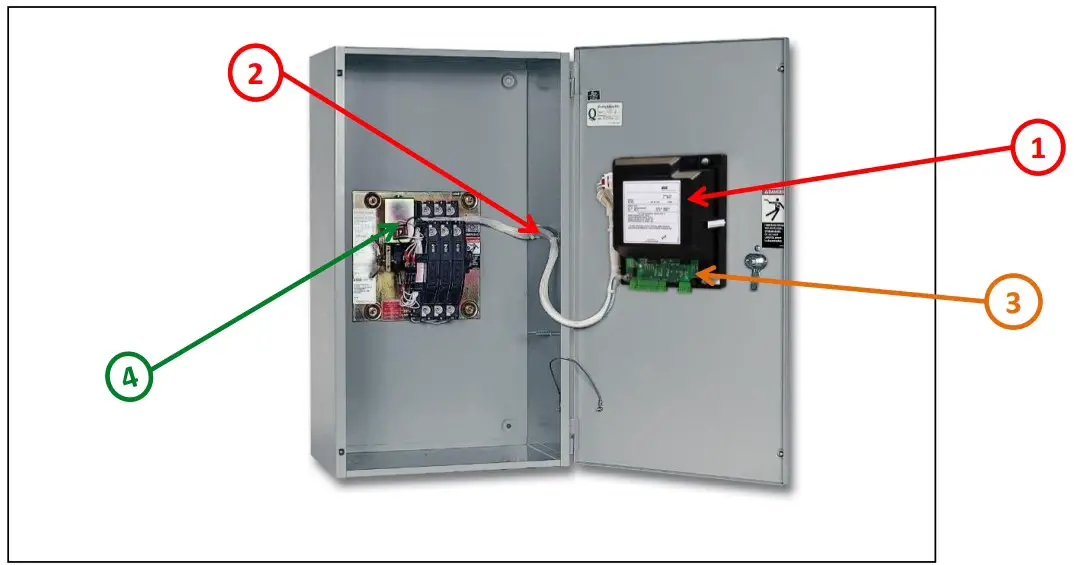

| Recommendation | Number ondrawing | Component / Material | Weight (ing) | Comment |
| To be depolluted | 1 | Other battery | 2.899 | |
| To be depolluted | 2 | Cable (Optical) | 40.8 | |
| To be depolluted | 3 | Electronic Board (Communication) > 10cm² | 225.47 | |
| To be depolluted | 4 | Liquid and pasty substances | 0.5 | |
Product description
| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | ASCO |
| Product function | Automatically transfer critical loads between power sources in the event of a power outage |
| Product reference | D03ATS |
| Additional similar productreferences | D03ATS |
| Total representative product mass | 25500 g |
| Representative product dimensions | 787 x 457 x 330 |
| Accessories | NO |
| Date of information release | 09/2021 |
Additional information
ENVEOLI2109019_V1 – End of Life Instructions – D frame SERIES 300 Power Transfer Switches
| Legal information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of theproduct. | |
| In case of special transportation:transportation method | No | |
| Recyclability potential | 66% | Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). |
