Wiser Window/Door Sensor
About this product

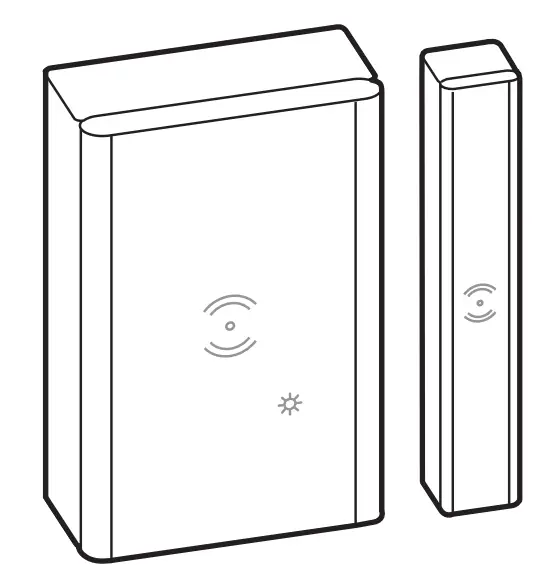

The Wiser Window/door sensor (hereinafter referred to as sensor) consists of two separate parts: primary and secondary. The primary part includes the sensing circuit which detects the secondary part. The secondary part is a magnet.
When the sensor is connected to the Wiser Gateway and the window/door is opened or closed, the primary part directly reports the change to the Wiser Gateway.

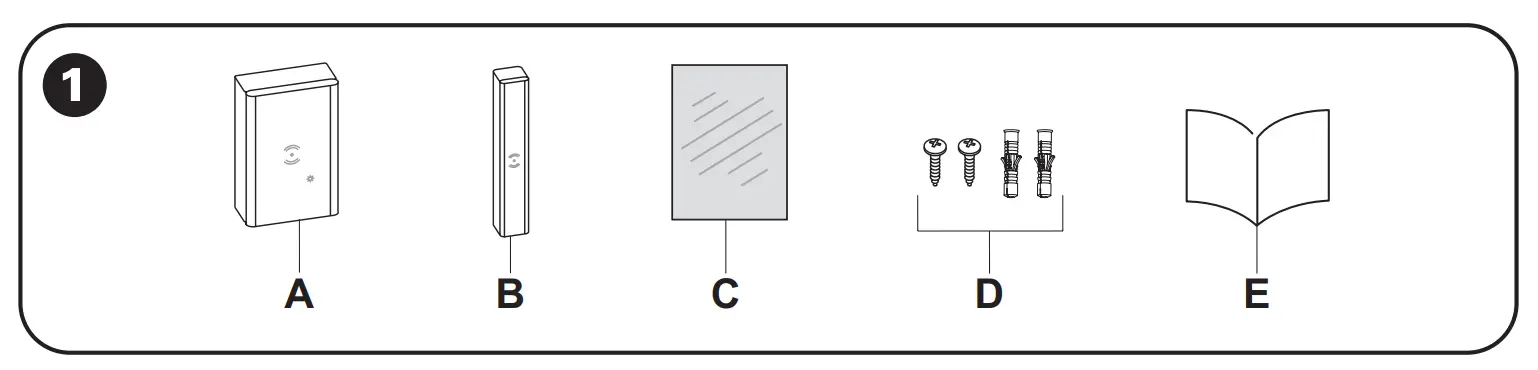

Package contents
A Primary part (sensing circuit)
B Secondary part (magnet)
C Adhesive pad
D Screws: 2 × ST4.2 × 25 mm with wall plugs
E Installation instructions

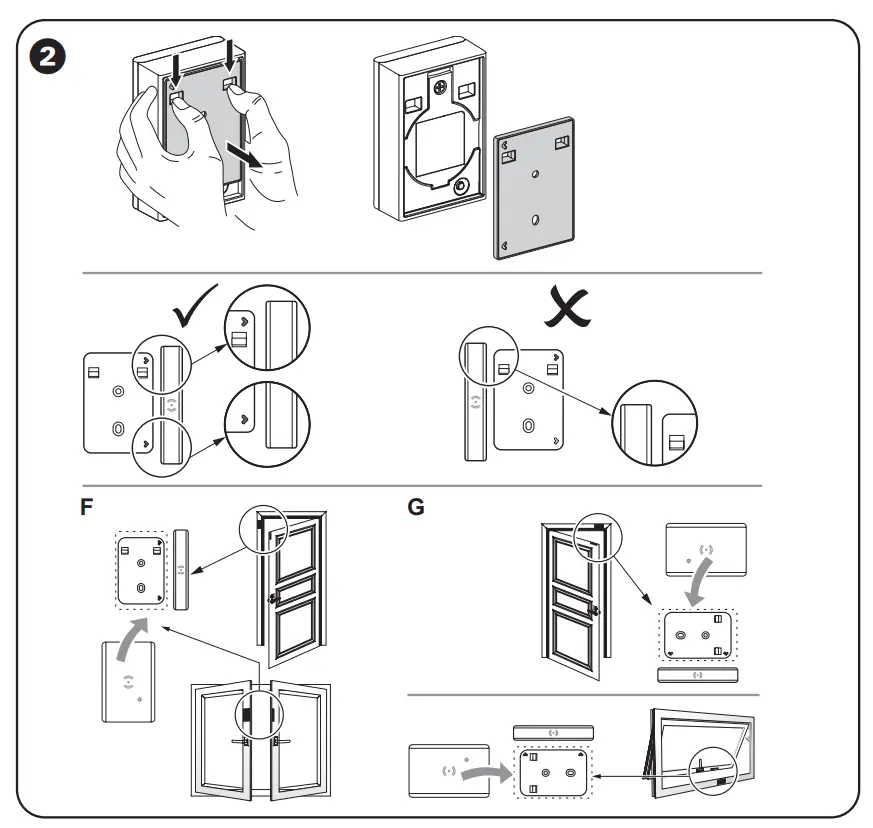

Choose suitable location to install
- Remove the base plate from the primary part.
- Install the primary and secondary parts as per the suggested location: F Vertical mounting options G Horizontal mounting options
Installing the sensor
EQUIPMENT DAMAGE
NOTICE
- To avoid degrading sensor performance, do not install the sensor near magnetic devices.
- With the window/door in the close state, the distance between the primary part and secondary part of the sensor should be <18 mm for a non-metallic base (for example, wood or plastic surfaces) and <10 mm for a metallic base. Failure to follow these instructions can result in equipment damage.

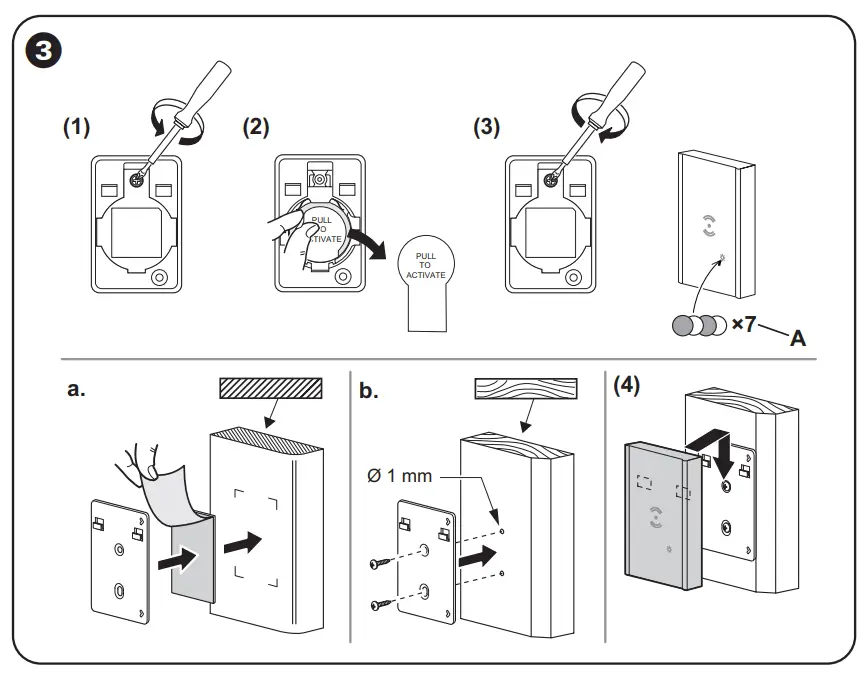

(1) Unscrew the battery cover
(2) Remove the battery isolation strip
(3) Screw on the battery cover
A LED flashes green
Mount the base plate
a. Mounting using adhesive pads For wood or plastic surfaces or metal surfaces, use the adhesive pads.
For metal surfaces, use the adhesive pads only.
b. Mounting using screws
- For wood or plastic surfaces, use the screws.
- If using screws, pre-drill a 1 mm hole.
(4) Mount the sensor on the base plate.
Read full device guide online
Scan the QR code and choose your language for complete information about the device, including operation, configuration and using the product with a Wiser system.
Technical data
| Battery | 3 VDC, CR2450 |
| Battery life | Up to 5 years (may vary based on the usage, frequency of firmware update and environment) |
| Nominal power | ≤90 mW |
| IP rating | IP20 |
| Operating frequency | 2405 – 2480 MHz |
| Max. radio frequency power transmitted | ≤7 dBm |
| Operating temperature | -10 °C to 50 °C |
| Relative humidity | 10 % to 95 % |
| Primary part dimensions (H × W × D) | 50.3 × 33 × 16.3 mm |
| Secondary part dimensions (H × W × D) | 50 × 9 × 9 mm |
| Communication protocol | Zigbee 3.0 certified |
Trademarks
- Wiser™ is a trademark and the property of Schneider Electric SE, its subsidiaries and affiliated companies.
- Zigbee® is a registered trademark of the Connectivity Standard Alliance.
Other brands and registered trademarks are properties of their relevant owners.
EU Declaration of Conformity
Hereby, Schneider Electric Industries, declares that this product is in compliance with the essential requirements and other relevant provisions of RADIO EQUIPMENT DIRECTIVE 2014/53/EU. Declaration of conformity can be downloaded on: se.com/docs.
Schneider Electric Industries SAS
If you have technical questions, please contact the Customer Care Centre in your country. se.com/contact.
