F-Series, F-Series UL

Installation Instructions

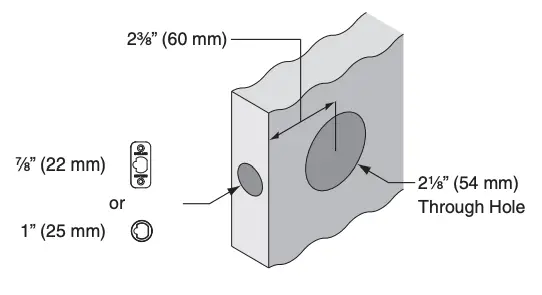

1. Check door preparation.

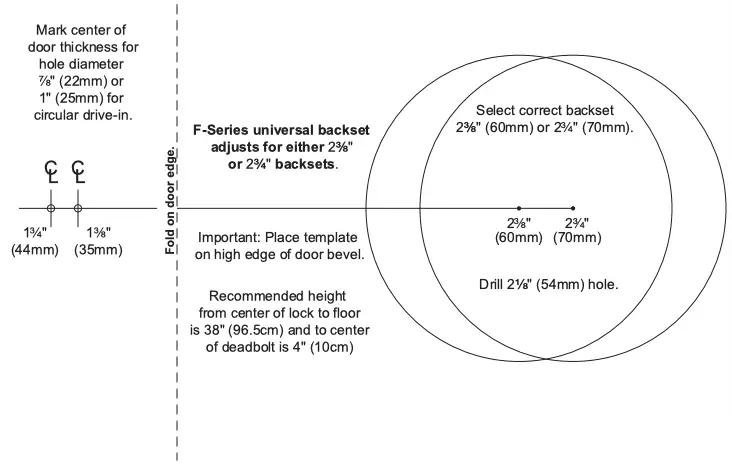

TEMPLATE

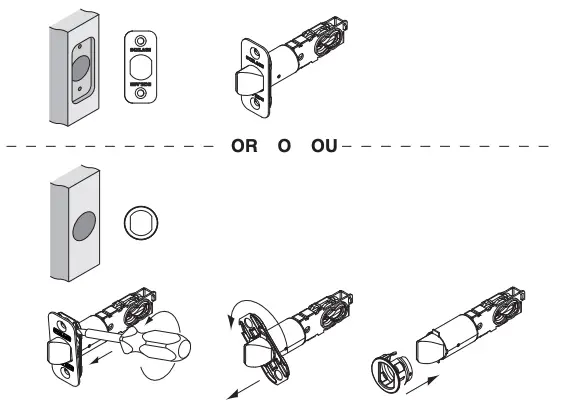

2. Choose faceplate to match door.

3. For UL functions only (CF, CS)

4. Install latch.

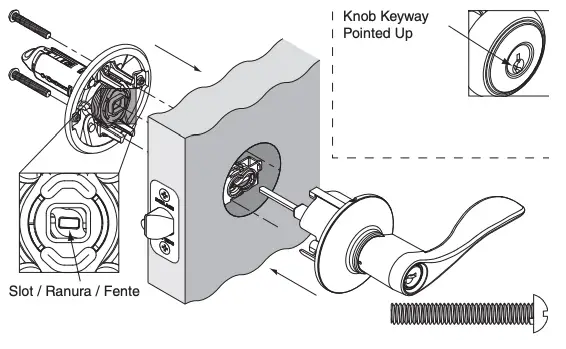

5. Install outside lever or knob

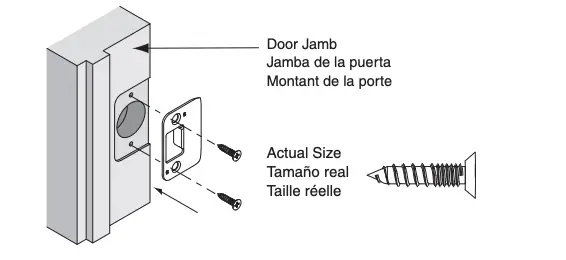

6. Install strike.

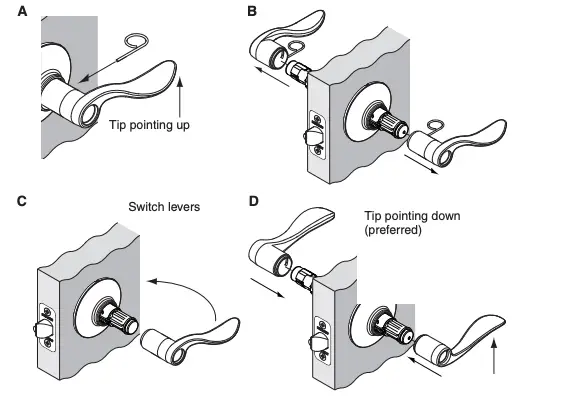

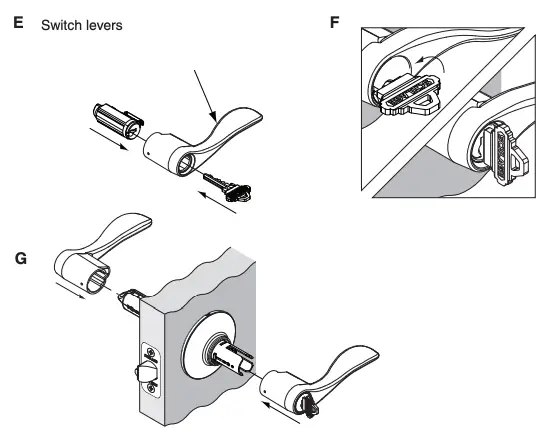

7. If necessary, switch levers.

Non-Keyed Functions

OR
