P518-149
Installation Instructions
Contents

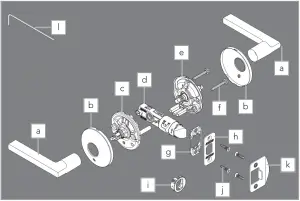

Model FC21, Combined interior
This lock can be installed as passage (hall/closet) or privacy (bed/bath). See the included Privacy function kit.
a. Knob/Lever
b. Trim
c. Exterior chassis
d. Latch
e. Interior chassis
f. Chassis screws
g. Backplate
h. Faceplate
i. Drive-in faceplate
j. Latch/strike screws
k. Strike
l. Hex wrench (Do not discard!)
1 Watch the installation video.
Go to Schlage.com/faqs-custom.

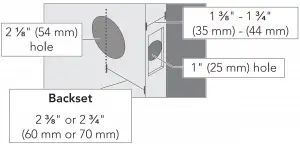

2 Check door dimensions.
2a If dimensions do not match, you may need to modify your door.
For further assistance, call Customer Service at 888-805-9837.
2b Check latch length.
Measure the backset as shown above.
- 2 ³⁄₈” (60 mm): no adjustment is necessary.
- 2 ³⁄₄” (70 mm): see the Adjust latch section.
3 Install the latch

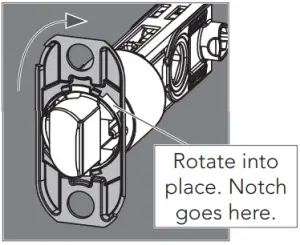

3a Install backplate.
This backplate is backward.
OR

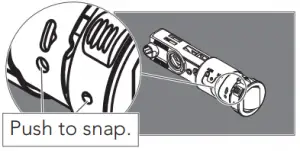

3a Install drive-in faceplate.

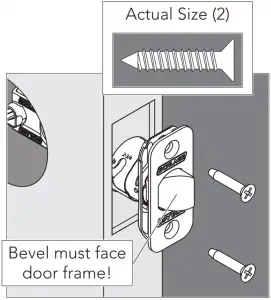

3b Add faceplate and secure with screws.
OR

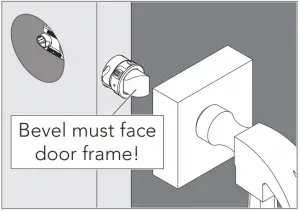

3b Use wood block and hammer.

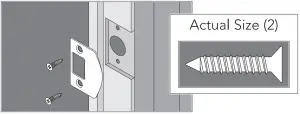

4 Install the strike onto the door frame.
Use included strike for best performance.

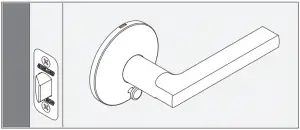

5 PRIVACY FUNCTION ONLY: Choose privacy pin location.
Location is based on preference and does not change the function.
Pin on bottom, go on to step 6
OR
Pin on top, go to Schlage.com/faqs-custom.

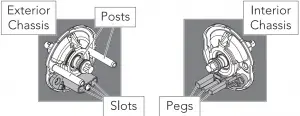

6 Identify the exterior and interior chassis

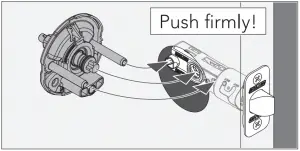

7 Install the exterior chassis.

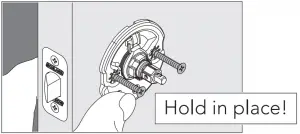

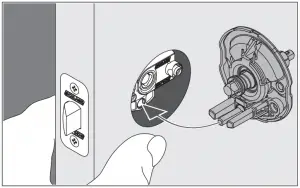

8 Install the interior chassis.
8a Chassis is spring-loaded. Push pegs into slots and hold in place.

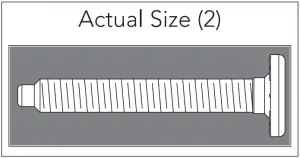

8b Secure with two (2) screws.
Make sure chassis is straight!

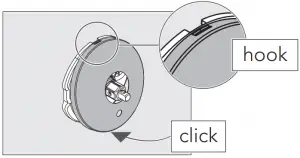

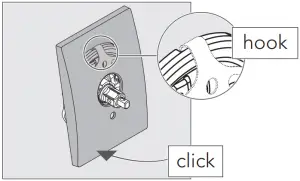

9 Install the trim.
Align hole in trim with hole in chassis.
OR
Repeat for the other side of the door.

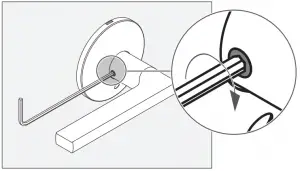

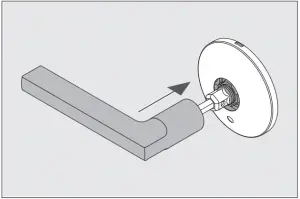

10 Install the exterior knob/lever.
10a Push knob/lever firmly into place.
10b Then tighten set screw.

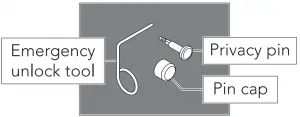

11 PRIVACY FUNCTION ONLY: Install the privacy pin.
Follow the included
Privacy function kit instructions.

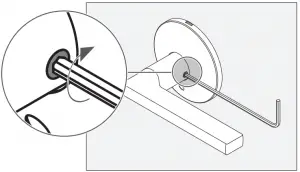

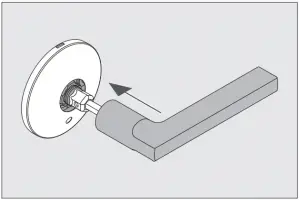

12 Install the interior knob/lever.
12a Push knob/lever firmly into place.
12b Then tighten set screw.
Adjust latch
For 2 ³⁄₄” backset, rotate and pull latch out to long setting.
