SAVOY HOUSE 6-1679-5-89 Stockton 24 Inch 5-Light Semi-Flush Mount Instruction Manual

6-1679-5-89 Stockton 24 Inch 5-Light Semi-Flush Mount
Instruction Manual

6-1679-5-89 Stockton 24 Inch 5-Light Semi-Flush Mount

ASSEMBLY INSTRUCTIONS

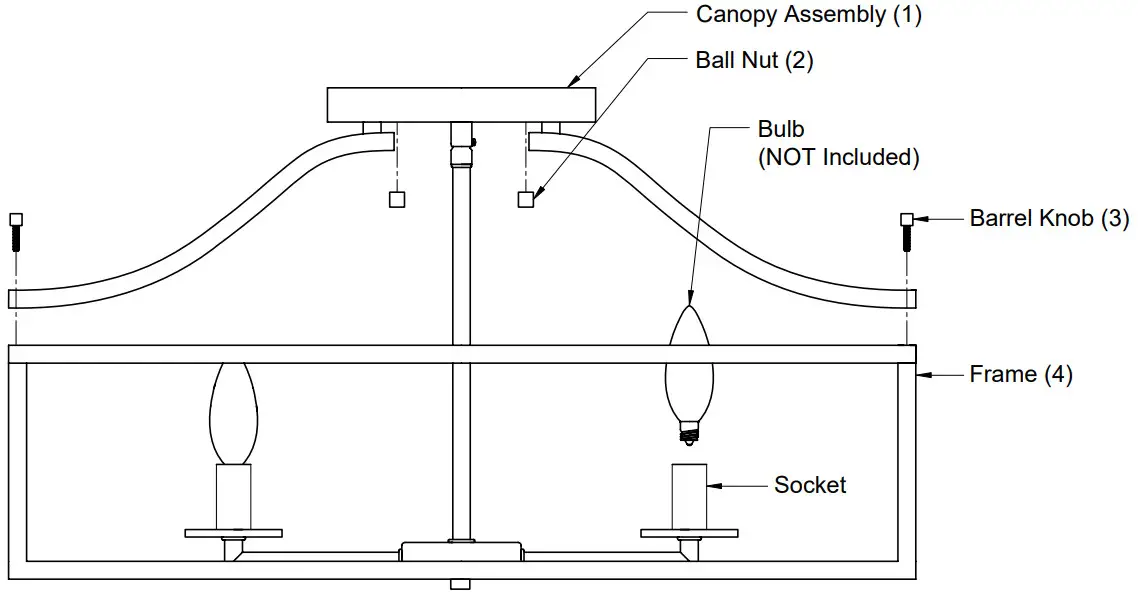

1. Carefully unpack and identify all parts referring to illustration for parts identification.
2. Turn the power to the installation point OFF.
3. Install the canopy assembly (1) to the frame (4) with the barrel knob (3).
4. Refer to the additional installation instructions included with the product for wiring and installation.
5. Install the canopy assembly (1) to the ceiling using the ball nut (2).
6. Install proper bulbs (not included) into each socket referring to the markings and/or labels on the fixture for maximum wattage.
7. Restore power to the installation point and retain this sheet for future reference.
