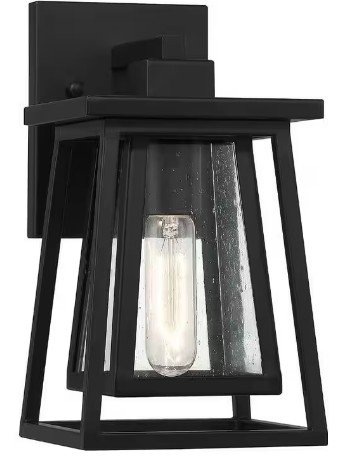

5-2020-BK Denver Matte Black Outdoor Hardwired Wall Lantern Sconce
Instruction Manual
Contents
5-2020-BK Denver Matte Black Outdoor Hardwired Wall Lantern Sconce
ITEM NO : 5-2020-BK 5-2021-BK 5-2022-BK

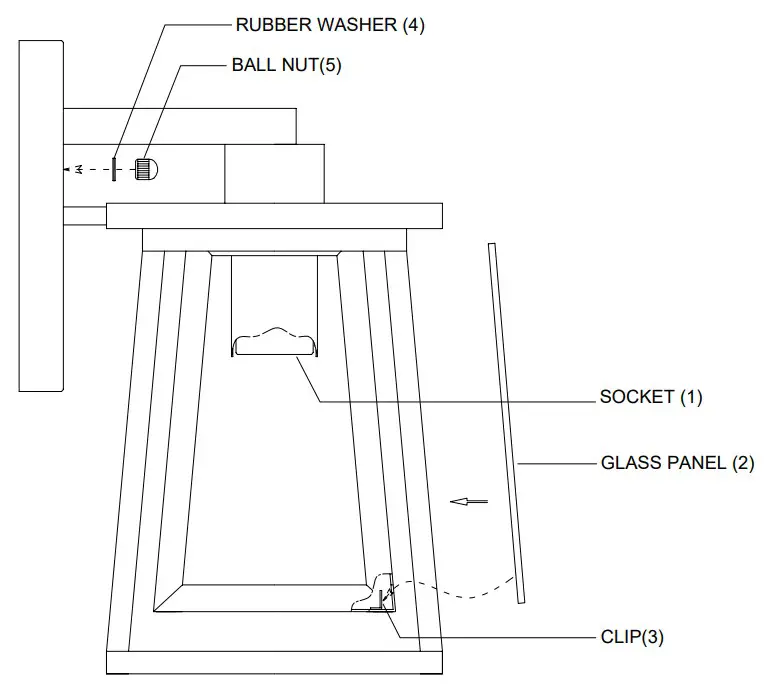

RUBBER WASHER (4) BALL NUT(5)
SOCKET (1) GLASS PANEL (2)
CLIP(3)
ASSEMBLY INSTRUCTIONS
- Carefully unpack and identify all parts referring to illustration for parts identification.
- Turn the power to the installation point OFF.
- Install the glass panels (2) into the inner frame of the fixture and secure with the clips (3).
- Refer to the additional installation instructions included with the product for wiring and installation.
- Install proper bulbs (not included) into each socket referring to the markings and/or labels on the fixture for maximum wattage.
- Restore power to the installation point and retain this sheet for future reference.
