28 cu. ft. Side-by-Side

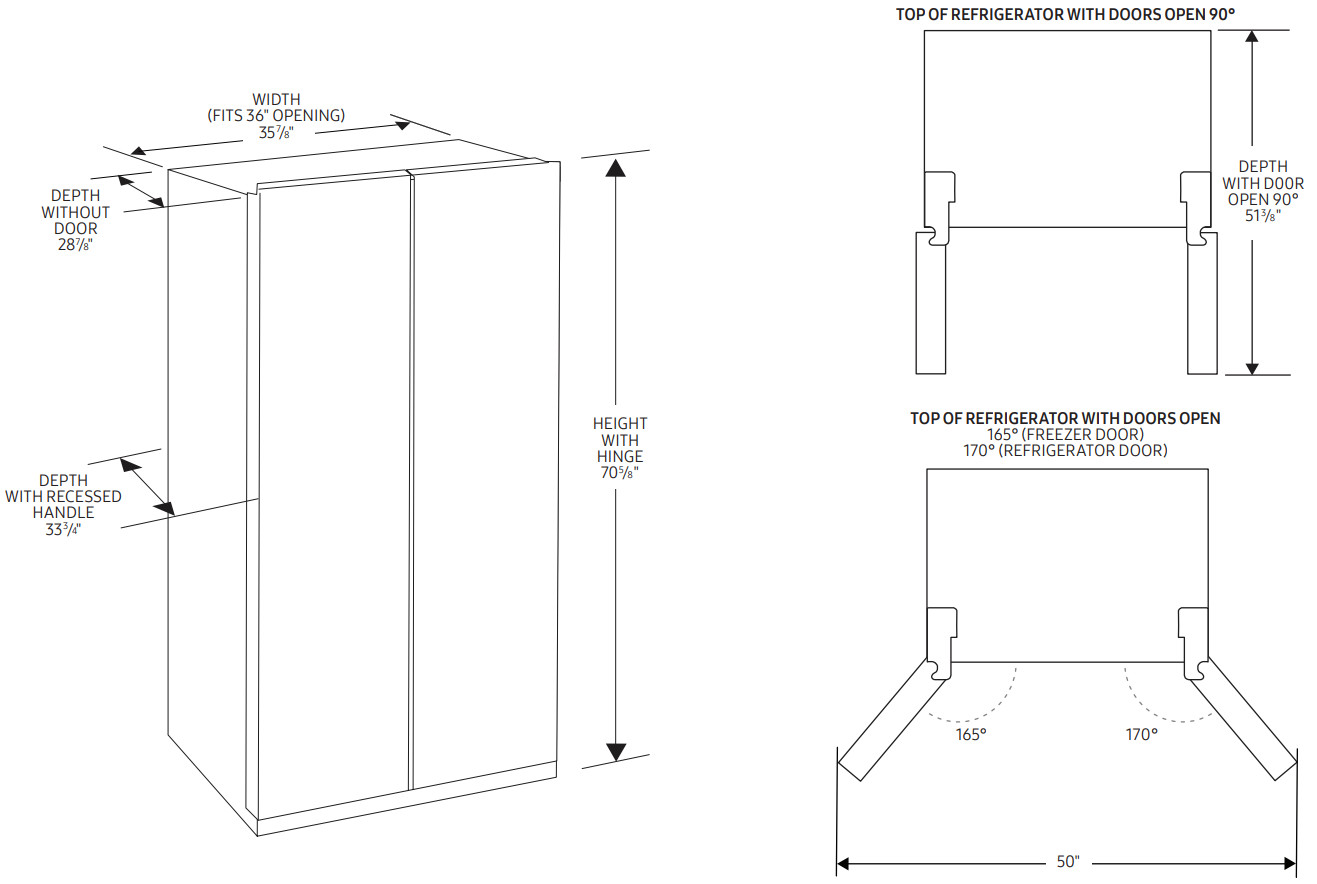

MODEL RS28CB7600 DIMENSIONS
Contents
RS28CB7600 Bespoke Side-by-Side Refrigerator

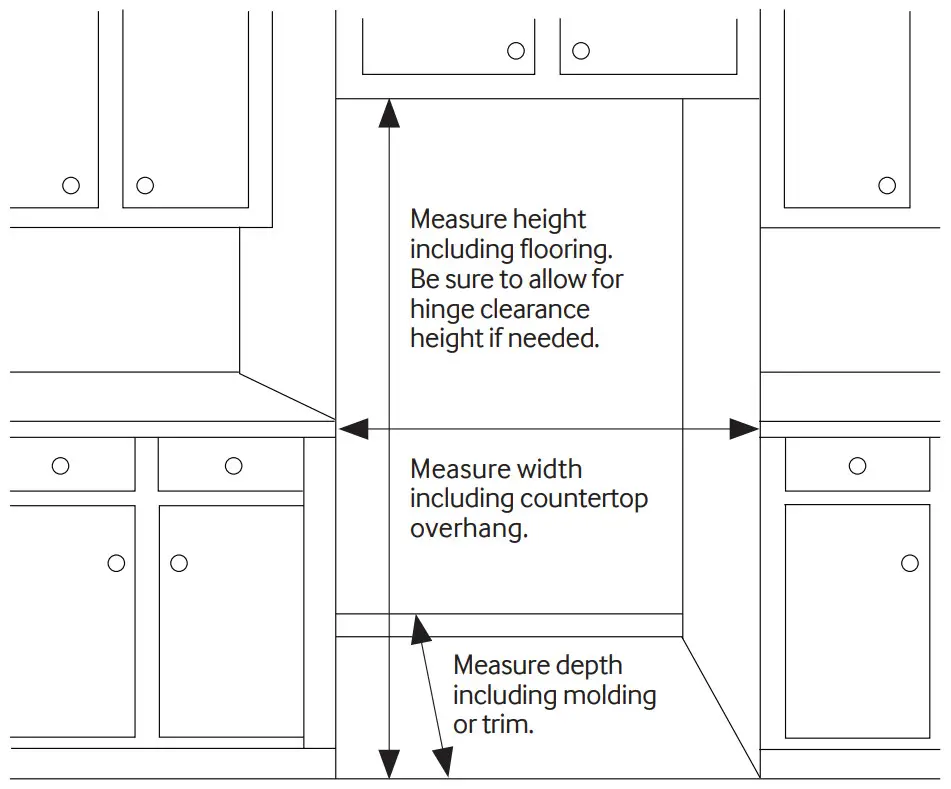

Be sure your new fridge will fit
Don’t wait until delivery to be sure your new refrigerator will fit – both in your kitchen and through all doorways. This guide includes all pertinent measurements and clearances so you can buy with confidence.
Standard-Depth Refrigerator
Standard-depth refrigerators typically measure 30 to 35 inches in depth, as opposed to counter-depth refrigerators that sit flush with cabinetry.
Installation clearances
Allow 3.75″ of clearance when installing along a wall.
This will allow for the door to open 90 degrees without contacting the wall.
Allow 2″ minimum clearance at rear for proper air circulation and water/electrical connections.
Allow a 3/8″ minimum clearance at sides and top for ease of installation.
For optimal usage and ability to open refrigerator doors completely, do not install next to a wall.
Please note: The above dimensions and cutout information is for planning purposes only. For complete installation details, consult manual packed with product, or download manual online at samsung.com.
Walk the delivery route
- Identify the narrowest opening that the appliance will travel, from outside the home to the location where it will be installed.
- Appliance depth or width must be smaller than the width of the narrowest opening.
