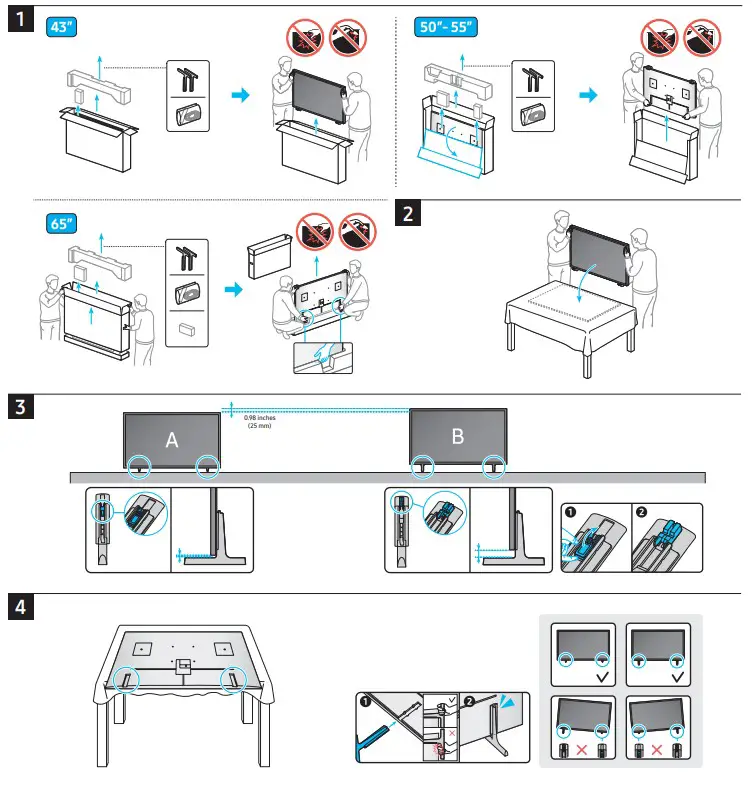

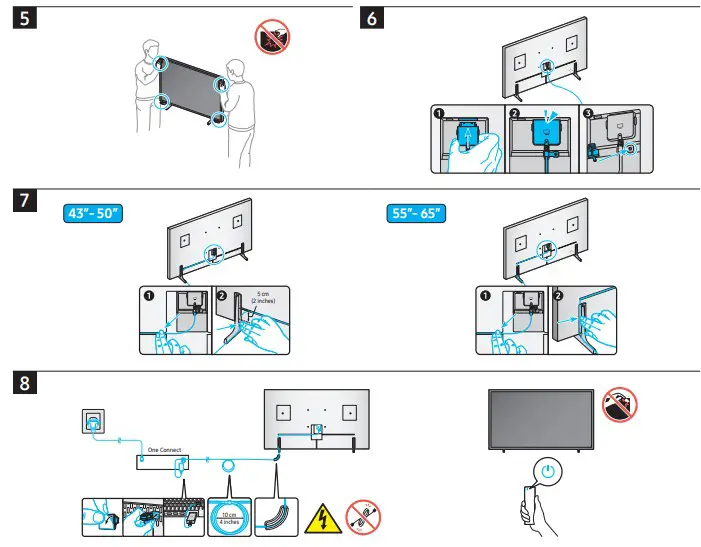

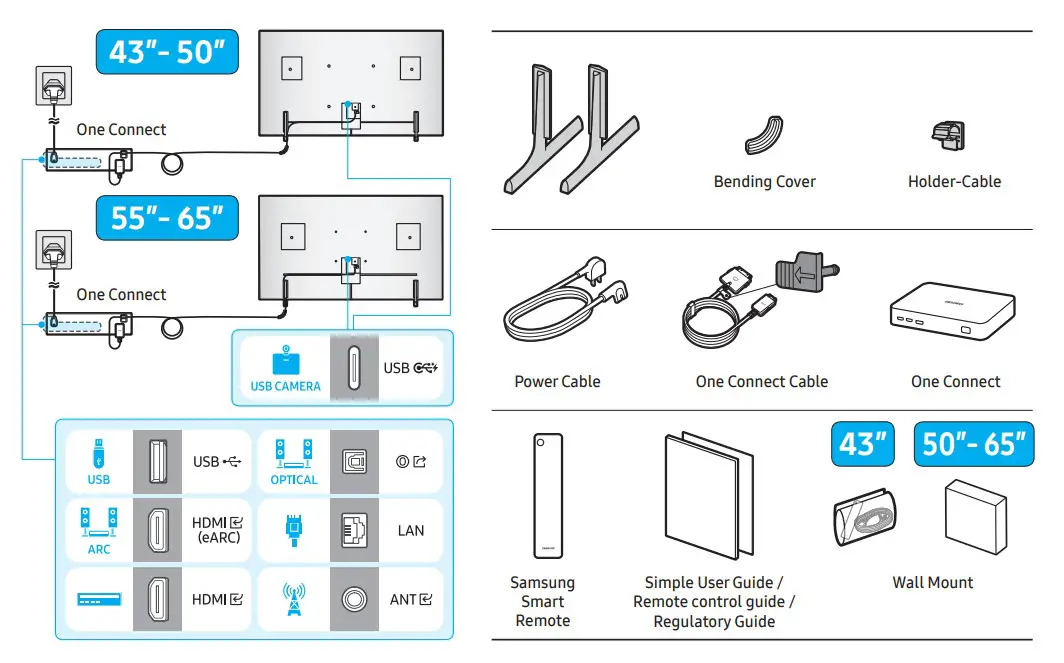

Unpacking and
Installation Guide
QN43LS03DAFXZA Frame TV
| A | B | C | D | E | F | G | H | I | |

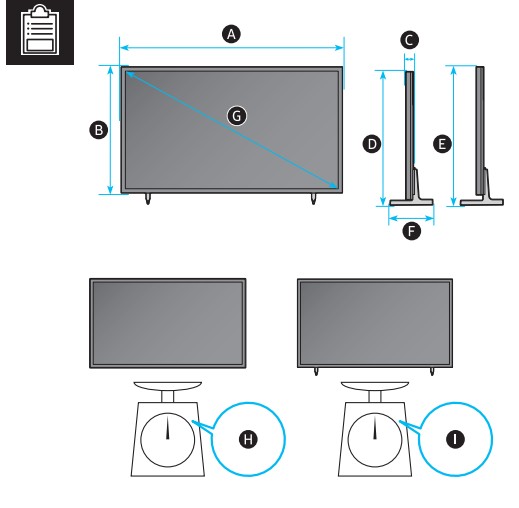

| 43LS03D | 38.2 inches (969.5 mm) | 22.0 inches (557.8 mm) | 1.0 inches (24.9 mm) | 23.3 inches (591.9 mm) | 24.3 inches (616.9 mm) | 7.7 inches (196.8 mm) | 42.5 inches | 19.0 lbs (8.6 kg) | 19.6 lbs (8.9 kg) |
| 50LS03D | 44.3 inches (1124.1 mm) | 25.4 inches (644.9 mm) | 1.0 inches (24.9 mm) | 26.7 inches (679.2 mm) | 27.7 inches (704.2 mm) | 9.0 inches (227.8 mm) | 49.5 inches | 26.0 lbs (11.8 kg) | 26.9 lbs (12.2 kg) |
| 55LS03D | 48.7 inches (1237.9 mm) | 27.9 inches (708.8 mm) | 1.0 inches (24.9 mm) | 29.3 inches (743.4 mm) | 30.3 inches (768.4 mm) | 9.0 inches (227.8 mm) | 54.6 inches | 37.3 lbs (16.9 kg) | 38.1 lbs (17.3 kg) |
| 65LS03D | 57.4 inches (1456.8 mm) | 32.8 inches (831.9 mm) | 1.0 inches (24.9 mm) | 34.2 inches (868.9 mm) | 35.2 inches (893.9 mm) | 10.3 inches (260.9 mm) | 64.5 inches | 49.4 lbs (22.4 kg) | 50.3 lbs (22.8 kg) |
* : 0~9, A~Z

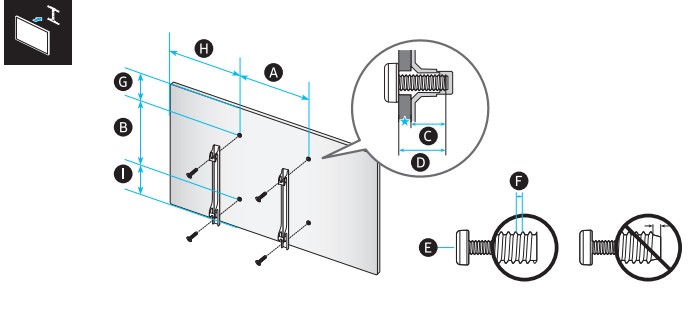

| VESA A x B (mm) | C (mm) | D | E x 4 | F (mm) | G (inches) | H (inches) | I (inches) | |
| 43LS03D | 200 x 200 | 9-11 | C + |
M8 | 1.25 | 7.6 | 15.1 | 6.5 |
| 50LS03D | 10-12 | 8.3 | 18.2 | 9.2 | ||||
| 55LS03D | 9.5 | 20.4 | 10.5 | |||||
| 65LS03D | 400 x 300 | 10.5 | 20.8 | 10.4 |
https://kaywa.me/9xzgY
https://kaywa.me/9xzgY
Scan this QR code with your smart phone to see helpful videos.
