SALTO WRDx0A4 Series Wall Reader User Manual

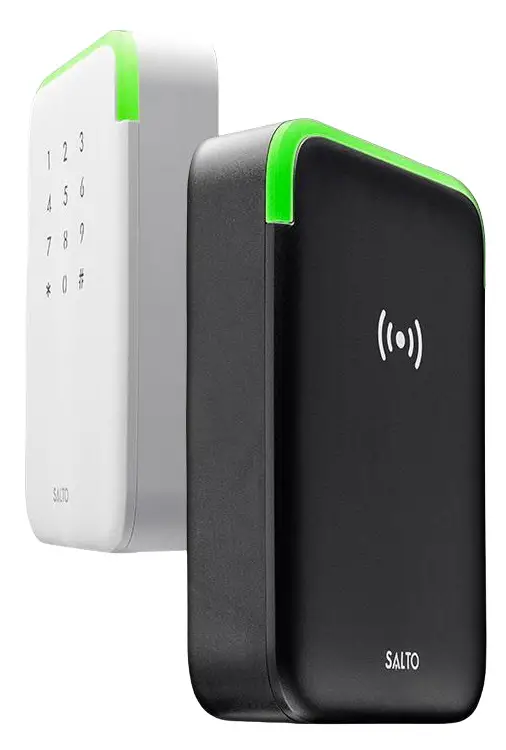

SALTO WRDx0A4 Series Wall Reader

Card reader installation guide

WRDx0A4.. series
WRDx0A4..K series
WRDx0A4..F series

WRD0M, WRD0MK

Installation

GANG ELECTRICAL STANDARD BOX

Maintenance

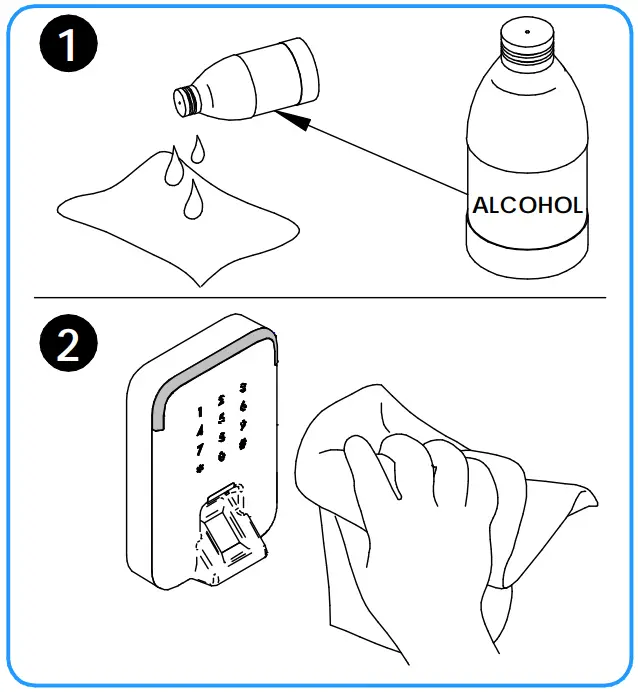

Dampen a lint-free cloth or cotton swap with alcohol. Gently rub the cloth back and forth across the sensor. Repeat the process once or twice as needed. Visually observe that no residual solution remains on the sensor, especially the edges.
Caution: Harsh and abrasive materials are not recommended for cleaning sensors.

Electrical characteristics

Operation conditions

	Min.	Max.   Unit
Temperature WRD0B – WRD0S – WRD0BK	-35 -31	+66        °C +150   °F
Temperature WRD0J – WRD0GK – WRD0JK	-25	+66	°C
	-13	+150	°F
Temperature WRD0BF – WRD0JF	-20	+66	°C
	-4	+150	°F
Humidity	35	85         %

RF characteristics

Min	Cen.	Max	Unit
RFID frequency Bluetooth Smart 2.4 frequency	13.56 2.445	2.4835	Mhz Ghz

Power Consumption Note 1

Min	Max	Unit
Reader	150	mA
Reader+Keyboard	250	mA
Reader+Keyboard+Fingerprint	300	mA

Note 1: Installer must take this data into account to dimension the CU42xx power supply.
Readers only for use with the SALTO Control Units.

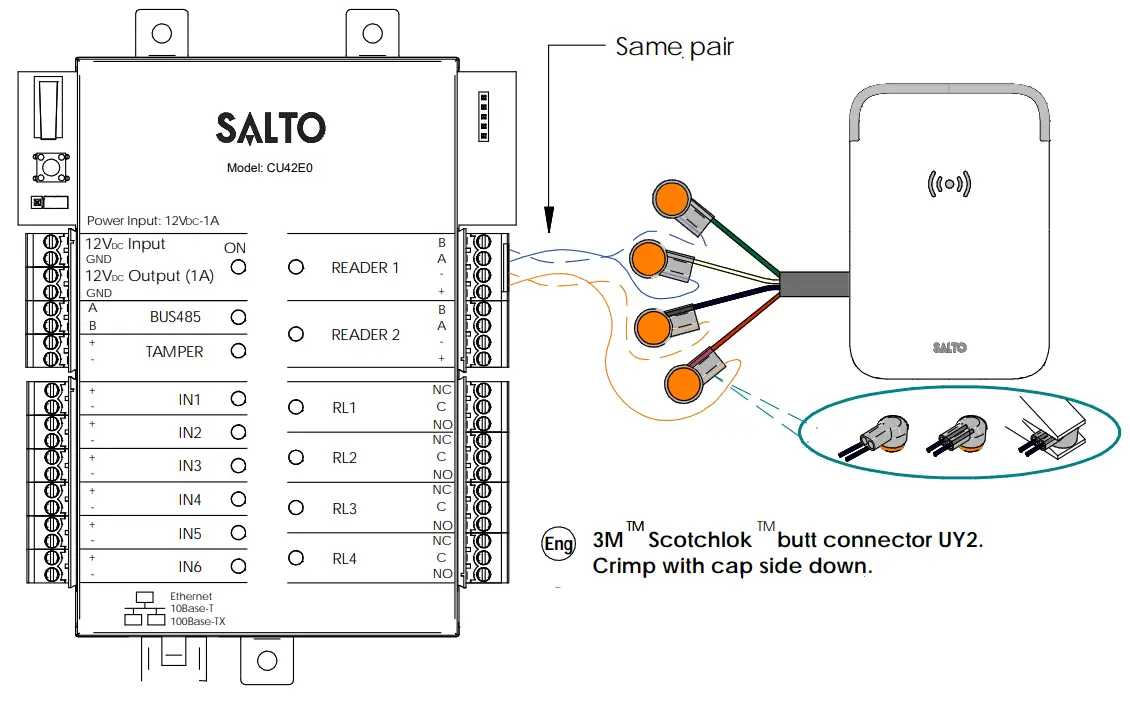

Note 2: Not use with Scotchlok butt connector UY2 SALTO recommends to use one cable per wall reader

Cable type and max. Distances

Cable type	Reader	Reader Keypad	Reader Keypad Fingerpint
UTP Cat5e 2 pairs AWG24	328ft 100m	196ft 60m	164ft 50m
UTP Cat5e 4 pairs AWG24 SP224861/SP224895	820ft 250m	492ft 150m	328ft 100m
Twisted pairs AWG18 Note2	1312ft 400m	918ft 280m	756ft 200m

Note: UL tested at 24 AWG at 100m.

Installation example:

Only conect to CU42xx

Cable connection

Min	Cen.	Max	Unit
RFID frequency	13.56		Mhz
Bluetooth Smart 2.4 frequency	2.445	2.4835	Ghz

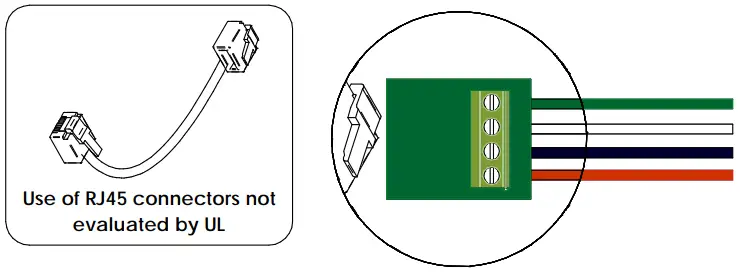

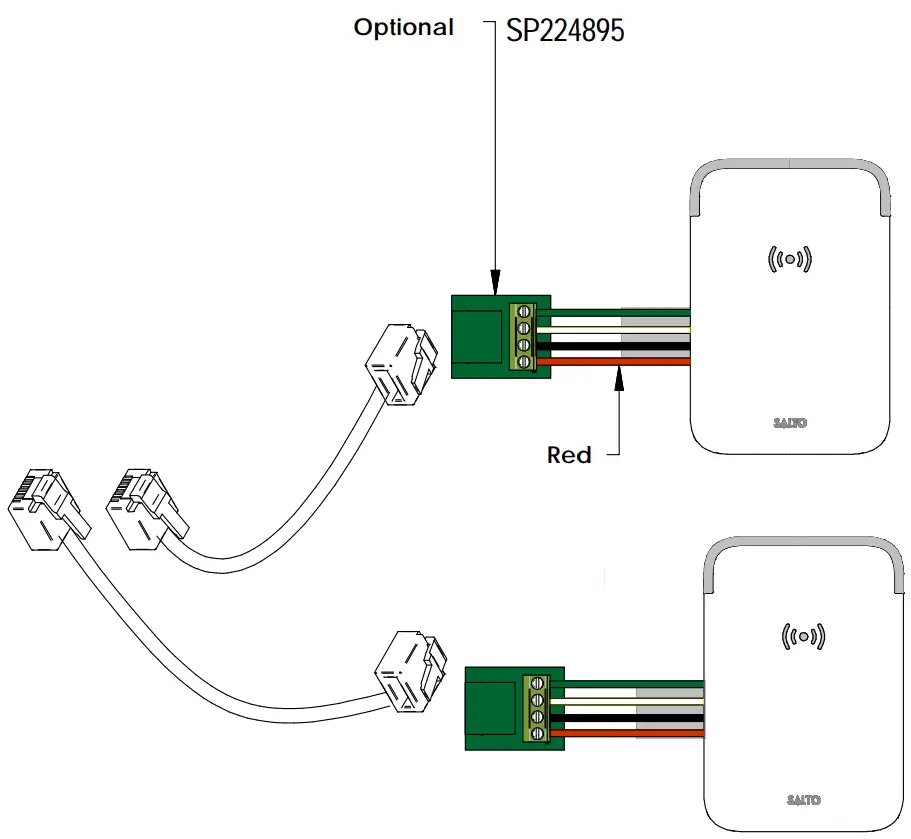

Installation example with RJ45

Minimum distance between readers 20in (50cm)

SIGNAL Card / finger rejection	LIGHT Red	TIME isec	BUZZER High pitched 50/50	TIME isec
Privacy or emergency status	Red 5x(50/50×3 + off 300)	3sec	High pitched 5x(50/50×3 +off 300)	3sec
Standard opening	Green	isec	Low pitched	0,3sec
Standard locking	Red	0,5sec	Low pitched	0,2sec
Open plus office	Green 400/200	2,4sec	High pitched/Low pitched 400/200	2,4sec
CLR Button	Orange	Cont.	High pitched	Cont.
Reset	Orange 50/100	450msc	Low pitched 50/100	450msc
Waiting for card / finger	Blinking green 500/500	Cont.	Low pitched 500/500	Cont.
Card / finger processing	Blinking yellow 50/50  Green	100msc  isec	Low pitched 50/50  Low pitched	100 msec  1 sec
Successfully processed card / finger

UL Statements

Tested by UL with Mifare (DESFIRE, ULTRALIGHT C) and HID iCLASS RFID communication, and with Mobile APP (JustIN Movile version 2.x) through Bluetooth version 4.2. Minimum Operating System version for Android: 4.3 or later and for iOS: 10.0 or later. A means of verification shall be employed by the user to enable access to the wireless electronic device such as a PIN or biometric feature.

The wireless electronic device is not capable of command, control, programming, or any other system manipulation and it is only to be used in the same manner as a physical credential. Wiring methods that shall be in accordance with the National Electrical Code, ANSI/NFPA 70 or CSA C22.1-02 – Canadian Electrical Code, Part 1, Safety Standard for Electrical Installations

UL294 performance level:

FEATURE	LEVEL
Destructive attack	I
Line Security	I
Endurance	IV
Standby power	Per rating of the power supply

Comply with ULC-S319 Class I

This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to ICES-003.

PRODUCTS DESCRIPTION

PRODUCT		TECHNOLOGY		SOFTWARE
COMMERCIAL NAME	MODEL	RFID 13.56 MHz Output max. power	BLUETOOTH LE 2400–2483.5 MHz Output max. power	CONTROL CIRCUIT	READER CIRCUIT	BLUETOOTH LE MODULE
SALTO Design XS Wall Reader P1619	WRD0B	+25 dBm	+8 dBm	0151 / 0152		0136
	WRD0J	+25 dBm	+8 dBm	0153		0136
	WRD0M	+21 dBm	+ 8.5 dBm	0194		—
	WRD0S	+25 dBm	+2.8 dBm	0130		—
SALTO Design XS Keypad Wall Reader P1620	WRD0BK	+25 dBm	+8 dBm	0151 / 0152		0136
	WRD0JK	+25 dBm	+8 dBm	0153		0136
	WRD0MK	+21 dBm	+ 8.5 dBm	0194		—
	WRD0BF	+25 dBm	+8 dBm	0152		0136
	WRD0JF	+25 dBm	+8 dBm	0153		0136
SALTO Modular XS Wall Reader P0506	WRM0B	+25 dBm	+8 dBm	0152		0136
	WRM0J	+25 dBm	+8 dBm	0153		0136
SALTO Panel XS Reader P1825	WRDP0B	+25 dBm	+8 dBm	0151 / 0152		0136
	WRDP0J	+25 dBm	+8 dBm	0153		0136
SALTO Design XS Mullion Wall Reader P1826	WRDM0B	+25 dBm	+8 dBm	0151 / 0152		0136
	WRDM0J	+25 dBm	+8 dBm	0153		0136
SALTO NCoder A1928	EC09	+23 dBm		0164	0172
	EC0B	+23 dBm	+8 dBm	0164	0172	0136
	EC0M	+21 dBm	+ 8.5 dBm	0182		—
	EC0H	+23 dBm		0164	0173
	EC0J	+23 dBm	+8 dBm	0164	0173	0136
SALTO NCoder Fingerprint A1928	EC0BF	+23 dBm	+8 dBm	0164	0172	0136
	EC0JF	+23 dBm	+8 dBm	0164	0173	0136

EU DECLARATION OF CONFORMITY

Hereby, SALTO Systems S.L. (Arkotz Kalea (Pol. Lanbarren), 9 – 20180 Oiartzun– Spain), declares that this access control equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (RED) and 2011/65/EU (RoHS). You will be able to find a copy of the original declaration of conformity at the following Internet address: https://www.saltosystems.com/certificate

UKCA DECLARATION OF CONFORMITY

Hereby, SALTO Systems S.L. (Arkotz Kalea (Pol. Lanbarren), 9 – 20180 Oiartzun– Spain), declares that this access control equipment is in compliance with the essential requirements and other relevant provisions of The Radio Equipment Regulations 2017 and RoHS Regulation 2012. You will be able to find a copy of the original declaration of conformity at the following Internet address: https://www.saltosystems.com/certificate

UK importer contact information:
Salto Systems, Ltd. Unit 1, The Court Holywell Business Park, Northfield Road, CV47 0FS Southam, UK.

ELECTRICAL WARNINGS

Device powered by a power supply classified ES1 and PS1 according IEC/EN/UL 62368-1 & AS/NZS 62368.1.
Distance between this device and human body must be higher than 20 cm.

Compliance

MECHANICAL WARNINGS
The environmental conditions mentioned in the data sheets are always referred to non-condensation situations. The SALTO product should be treated with care during the installation process to avoid any aggressive contact that may damage the unit. Do not bring the device into contact with oil, paints or acids. If you have questions or doubts on this, please contact your authorized SALTO supplier.

LEGAL WARNINGS
The user shall be responsible for the correct use and maintenance of the access control equipment according to the instructions herein. SALTO shall not be responsible for any defect, malfunction, loss or damage, whether direct or indirect, caused by or arisen from any improper installation or utilization of the equipment or which contravenes, transgresses or infringes in any manner the above mentioned instructions. SALTO’s liability concerning the equipment is limited to the warranty provided. The warranty does not cover product failures due to repairs, modifications or product manipulations performed in the access control equipment or in the inner electromechanical structure by anyone other than authorized SALTO dealers or personnel.

FCC COMPLIANCE STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
  This product is a radio transmitter and receiver to be used in mobile conditions.

Supplier’s Declaration of Conformity
47 CFR § 2.1077 Compliance Information
We, SALTO Systems, S.L., hereby declare that the equipment bearing the model number specified above was tested conforming to the applicable FCC Rules.

Responsible Party – U.S. Contact Information
Salto Systems Inc. USA. 1780 Corporate Drive, Suite 400. Norcross, GA. 30093. [email protected]

ISED COMPLIANCE STATEMENT

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to ICES-003.

IMDA COMPLIANCE LABEL [1]
