Rythflo RY-WH01 Bluetooth Headphones User Manual

User Manual
WIRELESS HEADPHONES
RY-WHO01

What’s Included

• Wireless Headphones (Modsl: RY-WHO1) x1
• USB Type-C Charging Cable x1
• User Manual x1
• Pairs of Black & Red Ear tips (Small. Medium. Large) x3
• Pairs of Black & Yellow Ear tips (Small Medium Large) x3

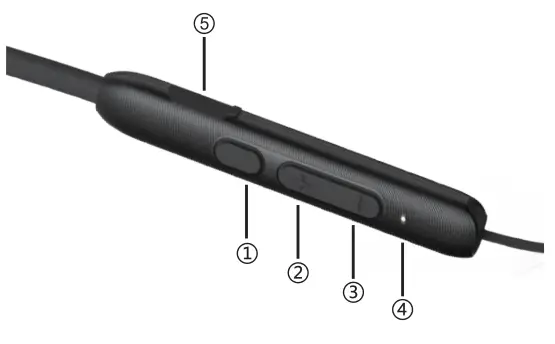

Product Diagram

1. Multifunction Button (F8)
2. Volume Up Button
3. Volume Down Button
4. LED indicator
5. Type-C Charging input

Button Controls

Button	Status	Function	Operation
Multi-function button (MFB)		Power On	Press and hold for 3s
		Power Off	Press and hold for 5s
		Play / Pause	Press
		Answer Call	Press
		Reject Call	Press and hold for 2s
		Hang up Call Cancel Dial	Press
		Redial	Press twice
		Answer the 2nd Call and Hang up theist	Press
		Answer the 2nd Call and Hold the 1st On	Press twice
		Switch between Two Calls	Press twice
		Activate voice assistant	Press and hold for 2s then release
		Mode switch	Press three times
Volume up		Next track	Press twice
		Volume up	Press or hold
Volume down		Previous track	Press twice
		Volume down	Press or hold
	Pairing	Reset	Press and hold for 5s at the same time

LED Indicator

Status	Lignt Color	Display
Power On	White	Flashing 3 times
Connected		Flashing once per 5s
Reconnect		Flashing twice per 5s
Play		Flashing once per 10s
Pause		Flashing once per 5s
Incoming Call / Dial		Flashing
In Call		Flashing once per 3s
Full Charged		Solid
Battery Low	Red	Flashing
Charging		Solid
Power Off		Flashing 3 times
Pairing	White/Red	Flashing alternately

Safety Cautions

• DON’ disassemble any part of the product o avoid fire or injury.
• DON’T expose the product under extreme sunshine or high humidiy.
• DON’T use the oy volate liquid to clean the product.
• DON’T use the product in an unsafe environment
  *Please use appropriate volume o avoid hearing damage.
  “Please keep the product away from children o pets.

Specification

Model	RY-WHO1
BT Version	V5.2
BT Profile	HFP,HSP,A2DP,AVRCP
Speaker Size	P10mm
Battery Capacity	180mAh/3.7V
Standby Time	5130 Hours
Working Range	10m
Operating Temperature	-10 — 40°C

FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must withstand any interference received, including interference that may cause undesired operation.

Manufacturer

‘Shenzhen Hanke Technology Co.Ltd
Meipeng SKY311, No.3 Hebei Industrial Zone, Zhongxing Road,
Ma’antang Community, Bantian Street, Longgang District,
‘Shenzhen, Guangdong, China, 518000

Warranty & Service

“This product is covered with Rythflo product and labor warranty for 12 months.
from the date of s original purchase.
‘Any questions welcome 1o contact us:
[email protected]
