Model PD1301R
PORTABLE 3-BURNER GAS GRIDDLE IN RED
Assembly Guide
Contents
PD1301R Portable 3 Burner Gas Griddle In Red
FOR YOUR SAFETY!
Use outdoors only!
Read the instructions before assembling and using the appliance.
CONTACT US FIRST!
If you have any questions that are not addressed, please contact us first.
| https://www.facebook.com/Royal-Gourmet-879976522153340/ | https://mobile.twitter.com/RoyalGourmetUSA |
Customer Service
1-800-618-6798
[email protected]
Assembly
| No. | # | QYT | Description | Image |
| 1 | W-SG20005 | 4 | Leg base |  |
| 2 | 1 | Main body |  |
|
| 3 | ZH-12020004 | 1 | Regulator assembly |  |
| 4 | GHJP23B-B | 1 | Cooking griddle |  |
| 5 | GHLT1YB | 1 | Grease cup |  |
| Key | Description | QTY | Image |
| A | M4x12 | 4 |  |
| B | Stud | 4 |  |
| C | Nut | 4 |  |
TOOLS REQUIRED
| Description | Image |

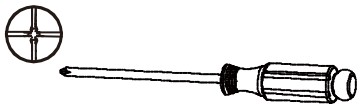

| Phillips screwdriver |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver
- Approximate assembly time: 10 minutes
- Note: 1. The right and left sides of the griddle are designed as if you are facing the front of the griddle.
2. Model shown for illustration purpose only, specific please in kind prevail.
Assembly
 |
 |
Thank You For Choosing Us.
Any Problem!
We Can Help!
Customer Service
1-800-618-6798
Monday to Friday (8:30 am – 5:30 pm EST)
[email protected]
Learn more at:
www.royalgourmetcorp.com
