Model: GA5403R
ASSEMBLY GUIDE
DELUXE 5-BURNER GAS GRILL IN RED
Contents
GA5403R Deluxe 5 Burner Gas Grill
FOR YOUR SAFETY!
Use outdoors only! Read the instructions before assembling and using the appliance.
CONTACT US FIRST!
If you have any questions that are not addressed, please contact us first.
 |
 |
| https://www.facebook.com/Royal-Gourmet-879976522153340/ | https://mobile.twitter.com/RoyalGourmetUSA |
Customer Service
1-800-618-6798
[email protected]
Learn more at
www.royalgourmetcorp.com

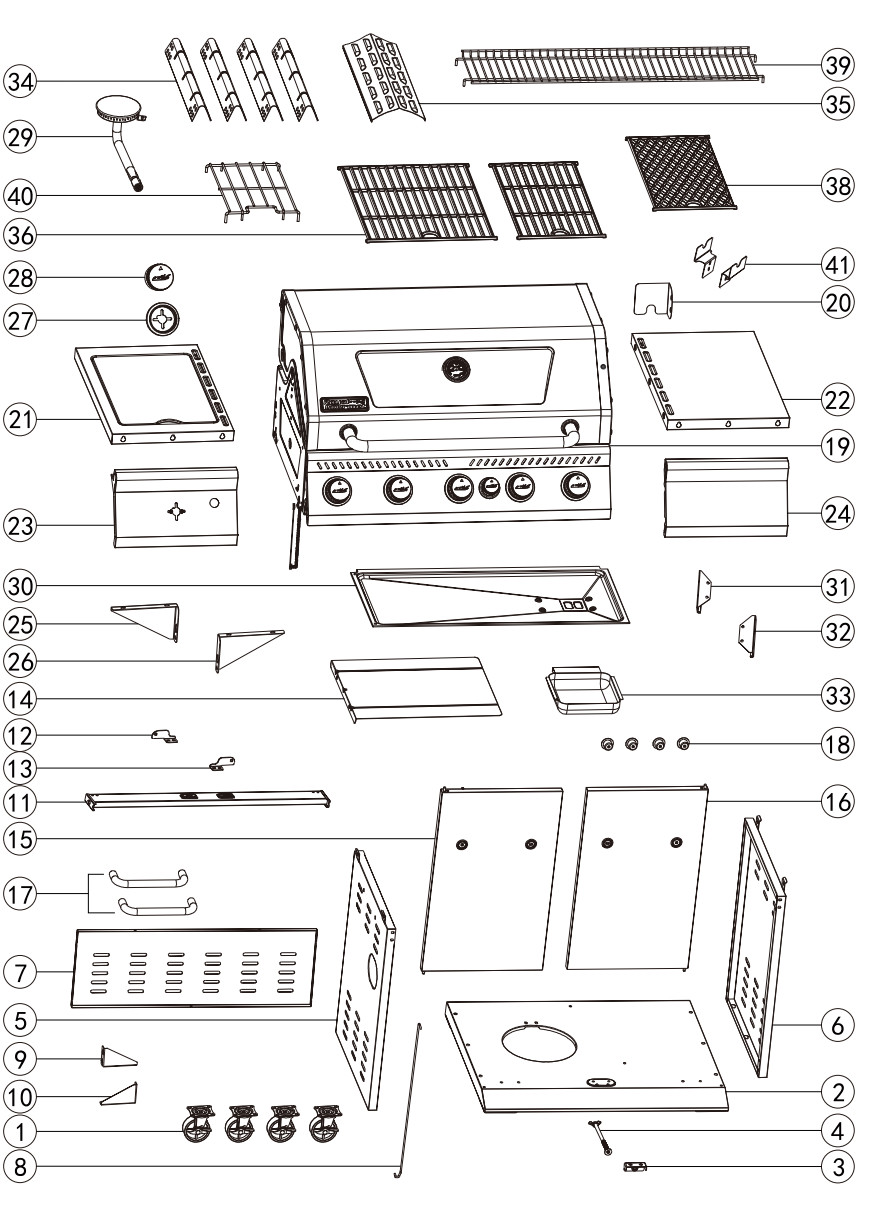

Parts Diagram
| No. | # | Description | Description I Do:Description | Image! |
| 1 | WL002 (W-52930001) |
4 | Caster |  |

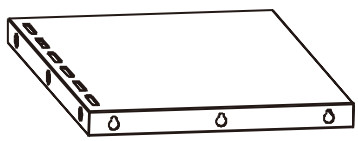

| 2 | AHCJ800B5B-1313 | 1 | Bottom shelf |  |
| 3 | AHCH3GOZ | I | Screw bushing |  |
| 4 | D001 | 1 | LP cylinder screw |  |
| 5 | AHCJ80CBL | 1 | Left panel |  |
| 8 | AHC.1813CBR | 1 | Right panel |  |
| 7 | ACJ80H1358 | 1 | Rear panel |  |
| 8 | ALX001 | 1 | LP cylinder barrier bar |  |
| 8 | ACJ53SJPL | 1 | mangle support plate (L) |  |
| 10 | ACJ53SJPR | 1 | Triangle support plate (R) |  |
| 11 | AHCJ8001-IL5B | 1 | Can front beam |  |
| 12 | EHCJ5OHL-GDPL | 1 | Beam connector (L) Union |  |
| 13 | EHCJ5OHL-GDPR | 1 | Beam connector (R) |  |
| 14 | AQPGB | 1 | Thermal baffle |  |

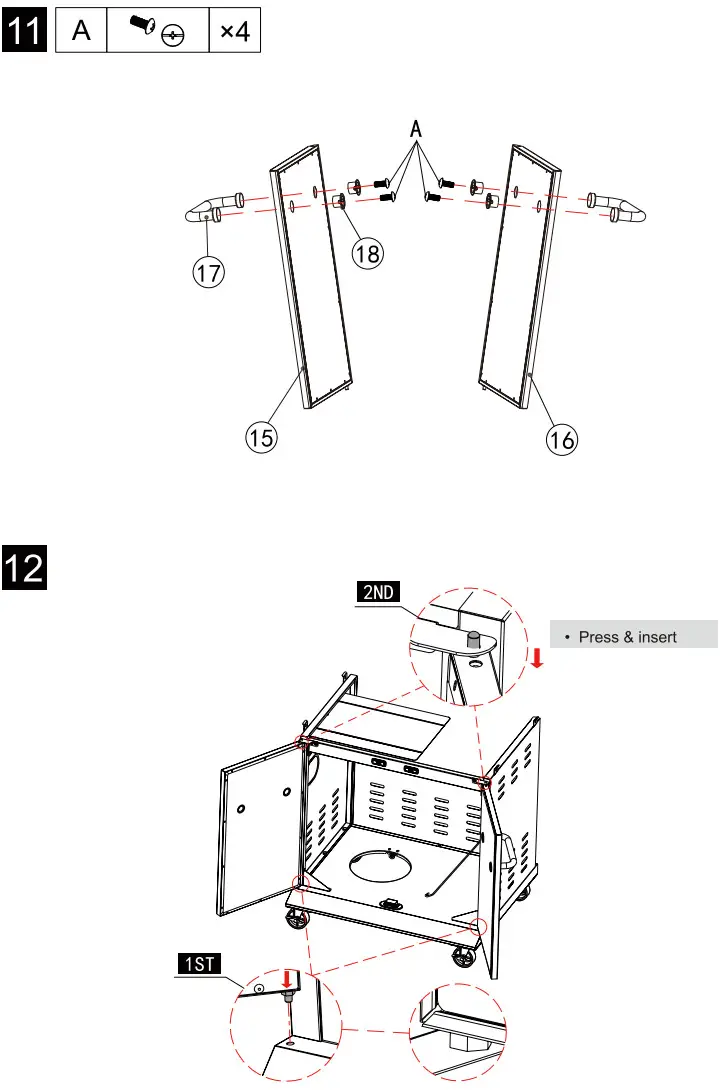

| 15 | ACJ80M8L58 | 1 | Cabinet door (L) |  |
| 18 | ACJ80M8R5B | 1 | Cabinet door (R) |  |
| 17 | MS005 | 2 | Door handle |  |
| 18 | Bz003(W-A0403) | 4 | Handle sleeve |  |
| 19 | ””-”-…………..„ | 1 | Main body |  |
| 20 | ABLGFt13 | 1 | Side burner thermal baffle |  |
| 21 | ABLNMBL | I | Side burner shelf |  |
| 22 | ACTNMBR | 1 | Side table |  |
| 23 | AHSLNZSJL | 1 | Side burner decoration board |  |
| A | AHCTNZSJR | 1 | Side table decoration board |  |
| A | ACTNSZJL | 1 | Side burner supped plate |  |
| ACTNSZJR | 1 | Side table support plate |  |
|

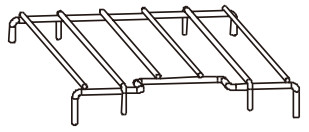

| Y2103 (W-20120007) |
1 | Knob base | ||
| 2 | XN 101 RGC-BK | i | Knob |  |
| 2 | ABLT001 | 1 | Side burner |  |
| 8 | ALTJYPSB | 1 | Grease tray |  |
| 31 | AYPZJR | 1 | Grease cup bracket (R) |  |
| AYPZJL | 1 | Grease cup &Stet (L) | ||
| Z-00800109 | 1 | Grease cup | ||
| AD4301 | 4 | Flame tamer | ||
| TOOLS REQUIRED | ||
| Description | Image | |
| Phillips screwdriver | Wrench |  |
Before beginning assembly, make sure all parts are present. If any parts are missing or damaged, do not attempt to assemble the products. Contact customer service for replacement parts via telephone or email.
- Tools needed (not included): Phillips screwdriver and wrench
- Approximate assembly time: 70 minutes
- Note: 1. The right and left sides of the grill are designed as if you are facing the front of the grill. 2. Model shown for illustration purpose only, specific please in kind prevail.

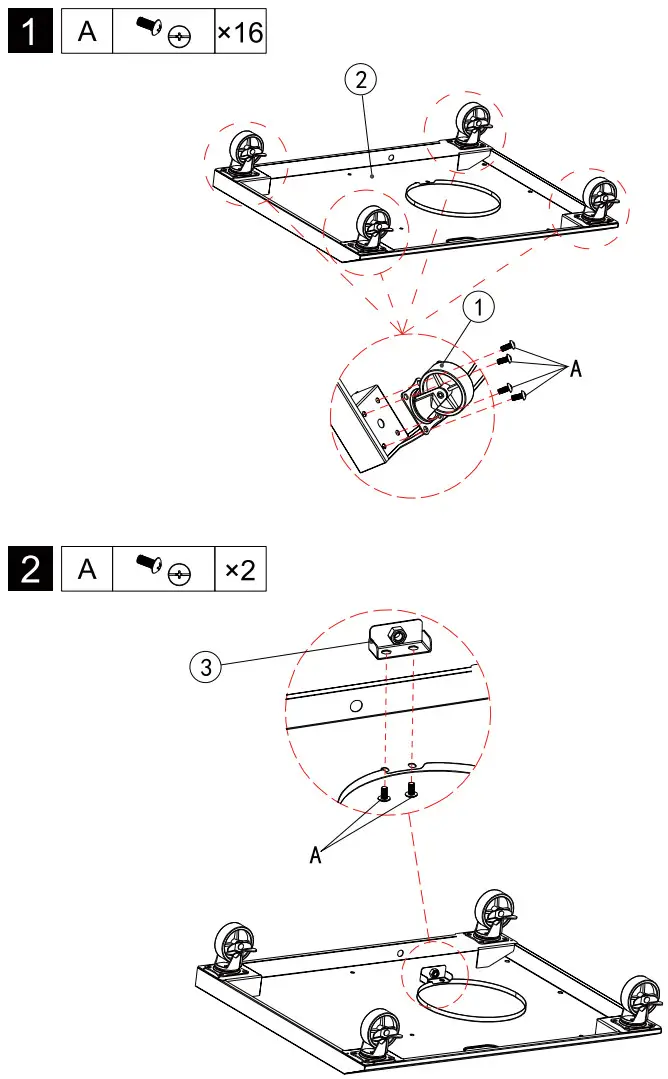

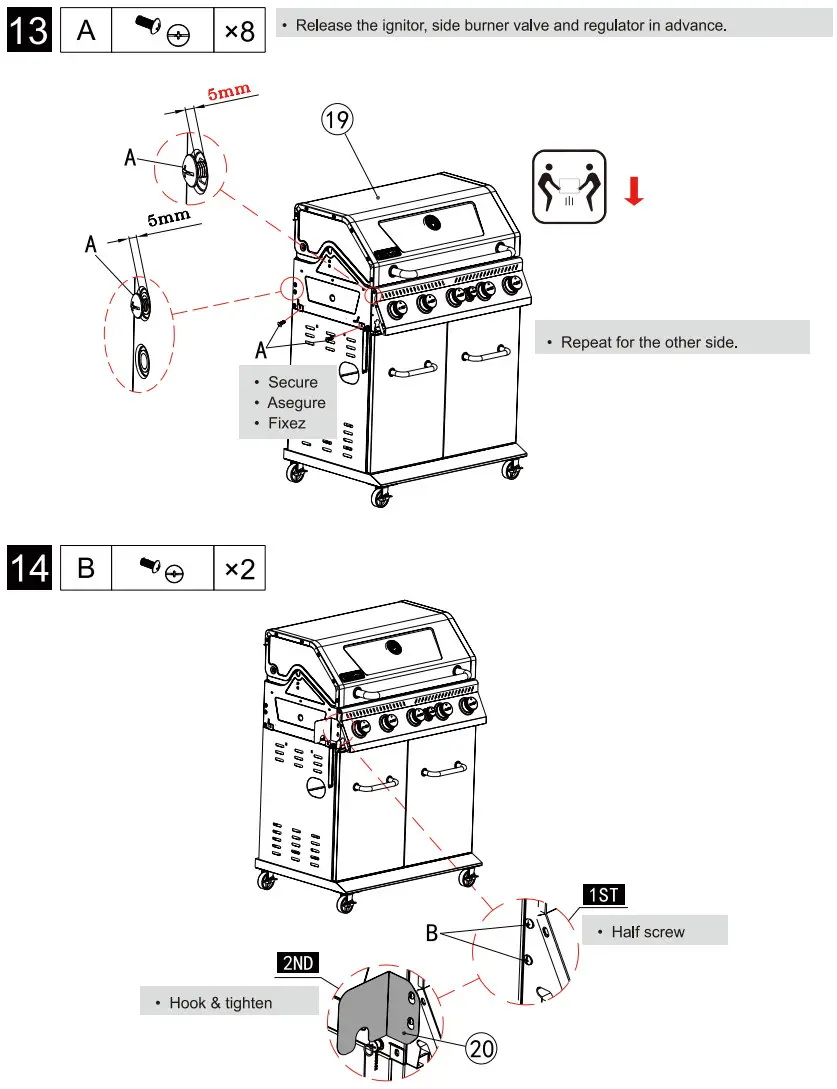

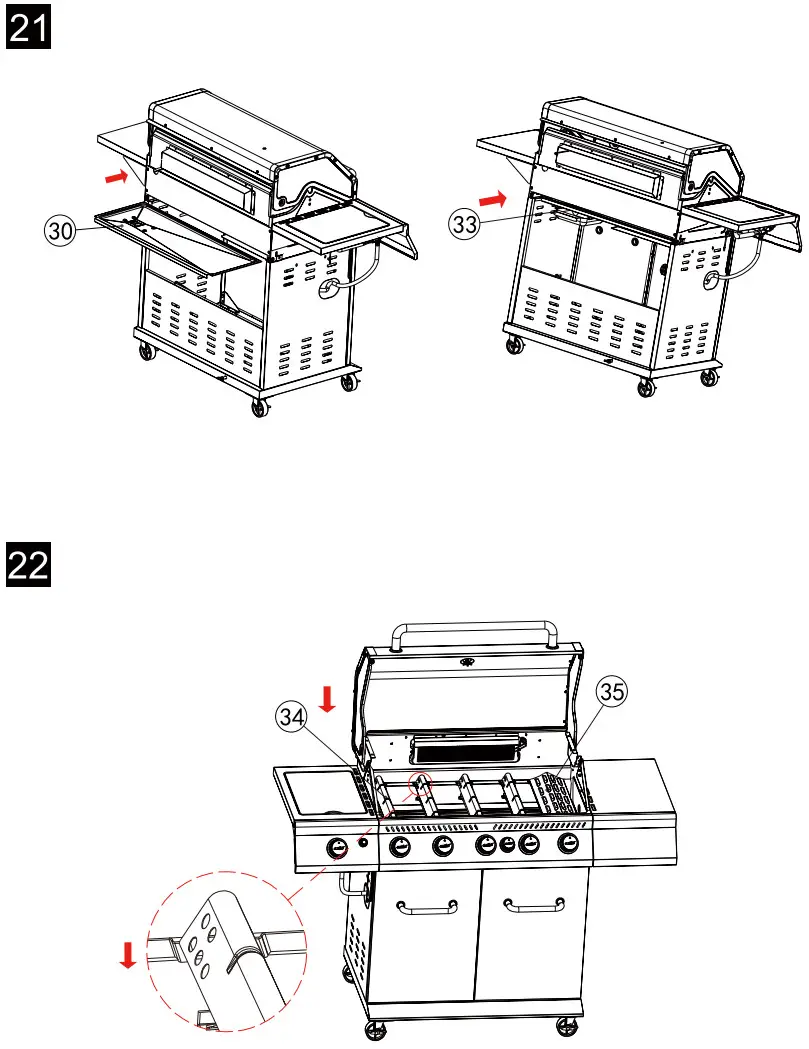

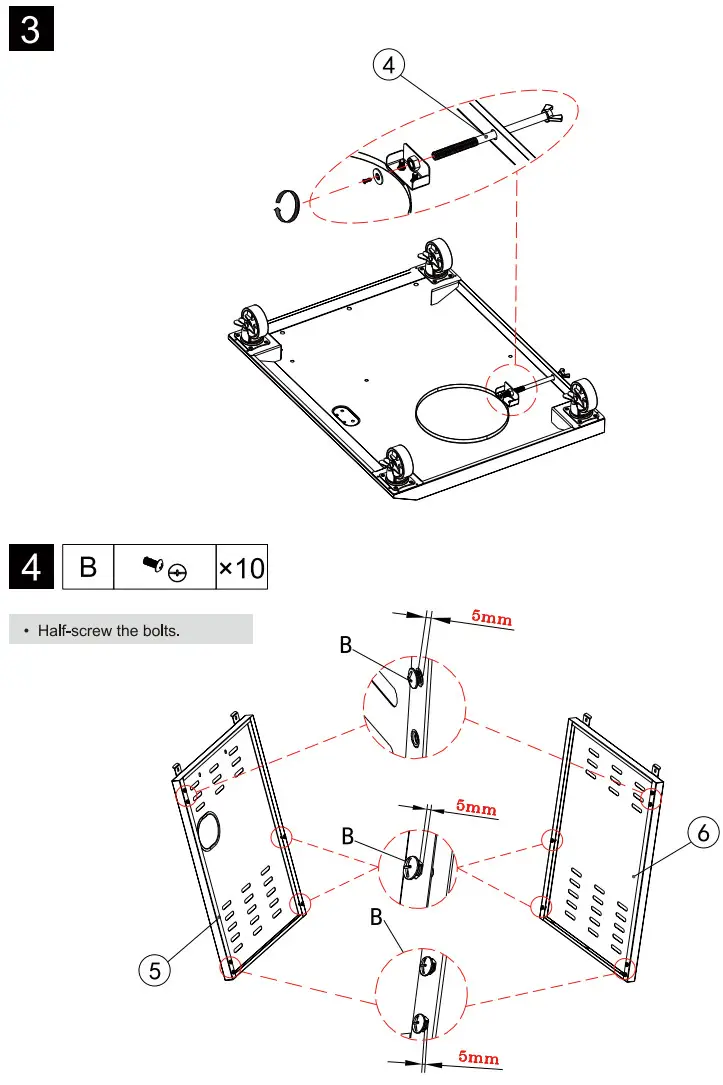

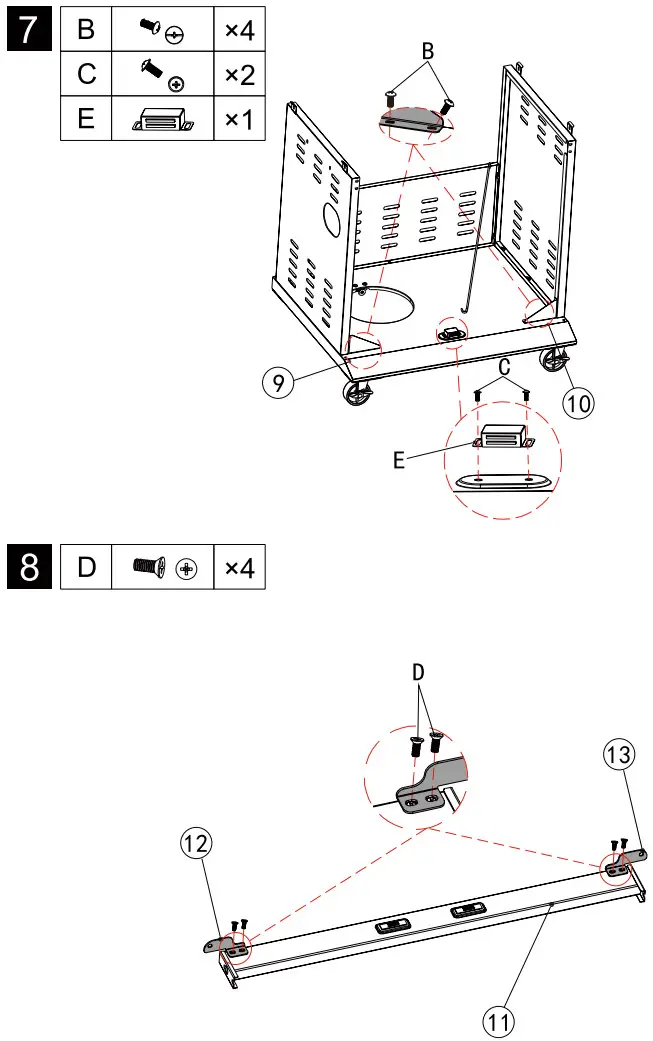

Assembly
Rotiseries Assembly
Parts Diagram
| No. | QYT | Description | Image |
| 1 | 1 | Rod handle |  |
| 2 | 1 | Spit rod |  |
| 3 | 1 | Counterbalance Contrapeso |  |
| 4 | 2 | Washer Arandela Rondelle |  |
| 5 | 1 | Spit rod connector |  |
| 6 | 1 | Spit rod |  |
| 7 | 1 | Locking collar |  |
| 8 | 2 | Meat fork |  |
| 9 | 1 | Rotisserie motor |  |
| 10 | 1 | Charger Cargador Chargeur |  |
