User guide
VU589x
TURBO SILENCE EXTREME+
Contents

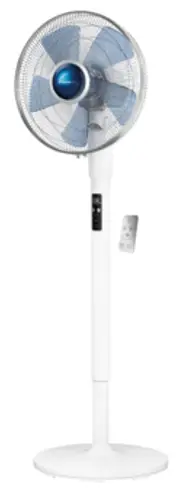

VU5890 Turbo Silence Extreme
Please read carefully the “Safety and use instructions” booklet before first use
For more information
www.rowenta.com
QUICK START GUIDE
TURBO SILENCE EXTREME +
Thank you for choosing a Rowenta fan. Your fan is equipped with the latest Rowenta technology.
Read the manual carefully to make the most of your new fan. Scan this code with your phone or QR code reader to see how to assemble your fan.
YOUR FAN DOES NOT COME ASSEMBLED. IT IS VERY IMPORTANT THAT IT IS ASSEMBLED CORRECTLY.
ASSEMBLY
Overview
- Logo plate
- Front grid
- Propeller clamp ring
- Propeller
- Grid clamp ring
- Back grid
- Motor housing
- Remote control storage
- Control panel
- Adjustable foot
- Foot
- Base
- Washer
- Fixation screw
TO REDUCE THE RISK OF FIRE, ELECTROCUTION OR INJURY, THIS FAN MUST BE ASSEMBLED ACCORDING TO THESE INSTRUCTIONS. HOWEVER, THE ASSEMBLY AND USE OF THE FAN MUST COMPLY WITH THE STANDARDS IN FORCE IN YOUR COUNTRY.
STEP-BY-STEP
SETTINGS
HEAD ADJUSTMENT
You can adjust the degree of inclination of the fan from high to low.
ADJUSTING THE STAND HEIGHT
The fan height can be adjusted. To do this, press the button with one hand 1 and pull the tube up with the other 2.
CONTROLLING THE FAN
Control the fan via the front control panel or via the remote control.
STORING THE REMOTE
You can store the remote control on the back of the body of the device.
CONTROL
- ON/OFF
- Natural Mode
- Descrescendo Mode
- Speed variator
- Oscillation ON/OFF
- Timer
MANUAL MODE
SPEEDS SELECTION
In manual mode (night mode indicator and natural mode indicator lights off), you can select the desired speed from 16 options. By default, the fan starts up at speed 3.
To change the speed, use the “-” and “+” buttons on the control panel or on the remote control. The speed can only be changed in manual mode and night mode. (see night mode section for details)
The selected speed is displayed on the control panel from 1 to 16.
NATURAL MODE
This function creates an air current that feels like an outdoor breeze.
To activate this function, press the mode button on the remote control or control panel until the corresponding indicator lights up
.
The fan speed will vary according to a pre-set cycle.
To change mode, press the button again
.
The corresponding indicator goes out on the control panel.

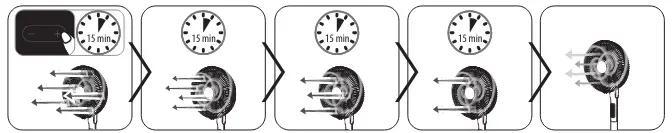

NIGHT MODE
This function provides a quick burst of freshness, starting by default at speed 5 and gradually decreasing every 15 min until finally reaching silent mode.
The startup speed can be adjusted using the “+” and “-” buttons.
To activate this function, press the mode button on the remote control or control panel until the corresponding indicator lights up
.
To change mode, press the button again .
The corresponding indicator goes out on the control panel.
MEMORY
The fan remembers the last speed or mode (Natural or night) used.
MODE SILENT
Our fan’s silent mode automatically gives you the best ratio between performance and silence.
During quiet moments, you can enjoy pleasant refreshment in total silence.
To activate this function, press the button once.
TIMER
Setting the timer:
You can set the timer for your fan with your remote control or the control panel.
Press the button to enter the programming mode . The display will flash.
Using the “-” and “+” buttons, you can set the time until the appliance switches off to 1 to 12 hours.
After 3 seconds the time is validated and the countdown started. The display stops flashing and returns to its normal state.
Please note: Setting the time to “00” in the programming mode disables the timer.
OSCILLATION
Oscillation settings
Start fan oscillation by pressing the button on the control panel or the remote control.
Press once: oscillation starts
Press again: oscillation stops
AUTO-OFF FUNCTION
The fan will switch itself off if left idle for 12 hours .
REMOTE CONTROL
The remote control can be used up to 5 m from the fan.
To operate the remote control, point the emitting diode towards the fan’s infrared receiver and press the desired button. Make sure that there are no obstacles between the emitting diode and the receiver. Do not scratch the emitting diode or the fan’s infrared receiver.
