RovyVon E8R LED Keychain Flashlight User Manual

RovyVon E8R LED Keychain Flashlight

Product Information

• Specifications:
  • Product Model: E8R
  • Color: Red+White+Red
  • Light Type: Angel Eyes
  • Battery Type: Lipo AAA

Product Usage Instructions

• Primary Light Operation:
  To operate the primary light on the E8R, follow these steps:
  • Ensure that the battery switch is turned on.
  • Press Button 1 to activate the primary light.
• Sidelight Operation:
  To operate the sidelight on the E8R, follow these steps:
  • Ensure that the battery switch is turned on.
  • Press Button 2 to activate the sidelight.
• Battery Switch:
  The E8R is powered by a Lipo AAA battery. To switch the battery, follow these steps:
  • Open the battery compartment.
  • Remove the old battery (if present).
  • Insert a new Lipo AAA battery or AAA battery into the compartment.
  • Close the battery compartment securely.
• Frequently Asked Questions (FAQ)
  • Q: What is the color of the E8R?
  • A: The E8R is available in Red+White+Red color.
  • Q: What type of light does the E8R have?
  • A: The E8R features Angel Eyes lights.
  • Q: What type of battery does the E8R require?
  • A: The E8R requires a Lipo AAA battery.
  • Q: How do I operate the primary light on the E8R?
  • A: To operate the primary light, make sure the battery switch is turned on and press Button 1.
  • Q: How do I operate the sidelight on the E8R?
  • A: To operate the sidelight, make sure the battery switch is turned on and press Button 2.
  • Q: How do I switch the battery on the E8R?
  • A: To switch the battery, open the battery compartment, remove the old battery (if present), insert a new Lipo AAA or AAA battery, and securely close the compartment.

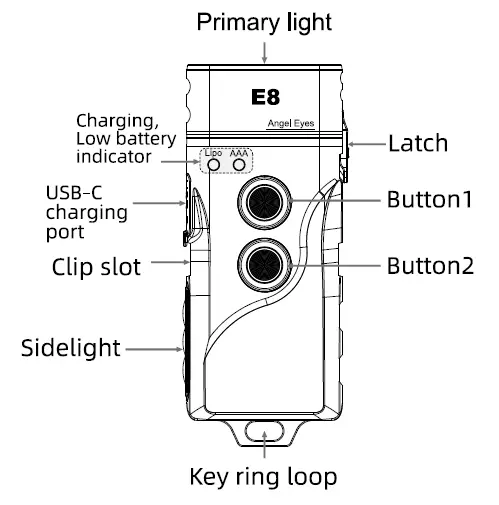

OVERVIEW

Primary light	Sidelight
6500K Cool white, 70 CRIx2	A. E8U: UV+White+White
	B. E8UR: UV+Red+White
	C.E8W: Red+White+Blue
	D. E8R: Red+White+Red
4000K Warm white, gsCRIx2	A. E8U: UV+White+White
CRI: Color rendering index	UV wavelength: 365nm Red wavelength: 625nm White color temperature: 4000K, warm white

Product Information

Material	Polycarbonate (Body), 7075 aluminum (Head)
D1mens1ons	66.1mm (L) x 27.5mm (W) x 13.5mm (H)
Weight	30g
Indicators	Lipo: Blue/Red (2-in-1)
	AAA: Green/Red (2-in-1)
Power supply	Built-in internal battery: Lithium polymer, 330mAh
	Replaceable external battery: Compatible with AAA batteries (1.2V, 1.5V, or3.6V)
Charging	Port: USB-C (Charges the internal battery ONLY)
	Spec: 5V-0.35A
	Tirne: 1 hour
Charging indicator	The Lipo light breathes blue while in charging, and the AAA light comes on Green when it’s fully charged
Low battery voltage	Internal battery<3.0V, the Lipo light turns on red AAA battery<0.8V (Li-ion AAA is 3.0V), the AAA light turns red.
Water resistant	IPX6
Impact resistant	1.5m
Accessories	User manual, Pocket clip, Keyring, Warranty card

Lock/Unlock

Operation

E8U (UV+White+White)

With the light was switched off and unlocked

1. Moon: Click to turn on, click again to turn off.
2. Momentary on: Hold and press for High mode, release to turn off.
3. Constant on: Rapid double click to turn on from memorized mode* (1)Change modes: Click to cycle through Low-Med-High (2) Turn off: Press for 0.5s
4. Strobe: Rapid triple click, then click to turn off. *Turn off will memorize the last-used mode.

With the light was switched off and unlocked

1. White: Click to turn on from low mode, then click to cycle through Low-High
2. UV: Rapid double click to turn on
3. Turn off: Press for 0.5s

E8UR (UV+Red+White)

With the light was switched off and unlocked

1. Moon: Click to turn on, click again to turn off.
2. Momentary on: Hold and press for High mode, release to turn off.
3. Constant on: Rapid double click to turn on from memorized mode*
   1. Change modes: Click to cycle through Low-Med-High
   2. Turn off: Press for 0.5s
4. Strobe: Rapid triple click, then click to turn off. Turn off will memorize the last-used mode.

With the light was switched off and unlocked

1. White: Click to turn on from low mode, then click to cycle through Low-High;
2. Red: Rapid double click to turn on from the memorized mode*, then click to cycle through Red-Flash-Beacon
3. UV: Rapid triple click to turn on
4. Turn off: Press for 0.5s. Turn off will memorize the last-used mode.

E8W (Red+White+Blue)

With the light was switched off and unlocked

1. Moon: Click to turn on, click again to turn off.
2. Momentary on: Hold and press for High mode, release to turn off.
3. Constant on: Rapid double click to turn on from memorized mode*
   1. Change modes: Click to cycle through Low-Med-High
   2. Turn off: Press for 0.5s
4. Strobe: Rapid triple click, then click to turn off. Turn off will memorize the last-used mode.

With the light was switched off and unlocked

1. White: Click to turn on from low mode, then click to cycle through Low-High
2. Red: Rapid double click to turn on from the memorized mode*, then click to cycle through Red-Flash-Beacon
3. Red/Blue Flash: Rapid triple click to turn on
4. Turn off: Press for 0.5s Turn off will memorize the last-used mode.

E8R (Red+White+Red)

With the light was switched off and unlocked

1. Moon: Click to tum on, click again to turn off.
2. Momentary on: Hold and press for High mode, release to tum off.
3. Constant on: Rapid double click to turn on from memorized mode*
   1. Change modes: Click to cycle through Low-Med-High
   2. Turn off: Press for 0.5s
4. Strobe: Rapid triple click, then click to turn off. Turn off will memorize the last-used mode.

With the light was switched off and unlocked

1. White: Click to turn on from low mode, then click to cycle through Low-High;
2. Solid Red: Rapid double click to tum on from low mode, then click to cycle through Low- High
3. Signal Red: Rapid triple click to turn on from the memorized mode*, then click to cycle through Flash-Beacon
4. Tum off: Press for 0.5s Turn off will memorize the last-used mode.

Installation Steps

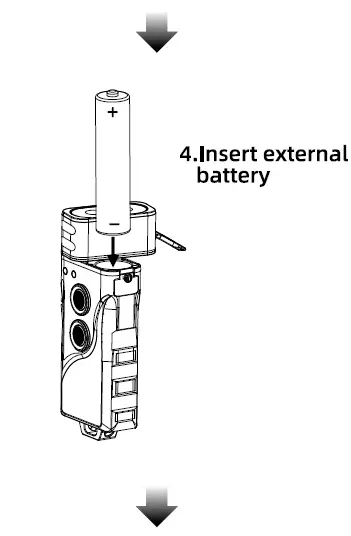

External battery installation steps



1. Press firmly on the light head
2. Turn clockwise and lock the latch

Hybrid battery system

Battery indicator light

Every time it is turned on, it will detect the type of battery currently in use

Battery switch

1. Click button 1 to enter moonlight mode
2. Triple-click button 1 to switch battery

Table 1: 2x 6500K Cool White

Primary light	Moon	Low	Med	High	Strobe
Output (Internal battery)	0.5Ims	10Ims	100lrns	700Ims
Output (AAA battery’)	0.5Ims	Sims	20Ims	100Ims
Runtime (Internal battery)	62hrs	14hrs	2hrs	3Mins2+1hr
Intensity (Internal battery)			300cd	1300cd
Beam Distance (Internal battery)			10m	?Om

Table 2: 2x 4000K Warm white, High CRI, 95CRI

Primary light	Moon	Low	Med	High	Strobe
Output (Internal battery)	0.5Ims	10lms	70lms	500lms
Output (AAA battery’)	0.5Ims	Sims	15Ims	70Ims
Runtime (Internal battery)	62hrs	14hrs	2hrs	3Mins’+1hr
Intensity (Internal battery)			200cd	900cd
Beam Distance (Internal battery)			5m	25m

1. The output while using AAA battery was tested with Eneloop 1.2V battery.
2. The high mode (powered by internal battery) will step down to 150 lumens in 3 minutes.

Table 3: Sidelight Specs

Light source	White		Red				Red/ Blue	UV
Mode	Low	High	Low	High	Flash	Beacon	Flash	UV
Output (AAA battery)	0.5Ims	60lms	Sims	50lms
Runtime (Internal battery)	62hrs	2hrs	12hrs	1.5hrs				4hrs

NOTE	1. The Medium and High modes are disabled while charging. 2. Charging will unlock the light automatically and stay unlocked after unplugged In. 3. Switching between the batteries is not available if both internal and external are low battery, or external AAA battery is not installed. 4. lt supports continuous lighting while replacing AAA battery.
Warranty	1. Period: 2 years since the purchasing date 2. Any defective or malfunction by factitious and disassembling without manufacturer’s permission are not under the warranty. 3. Email address: [email protected]
Warning!!!	1.00 NOTlook directly into the emitter 2.00 NOTcover the light head when it’s turned on to prevent melting the lens. 3.00 NOTpoint the light to eyes. 4.Children under 12 years old are not permitted to use this light unsupervised.

CONTACT

• Runfree Equipment Technology Co., Ltd.
• Website: www.RovyVon.com.
• Email: [email protected].
• District, Shenzhen, China
