Motorized Screen
Remote Instructions

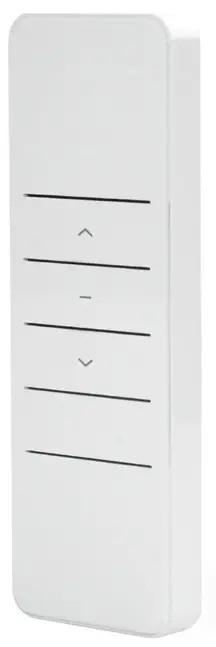

DC2700 Remote – Single Channel
Contents
IMPORTANT READ ME FIRST
- The delay time between buttons is within 6 seconds. If there is no input within 6 seconds, the remote will exit the current setting procedure
- The motor will jog and beep as a hint. Continue programming after the hint.
Pairing
Apply power to motor (1 jog andlong beep once), within 7s, press STOP for 2s (2 jogs and 3 beeps), the motor has been paired successfully
Switching Rotating Direction (Optional)
If the UP button is pressed, but the screen goes down, you will need to complete this step
Press and hold the UP and DOWN buttons simultaneously for 2s, motor will jog once and rotation will be switched successfully
*The motor needs to be in the reversing operation without limits
Setting Upper and Lower Limits
UPPER LIMIT
Move the screen up to the desired upper limit
Press and hold UP + STOP simultaneously for 2s (2 jogs, 3 beeps) upper limit
LOWER LIMIT
Move the screen down to the desired lower limit
Press and hold DOWN + STOP simultaneously for 2s (2 jogs, 3 beeps) Lower limit is set
Adjusting Limits
Adjust Upper Limit
Press and hold UP + STOP simultaneously for 5s (1 jog, 1 Long beep) Repeat step 3
Adjusting Lower Limit
Press and hold DOWN + STOP simultaneously for 5s (1 jog, 1 Long beep) Repeat step 3
Preferred Position
Set Preferred Position
Check that both upper and lower limits are set.
Operate the screen to the desired preferred position. Press P2 (1 jog and 1 beep), press STOP (1 jog and 1 beep), press STOP again (2 jogs and 3 beeps), preferred position is now set
Remove Preferred
Press P2 (1 jog and 1 beep), press STOP (1 jog and 1 beep), press STOP again (1 jog and 1 Long beep), preferred position is now deleted
Delete All Limits
Press P2 (1 jog and 1 beep), Down and 1 beep), P2 (2 jogs and 3 beeps), all limits are now removed
Pair / Unpair Additional Remotes
On existing remote, Press P2 (1 jog and 1 beep) Press P2 again (1 jog and 1 beep), then on new remote, press P2 (2 jogs and 3 beeps). New remote is now linked. Repeat for any additional remotes
Remove All Remotes
Press P2 (1 jog and 1 beep), STOP (1 jog and one beep), P2 (2 jogs and 3 beeps)
Motor Mode Switching
Press P2 (1 jog and 1 beep), UP (1 jog and one beep), UP (1 jog and 1 long beep)
Troubleshooting
| Issue — Possible Cause | Solution |
| Motor has no response – No Power or poor wire connection | Check power and connections |
| Motor has no response – Remote battery low | Replace Battery |
| Motor has no response – RF Interference | Check motor antenna, check for other RF source interference |
| Motor has no response – Out of remote control range | Move remote closer to unit |
