RETEX EASyRACK 19 Inch Wall Mounted Cabinets Owner’s Manual

RETEX EASyRACK 19 Inch Wall Mounted Cabinets Owner’s Manual

Contents

ESP

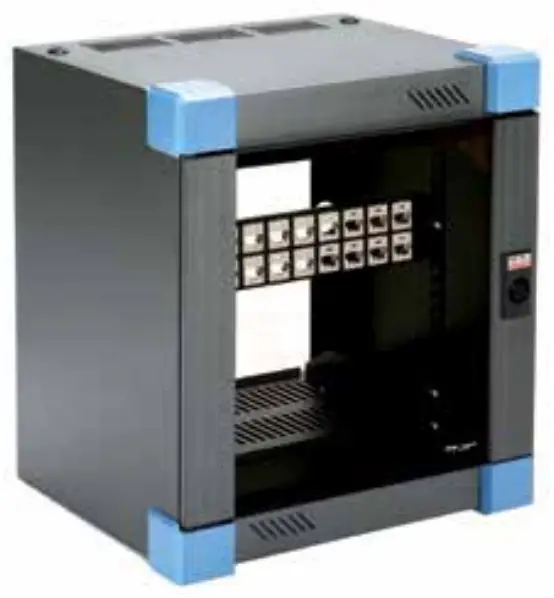

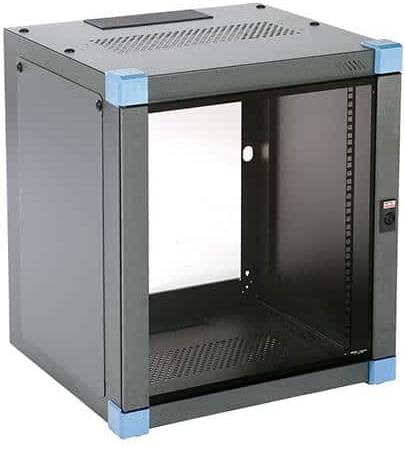

19” wall mounted cabinets. For cabling, telecommunications, IT and industrial installations.
Designed in accordance with IEC60 297-2, DIN 41944 part 1 and 7, ANSI/ EIA-310 and UNE 20 539-2.
Delivered flat packed for ease of access to all installations. Also reduces associated logistic costs and offers greater protection during transit.
Fast and efficient assembly without tools.

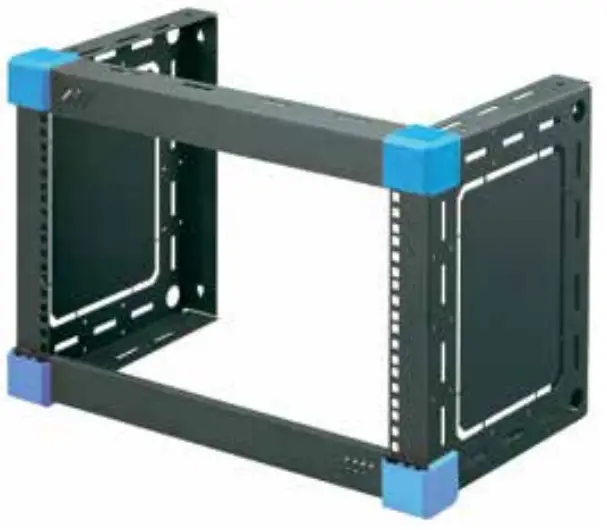

2x 19” mounting profiles. Variable depth, in 20mm increments Numbered“U’s” optional.
Fast fixings 1/4 turn locks.

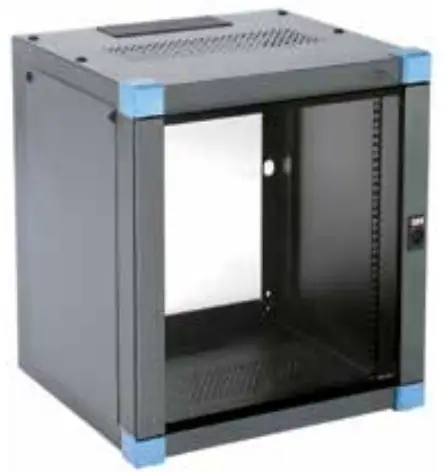

New front door with aluminium frame. Tempered , smoked safety glass.
No rear panel or door. 18U/24U self-standing version includes rear door with key lock as standard.
Easily removable side panels with 2x 1/4 turn locks. Except SOHO version.
Newly designed top and base panels, with ventilated areas for installation of the new modular fan trays.
New cable entry options for the top panels. With plastic blanking covers or optional brush strip fittings.
Levelling feet included with the 18U/24U self-standing version.
Distributed recommended load capacity: 40 Kg

Distributed recommended load capacity: 40 Kg
Finishes: Graphite Grey epoxy paint and standard blue corners pieces similar to RAL 5007.
Delivery: Flat packed with carrying handle. (Except SOHO and FRAME versions).

Instruction

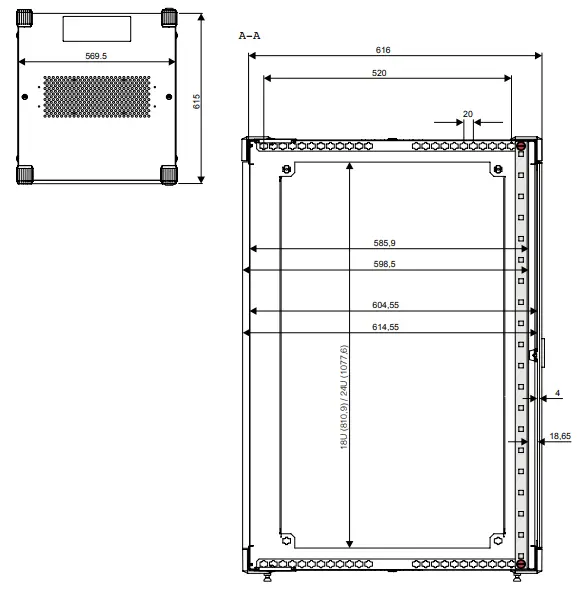

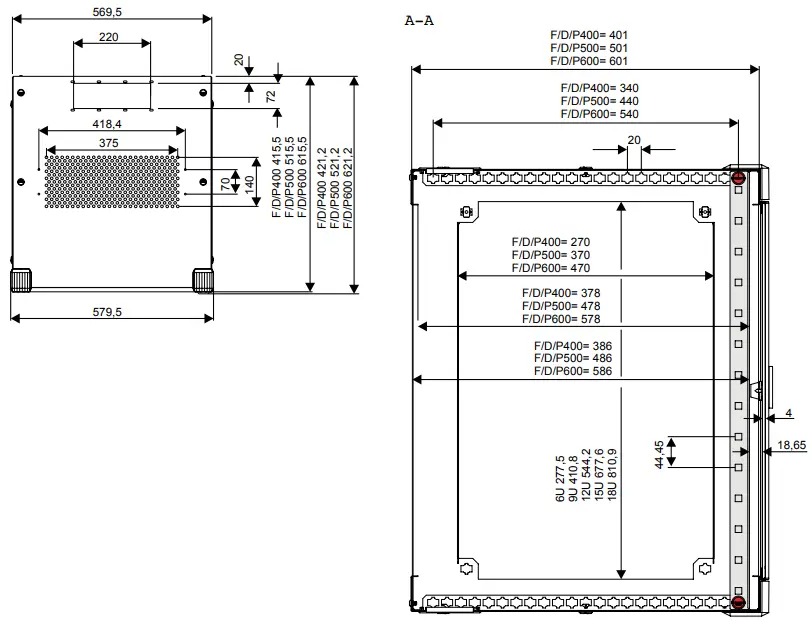

Dimensions

Code	19″	U/HE	a	b	c	Front door	Rear Door
32250406	*	6	580	421	384	*
32250409	*	9	580	421	517	*
32250512		12	580	521	651	*
32250515	*	15	580	521	784	*
32250606		6	580	621	384
32250609	*	9	580	621	517	*
32250612	*	12	580	621	651
32250615	*	15	580	621	784	*
32250618	*	18	580	621	917
32252618	*	18	580	621	917	*	*
32250624	*	24	580	621	1184
4	*	24	580	621	1184
