RenewAire SL75 Energy Recovery Ventilator
Note: There are multiple control options designed to address individual climate conditions. Please consult your local installer for the best installation controls for your climate.
SPECIFICATIONS
- Ventilation Type: Static plate, heat and humidity transfer
- Typical Airflow Range: 30–130 CFM
- Unit is HVI Tested/Certified per CSA C439 Protocol: Using one L-30-G5 Core
- Standard Features: White painted cabinet Line-cord power supply or hard-wired to junction box (H) Low-voltage circuit for controls Unit may be mounted in any orientation Cross-core differential pressure ports
- Dial-A-Flow: balance and airflow adjustment Variable speed Boost-mode
- Controls: Onboard digital controller with independent variable speeds
- Filters: Total qty. 2, MERV 8, spun-polyester media: 7 1/2″ x 10 1/2″ x 1″
- Unit Weight: 35 lbs.
- Max. Shipping Dimensions & Weight (in carton): 31 1/4″ L x 22 3/8″ W x 14 3/8″ H 41 lbs.
- Units Per Pallet: 10
- Motor(s): Qty. 2, 120V EC motorized impellers
Accessories
- Backdraft damper: 6″, 8″
- Automatic balancing damper: 4″, 5″, 6″
- Motorized dampers: 6″, 8″
- Concentric vent: 6″ (CV6-110)
- Louvered wall vent 6“: white, brown
- Louvered wall vent 8″: taupe vinyl, galvanized, paintable galvanneal Louvered wall vent with 8″ round duct connection: 12″ W x 8″ H Digital time clock: wall mount (TC7D-W), in exterior enclosure (TC7D-E)
- Carbon dioxide sensor/control: wall mount (CO2-W)
- IAQ sensor: wall mount (IAQ-W)
- Motion occupancy sensor/control: ceiling mount (MC-C), wall mount (MC-W) Push-button boost timer (PBT) Percentage timer control (PTL) Percentage timer control with furnace interlock (FM) Push-button point-of-use controls (PBL), PTL req’d.
- MERV 13 filter: OA airstream (shipped loose) Wall bracket kit
- Electric duct heater: RH series (1–4 kW); designed for indoor ductwork installation only

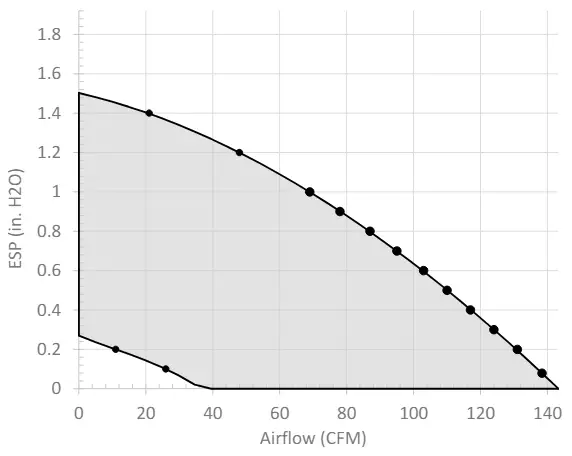

EC MOTOR OPERATING RANGE AND CORE PERFORMANCE
= Actual tested sample points
| = Operating curves, airflow is held constant as static pressure varies
Factory settings
- High speed set to top curve
- Low speed set to ~90CFM at 0.4 in. w.g. ESP
|
Airflow (CFM) |
External Static Pressure (Inches Water Column) | Unit Power Consumption (Watts) |
Sensible EFF% |
Total EFF% Winter/Summer |
| Max. Speed | ||||
| 138 | 0.10 | 135 | 62 | 54/36 |
| 131 | 0.20 | 134 | 64 | 55/38 |
| 125 | 0.30 | 133 | 65 | 57/40 |
| 117 | 0.40 | 132 | 66 | 59/42 |
| 110 | 0.50 | 131 | 68 | 60/44 |
| 102 | 0.60 | 129 | 69 | 62/46 |
| 95 | 0.70 | 126 | 71 | 64/48 |
| 87 | 0.80 | 123 | 72 | 66/51 |
| 78 | 0.90 | 119 | 74 | 68/53 |
| 68 | 1.00 | 114 | 76 | 70/56 |
| 49 | 1.20 | 102 | 79 | 75/61 |
| 21 | 1.40 | 64 | 85 | 81/69 |
| Min. Speed | ||||
| 26 | 0.10 | 11 | 84 | 80/68 |
| 11 | 0.20 | 9 | 87 | 83/72 |
Notes:
- Watts is for the entire unit.
- Airflow performance includes the effect of a clean, standard filter supplied with the unit.
- Refer to CORES for specific operating point electrical data.
- These are core-only ratings and are not HVI-certified. Total EFF% calculated at 35/33wb OA and 70/58wb RA (winter) and 95/78wb OA and 75/63wb RA (summer). HVI ratings apply to complete units only. This unit is HVI-certified. See HVI certified ratings on pg. 46 of Single/Multi-Family Catalog and at hvi.org.3
ELECTRICAL DATA
|
Watts |
Volts |
Hz |
Phase |
FLA
per motor |
Minimum Circuit Amps |
Max Overcurrent Protection Device |
| 53 | 120 | 60 | 1 | 0.85 | 15 | 15 |
LOW-PROFILE MULTI-FAMILY RESIDENTIAL/LIGHT COMMERCIAL
AIRFLOW ORIENTATION
- Available as shown in the dimension drawing.
UNIT MOUNTING & APPLICATION
Can be mounted in any orientation. RA/EA airstream can be switched with OA/SA airstream.
- Subject to change without notice: RENEWAIRE.COM | 1.800.627.4499
