REDRAGON SP6 Gaming PC Case Instruction Manual

REDRAGON SP6 Gaming PC Case

SCREW ACCESSORIES

DANCING BAR MODE INTRODUCTION

DANCING BAR MODE AND ARGB MODE:

DANCING BAR MODE/1#2b###:
PRESS TO CHANGE TO THE DANCING BAR MODE.

ARGB MODE/ARGBIt:
MOTHERBOARD SYNCHRONIZATION

TURN OFF/**JIR/F:
LONG PRESS THE BUTTON FOR SECONDS, WHEN THE WHITE LIGHT
FLASHES 2 TIMES, IT WILL BE TURNED OFF.

TURN ON/AFXJ121F:
LONG PRESS THE BUTTON FOR SECONDS,
WHEN THE WHITE LIGHT FLASHES 2 TIMES IT WILL, TURN ON

ASSEMBLY VIEW

1. A. MOTHERBOARD
   1. THE HOLES OF THE MOTHERBOARD SCREW ALIGN WITH THE HEXAGON PILLARS
   2. FK THE MOTHERBOARD AND CASE WITH THE MOTHERBOARD SCREW
   3. CPUMAXL:140MM
      MOTHERBOARD SPECIFICATIONS
2. B. VGA CARD
   1. INSERT THE VGA CARD INTO THE PCLE X4 CARD SLOT OF THE MOTHERBOARD
   2. FIX THE VGA CARD WITH HEXAGONAL SCREWS
   3. RESERVING THE VGA CARD SLOTS FOR THE CASE, WHICH CAN ADJUST ITSELF
3. ACCORDING TO THE OUTPUT PORT OF VGA CARDS
4. VGA MAX L: 320MM
5. C. POWER SUPPLY
   • PSU BOTTOM MOUNT
   • THE HOLES OF THE PSU ALIGN WITH THE RESERVED HOLE FOR THE CASE
   • FIX WITH THE HEXAGONAL SCREWS

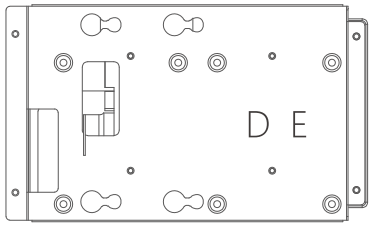

6. D. HDD
   1. SUPPORT 3.5″HDD*1 ‡##3.5’HDD*1
   2. THE SCREW HOLES OF THE HDD ALIGN WITH THE HDD HOLES, LOCKED THE HDD SCREWHDD
7. E. SSD
   1. SUPPORT 2.5″SSD*2 2‡72.5’SSD*2
   2. THE HOLES OF SSD ALIGN WITH THE RESERVED HOLE FOR CASES
   3. FIX SSD WITH THE MOTHERBOARD SCREWS
8. F. LIQUID COOLER
   • TOP:24CM#
   • FAN
   • FRONT:2*12CM
   • TOP:2*12CM

WWW.REDRAGONZONE.COM
