INSTALLATION GUIDE FOR KNW1713MBK
SAFETY INFORMATION
Released Date: 2022-03-21
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.
PACKAGE CONTENTS
A Ceiling Canopy with Rod x 1 B Screw x 4
C Side Rod x 4 D Center Rod x 1

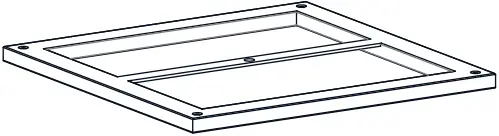

E Socket Assembly x 1 F Top Frame x 1
G Bottom Frame x 1
MOUNTING HARDWARE
AA Crossbar Assembly x 1 BB Wire Connector x 3
CC Outlet Box Screw x 2
INSTALLATION
1 Install Top Frame, Bottom Frame and Side Rods Together
2 Install Socket Assembly, Center Rod, Cage and Ceiling Canopy with Rod Together
3 Install Crossbar Assembly
- Outlet Box
4 Wiring
- White wire from supply
- White from fixture
- Black (or red) wire from supply
- Black from fixture
- Ground wire from supply
- Ground wire from fixture
- Green ground screw
5 Install Ceiling Canopy to Crossbar Assembly
6 Install Bulbs
Install three correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb type (not included):
BULB BASE TYPE Candelabra (E12) BULB SHAPE TYPE B
Your installation is now complete! Restore electricity and save this sheet for future reference.
