10GBASE-T SFP+ Copper RJ-45 30m Transceiver
P/N: QT- SFP-10G-T
Contents
FEATURES
- Supports Links up to 30m using Cat 6a/7 Cable
- SFF-8431 and SFF-8432 MSA Compliant
- IEEE 802.3az Compliant
- Low Power Consumption (2.5W max @ 30m)
- Fast Retrain EMI Cancellation Algorithm
- Low EMI Emissions
- I2C 2 Wire Serial Interface for Serial Id and Phy Registers
- Auto-negotiates with other 10GBase-T-NC PHYs
- Automatic Detection and Correction of Wiring and Polarity Swaps
- Robust Die Cast Housing
- Bail Latch Style ejector mechanism
- Unshielded and Shielded cable support
DESCRIPTION
The QSFPTEK QT-SFP-10G-T copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10Gigabit Ethernet over Cat 6a/7 cable.This is the first SFP+ transceiver that offers 10Gb/s communication over this type of media.
General Specification
| Parameter | Symbol | Min | Typ | Max | Unit | Remarks |
| Bit Error Rate | BER | 10-12 | ||||
| Operating Temperature | T op | -5 | 85 | °C | Case temperature | |
| Storage Temperature | T sto, | -40 | 85 | °C | Ambient temperature | |
| Operating Humidity | – | 5 | 95 | % | Non condensing | |
| Power @30m | Is | 2.3 | 2.5 | W | ||
| Input Voltage | Vcc | 3 | 3.3 | 3.6 | V |
- Pin Assignment
PIN # Symbol Description 1 VEET Transmitter ground (common with receiver ground) 2 TFAULT Transmitter Fault. 3 TDIS Transmitter Disable. Laser output disable on high or open 4 SDA Data line for serial ID 5 SCL Oock line for serial ID 6 MOD_ABS Module Absent. Grounded within the module 7 RS0 No connection required 8 LOS Loss of Signal indication. Logic 0 indicates normal operation 9 RS1 No connection required 10 VEER Receiver ground (common with transmitter ground) 11 VEER Receiver ground (common with transmitter ground) 12 RD— Receiver Inverted DATA out. AC coupled 13 RD+ Receiver Non-inverted DATA out. AC coupled 14 VEER Receiver ground (common with transmitter ground) 15 VCCR Receiver power supply 16 VCCR Transmitter power supply 17 VEET Transmitter ground (common with receiver ground) 18 TD+ Transmitter Non-Inverted DATA in. AC coupled 19 TD— Transmitter Inverted DATA in. AC coupled 20 VEET Transmitter ground (common with receiver ground) Note:
1. IEEE standard 802.3ae. IEEE Standard Department, 2005.
2. Enhanced 8.5 and 10 Gigabit Small Form Factor Pluggable Module “SFP+” – SFF-8431

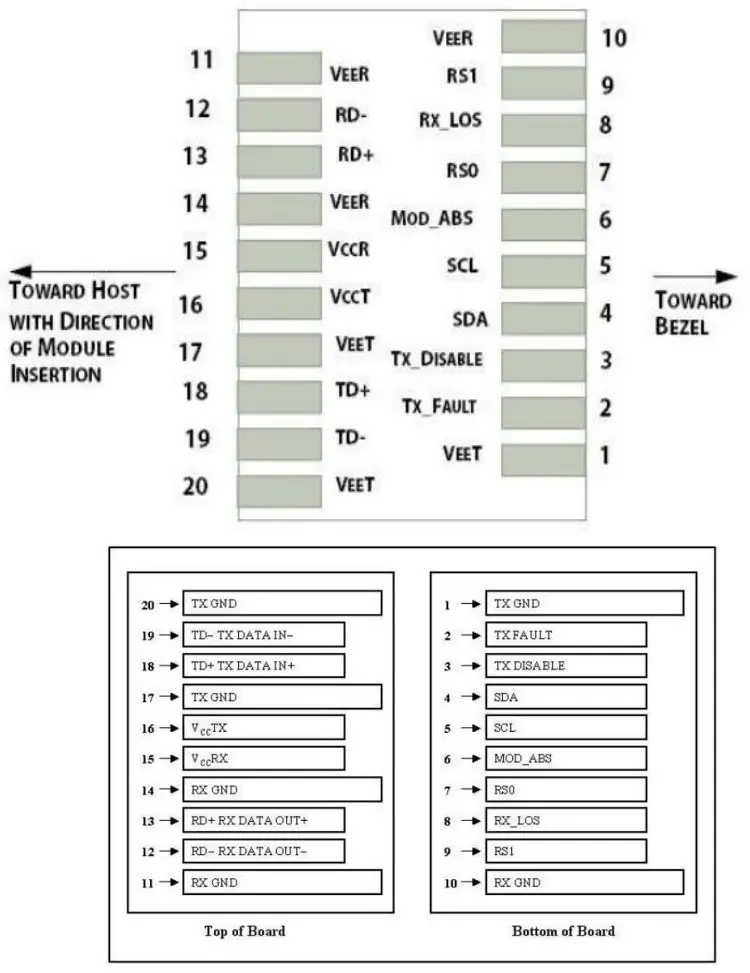

3. Digital Diagnostics Monitoring Interface for Optical Transceivers – SFF-8472. - Electrical Pad Layout

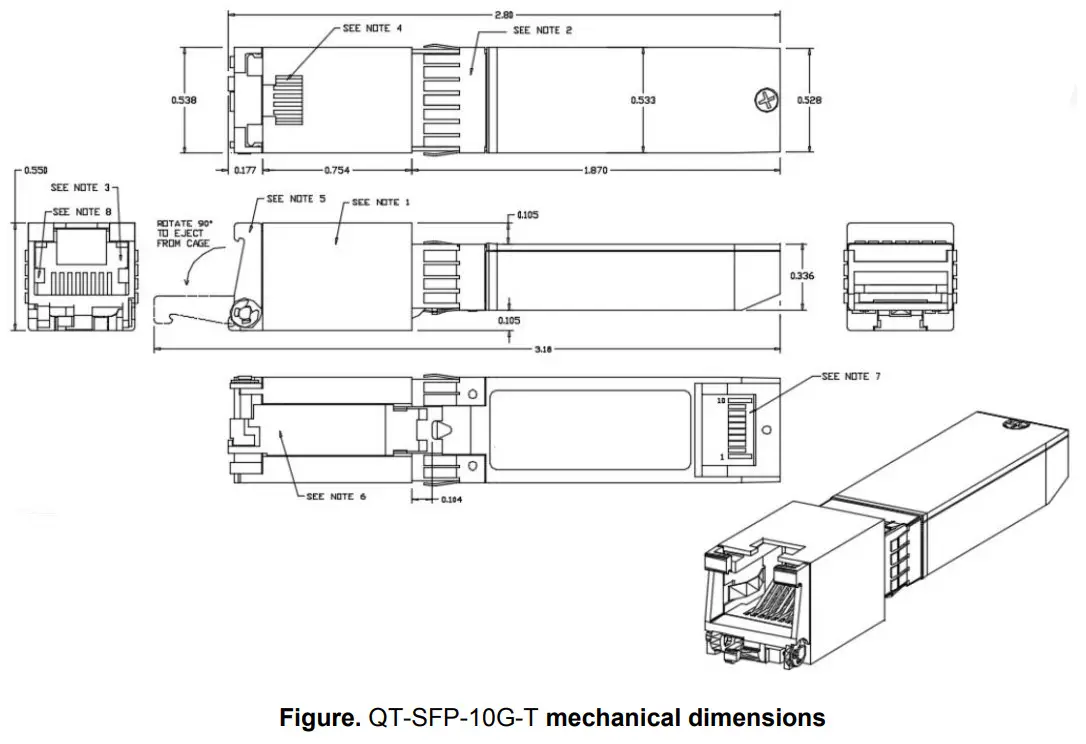

- Mechanical Specifications
NOTES:
1) MAIN BODY OF HOUSING MATERIAL: ZINC DIE CAST WITH NICKEL PLATING
2) GROUNDING TABS: STAMPED BRASS WITH NICKEL PLATING
3) RJ45 INSULATOR MATERIAL: STANYL TE250F6-RATED 94V-0; COLOR: BLACK
4) RJ45 CONTACTS PHOSPHOR BRONZE
PLATING 50µin MIN. HARD GOLD ON CONTACT AREA, TIN ON SOLDER AREA
5) BAIL LATCH: MIM STEEL WITH GOLD FLASH OVER NICKEL PLATING
6) EJECTOR ACTUATOR: ZINC DIE CAST WITH NICKEL PLATING
7) PCB-039° THICK: 30µmm. MIN GOLD PLATING OVER 50µin. MIN NICKEL ON CONTACT AREA
8) SHIELDED PLUG GROUNDING TAB: BERYLLIUM COPPER WITH NICKEL PLATING
9) SCREW: STAINLESS STEEL - Ordering information
Part numbe Operating Case temperature QT-SFP-10G-T Copper SFP,10.125 Gb/s, RJ-45 connector,30M, 0°C to +70°C QT-SFP-M Copper SFP, 1000M, RJ-45 connector,100M, 0°C to +70°C QT-SFP-T Copper SFP,10/100/1000M, RJ-45 connector,100M, 0°C to +70°C
